(C304CR) Quartz Fluorescence Cuvette, 30 mm Path, 32.4 mL

Weight	100 g

SKU: C304CR

Original price was: $213.00.Current price is: $192.00.

In Stock

C304CR is a JGS1 quartz fluorescence cuvette with a 30 mm optical path, Four-Way Light access and a large 30 × 30 × 45 mm internal chamber. Its open-top body gives direct filling access for methods that use a larger square sample region, and the nominal capacity is 32.4 mL. Sold per 1 cuvette.

In Stock

SKU: C304CR Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

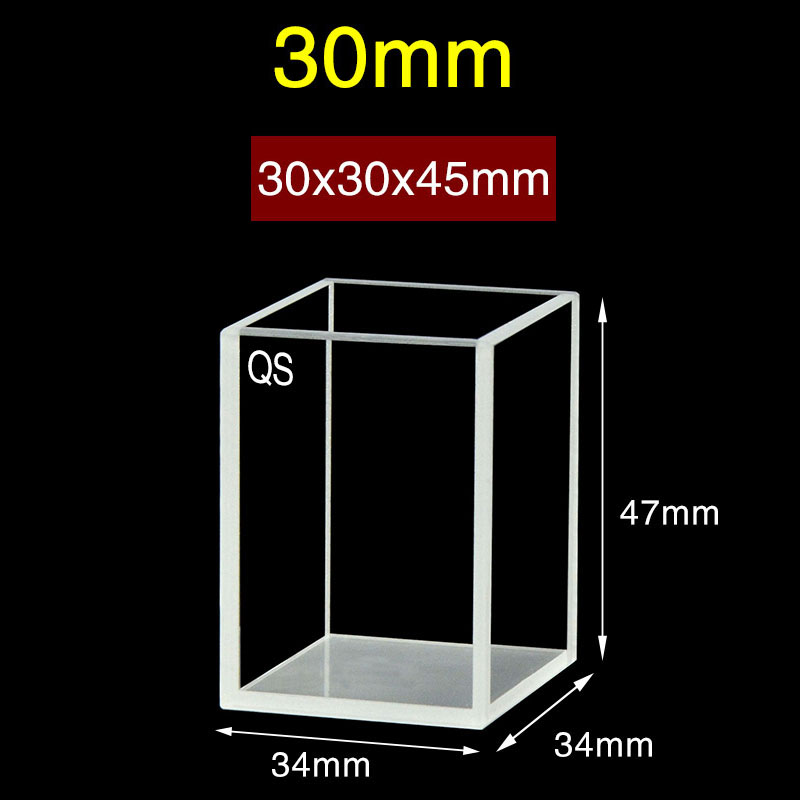

C304CR is a JGS1 quartz fluorescence cuvette designed around a 30 mm optical path and a large square sample region. Its Four-Way Light layout and open-top body make it useful when you need side optical access together with straightforward top filling, rinsing and visual checking of the chamber. The nominal capacity is 32.4 mL, with a 30 × 30 × 45 mm internal chamber.

Path Length: 30 mm
Sample Volume (Nominal): 32.4 mL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	30 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	32.4 mL
External Dimensions	34 × 34 × 47 mm
Uncapped Cell Dimensions	34 × 34 × 47 mm
External Dimensions Scope	Uncapped Cell
Body Height	47 mm
Internal Dimensions	30 × 30 × 45 mm
Material	Quartz
Material Grade	JGS1
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C304CR when your setup needs a larger fluorescence cell body rather than a narrow chamber. The square internal space gives more room for loading and handling the sample, while the open top leaves the chamber directly accessible from above. This option is also identified with a powder-fused construction term, which is relevant when you are selecting among different cuvette build styles and want to review that construction approach alongside your sample and cleaning routine.

What makes this option different

The 30 mm optical path suits methods that are set up for a longer beam path through the sample.
Four-Way Light geometry provides optical access from multiple side faces for fluorescence arrangements that use this beam layout.
The 30 × 30 × 45 mm internal chamber forms a broad square sample region that is easier to fill and inspect from above than a narrow slot-style cavity.
The open-top body gives direct pipette or pouring access without a built-in threaded or stoppered closure on the cell body.
The listed powder-fused construction term distinguishes this version from other joining/build styles in the same general product family, so it should be selected with your method and cleaning approach in mind.
The uncapped outer size of 34 × 34 × 47 mm is useful for holder and compartment clearance checks.

Using this cell

Fill the cell from the top and keep the measurement orientation consistent if your fluorescence method uses a defined excitation side and collection side. Before placing the cuvette in the instrument, check that the beam will pass through the intended faces and that the sample does not leave visible bubbles or droplets across the light path.

The open chamber is convenient for direct loading, emptying and rinsing. Because this is an open-top body, handle it carefully during transfer and measurement so liquid does not wet the upper rim or spill onto the outer optical faces.

First-use check

Inspect the optical faces, top edge and bottom support area for chips, scratches or particles before first use. Rinse with a suitable liquid for your method, place the cell in its holder, and confirm that it seats stably and presents the intended faces to the beam.

Fit and optical alignment

The uncapped cell body measures 34 × 34 × 47 mm. Use these body dimensions when checking compartment width, holder opening and vertical clearance, especially if your instrument is arranged around a slimmer cuvette format.

Z Height is not specified for this option. If your instrument requires a defined beam-center height, check that point before ordering rather than relying on the overall body height. The listed dimensions apply to the bare open cell body and do not establish installed clearance for any separate cover or accessory.

Solvents and cleaning

This quartz cuvette is listed for fluorescence spectroscopy in the stated 200–2500 nm range. For general background on cuvette construction approaches, see Compare fabrication options.

The source identifies this item with a powder-fused construction term. That helps distinguish the build style of this exact option, but it does not by itself establish a full chemical-resistance list for every solvent or cleaning condition. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

1 cuvette per listed price unit. If you need a supplied closure or other accessory, contact us before ordering.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, optical access, closures, connections and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions that matter to your holder and measurement geometry. Discuss your requirements and quote part number C304CR.
