(C304CE2) Quartz Large-Window Cuvette, 30 mm / 10 mm (dual path) Path, 10.5 mL

Weight	100 g

SKU: C304CE2

Original price was: $285.00.Current price is: $257.00.

In Stock

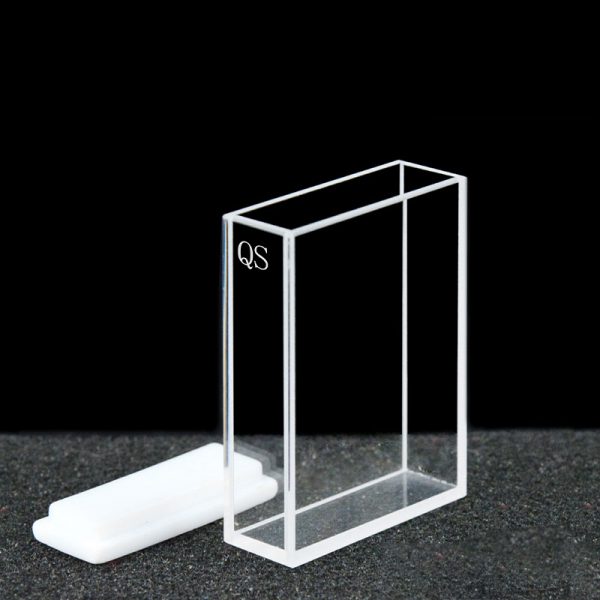

C304CE2 is a quartz large-window cuvette with a 30 mm primary path, a 10 mm secondary path and Four-Way Light geometry. The open-top body and 10.5 mL nominal capacity suit UV/Vis and fluorescence work that needs a longer path with optical access from more than one direction. Sold as 1 cuvette, with lid included.

In Stock

SKU: C304CE2 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C304CE2 is a quartz large-window cuvette with a 30 mm primary path, a 10 mm secondary path and Four-Way Light access. It is a practical choice when you need a longer measurement path than a standard 10 mm cell but still want cross-axis optical access in the same body. This option is sold as 1 cuvette, with lid included.

Path Length: 30 mm / 10 mm (dual path)
Sample Volume (Nominal): 10.5 mL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Large-Window Cuvette
Measurement Mode	UV/Vis Spectroscopy; Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	30 mm / 10 mm (dual path)
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	10.5 mL
External Dimensions	12.5 × 32.5 × 45 mm
Cell Body Dimensions	12.5 × 32.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Closure Included	Yes
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C304CE2 when your method calls for a 30 mm path and you also want a 10 mm cross path available in the same cuvette. The open-top chamber makes filling and visual inspection straightforward, and the 10.5 mL nominal capacity suits methods that use a larger sample chamber together with multi-direction optical access.

What makes this option different

30 mm primary path with a 10 mm secondary path in one cuvette.
Four-Way Light configuration for optical access on multiple sides.
Open-top cell body for direct filling and easy inspection of the sample chamber.
10.5 mL nominal capacity in a larger quartz body.

Using this cell

Fill through the open top and make sure the liquid level covers the optical path you intend to use. Before measurement, clear bubbles or droplets from the optical region and keep the same cuvette orientation for blank and sample runs.

This model is listed for UV/Vis and fluorescence use, but the beam-center height is not stated here. If your setup depends on a fixed beam height or a specific side-access pattern, check that alignment in your holder before ordering.

First-use check

Inspect the optical faces and chamber edges for visible contamination or damage.
Place the empty cuvette in the holder to confirm fit and access to the sides you need.
After filling, verify that the selected beam path is fully covered and free of bubbles.

Fit and optical alignment

The stated body dimensions are 12.5 × 32.5 × 45 mm, and they apply to the body only. Check holder width, depth and top clearance around the open-top structure and the supplied lid, especially in compact accessories or enclosed sample compartments.

The two optical paths are 30 mm and 10 mm on different axes. Make sure your optical layout can access the required faces of a Four-Way Light cuvette, and do not rely on body size alone where a specific Z Height is required.

Solvents and cleaning

Specific chemical limits are not stated for this exact SKU. For general background on cuvette construction choices and how sample and cleaning routine affect selection, see Compare fabrication methods.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects for changes involving dimensions, path length, sample volume, optical windows, Z Height, closures, interfaces and tolerances. Send a dimensioned drawing or labelled sketch together with holder details, the optical axis you need to use, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and reference C304CE2.
