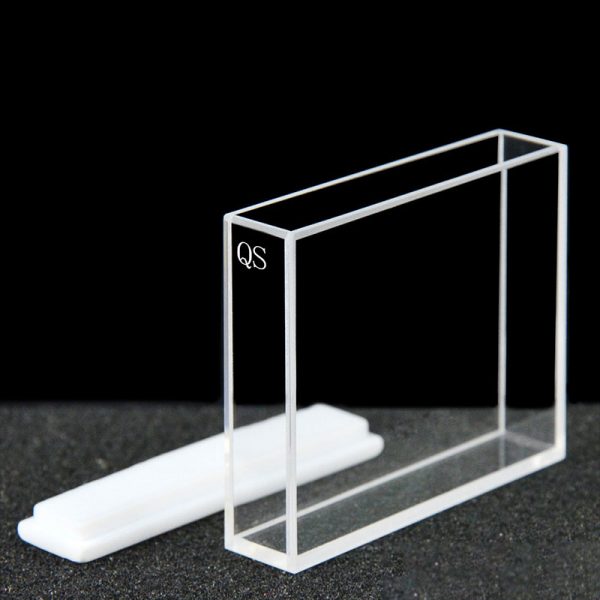

(C504CE) Quartz Fluorescence Cuvette, 50 mm Path, 17.5 mL

Weight	100 g

SKU: C504CE

Original price was: $380.00.Current price is: $342.00.

In Stock

Quartz fluorescence cuvette with a 50 mm optical path, Four-Way Light access and 17.5 mL nominal capacity. The open-top body allows direct filling, a closure is included, and the listed sale unit is 1 cuvette.

In Stock

SKU: C504CE Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C504CE is a quartz fluorescence cuvette for methods that use a 50 mm optical path and optical access from multiple sides. Its open-top body and 17.5 mL nominal capacity make it suitable for direct filling, inspection and cleaning in longer-path fluorescence work. This option is supplied as 1 cuvette per listed price unit, with a closure included.

Path Length: 50 mm
Sample Volume (Nominal): 17.5 mL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	50 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	17.5 mL
External Dimensions	12.5 × 52.5 × 45 mm
Cell Body Dimensions	12.5 × 52.5 × 45 mm
External Dimensions Scope	Body Only
Body Height	45 mm
Base Dimensions	12.5 × 52.5 mm
Material	Quartz
Closure Included	Yes
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C504CE when your fluorescence method is built around a 50 mm path and you want direct top access to the sample chamber. The Four-Way Light layout supports side optical access around the sample region, while the longer body format is suited to setups planned around a larger nominal fill volume.

What makes this option different

50 mm optical path suits methods specified around a longer light path.
Four-Way Light layout provides optical access through multiple faces around the sample chamber.
Open-top body allows direct filling, pipetting and visual inspection of the sample region.
17.5 mL nominal capacity fits larger-volume fluorescence work in a single cuvette format.

Using this cell

Fill the cell from the top and keep the optical faces clean in the active beam area. For fluorescence work, use a consistent orientation between blank and sample measurements so the same optical faces remain in use from run to run.

The included closure can help cover the opening during routine handling, but its exact design and sealing performance are not specified here. If your procedure involves inversion, transport while filled or other closed-handling steps, check whether the supplied closure arrangement suits that use before ordering.

First-use check

Inspect the cell body, optical faces and top opening for chips, residue or transport damage before first use. Test fit the empty cell in your holder, rinse appropriately for your method, and run the blank in the same orientation planned for sample measurements.

Fit and optical alignment

The body dimensions are 12.5 × 52.5 × 45 mm, and these apply to the cell body rather than a capped overall height. Use them to check holder seating, side clearance and top access in your instrument or fixture.

Z Height is not specified for this option. If your holder or optical setup depends on a defined beam-center height, confirm that point directly rather than assuming fit from the outside body dimensions.

Solvents and cleaning

Quartz is widely used for laboratory optical cells, but the chemical limits for this assembled SKU are not specified here. If your method uses aggressive reagents, organic solvents, heated cleaning steps or extended contact time, check suitability for the full assembly before use.

For general background, see the MQ cuvette fabrication guide. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 1 quartz cuvette per pack. A closure is included. Additional package contents are not specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom quartz cuvettes for changes to dimensions, optical path length, sample volume, optical windows, Z Height, closures and related details. Send your drawing or labelled sketch, holder or instrument details, sample conditions and required quantity through our contact page, and mention part number C504CE.
