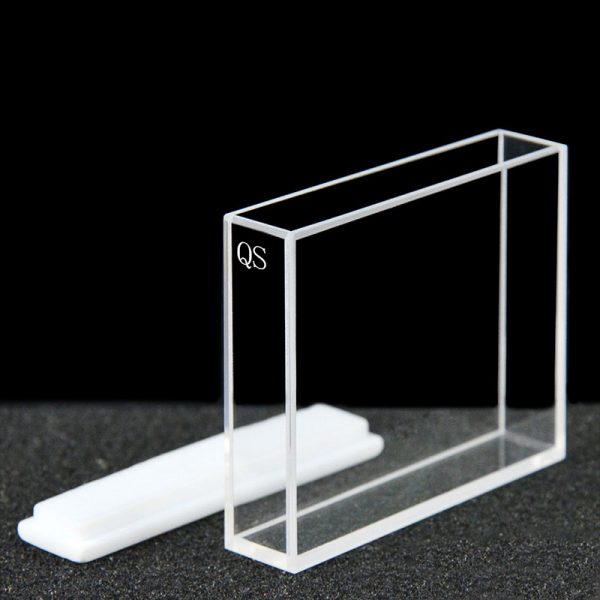

(C504CE4) Quartz Large-Window Cuvette, 50 mm / 10 mm (dual path) Path, 17.5 mL

Weight	100 g

SKU: C504CE4

Original price was: $380.00.Current price is: $342.00.

In Stock

C504CE4 is a quartz large-window cuvette with a 50 mm primary path, a 10 mm secondary path and Four-Way Light access in one body. Its open-top format and 17.5 mL nominal capacity suit UV/Vis and fluorescence setups that need long-path transmission plus side optical access. Sold as 1 cuvette per listed price unit, with closure included.

In Stock

SKU: C504CE4 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C504CE4 is a quartz large-window cuvette for UV/Vis and fluorescence work that uses a 50 mm primary optical path together with a 10 mm secondary path in the same body. This layout is useful when your method needs a long transmission path but also benefits from optical access on another axis. The open top gives direct access for filling and checking the sample before measurement, and the listed price is for one cuvette with closure included.

Path Length: 50 mm / 10 mm (dual path)
Sample Volume (Nominal): 17.5 mL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Large-Window Cuvette
Measurement Mode	UV/Vis Spectroscopy; Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	50 mm / 10 mm (dual path)
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	17.5 mL
External Dimensions	12.5 × 52.5 × 45 mm
Cell Body Dimensions	12.5 × 52.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Closure Included	Yes
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C504CE4 when your setup is built around a 50 mm measurement path and you want a second 10 mm optical direction available in the same cell. The Four-Way Light layout makes this a practical choice for methods that combine transmission with side access, while the 17.5 mL nominal capacity suits a larger filled sample region than a small analytical cuvette.

What makes this option different

50 mm primary path plus 10 mm secondary path in one cuvette body.
Four-Way Light configuration for optical access on multiple sides.
Open-top large-window body for direct filling, inspection and rinsing.
17.5 mL nominal capacity for methods that use a larger sample volume.
Body dimensions of 12.5 × 52.5 × 45 mm for holder and chamber-clearance planning.

Using this cell

Fill the sample chamber from the top and use enough liquid to cover the beam region used by your method. When blank and sample readings need to match closely, keep the cell orientation consistent and clear bubbles from the optical region before measurement.

If you use both optical directions in one workflow, handle the cell carefully so fingerprints and droplets do not remain on the optical faces. The nominal 17.5 mL figure describes the stated capacity of the cell, not a minimum working fill.

First-use check

Inspect the optical faces and top opening for chips, dust or transit residue.
Place the cuvette in the holder and check that the wider body seats without side interference.
Run a blank on the optical axis you intend to use first.
If you plan to use the included closure during handling, check that it suits your routine before loading valuable samples.

Fit and optical alignment

The stated 12.5 × 52.5 × 45 mm dimensions apply to the body only. Check holder width, chamber space and top clearance, especially if your instrument was designed around a narrower rectangular cuvette body.

Z Height is not established for this SKU. If your instrument has a fixed beam-center height or tight fluorescence geometry, confirm the required beam position against your holder or current cell before ordering rather than relying on the body outline alone.

Solvents and cleaning

The chemical limits for this exact SKU are not established here, so choose it on the basis of its optical layout and geometry rather than a general chemical-resistance claim. If your method involves aggressive acids, alkalis, organic solvents or elevated temperatures, check suitability for the actual sample, contact time and closure arrangement before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. For general background on cuvette construction options, see the fabrication overview.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects for changes to dimensions, optical path length, sample volume, windows, Z Height, closures and related fit details. Send a dimensioned drawing or labelled sketch together with your holder or instrument information, sample conditions and quantity. Prototype batches typically involve 2–4 cells, with final feasibility, specifications, price and production time confirmed in the project quotation. To discuss a custom version, use this contact page and mention part number C504CE4.
