(C302CE2) Quartz Standard Cuvette, 30 mm Path, 10.5 mL

Weight	100 g

SKU: C302CE2

Original price was: $281.00.Current price is: $253.00.

In Stock

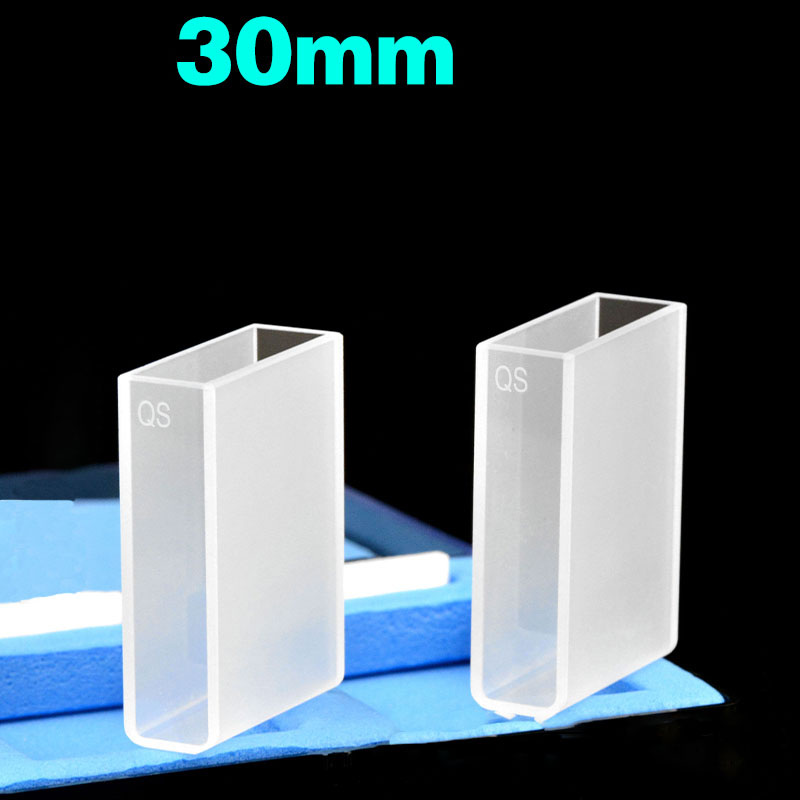

C302CE2 is a JGS1 quartz standard cuvette for UV/Vis spectroscopy with a 30 mm optical path and 10.5 mL nominal capacity. It combines a standard open rectangular cell body with a supplied lid for direct filling and covered handling. Sold as 2 cuvettes per listed price unit.

In Stock

SKU: C302CE2 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C302CE2 is a JGS1 quartz standard cuvette for UV/Vis measurement across 190–2500 nm. It combines a 30 mm optical path with a 10.5 mL nominal capacity in a familiar open rectangular cell body, so you can use a longer path length without moving to a special flow-cell format. A lid is included for covered handling, and the listed price unit is for 2 cuvettes.

Path Length: 30 mm
Sample Volume (Nominal): 10.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	30 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	190 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	10.5 mL
External Dimensions	12.5 × 32.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 32.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C302CE2 when your method requires a 30 mm path length and you want that specification in a standard top-fill quartz cuvette. The open cell format keeps filling, rinsing and sample exchange straightforward, while the included lid covers the opening during normal handling. Its nominal 10.5 mL capacity suits routine liquid samples that need a full-size cell rather than a micro-volume chamber.

What makes this option different

30 mm optical path for UV/Vis methods built around this longer path length.
JGS1 quartz body for the stated 190–2500 nm UV/Vis range.
Open top with lid included for direct sample access and covered handling in a standard cuvette form.
10.5 mL nominal capacity for longer-path liquid measurement in a conventional rectangular cell.
Uncapped dimensions of 12.5 × 32.5 × 45 mm for holder-fit checks before use with any closure in place.

Using this cell

Fill the cell from the top so the sample fully covers the beam region used by your instrument. Keep the same orientation for blank and sample, clear visible bubbles before reading, and avoid touching the optical faces during handling.

The lid is for covering the opening during routine use, but this is not a sealed pressure assembly. The stated 10.5 mL value is the nominal capacity of the cell, not a specified minimum working volume.

First-use check

Inspect the optical faces and edges for chips, residue or shipping marks.
Place the uncapped cell in your holder to confirm seating and clearance.
Rinse with a suitable liquid for your method, then run a blank before sample measurement.

Fit and optical alignment

The confirmed uncapped body dimensions are 12.5 × 32.5 × 45 mm. Use those dimensions when checking holder opening, seating depth and side clearance. If you measure with the lid in place, check top clearance separately because the stated body size does not include the closure.

Z Height is not established for this SKU. If your instrument uses a fixed beam-center position or has limited holder adjustment, verify alignment before ordering.

Solvents and cleaning

Quartz supports the stated UV/Vis application, but the exact chemical limits for this complete cell assembly are not established for this option. If your work involves aggressive samples, rinse liquids or cleaning steps, check compatibility for the full assembled item before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. For general fabrication background, see Compare fabrication options.

Included with this option

2 cuvettes per listed price unit. Lid included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch together with holder details, measurement wavelength, sample conditions and quantity. Prototype batches typically involve 2–4 cells; final feasibility, specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C302CE2.
