(C402CR10) Quartz Rectangular Sample Cell, 40 mm Path

Weight	100 g

SKU: C402CR10

Original price was: $161.00.Current price is: $145.00.

In Stock

C402CR10 is a JGS1 quartz rectangular sample cell with a 40 mm optical path, Two-Way Light geometry and an open-top chamber for UV/Vis work. Its broad 40 × 40 mm internal cross-section suits methods that use a larger sample region and direct top filling rather than a narrow cuvette format. Supplied as 1 cell.

In Stock

SKU: C402CR10 Categories: Cuvettes, Products, Quartz High-Capacity Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C402CR10 is a JGS1 quartz rectangular sample cell for UV/Vis spectroscopy with a 40 mm optical path and a wide open-top chamber. It is a practical choice when your method is built around a longer path length but your sample handling is easier in a larger square cell body than in a narrow cuvette. This listing is for 1 cell.

Path Length: 40 mm
Cell Type: Rectangular Sample Cell
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	40 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm

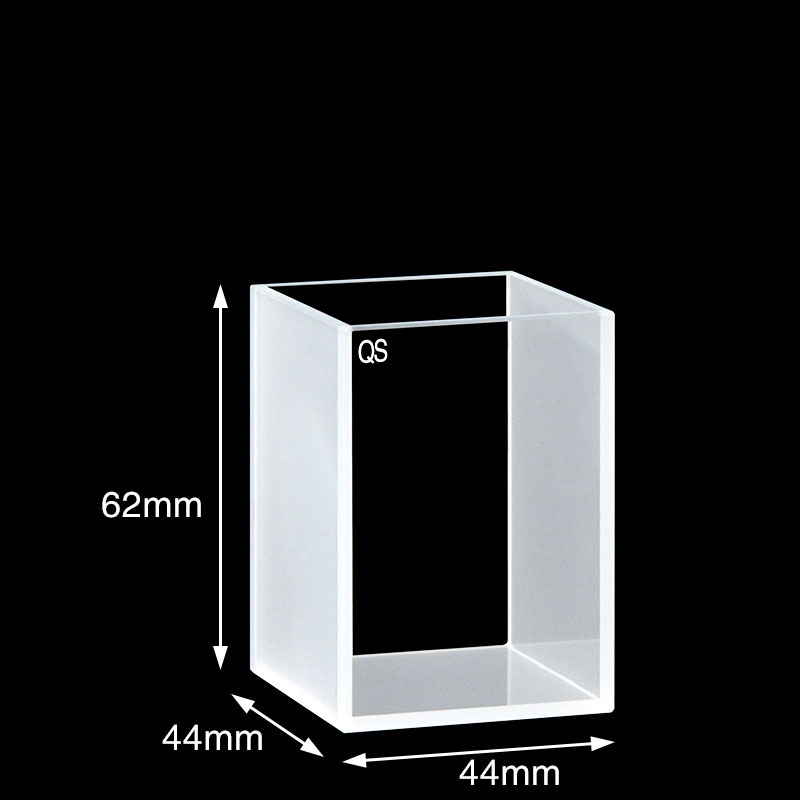

External Dimensions	44 × 44 × 62 mm
Body Height	62 mm
Base Dimensions	44 × 44 mm
Internal Dimensions	40 × 40 × 60 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Open Top
Opening Configuration	Open Top

Choose this option

Choose C402CR10 when you need a 40 mm transmission path and direct access from above for filling, rinsing or visual checking of the sample. The internal chamber is 40 × 40 × 60 mm, so this option is best selected by its chamber geometry and body size rather than by a quoted volume figure.

What makes this option different

40 mm optical path for methods written around that transmission distance.
Two-Way Light layout with light passing through two opposing side faces.
Open-top rectangular chamber for direct loading and manual rinse-out.
44 × 44 mm base and 62 mm body height for holder and clearance checks.

Using this cell

Fill the cell from the top and make sure the liquid level fully covers the beam during measurement. Before reading, remove visible bubbles from the optical path and keep the same cell orientation for blank and sample if your procedure depends on a fixed beam direction.

The open top is useful when you want simple pipette access or need to rinse and reload by hand between runs. Handle the cell by non-optical surfaces where possible to keep the transmission faces clean.

First-use check

Inspect the optical faces and chamber for chips, dust or residue from transit and handling.
Rinse the cell with a cleaning liquid suitable for your procedure.
Test the empty body in your holder and confirm beam access through the intended faces.
After filling, check that the beam area is fully covered and free from trapped bubbles.

Fit and optical alignment

The body dimensions are 44 × 44 × 62 mm, with a 40 × 40 × 60 mm internal chamber. Check that your holder or fixture can accept this wider rectangular format and that the beam passes through the intended opposing faces at the height your instrument uses.

Z Height is not established for this option, so body height alone should not be treated as a fit guarantee. If your spectrometer or holder has a fixed beam-center position, confirm that alignment point before ordering.

Solvents and cleaning

This quartz cell is described for UV/Vis use across 200–2500 nm. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis or abrasive cleaning materials on the optical surfaces.

The exact chemical limits of this specific assembly are not established here, so if your samples or cleaning steps involve aggressive solvents, elevated temperature or long contact times, check suitability before routine use. For general construction background, see fabrication methods of cuvettes.

Included with this option

Supplied as 1 rectangular sample cell. This option has an open top; confirm any closure requirement with your order.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz versions for changes to dimensions, optical path length, chamber geometry and related fit requirements. Send a dimensioned drawing or labelled sketch together with holder details, beam position, sample conditions and target quantity, then contact us and quote C402CR10.
