(C402CR14) Quartz Rectangular Sample Cell, 40 mm Path

Weight	100 g

SKU: C402CR14

Original price was: $203.00.Current price is: $183.00.

In Stock

C402CR14 is a JGS1 quartz rectangular sample cell with a 40 mm optical path, Two-Way Light geometry and a flat lid on an open-top body. Its broad 40 × 40 mm internal cross-section suits UV/Vis work that needs a larger sample chamber with a covered top. Supplied as 1 cell with lid included.

In Stock

SKU: C402CR14 Categories: Cuvettes, Products, Quartz High-Capacity Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C402CR14 is a JGS1 quartz rectangular sample cell for UV/Vis spectroscopy with a 40 mm optical path and a flat lid over an open-top body. It suits methods that need a larger square sample chamber, direct loading from above and a covered top during handling. This listing is for 1 cell with lid included.

Path Length: 40 mm
Cell Type: Rectangular Sample Cell
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	40 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm

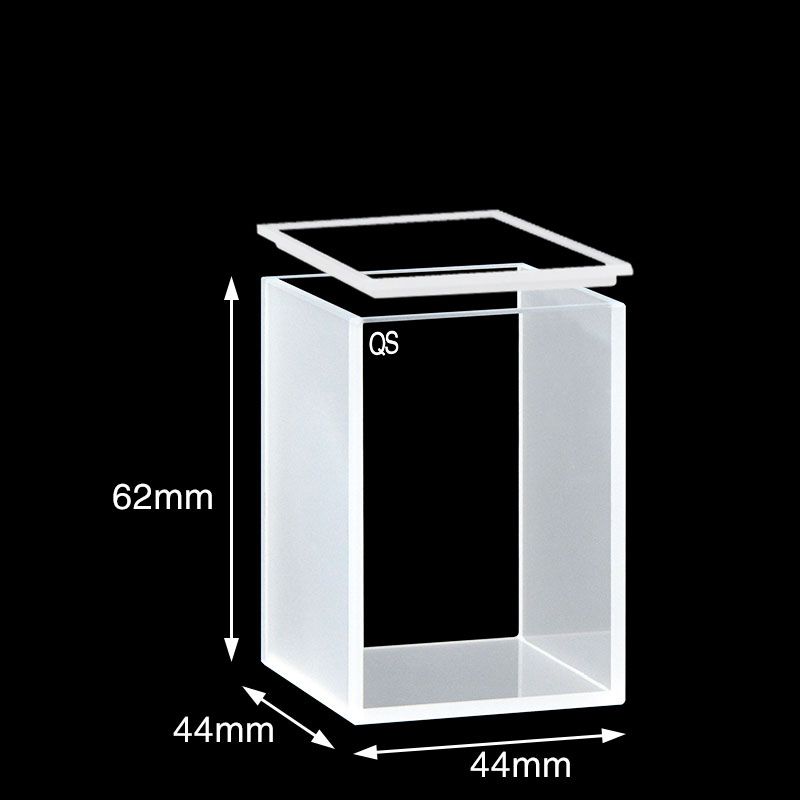

External Dimensions	44 × 44 × 62 mm
Body Height	62 mm
Base Dimensions	44 × 44 mm
Internal Dimensions	40 × 40 × 60 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Flat Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose C402CR14 when your method calls for a 40 mm path and you want a larger rectangular chamber instead of a narrow cuvette body. The lid is useful when you want the top covered after filling, while the 40 × 40 × 60 mm internal chamber gives you generous access for loading, rinsing and checking the sample level.

What makes this option different

40 mm optical path for methods designed around that transmission distance.
Two-Way Light geometry with transmission through two opposing optical faces.
Flat lid included on an open-top body for covered handling after filling.
44 × 44 mm base and 62 mm body height for holder and clearance planning.

Using this cell

Load the sample from the top opening and place the lid after filling if your procedure calls for a covered top. Keep the optical faces clean, remove visible bubbles from the beam path and keep the same orientation between blank and sample runs.

This format is useful when your sample handling is easier in a broad chamber than in a narrow standard body. Hold the cell by non-optical surfaces where possible to reduce fingerprints on the transmission faces.

First-use check

Inspect the optical faces, chamber and lid for chips, residue or transit damage.
Rinse the chamber with a cleaning liquid suitable for your method.
Place the body in the holder and confirm beam access through the intended faces.
Fill the cell and check that the liquid level fully covers the beam area.

Fit and optical alignment

The stated 44 × 44 × 62 mm dimensions describe the cell body, and the source does not establish full assembled dimensions beyond that. Check holder opening, side clearance and top clearance in your setup, especially if the lid remains in place during handling or measurement.

Z Height is not established for this SKU, so instrument fit should not be assumed from body height or path length alone. If your spectrometer or holder requires a defined beam-center height, confirm that point before ordering.

Solvents and cleaning

This quartz cell is described for UV/Vis use across 200–2500 nm. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis, abrasive cleaning materials and rough wiping on the optical faces.

The exact chemical limits of this specific assembly are not established here, so if your sample, rinse solvent or cleaning routine is chemically demanding, please check suitability before regular use. For general construction background, see fabrication methods of cuvettes.

Included with this option

Supplied as 1 rectangular sample cell. A flat lid is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions based on your drawing or labelled sketch. Useful details include required dimensions, path length, holder or instrument information, beam-height requirements, closure preferences, sample conditions and target quantity. Discuss your requirements and reference C402CR14.
