(C052CE2) Quartz Standard Cuvette, 5 mm Path, 1.75 mL, Pack of 2

Weight	30 g

SKU: C052CE2

Original price was: $103.00.Current price is: $93.00.

In Stock

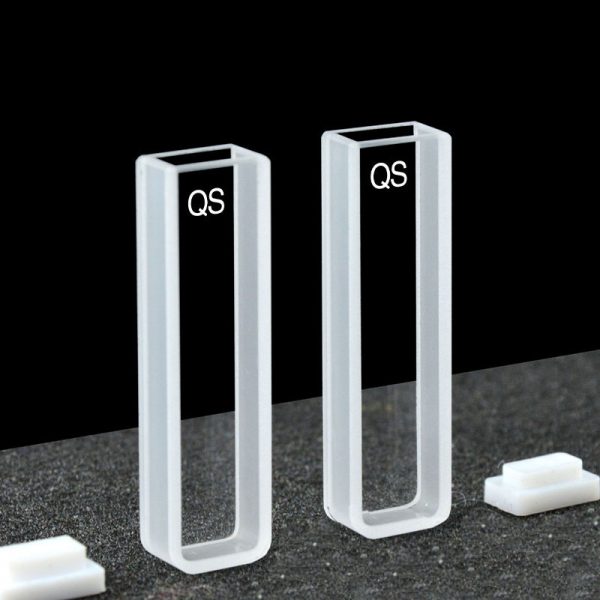

C052CE2 is a JGS1 quartz standard cuvette for UV/Vis work with a 5 mm optical path, Two-Way Light geometry and 1.75 mL nominal capacity. Its open-top rectangular body allows direct filling, and a PTFE lid is included. Supplied as a pack of 2 cuvettes.

In Stock

SKU: C052CE2 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C052CE2 is a JGS1 quartz standard cuvette for UV/Vis measurements with a 5 mm optical path and Two-Way Light transmission. The open-top rectangular body makes filling and rinsing straightforward, and the included PTFE lid lets you cover the cell during normal bench handling. This sales option is supplied as a pack of 2 cuvettes, with each cell offering a 1.75 mL nominal capacity.

Path Length: 5 mm
Sample Volume (Nominal): 1.75 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	5 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.75 mL
External Dimensions	12.5 × 7.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 7.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C052CE2 when your method needs a 5 mm path in a standard rectangular quartz cuvette and you want two cells in the priced sale unit. The format suits direct pipette loading and routine absorbance measurements through opposite optical faces, and the second cuvette can be useful for parallel preparation, separate blank and sample handling, or keeping a spare ready in the lab.

What makes this option different

5 mm optical path for methods specified for a shorter transmission path.
Two-Way Light configuration for measurement through opposite optical faces.
Open-top rectangular body with PTFE lid for direct filling and covered handling.
Pack of 2 cuvettes for the priced sales unit.

Using this cell

Fill each cuvette from the top and make sure the liquid level covers the measurement region used by your instrument. Remove visible bubbles before reading, and keep the same orientation each time when comparing blanks, standards and samples.

Handle the cells by the non-optical outer surfaces where possible. The nominal capacity is 1.75 mL per cuvette, but it is not a stated minimum working volume, so the actual fill needed depends on your beam position and method.

First-use check

Inspect the optical faces for dust, residue or handling marks.
Test the uncapped fit in your holder before preparing samples.
Rinse with a suitable liquid for your method and run a blank first to confirm seating and beam coverage.

Fit and optical alignment

The verified outer dimensions apply to the uncapped body: 12.5 × 7.5 × 45 mm. Use these dimensions to check holder seating and general body clearance.

Z Height is not established for this SKU, and the listed dimensions do not include installed-lid clearance. If your instrument depends on a fixed beam-center height or has limited top clearance, check those points before ordering.

Solvents and cleaning

This is a quartz cuvette with a PTFE lid, but the chemical limits of the complete assembly are not specified here. If your samples or cleaning liquids involve acids, bases, organic solvents, elevated temperature or extended contact time, check suitability under your actual conditions before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with non-abrasive laboratory wipes or optical tissue. For general background, see the MQ cuvette fabrication guide.

Included with this option

Sold as a pack of 2 quartz cuvettes. PTFE lids are included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body size, volume or closure arrangement, please send your drawing or application details and reference C052CE2. Custom JGS1 quartz versions are reviewed separately from this listed specification.
