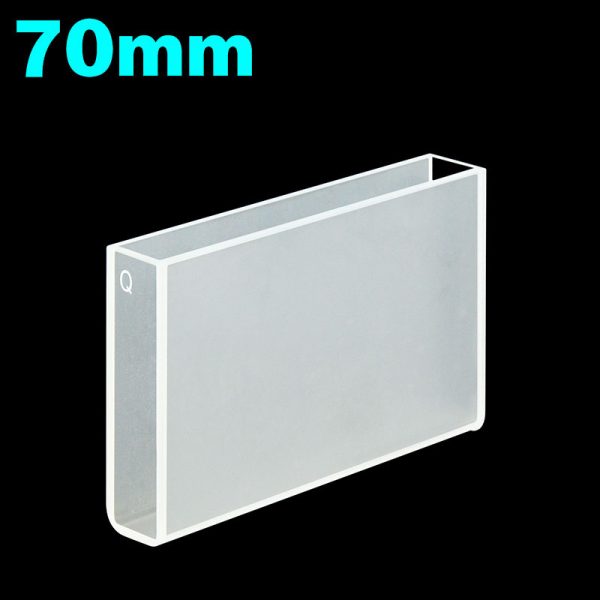

(C702CR) Quartz Standard Cuvette, 70 mm Path, 24 mL

Weight100 g
SKU: C702CR

Original price was: $128.00.Current price is: $116.00.

In Stock

C702CR is a JGS1 quartz Standard Cuvette with a 70 mm optical path, a Two-Way Light layout and 24 mL nominal capacity. Its open-top, no-closure format gives direct access to the sample chamber for filling, decanting and rinsing. The current MQ price unit is 1 piece.

In Stock
Add to Wishlist
Add to Wishlist
SKU: C702CR Categories: , , Brand:
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C702CR is a JGS1 quartz Standard Cuvette built for measurements that need a 70 mm optical path in a larger rectangular cell body. Its 24 mL nominal capacity and open-top format make it straightforward to fill, pour out and rinse when your method can work with an uncovered sample surface. The current MQ offer is priced per 1 piece.

Path Length
70 mm
Sample Volume (Nominal)
24 mL
Opening Configuration
Open Top

Selection Specifications

Product KindCuvette
Cell TypeStandard Cuvette
Measurement ModeUV/Vis Spectroscopy
Pack Quantity1 Piece
Path Length70 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)24 mL
External Dimensions12.5 × 72.5 × 45 mm
Uncapped Cell Dimensions12.5 × 72.5 × 45 mm
External Dimensions ScopeUncapped Cell
Body Height45 mm
Base Dimensions12.5 × 72.5 mm
MaterialQuartz
Material GradeJGS1
Closure TypeNo Closure
Closure IncludedNo
Opening ConfigurationOpen Top

Choose this option

Choose C702CR when you need a long transmission path together with direct top access to the sample chamber. This format suits bench handling where you want to load and empty the cell from above, and where the longer 72.5 mm body can be accommodated in the holder and surrounding space.

What makes this option different

  • 70 mm optical path for methods that require a longer beam path through the sample.
  • 24 mL nominal capacity in a full-size rectangular cuvette body rather than a short micro-volume format.
  • Open top with no closure for direct pipetting, pouring and chamber rinsing, with no lid clearance or cap handling during use.
  • Two-Way Light configuration for transmission through two opposite optical faces.
  • Uncapped dimensions of 12.5 × 72.5 × 45 mm to check holder length, seating area and space above the cell.
  • Fused integrated construction as the supplier’s construction term, supporting a single assembled cell body format without separate cap or plate handling in routine loading and rinsing.

Using this cell

Load the sample from the open top and use a fill level that covers the active beam path during measurement. After the run, the same open access makes decanting and rinsing straightforward, which is useful when you change samples manually between readings.

Because this cell has no closure, it is best suited to procedures that can work with an exposed liquid surface during handling and measurement. Hold the cuvette by the non-optical surfaces, and wipe the outside faces before placing it in the instrument or holder.

First-use check

  1. Inspect the optical faces and chamber for dust, chips or packing residue.
  2. Place the cell in the holder and confirm stable seating and enough top clearance for loading.
  3. Run a blank in the same orientation you plan to use for the sample.

Fit and optical alignment

The optical path runs across two opposite faces in a Two-Way Light arrangement. Check the holder opening, support length and surrounding clearance against the uncapped 12.5 × 72.5 × 45 mm body, especially if your fixture was designed around a shorter standard cell.

Z Height is not listed here, so path length alone does not establish beam-height interchangeability. If your instrument has a fixed beam position, compare the seating and beam alignment requirements with your current holder before ordering.

Solvents and cleaning

Rinse and clean the cell according to the liquids used in your method, taking the open-top handling format into account. The detailed chemical limits for this exact SKU are not established here, so if your procedure uses specific solvents, concentrated chemicals or aggressive cleaning routines, check suitability before routine use.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with suitable non-abrasive optical tissue.

For general cuvette fabrication background, see Fabrication Method of Cuvettes.

Included with this option

Supplied as 1 cuvette. This option is an open-top cell and does not include a lid or closure.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a related quartz cell with different body dimensions, path length, chamber volume or top-access geometry, send your drawing or holder information and identify the dimensions that are critical in your setup.

Discuss your requirements and quote part number C702CR.
