(C1002CA2) Glass Standard Cuvette, 100 mm Path, 35 mL

Weight	100 g

SKU: C1002CA2

Original price was: $57.00.Current price is: $52.00.

In Stock

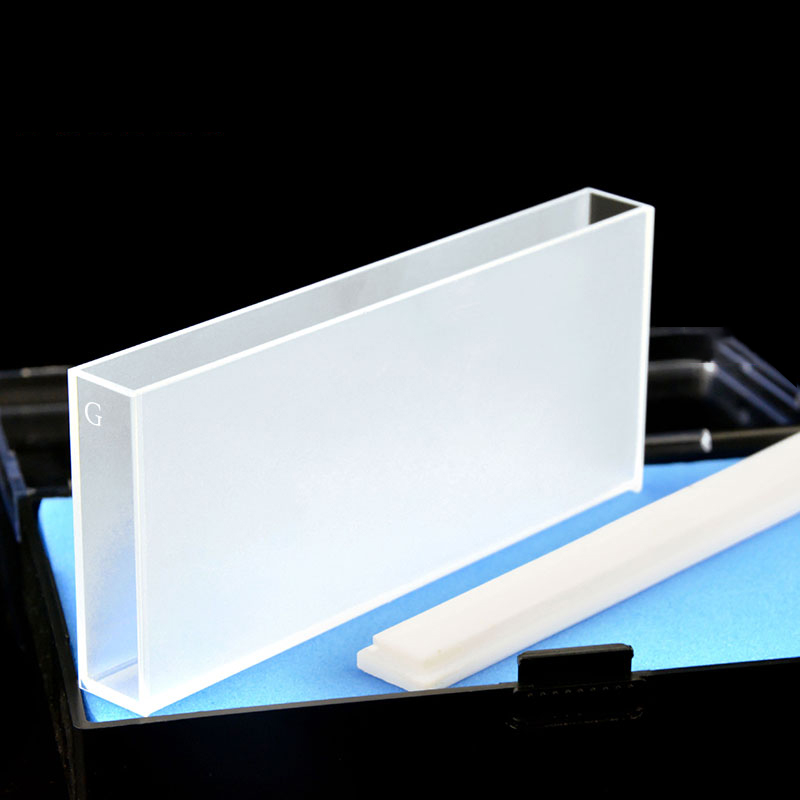

C1002CA2 is a glass standard cuvette with a 100 mm optical path, an open top and a 35 mL nominal capacity. Its Two-Way Light layout suits straightforward transmission measurements within the stated 350–2000 nm range, and the open sample access makes filling and visual inspection direct. Price is for 1 cuvette per MQ sale unit.

In Stock

SKU: C1002CA2 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C1002CA2 is a glass standard cuvette for methods that specifically call for a 100 mm optical path. Its open-top body gives direct access to the sample chamber, and the 35 mL nominal capacity helps you plan filling and handling for a long-path measurement. The stated optical range is 350–2000 nm, so this option is intended for work within that range rather than UV use below 350 nm.

Path Length: 100 mm
Sample Volume (Nominal): 35 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	100 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	2000 nm
Sample Volume (Nominal)	35 mL
External Dimensions	102.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	102.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Base Dimensions	102.5 × 12.5 mm
Material	Glass
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose this cell when your method needs a long 100 mm transmission path in a simple rectangular body that you fill from above. The open top is useful when you want to pipette, pour, inspect or rinse the sample chamber directly, and the included closure can cover the opening during routine handling between filling and measurement.

What makes this option different

100 mm optical path: suited to methods written for a long-path cuvette rather than a shorter standard cell.
Open-top access: lets you fill, inspect and empty the sample chamber directly from above.
Two-Way Light layout: the measurement beam passes through two opposing optical faces in a straightforward transmission arrangement.
35 mL nominal capacity: gives a larger sample chamber to prepare for than short-path cells; use it as a nominal chamber volume, not a minimum working fill.
Supplier-stated fused integrated construction: this identifies the joining style of the assembled glass body for this option, which is relevant when selecting a cell you plan to rinse and handle as one assembled piece rather than a demountable plate-style format.
Stated 350–2000 nm range: intended for measurements within that optical range, not for UV work below 350 nm.
1 cuvette per MQ sale unit: this listing is priced as a single physical cuvette.

Using this cell

Fill the cell from the top and make sure the sample covers the beam position used by your instrument. Before measurement, remove visible bubbles and check the optical faces for droplets, fingerprints or residue.

Use the same orientation for blank and sample runs if your procedure depends on consistent positioning. The included closure can cover the opening during normal handling, but this product is not presented as a pressure-rated or transport-sealed assembly.

First-use check

Inspect the cell for chips, transport marks or residue before first use. Test the empty body in the holder first, then rinse with a process-suitable liquid and confirm with a filled sample that the beam passes cleanly through the intended sample region.

Fit and optical alignment

The recorded dimensions apply to the uncapped cell body: 102.5 × 12.5 × 45 mm. Use those body dimensions to check holder seating and nearby clearance, especially if there is limited space above the cuvette for filling or for placing the closure.

Z Height is not established for this option. If your holder or spectrometer depends on a specific beam-center height, check that requirement directly instead of relying on the outer body size alone.

Solvents and cleaning

Choose cleaning liquids according to your actual sample and process. The supplier’s fused integrated construction wording helps describe how this assembled glass cell is made, but it does not by itself establish a full chemical compatibility list for the complete cell and closure.

Chemical limits for this exact option are not established here. If your sample or cleaning routine involves aggressive chemicals or long contact time, check suitability for both the cell and the included closure before routine use. Avoid hydrofluoric acid and abrasive cleaning on optical surfaces. For fabrication background, see Compare fabrication methods.

Included with this option

Price is for 1 cuvette per MQ sale. A closure is included. Other package contents are not listed here and should be checked if you need a specific storage or accessory arrangement.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body size, sample volume or another cell format, we can review a custom quartz version for the application. Send your key dimensions, holder or instrument details, sample conditions and target quantity through Discuss your requirements, and refer to part number C1002CA2.
