(C1002CS6) Glass Standard Cuvette, 100 mm Path, 35 mL
8%
Original price was: $25.00.$23.00Current price is: $23.00.

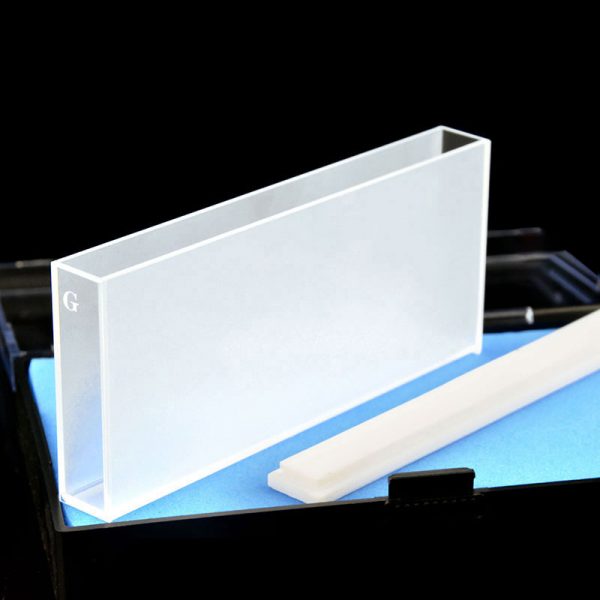

C1002CS6 is a glass standard cuvette with a 100 mm optical path and 35 mL nominal capacity for longer-path liquid measurements. Its open-top body is supplied with a lid for direct filling and routine covered handling. Listed price is for 1 cuvette.
In Stock
Description
C1002CS6 is a glass standard cuvette for methods that require a 100 mm optical path in a long rectangular cell body. The 35 mL nominal capacity suits measurements that use a comparatively large sample volume, and the included lid keeps the open-top format easy to fill and handle. This option is intended for neutral samples only.
- Path Length
- 100 mm
- Sample Volume (Nominal)
- 35 mL
- Closure Type
- Lid
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Standard Cuvette |
| Measurement Mode | Absorbance Spectroscopy |
| Path Length | 100 mm |
| Light Transmission Configuration | Two-Way Light |
| Wavelength Range — Lower Limit | 350 nm |
| Wavelength Range — Upper Limit | 2000 nm |
| Sample Volume (Nominal) | 35 mL |
| External Dimensions | 12.5 × 102.5 × 45 mm |
| Uncapped Cell Dimensions | 12.5 × 102.5 × 45 mm |
| External Dimensions Scope | Uncapped Cell |
| Material | Glass |
| Closure Type | Lid |
| Closure Included | Yes |
Choose this option
Choose C1002CS6 when your method specifically calls for a 100 mm path in a standard glass cuvette and you want direct top access to the sample chamber. The long body format is also a practical selection point when you need to check holder depth and compartment clearance before ordering.
What makes this option different
- 100 mm optical path for methods built around a long sample path.
- 35 mL nominal capacity suits a relatively large filled sample region.
- Open-top body with lid allows direct filling and covered routine handling.
- Glass construction with a stated wavelength range of 350–2000 nm.
- Neutral-sample restriction is a key usage limit for this option.
Using this cell
Fill the cell so the liquid level fully covers the beam region used by your instrument. Remove visible bubbles before measurement, and keep the same orientation for blank and sample runs if your method depends on consistent placement.
The lid covers the opening during routine handling, but it should not be treated as a sealed or pressure-rated closure. The 35 mL figure is the nominal cell capacity, not a stated minimum working fill.
First-use check
Inspect the optical faces for chips, marks or residue from transit, then test-fit the empty cuvette in the holder. Run a blank at your intended fill level and verify that the beam passes through the liquid region before routine use.
Fit and optical alignment
The uncapped cell dimensions are 12.5 × 102.5 × 45 mm. Check holder support, compartment depth and the space needed above the cell for loading and removing the lid-equipped assembly.
Z Height is not established for this item. If your setup depends on a fixed beam-center height, confirm that requirement before ordering rather than assuming interchangeability from outer size alone.
Solvents and cleaning
This cuvette is restricted to neutral samples, and that should guide both use and cleaning. Choose cleaning methods that suit your sample residue and the complete glass-and-lid assembly, and avoid treating the cell as suitable for unverified aggressive chemical service.
For background on construction approaches, see Compare fabrication methods.
Included with this option
Price is for 1 cuvette (1pc/ea). A lid is included. Other package contents are not specified here.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
If you need a different path length, body size, capacity, closure style or a quartz version for a modified design, send a drawing or describe the change you need. Custom versions are quoted separately from the listed C1002CS6 item.
Additional information
| Weight | 100 g |
|---|
