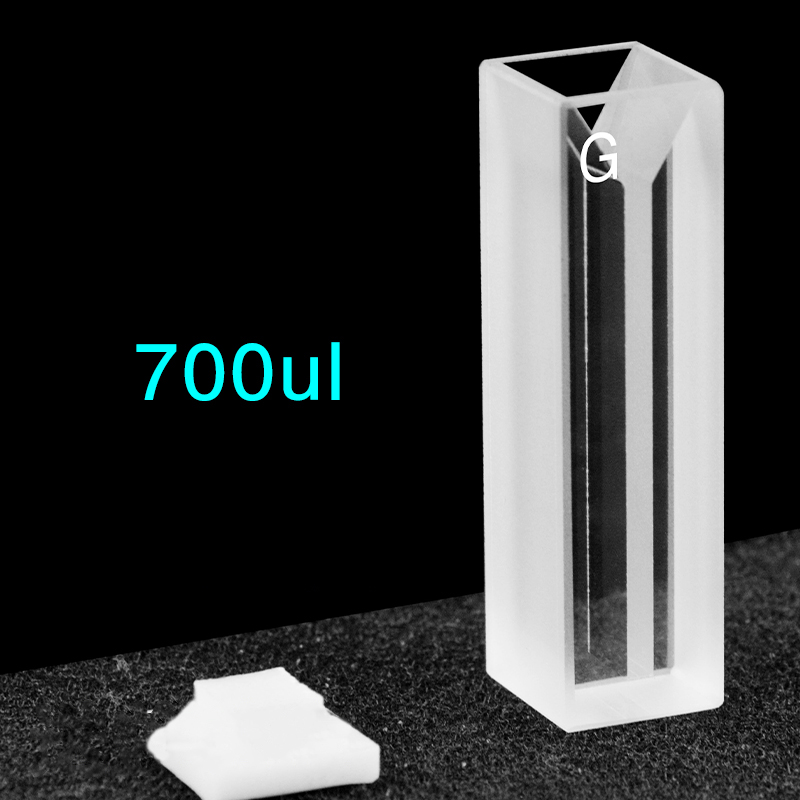

Glass 10mm Glass Micro Cuvette, 0.7ml, Standard 80, Two-way Light, PTFE Cap, 1pc/ea, C102CS43
6%
Original price was: $18.00.$17.00Current price is: $17.00.
Glass 10 mm micro cuvette, 0.7 ml (2 mm slit), Standard 80 (>80%). Two-Way Light. 340–2500 nm. PTFE Cap. 1 pc/ea. SKU: C102CS43. In Stock.
In Stock
Description
The C102CS43 is an optical glass micro cuvette featuring a 2 mm slit width and 10 mm optical path length. Designed for micro-volume work, this cuvette holds just 0.7 ml, making it perfect for conserving expensive reagents and limited biological samples. The narrow 2 mm aperture focuses the light beam tightly for accurate absorbance readings in UV-Vis spectrophotometers.
| Specifications — C102CS43 | |||
|---|---|---|---|
| Material | Optical Glass (Standard 80) | SKU | C102CS43 |
| Type | Micro Cell (Two-Way Light) | Path Length | 10 mm |
| Volume | 0.7 ml | Slit Width | 2 mm |
| Optical Windows | 2 (frosted sides) | Fabrication | Standard 80 |
| Transmittance | > 80% (340–2500 nm) | Wavelength Range | 340 – 2500 nm |
| Exterior Dimensions | 12.5 × 12.5 × 45 mm | Interior Dimensions | 2 × 10 × 43 mm |
| Cap Type | PTFE Cap | Package | 1 pc/ea |
Spectroscopy Applications
🔬UV-Vis Absorbance
Standard spectrophotometric measurements across 340–2500 nm wavelength range🏥Clinical Chemistry
Blood serum, plasma, and urine analysis in diagnostic laboratories💊Pharmaceutical QC
Drug purity testing, dissolution studies, and concentration verification🌊Environmental Water Testing
Pollutant detection, nutrient analysis, and water quality monitoring🍷Food & Beverage QC
Color measurement, additive quantification, and contamination screening🎓Teaching Labs
Undergraduate spectroscopy experiments with affordable, durable cells⚗️Enzyme Kinetics
Real-time reaction rate monitoring with minimal enzyme and substrate usage🧪Colorimetric Assays
Bradford, BCA, and Lowry protein quantification assays
Standard spectrophotometric measurements across 340–2500 nm wavelength range🏥Clinical Chemistry
Blood serum, plasma, and urine analysis in diagnostic laboratories💊Pharmaceutical QC
Drug purity testing, dissolution studies, and concentration verification🌊Environmental Water Testing
Pollutant detection, nutrient analysis, and water quality monitoring🍷Food & Beverage QC
Color measurement, additive quantification, and contamination screening🎓Teaching Labs
Undergraduate spectroscopy experiments with affordable, durable cells⚗️Enzyme Kinetics
Real-time reaction rate monitoring with minimal enzyme and substrate usage🧪Colorimetric Assays
Bradford, BCA, and Lowry protein quantification assays
Why a 2 mm Slit Micro Cuvette?
A 2 mm slit width creates the smallest beam cross-section in the micro cuvette range. This is advantageous when working with highly concentrated samples that would otherwise saturate the detector, or when sample volume is extremely limited. The narrow aperture also reduces stray light contributions for improved measurement accuracy.
Why Optical Glass?
Optical glass (Standard 80) transmits reliably across 340–2500 nm, covering the full visible spectrum and extending into the near-UV and near-IR regions. It is more economical than quartz while delivering excellent clarity and chemical resistance for most routine spectroscopy applications. For deep-UV work below 340 nm, consider upgrading to a quartz micro cuvette.
💡 Usage Tips
Filling: Use a pipette or syringe to dispense 0.7 ml into the cell. Avoid air bubbles in the light path.
Cleaning: Rinse with distilled water, then ethanol or acetone. Avoid abrasive tools on polished optical faces.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
Filling: Use a pipette or syringe to dispense 0.7 ml into the cell. Avoid air bubbles in the light path.
Cleaning: Rinse with distilled water, then ethanol or acetone. Avoid abrasive tools on polished optical faces.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
🛠 Custom Orders
Need a different slit width, volume, or material? We offer custom fabrication for micro cuvettes. Contact us with your specifications.
Need a different slit width, volume, or material? We offer custom fabrication for micro cuvettes. Contact us with your specifications.
Specifications are nominal and may vary slightly due to manufacturing tolerances. Images are for reference only; actual product appearance may differ.
Additional information
| Weight | 30 g |
|---|
