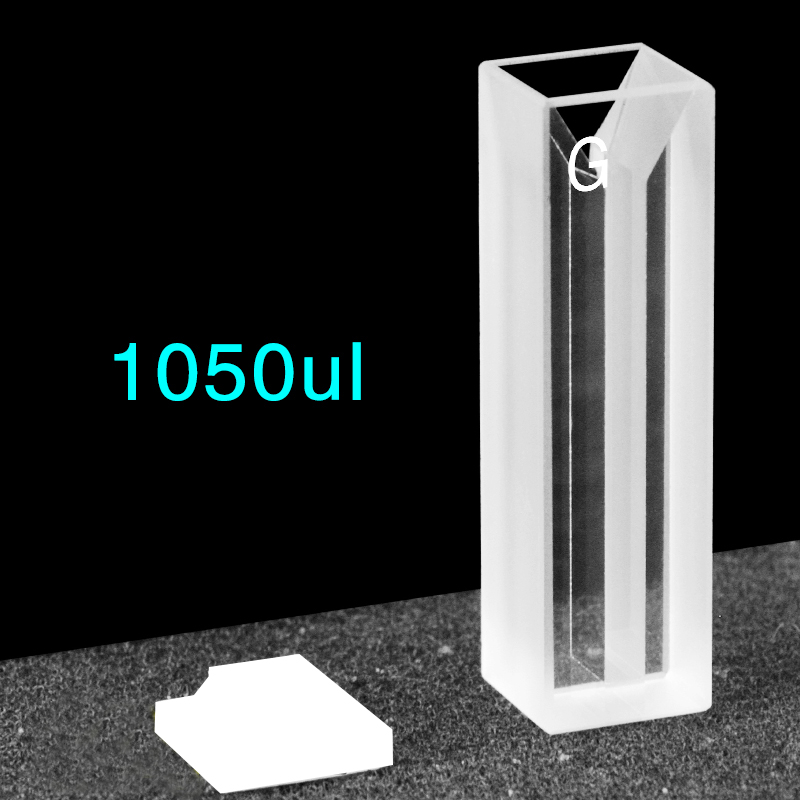

Glass 10mm Glass Micro Cuvette, 1.05ml, Standard 80, Two-way Light, PTFE Cap, 1pc/ea, C102CS45
6%
Original price was: $18.00.$17.00Current price is: $17.00.
Glass 10 mm micro cuvette, 1.05 ml (3 mm slit), Standard 80 (>80%). Two-Way Light. 340–2500 nm. PTFE Cap. 1 pc/ea. SKU: C102CS45. In Stock.
In Stock
Description
The C102CS45 is an optical glass micro cuvette with a 3 mm slit width and 10 mm optical path length. With a working volume of 1.05 ml, it offers a practical balance between reduced sample consumption and adequate signal-to-noise ratio. Ideal for pharmaceutical quality control, environmental testing, and clinical chemistry workflows.
| Specifications — C102CS45 | |||
|---|---|---|---|
| Material | Optical Glass (Standard 80) | SKU | C102CS45 |
| Type | Micro Cell (Two-Way Light) | Path Length | 10 mm |
| Volume | 1.05 ml | Slit Width | 3 mm |
| Optical Windows | 2 (frosted sides) | Fabrication | Standard 80 |
| Transmittance | > 80% (340–2500 nm) | Wavelength Range | 340 – 2500 nm |
| Exterior Dimensions | 12.5 × 12.5 × 45 mm | Interior Dimensions | 3 × 10 × 43 mm |
| Cap Type | PTFE Cap | Package | 1 pc/ea |
Spectroscopy Applications
🔬UV-Vis Absorbance
Standard spectrophotometric measurements across 340–2500 nm wavelength range🏥Clinical Chemistry
Blood serum, plasma, and urine analysis in diagnostic laboratories💊Pharmaceutical QC
Drug purity testing, dissolution studies, and concentration verification🌊Environmental Water Testing
Pollutant detection, nutrient analysis, and water quality monitoring🍷Food & Beverage QC
Color measurement, additive quantification, and contamination screening🎓Teaching Labs
Undergraduate spectroscopy experiments with affordable, durable cells⚗️Enzyme Kinetics
Real-time reaction rate monitoring with minimal enzyme and substrate usage🧪Colorimetric Assays
Bradford, BCA, and Lowry protein quantification assays
Standard spectrophotometric measurements across 340–2500 nm wavelength range🏥Clinical Chemistry
Blood serum, plasma, and urine analysis in diagnostic laboratories💊Pharmaceutical QC
Drug purity testing, dissolution studies, and concentration verification🌊Environmental Water Testing
Pollutant detection, nutrient analysis, and water quality monitoring🍷Food & Beverage QC
Color measurement, additive quantification, and contamination screening🎓Teaching Labs
Undergraduate spectroscopy experiments with affordable, durable cells⚗️Enzyme Kinetics
Real-time reaction rate monitoring with minimal enzyme and substrate usage🧪Colorimetric Assays
Bradford, BCA, and Lowry protein quantification assays
Why a 3 mm Slit Micro Cuvette?
A 3 mm slit width offers a versatile middle ground — wide enough for adequate light throughput while narrow enough to conserve sample. This makes it a reliable general-purpose choice for laboratories running routine UV-Vis assays where both sensitivity and sample economy are important.
Why Optical Glass?
Optical glass (Standard 80) transmits reliably across 340–2500 nm, covering the full visible spectrum and extending into the near-UV and near-IR regions. It is more economical than quartz while delivering excellent clarity and chemical resistance for most routine spectroscopy applications. For deep-UV work below 340 nm, consider upgrading to a quartz micro cuvette.
💡 Usage Tips
Filling: Use a pipette or syringe to dispense 1.05 ml into the cell. Avoid air bubbles in the light path.
Cleaning: Rinse with distilled water, then ethanol or acetone. Avoid abrasive tools on polished optical faces.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
Filling: Use a pipette or syringe to dispense 1.05 ml into the cell. Avoid air bubbles in the light path.
Cleaning: Rinse with distilled water, then ethanol or acetone. Avoid abrasive tools on polished optical faces.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
🛠 Custom Orders
Need a different slit width, volume, or material? We offer custom fabrication for micro cuvettes. Contact us with your specifications.
Need a different slit width, volume, or material? We offer custom fabrication for micro cuvettes. Contact us with your specifications.
Specifications are nominal and may vary slightly due to manufacturing tolerances. Images are for reference only; actual product appearance may differ.
Additional information
| Weight | 30 g |
|---|
