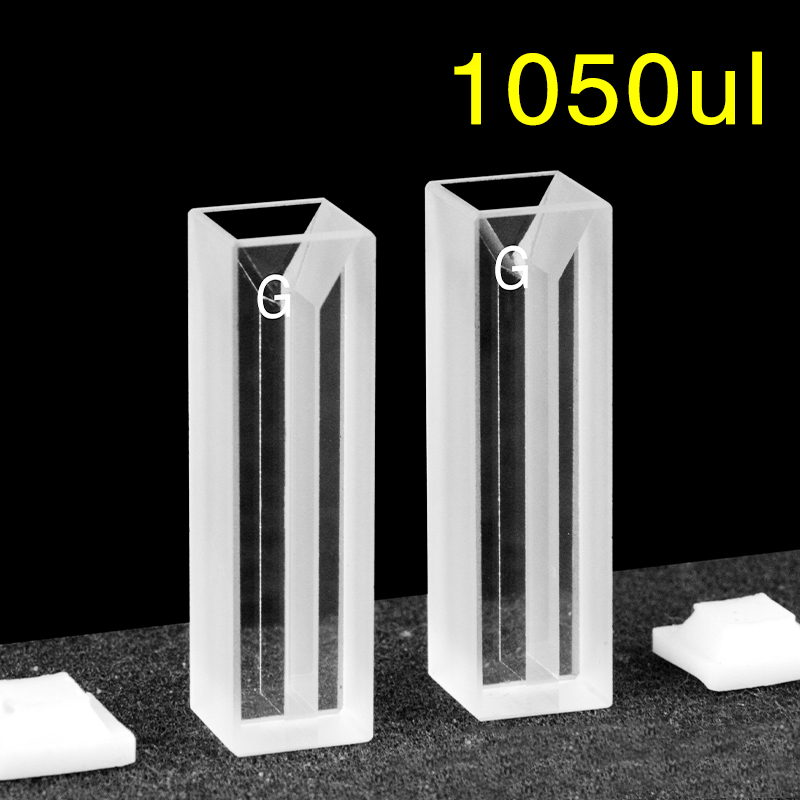

(C102CS15) Glass Micro Cuvette, 10 mm Path, 1.05 mL, Pack of 2

Weight	30 g

SKU: C102CS15

Original price was: $34.00.Current price is: $31.00.

In Stock

Glass micro cuvette for visible absorbance measurements with a 10 mm optical path, 1.05 mL nominal capacity and a 3 mm sample region in a Two-Way Light layout. This option is supplied as a pack of 2 cuvettes with lids included. Use it when you want the same nominal geometry available as a two-cuvette purchase for routine blank and sample work.

In Stock

SKU: C102CS15 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CS15 is a glass micro cuvette for visible absorbance work with a standard 10 mm optical path in a compact 1.05 mL format. Its 3 mm sample region and Two-Way Light layout make it a practical choice for routine transmission measurements where you want a smaller cell body and a pair of matching cuvettes in one order.

Path Length: 10 mm
Sample Volume (Nominal): 1.05 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Visible Absorbance Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	3 mm
Sample Volume (Nominal)	1.05 mL
Material	Glass
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	3 mm

Choose this option

Choose C102CS15 when your method is limited to visible-range absorbance and you want two glass micro cuvettes of the same specification supplied together. The 10 mm path suits standard transmission setups, while the 1.05 mL nominal capacity and 3 mm sample region keep the sample area compact without moving to a larger cuvette format.

What makes this option different

Visible absorbance use only, with glass construction rather than a UV quartz body.
10 mm optical path in a micro cuvette format with 1.05 mL nominal capacity.
3 mm sample region to define the illuminated portion of the sample.
Pack of 2 cuvettes with lids included for this sale option.

Using this cell

Fill each cuvette from the top so the measurement region is fully covered during the run. Keep the outer optical faces clean and dry, and check for bubbles before placing the cell in the holder.

If you use one cuvette for a blank and the other for a sample, keep the same orientation in the instrument for both. The 1.05 mL figure is the nominal capacity of each cuvette, not a minimum working volume, so lower fill levels should be checked in your actual setup.

First-use check

Inspect both cuvettes under good light for clean optical faces and any visible damage.
Test-fit each empty cuvette in your holder before filling.
Run a visible-range blank with your intended orientation.
Confirm that your normal fill level covers the illuminated region without bubbles.

Fit and optical alignment

This is a micro cuvette format, but the external dimensions and Z Height are not established for this SKU. If your holder depends on a specific outer body size, beam-center height or tight compartment clearance, check fit before ordering for instrument-specific use.

The Two-Way Light layout means transmission through opposite optical faces. It does not by itself establish beam height or holder compatibility.

Solvents and cleaning

This adhesive-bonded cuvette uses Standard 80 construction. It is best suited to room-temperature aqueous methods rather than organic samples or organic cleaning routines.

Do not soak or rinse with ethanol, and do not use acids, alkalis or organic solvents with this construction. Clean promptly with a compatible aqueous liquid for your method, and handle the optical faces gently to avoid scratches.

Included with this option

2 glass micro cuvettes with lids included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

For modified requirements, we can review custom JGS1 quartz projects involving dimensions, path length, sample volume, optical windows or Z Height, closures and fabrication. Send a dimensioned drawing or labelled sketch, your holder or instrument details, sample conditions and target quantity via our contact page, and reference C102CS15. Custom quartz work is quoted separately from this listed glass SKU.
