(C102CS19) Glass Micro Cuvette, 10 mm Path, 1.4 mL, Pack of 2

Weight	30 g

SKU: C102CS19

Original price was: $34.00.Current price is: $31.00.

In Stock

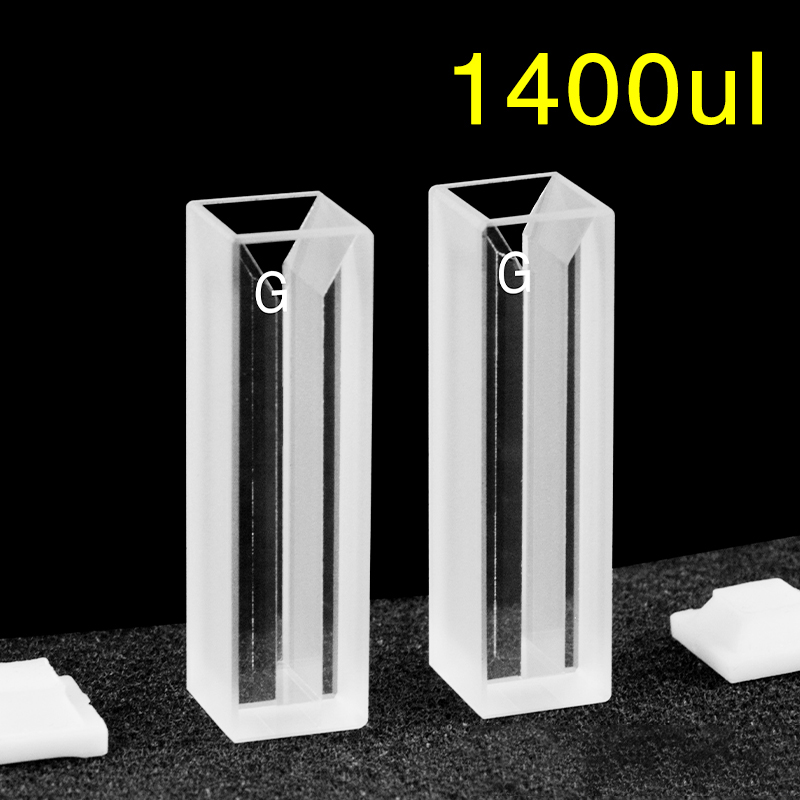

C102CS19 is a glass micro cuvette for visible absorbance spectroscopy with a 10 mm optical path, 1.4 mL nominal capacity and a 4 mm sample region in a Two-Way Light layout. PTFE lids are included, and this option is supplied as a pack of 2.

In Stock

SKU: C102CS19 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CS19 is a glass micro cuvette for visible absorbance work with a 10 mm optical path, 1.4 mL nominal capacity and a 4 mm sample region. It gives you two matching cells in a compact Two-Way Light format for visible-range transmission measurements. PTFE lids are included, and this option is supplied as a pack of 2.

Path Length: 10 mm
Sample Volume (Nominal): 1.4 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Visible Absorbance Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	4 mm
Sample Volume (Nominal)	1.4 mL
Material	Glass
Closure Type	Lid
Closure Material	PTFE
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	4 mm

Choose this option

Choose C102CS19 when you want two visible-light micro cuvettes with the same stated path length for routine blank and sample handling, repeat preparations or spare coverage in the same method. This option is suited to visible absorbance work where a compact cell format matters, but where UV use is not required.

What makes this option different

Glass body for visible absorbance spectroscopy; not for UV measurement.
10 mm optical path in a Micro Cuvette format.
1.4 mL nominal capacity with a 4 mm sample region in a Two-Way Light layout.
Pack of 2 per listed price unit, with PTFE lids included.
Standard 80 adhesive-bonded construction with solvent restrictions.

Using this cell

Fill each cuvette so the illuminated region is fully covered during measurement and check for bubbles in the optical path. The stated 1.4 mL is the nominal capacity of the cell, not a minimum working volume, so your actual fill level should be set by your beam position and measurement setup.

For consistent results, use the same seating direction for blank and sample measurements and keep the outer optical faces clean and dry. The included PTFE lids cover the opening during handling, but no pressure or leak rating is stated for this assembly.

First-use check

Inspect both cuvettes before use and confirm that the optical faces and sample regions are clean. Run a suitable blank in your holder, then recheck that the illuminated region is fully covered and free from bubbles after filling.

Fit and optical alignment

Path length by itself does not establish instrument fit. External body dimensions and Z Height are not stated for this option, so holder clearance and beam-center alignment should be checked against your instrument rather than assumed from the 10 mm path.

This is especially important if your spectrometer uses a fixed beam position or a dedicated micro-cuvette holder. Review those points before ordering if your setup depends on defined geometry.

Solvents and cleaning

This cuvette uses Standard 80 adhesive-bonded construction. For this option, the sample and cleaning chemistry limits should be part of your selection decision.

Do not soak or rinse with ethanol. Do not use with acids, alkalis or organic solvents. Clean promptly with a suitable non-organic rinse for your method, and wipe the exterior optical faces gently with non-abrasive tissue.

Included with this option

2 glass micro cuvettes with PTFE lids. The listed price is for one pack of 2.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different body format, path length, capacity, optical window arrangement or a defined Z Height, please send your holder details or drawing through the contact page. Custom JGS1 quartz projects are reviewed separately from this listed glass SKU.
