(C302CA8) Glass Standard Cuvette, 30 mm Path, 10.5 mL

Weight	100 g

SKU: C302CA8

Original price was: $32.00.Current price is: $29.00.

In Stock

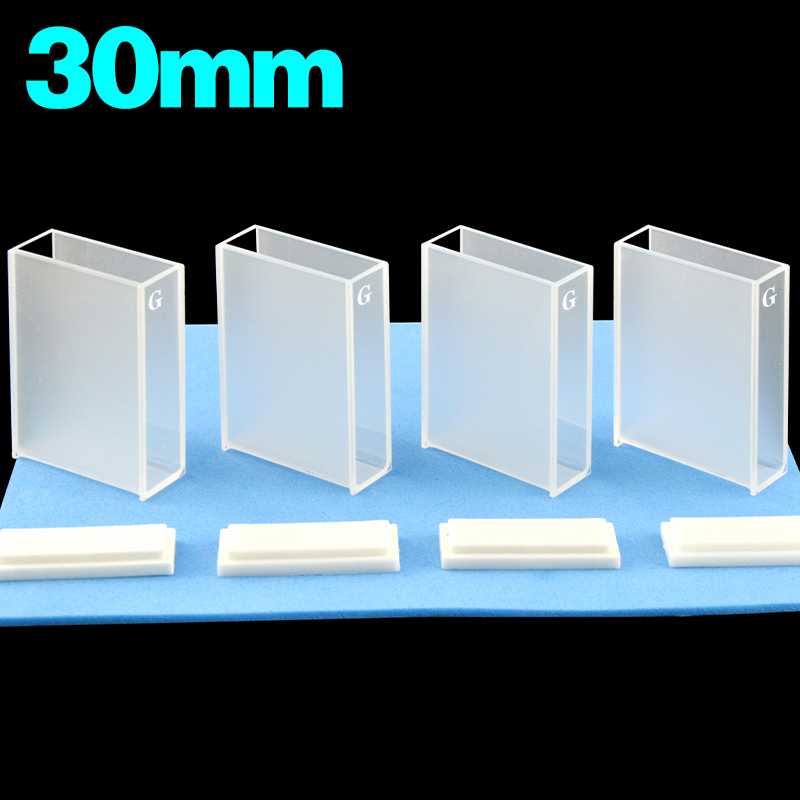

C302CA8 is a glass standard cuvette with a 30 mm optical path and a 10.5 mL nominal capacity for measurements in the 350–2000 nm range. Its open-top body is supplied with a lid, so you can fill the cell directly and then cover it for routine handling. Sold as a pack of four cuvettes.

In Stock

SKU: C302CA8 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C302CA8 is a glass standard cuvette with a 30 mm optical path for methods that need a longer liquid path in a familiar rectangular cell format. The open-top body gives direct access for filling and rinsing, and the supplied lid lets you cover the sample during routine bench handling. With a 10.5 mL nominal capacity and a 350–2000 nm range, it suits visible to near-infrared work rather than UV use.

Path Length: 30 mm
Sample Volume (Nominal): 10.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Absorbance Spectroscopy
Path Length	30 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	2000 nm
Sample Volume (Nominal)	10.5 mL
External Dimensions	32.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	32.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Glass
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose this cuvette when your method is built around a 30 mm path length and you want direct top access instead of a permanently closed sample chamber. The lid is useful when you want a covered cell between filling and measurement, while the nominal 10.5 mL capacity gives you a practical reference for sample preparation and rinse volume planning.

What makes this option different

30 mm optical path for methods written around this longer measurement length.
Open-top body with lid so you can fill, inspect and rinse the cell directly, then cover it for routine handling.
10.5 mL nominal capacity gives a clear full-cell volume reference for sample preparation.
Glass construction for 350–2000 nm use, suited to visible and near-infrared measurements rather than UV work.
Fused integrated construction is the supplier’s construction term for this cell; for everyday use, treat it as a fixed assembled cuvette body rather than a demountable plate-style sample cell.
Pack of four for the listed MQ sale unit.

Using this cell

Fill the sample from the top opening, then place the lid as supplied if your handling routine calls for a covered cell. Before measurement, check that the liquid level covers the beam area used by your instrument and remove visible bubbles from the optical faces.

For routine blank and sample work, keep the same orientation each time if your procedure depends on repeatable positioning. Handle the cuvette by the outer non-optical surfaces to reduce fingerprints on the clear faces.

First-use check

Inspect the optical faces, rim and lid for chips, residue or packing dust before first use. Place the empty cell in your holder first, then rinse with a suitable liquid for your method and confirm that the beam passes through the intended faces without obstruction.

Fit and optical alignment

The stated outer dimensions, 32.5 × 12.5 × 45 mm, apply to the uncapped cell body. Use those body dimensions to check holder fit and side clearance, and allow extra space above the cuvette if you plan to keep the lid in place during handling or measurement.

Z Height is not established for this item, so outer body size alone does not confirm beam-center alignment in instruments with a fixed beam height. The 10.5 mL figure is a nominal capacity, not a minimum working volume.

Solvents and cleaning

This is a glass cuvette, but specific chemical limits for the complete cell-and-lid assembly are not established here. If your sample or cleaning routine involves aggressive chemicals, check compatibility for the exact liquid, concentration, temperature and contact time you plan to use.

Avoid hydrofluoric acid and abrasive cleaning methods. For general background on cuvette construction choices, see Compare fabrication methods.

Included with this option

Supplied as a pack of four glass cuvettes. Lids are included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body size, closure arrangement or another custom cuvette geometry, we can review a suitable option. Send your drawing or labelled sketch, holder details, sample conditions and target quantity via Discuss your requirements.
