(MQAVC003) Quartz Atomic Vapor Cell, 10 mm path, 20 mL nominal capacity, Circular Chamber with Side Fill Stem

Weight1250 g
SKU: MQAVC003

$768.00

In Stock

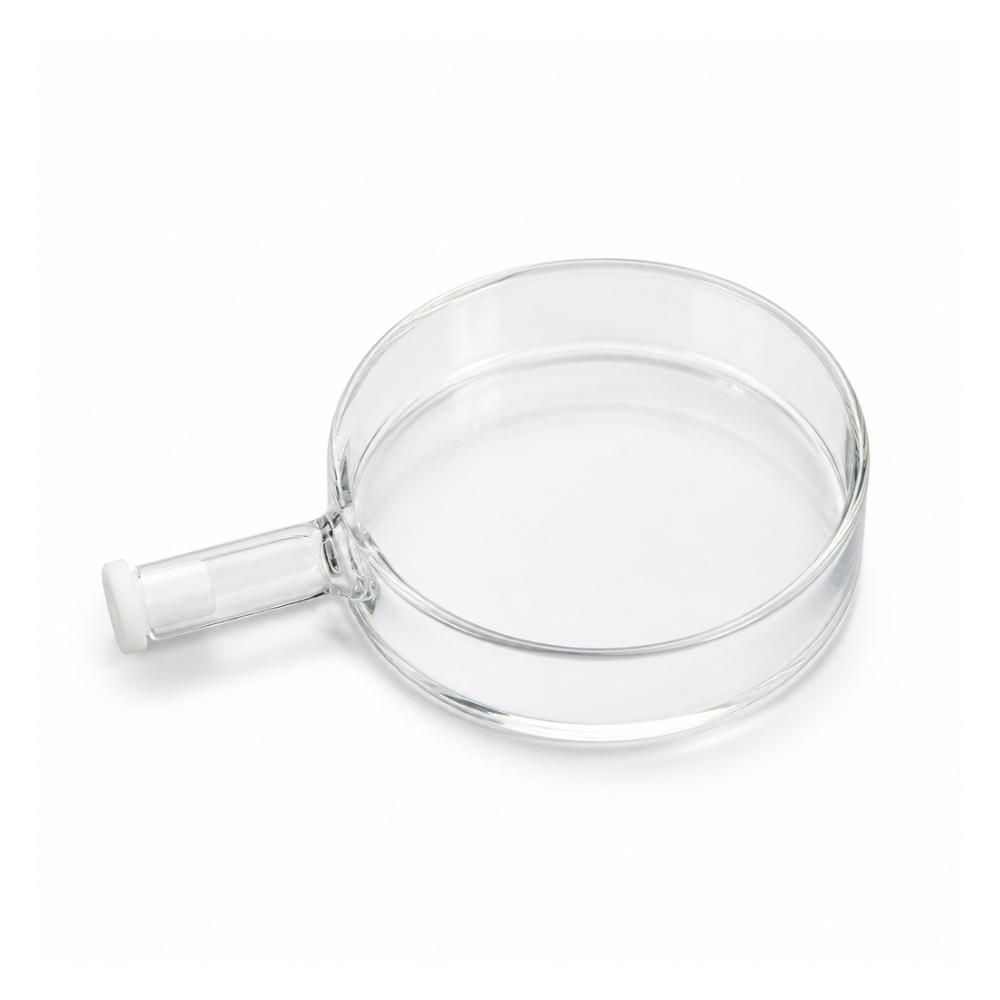

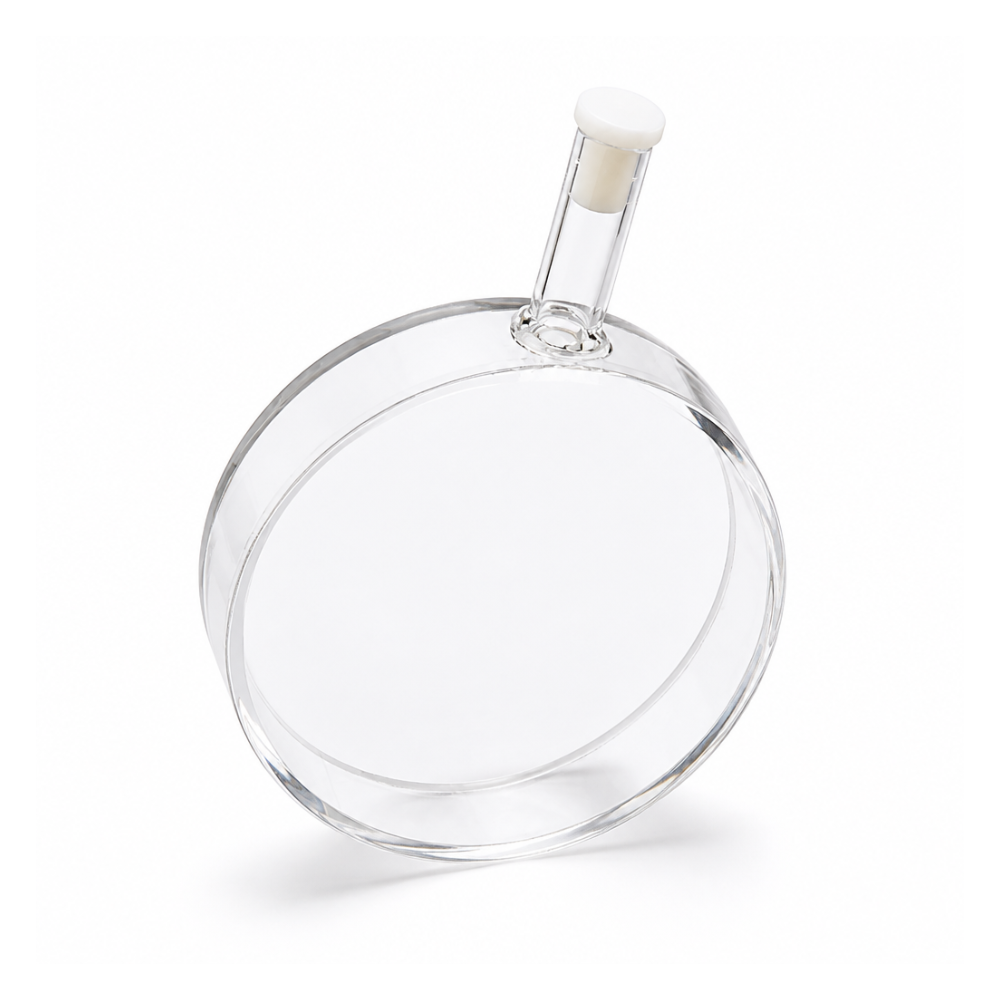

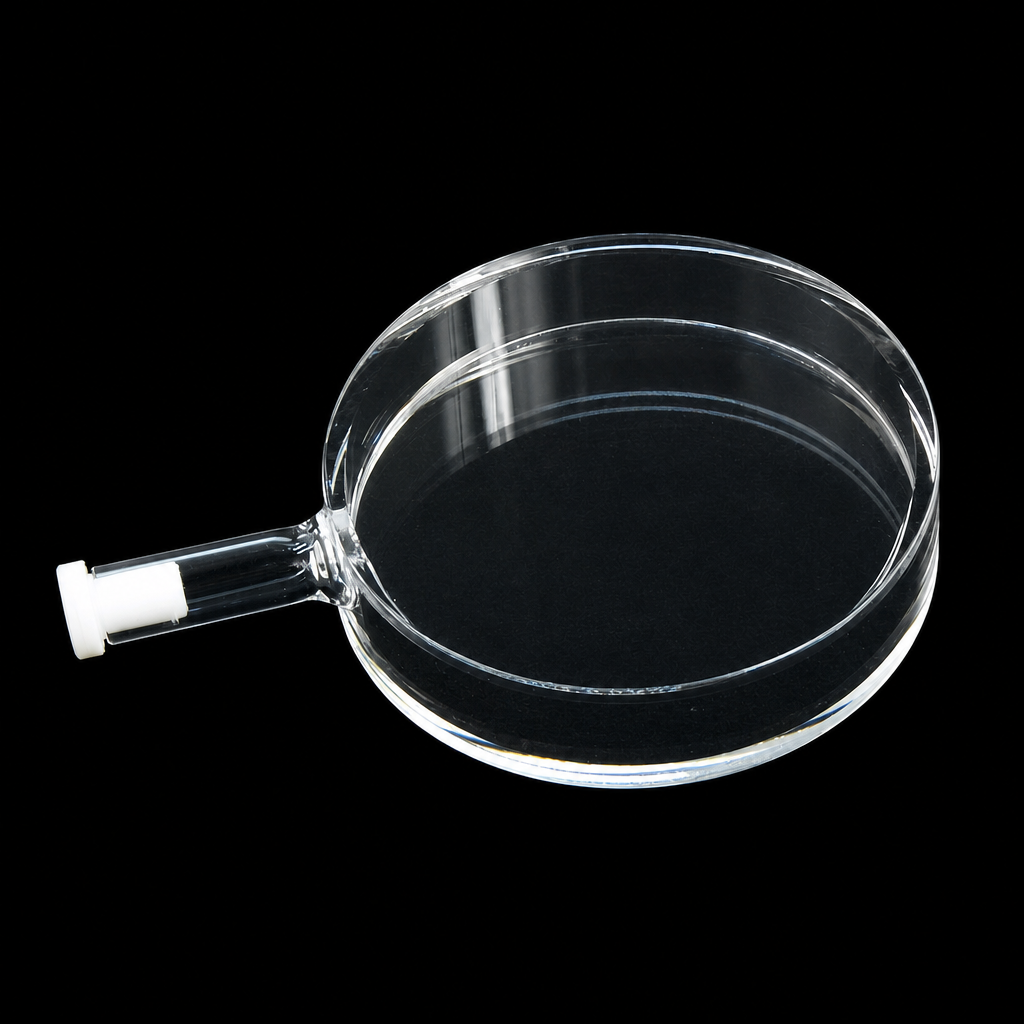

Disc-shaped JGS1 quartz atomic vapor cell with a 10 mm optical path, 20 mL nominal capacity and 55 mm outside diameter. A side fill neck with an accompanying stopper provides a separate loading opening; the optical body is 14 mm thick. One cell with stopper supplied.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQAVC003 is a quartz atomic vapor cell with a 10 mm optical path, 20 mL nominal capacity and a circular chamber formed in a 55 mm outer diameter body. Its stoppered fill neck gives you a separate access point for filling while keeping the optical body distinct from the loading direction, which is useful when both handling access and body clearance matter in the same setup. This option is supplied as one cell with its accompanying closure.

Path Length
10 mm
Sample Volume (Nominal)
20 mL
Opening Configuration
Stoppered Fill Neck

Selection Specifications

Product KindSpecialized Cell
Cell TypeAtomic Vapor Cell
Measurement ModeAtomic Spectroscopy
Path Length10 mm
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)20 mL
Body Height14 mm
Overall Height with Closure78 mm
Outer Diameter (OD)55 mm
Inner Diameter (ID)51 mm
MaterialQuartz
Material GradeJGS1
Closure TypeStopper
Tube Outer Diameter (OD)7 mm
Tube Inner Diameter (ID)5 mm
Fabrication MethodMolded 83
Opening ConfigurationStoppered Fill Neck
Pack Quantity1 Piece

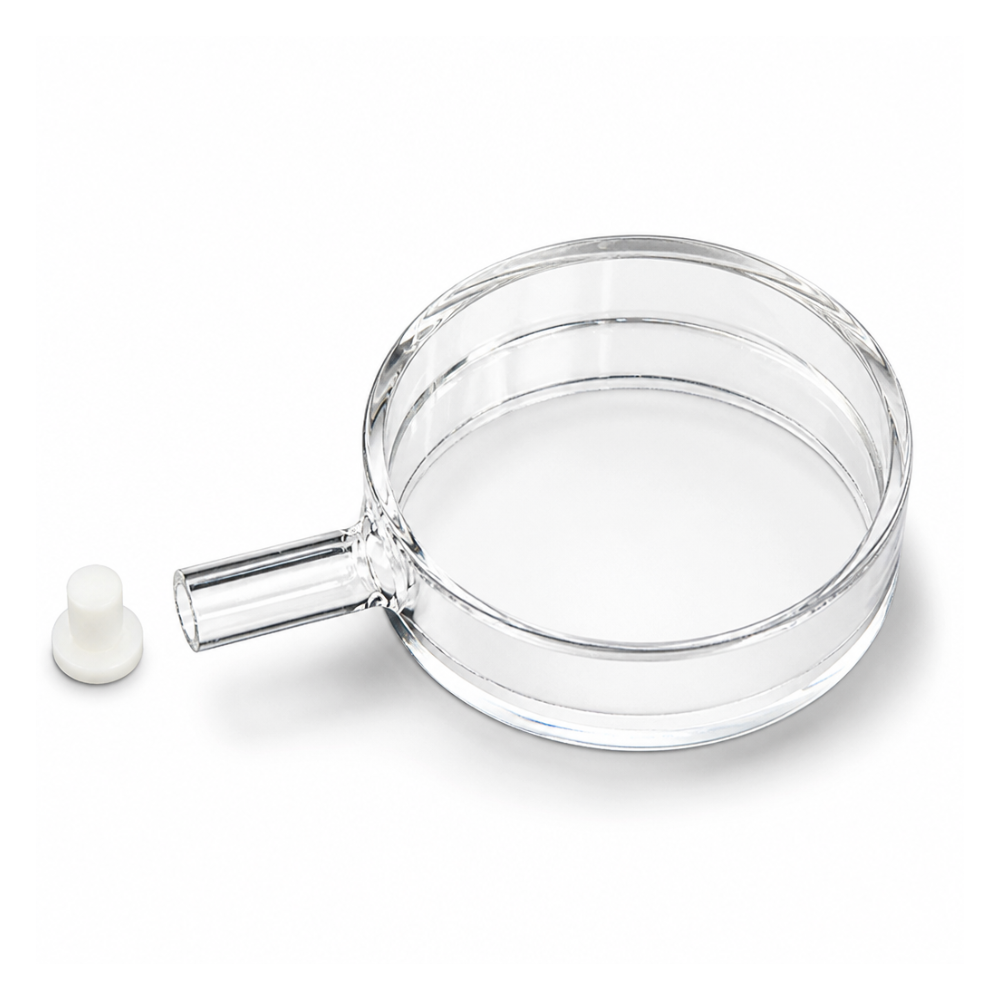

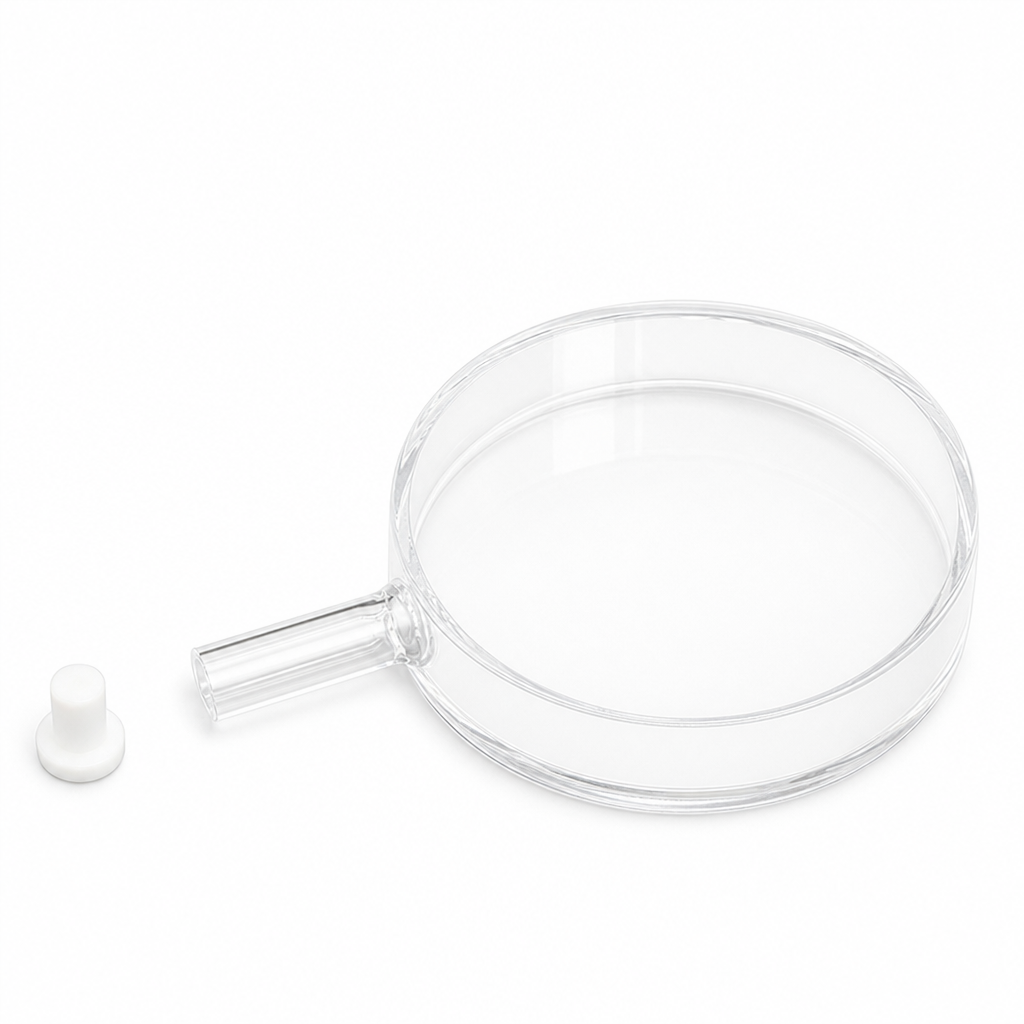

Package Contents1 × Quartz Atomic Vapor Cell; Accompanying closure

Choose this option

Choose MQAVC003 when you need a disc-style atomic vapor cell rather than a narrow tube format, and when the stoppered neck layout suits your loading method. The 20 mL nominal capacity and the specified neck dimensions also help when you are planning the surrounding support, access space and any connected hardware.

What makes this option different

  • 10 mm optical path for measurement layouts built around that fixed path length.
  • 20 mL nominal capacity in a circular chamber rather than a slim tubular body.
  • Stoppered fill neck with 7 mm OD and 5 mm ID for separate sample access.
  • Disc-style body with 55 mm outer diameter and 14 mm body thickness for fixtures that support a broad circular form.

Using this cell

Introduce the sample through the neck, keeping the optical faces clean and free from residue or exterior liquid before measurement. Support the main body during handling rather than putting load on the projecting neck.

The nominal capacity is 20 mL for the specified cell, but it should not be treated as a minimum working volume. The supplied gas composition and final seal state are not specified. If your process depends on a specific fill level, vapor condition, pressure or sealing method, define those conditions for the actual assembly before use.

First-use check

  1. Inspect the optical faces, body and neck and stopper for chips, residue or transport damage.
  2. Test the body support and clearance around the stoppered neck before connecting process hardware.
  3. Align the beam through the intended sample chamber, clear of the chamber edges, and establish the background in the final measurement orientation.

Fit and optical alignment

View the English selection reference. Also available in the product gallery.

Check the body diameter, body thickness and neck-axis clearance separately. The optical body is 55 mm in outer diameter with a 14 mm axial body thickness, while the overall length along the neck axis is 78 mm with the stopper fitted.

Z Height is not stated here, so instrument fit should not be assumed from the body outline alone. If your holder or beam position is fixed, send the existing cell reference or fixture drawing for a fit review.

English selection reference
Selection reference ↗

Solvents and cleaning

Molded 83 construction is commonly selected for organic-solvent methods and applications that may involve temperature as part of the process. Match the sample, cleaning liquid and contact time to the complete assembled cell, including the closure and any connected parts used in your setup.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaning materials. Clean the optical faces gently with suitable non-abrasive optical tissue.

Included with this option

1 MQAVC003 atomic vapor cell with its accompanying stopper. The listed price is for one cell.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to path length, chamber size, external envelope, neck dimensions and related assembly details. Send your drawing or sketch, critical dimensions, sample conditions and target quantity for review.

Send a product-selection enquiry with SKU MQAVC003, your holder or fixture details, sample conditions and delivery destination.
