(MQAVC005) Quartz Atomic Vapor Cell, 60 mm path, Angled-End Cylindrical Cell

Weight120 g
SKU: MQAVC005

$948.00

In Stock

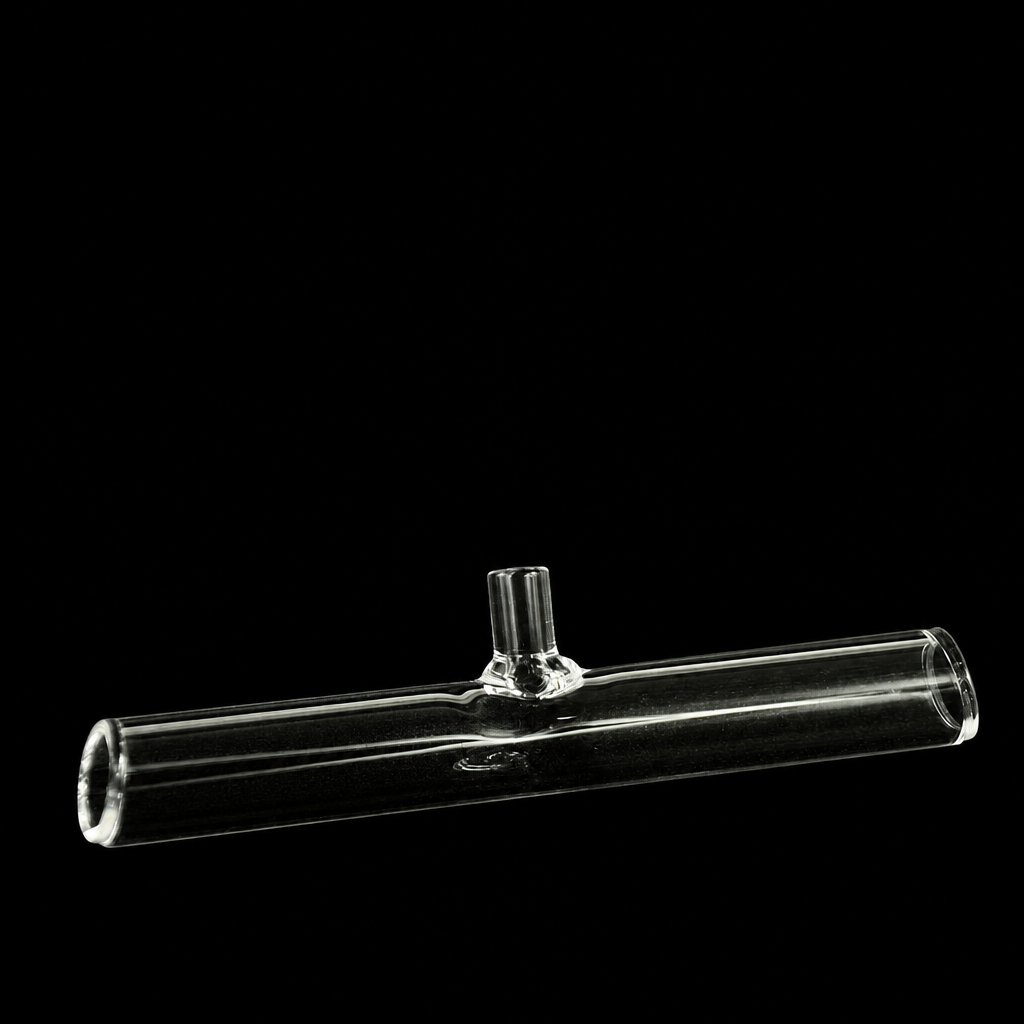

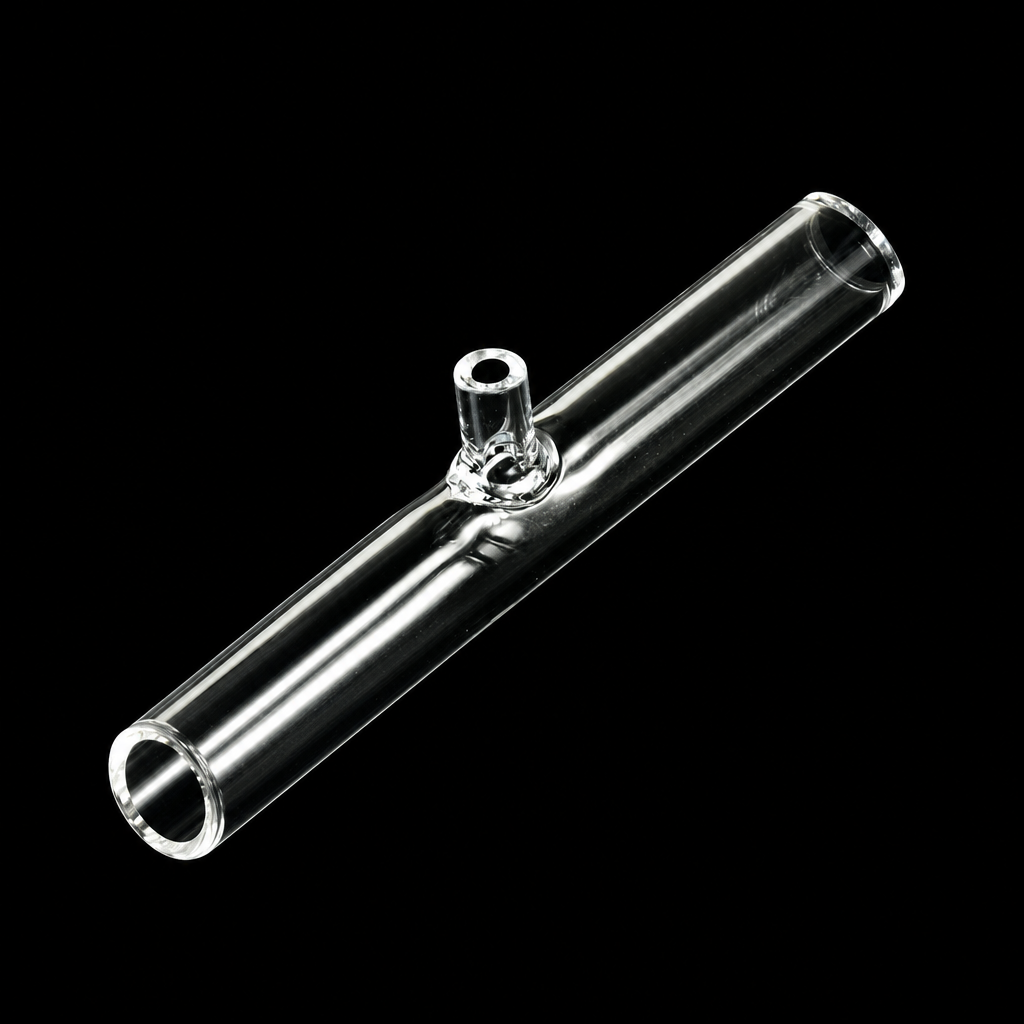

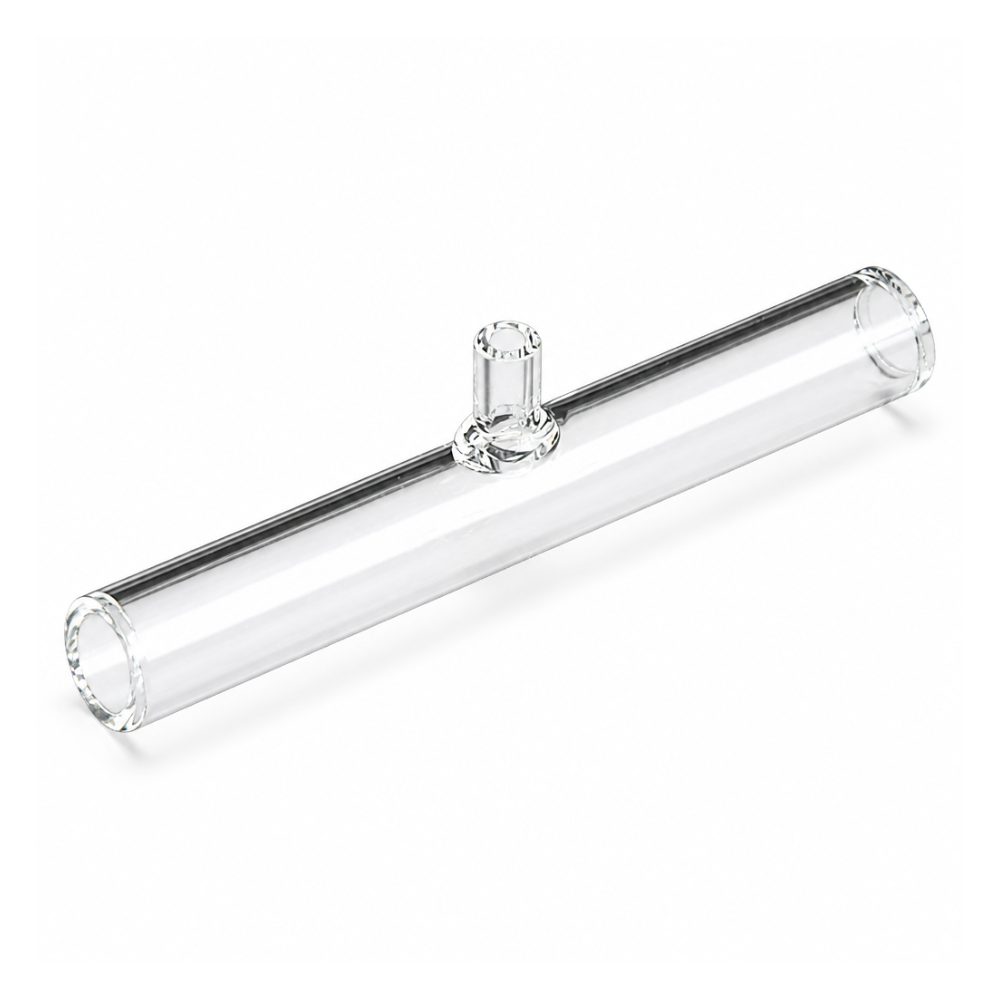

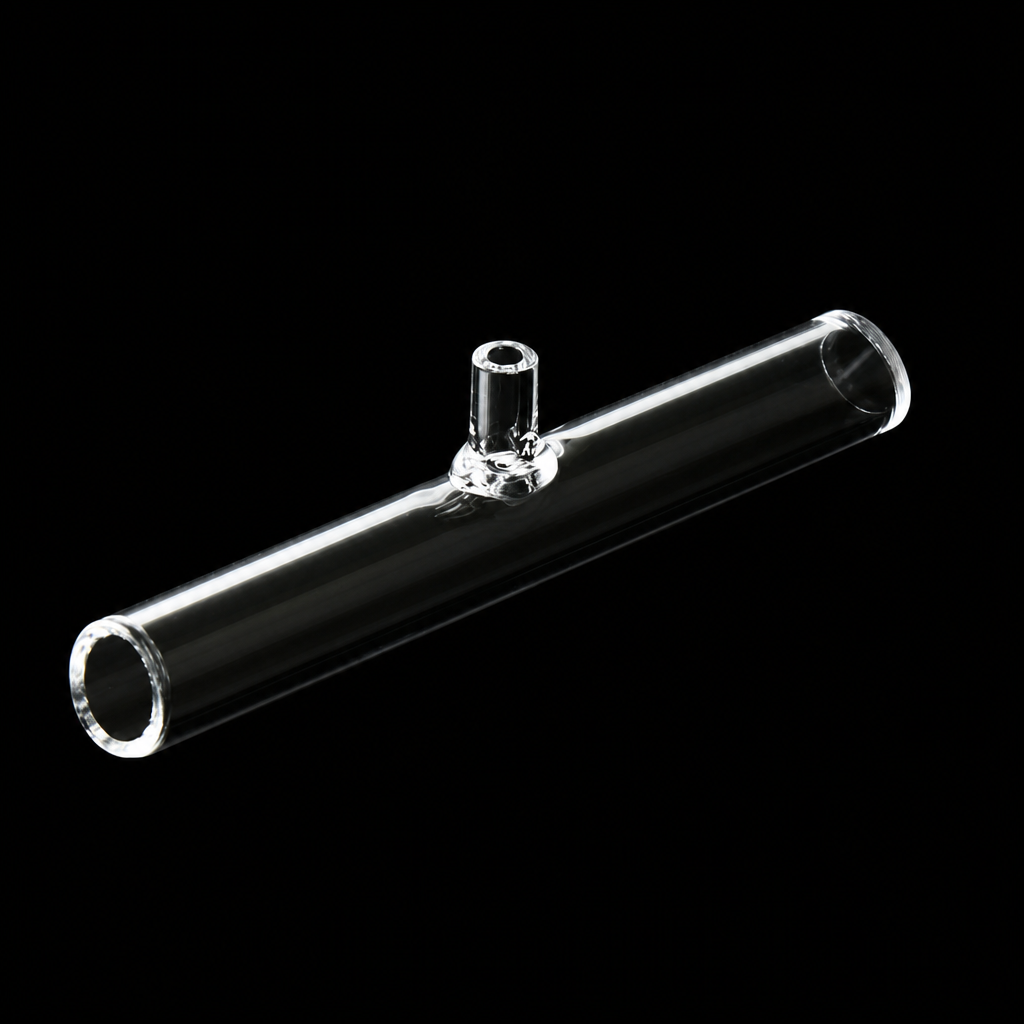

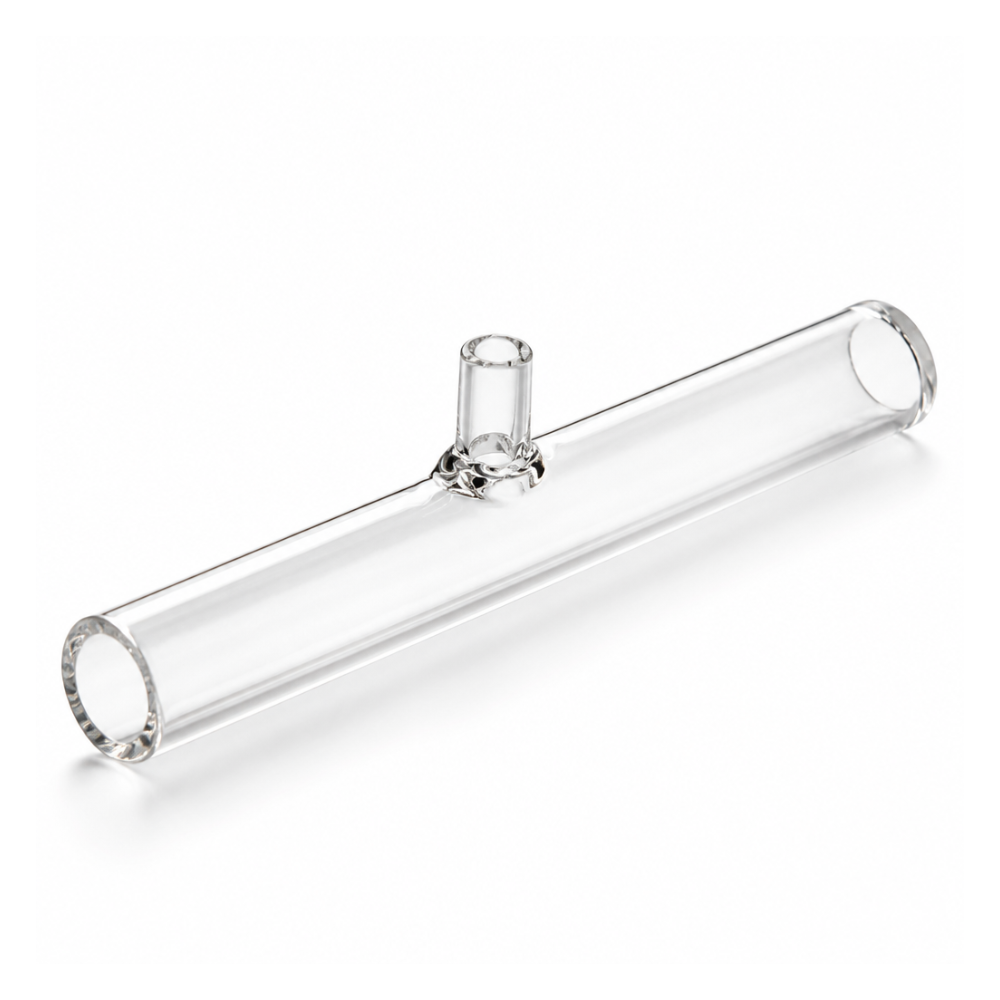

JGS1 quartz atomic vapor cell with a 60 mm optical path in a slender 8 mm outside-diameter body. The inclined end faces, 62 mm body span and single fill stem projecting 7 mm are the key fixture dimensions. Stem OD is 4 mm and ID is 2 mm. One cell supplied.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQAVC005 is a JGS1 quartz atomic vapor cell with a 60 mm optical path in a slim 8 mm outside diameter body. It is a good fit when you need the longer path but have limited lateral space around the cell, and when the fill stem geometry needs to be checked at the same time as the optical envelope. This option is supplied as one cell for atomic spectroscopy work.

Path Length
60 mm
Cell Type
Atomic Vapor Cell
Opening Configuration
Single Fill Stem

Selection Specifications

Product KindSpecialized Cell
Cell TypeAtomic Vapor Cell
Measurement ModeAtomic Spectroscopy
Path Length60 mm
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Outer Diameter (OD)8 mm
MaterialQuartz
Material GradeJGS1
Tube Outer Diameter (OD)4 mm
Tube Inner Diameter (ID)2 mm
Fabrication MethodMolded 83
Opening ConfigurationSingle Fill Stem
Wall Thickness1 mm
Pack Quantity1 Piece
Package Contents1 × Quartz Atomic Vapor Cell

Choose this option

Choose MQAVC005 when your setup calls for a 60 mm path in a narrow cylindrical format rather than a larger body. The 8 mm outside diameter helps when the holder, heater or surrounding hardware leaves little side clearance, while the fill stem dimensions help you plan access and connected parts before ordering.

What makes this option different

  • 60 mm optical path in an atomic vapor cell format for fixed long-path measurement layouts.
  • 8 mm outer diameter body for installations that need a slimmer cylindrical envelope.
  • Single fill stem with 4 mm OD and 2 mm ID for planning access and attached hardware.
  • Angled end geometry with a 79° annotated feature that should be checked against the available mounting space.

Using this cell

Support the cell from the main body and avoid side loading on the projecting stem during installation. Keep the optical faces clean, and plan filling or final sealing work around the actual assembly you intend to use rather than treating the stem as a handling point.

This product record identifies the cell geometry and optical path, but it does not establish a supplied gas composition, pressure rating, sealing conditions or working fill details for a complete apparatus. If your process depends on those conditions, define them for the full assembly before use.

First-use check

  1. Inspect the optical faces, body and fill stem for chips, residue or transport damage.
  2. Test the body support and clearance around the projecting stem before connecting process hardware.
  3. Align the beam through the intended sample chamber, clear of the chamber edges, and establish the background in the final measurement orientation.

Fit and optical alignment

View the English selection reference.

The drawing for this option shows a 62 mm main tube length, an 8 mm outside diameter and a stem that projects 7 mm with 4 mm OD and 2 mm ID. The tube wall is specified as 1 mm. Use these details to check holder depth, side clearance and the space needed around the stem for filling or connected parts.

Z Height is not established in the specification, so beam-center compatibility should not be assumed from the body diameter alone. Where beam position is critical, match the holder and optical axis to the drawing before ordering.

English selection reference
Selection reference ↗

Solvents and cleaning

Molded 83 construction is commonly chosen for quartz cells used in methods that may involve organic solvents or elevated temperatures, but the suitable routine still depends on the complete assembly and actual sample conditions.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaning methods, and wipe optical faces with a gentle non-abrasive optical tissue.

Included with this option

1 Quartz Atomic Vapor Cell. The listed price is for one cell.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, stem format, outer size or related geometry, send a product-selection enquiry with SKU MQAVC005, your drawing or holder details, sample conditions, quantity and delivery destination.

Additional information

Weight120 g
