(MQAVC002) Quartz Atomic Vapor Cell, 60 mm path, Angled End Faces

Weight150 g
SKU: MQAVC002

$948.00

In Stock

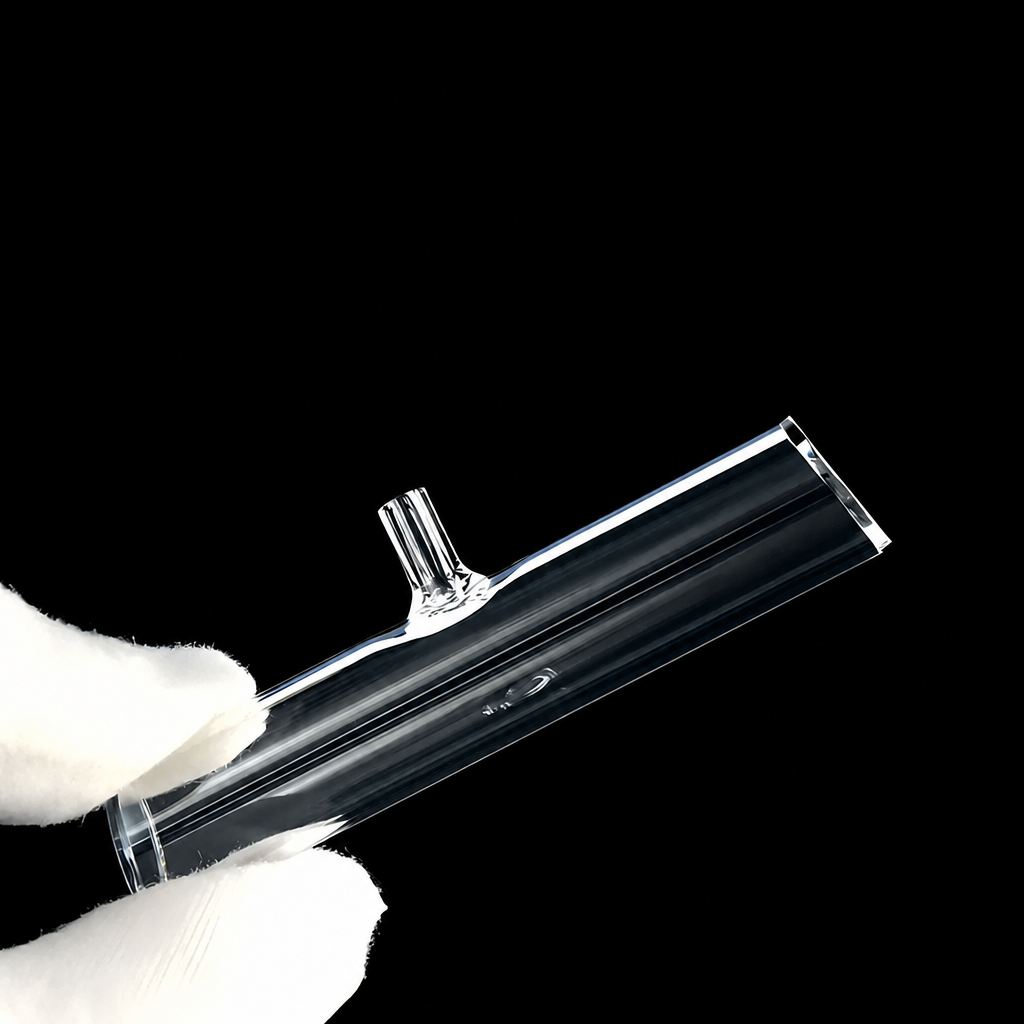

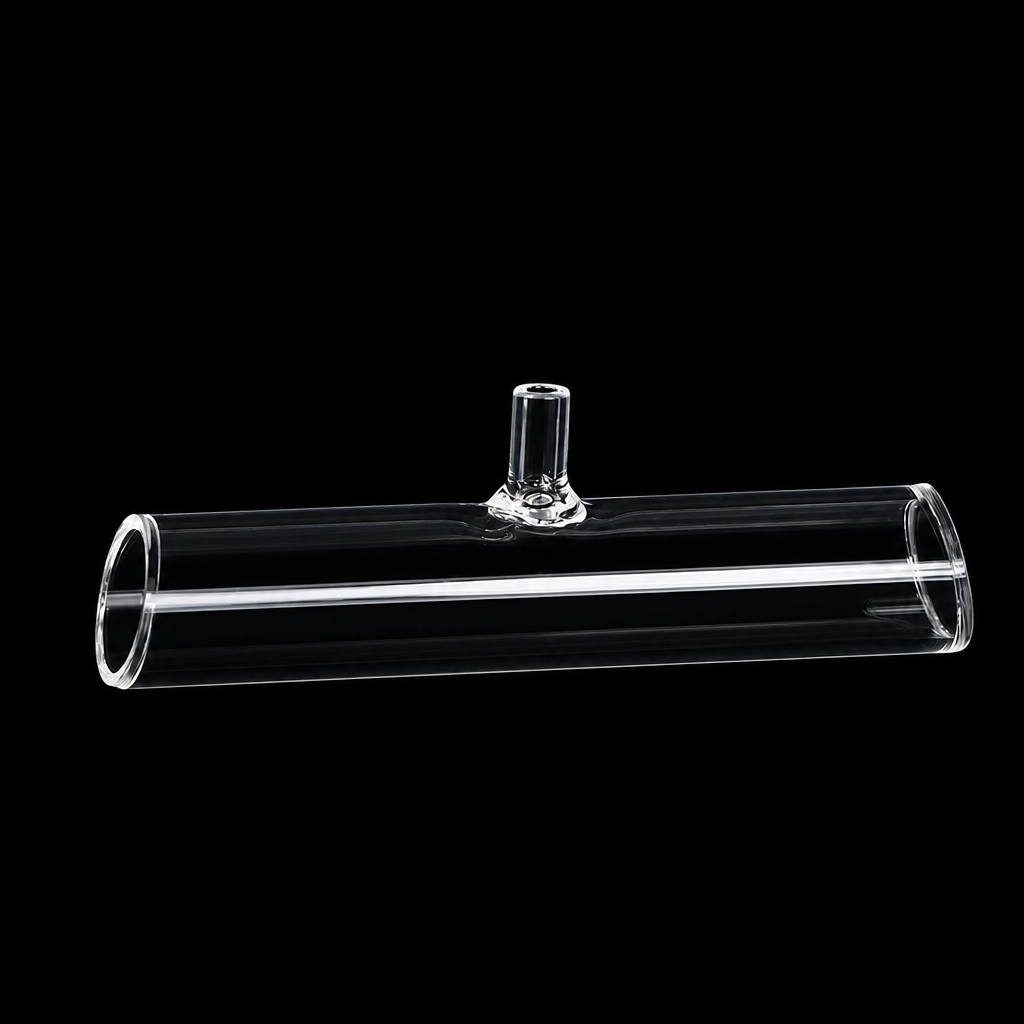

JGS1 quartz atomic vapor cell with a 60 mm optical path in a 12 mm outside-diameter body. Inclined end faces and a single 4 mm OD / 2 mm ID fill stem define the mounting layout; the body spans 62 mm and the stem projects 8 mm. One cell supplied.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQAVC002 is a JGS1 quartz atomic vapor cell for atomic spectroscopy setups that use a 60 mm optical path in a slim cylindrical body. The angled end faces and single fill stem make this option useful when the cell has to fit a defined holder layout while leaving access at the top for filling or process work.

This model uses Molded 83 fabrication, with supplier-described optical-contact or integrated-forming construction. It is sold as one cell.

Path Length
60 mm
Cell Type
Atomic Vapor Cell
Opening Configuration
Single Fill Stem

Selection Specifications

Product KindSpecialized Cell
Cell TypeAtomic Vapor Cell
Measurement ModeAtomic Spectroscopy
Path Length60 mm
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Outer Diameter (OD)12 mm
MaterialQuartz
Material GradeJGS1
Tube Outer Diameter (OD)4 mm
Tube Inner Diameter (ID)2 mm
Fabrication MethodMolded 83
Opening ConfigurationSingle Fill Stem
Pack Quantity1 Piece
Wall Thickness1 mm
Package Contents1 × Quartz Atomic Vapor Cell

Choose this option

Choose MQAVC002 when your setup is built around a 60 mm beam path but space around the cell body is limited. The 12 mm outer diameter is easier to place in narrow holders or beamline hardware, while the angled end geometry and single top stem give you a more specific mechanical layout to match than a plain straight-ended tube body.

What makes this option different

  • 60 mm optical path for atomic spectroscopy methods designed around this longer beam length.
  • 12 mm outer diameter cylindrical body for installations where holder width and side clearance matter.
  • Single fill stem with 4 mm OD and 2 mm ID for one defined access point at the top of the cell.
  • Angled end faces that should be matched to the intended mounting and optical direction.

Using this cell

Use the cell in the optical orientation intended by your method, and keep that orientation consistent during alignment and measurement. The top stem is the access point shown for this model, so any filling, sealing or gas-handling process needs to be planned around that single-stem layout.

Support the main body during handling rather than lifting or twisting by the stem. This product page does not establish a supplied gas composition, closure, pressure rating or minimum working volume, so those points should be settled as part of the complete experimental assembly when they matter to the job.

First-use check

  1. Inspect the optical faces, body and fill stem for chips, residue or transport damage.
  2. Test the body support and clearance around the projecting stem before connecting process hardware.
  3. Align the beam through the intended sample chamber, clear of the chamber edges, and establish the background in the final measurement orientation.

Fit and optical alignment

View the English selection reference.

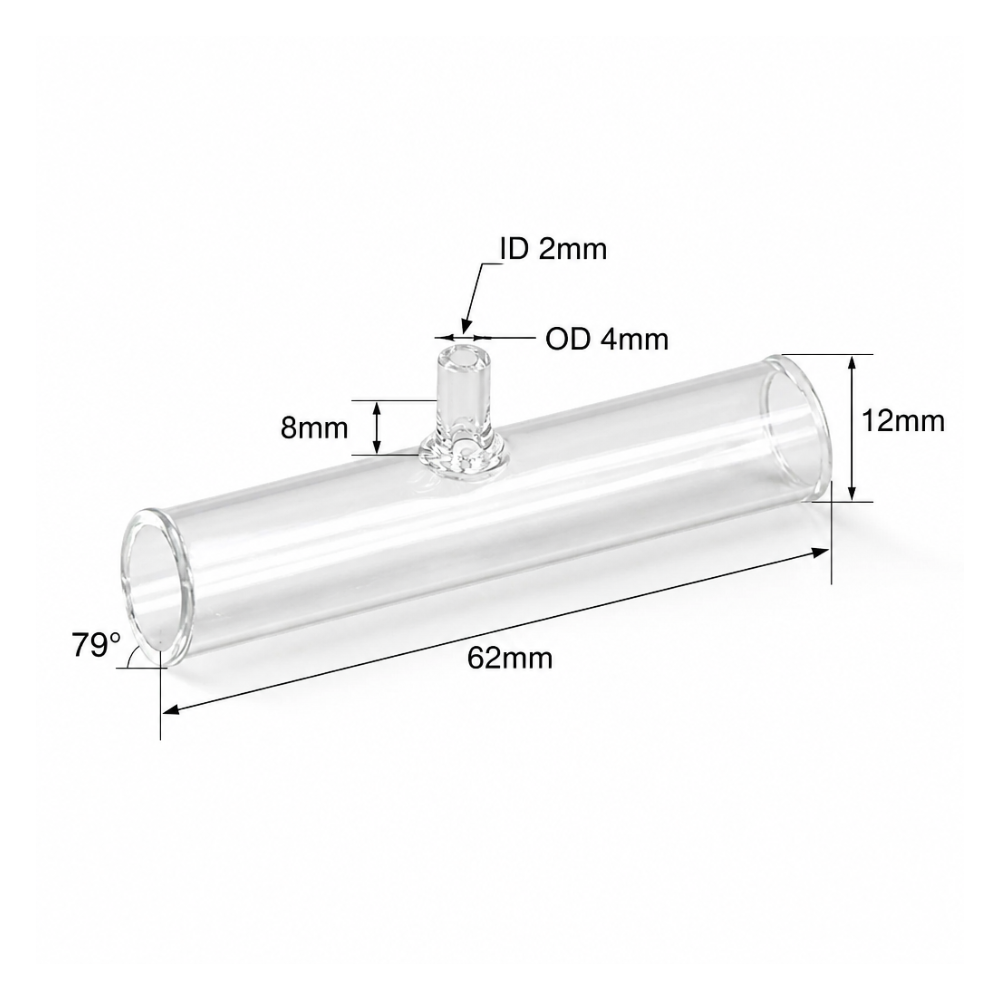

The body has a 12 mm outside diameter, a 62 mm axial span and a specified 1 mm tube wall. The fill stem projects 8 mm, with 4 mm OD and 2 mm ID. Match the inclined end-face orientation as well as the body dimensions. Check those features against your holder bore, beam direction and the free space above the mounted cell.

Z Height needs to be confirmed for this option, so beam-center fit should be checked from your holder or current cell rather than assumed from the body style alone.

English selection reference
Selection reference ↗

Solvents and cleaning

Molded 83 quartz is commonly selected for methods that may involve organic solvents or temperature-controlled work, but the suitable routine still depends on the complete cell assembly and your actual process conditions. If your method involves demanding chemistry, extended contact time or elevated temperature, please check suitability before ordering.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

1 Quartz Atomic Vapor Cell.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body diameter, stem size or body geometry, send a labelled drawing or sketch with the critical dimensions and operating conditions. Holder details are useful when the new cell must fit an existing mounting arrangement.

Send a product-selection enquiry with SKU MQAVC002, your drawing or holder details, sample conditions, quantity and delivery destination.
