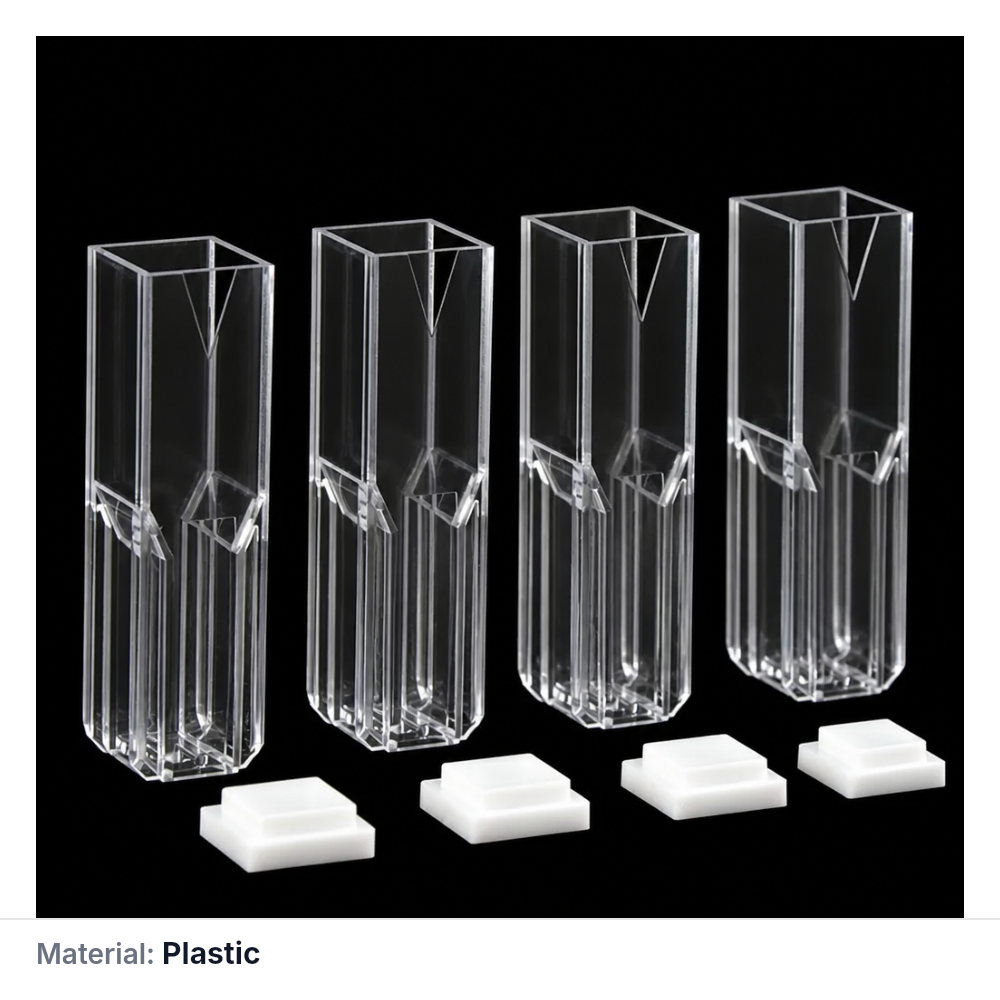

(MQPCU012) Plastic Semi-Micro Cuvette, Reduced Sample Chamber, Pack of 4
$15.00
MQPCU012 is a plastic semi-micro cuvette with a 10 mm optical path, Two-Way Light transmission and a 1.5 mL nominal capacity. Its open top allows direct filling, and the supplied flat lid lets you cover the filled cell for routine handling. Sold as a pack of 4 cuvettes with accompanying closures and storage box.
Description
MQPCU012 is a plastic semi-micro cuvette for visible-light measurements in the stated 285-750 nm range. It combines a 10 mm optical path with Two-Way Light transmission and a 1.5 mL nominal capacity, giving you a reduced sample chamber while keeping the familiar square cuvette format used in many holders. The open top and supplied flat lid make it easy to fill directly, then cover the cell for handling between preparation and measurement.
- Path Length
- 10 mm
- Sample Volume (Nominal)
- 1.5 mL
- Opening Configuration
- Open Top
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Semi-Micro Cuvette |
| Path Length | 10 mm |
| Light Transmission Configuration | Two-Way Light |
| Wavelength Range — Lower Limit | 285 nm |
| Wavelength Range — Upper Limit | 750 nm |
| Sample Volume (Nominal) | 1.5 mL |
| External Dimensions | 12.5 × 12.5 × 45 mm |
| Body Height | 45 mm |
| Base Dimensions | 12.5 × 12.5 mm |
| Material | Plastic |
| Closure Type | Flat Lid |
| Closure Included | Yes |
| Opening Configuration | Open Top |
| Sales Unit | pack of 4 |
| Package Contents | 4 × Plastic Semi-Micro Cuvette; Accompanying closures |
Choose this option
Choose MQPCU012 when your method is written around a 10 mm transmission path but you want a semi-micro sample chamber rather than a larger-volume cell. This format is useful when you need direct top filling, a disposable plastic body and a covered cell for routine bench handling, while still loading the sample through a standard cuvette-style footprint.
What makes this option different
- 10 mm optical path with Two-Way Light supports straight-through transmission measurements across the two opposing optical faces used for the reading.
- Semi-micro sample region pairs that 10 mm path with a 1.5 mL nominal capacity, helping you work with a reduced chamber instead of a higher-capacity full-size cell.
- Open top access lets you fill the chamber directly with a pipette or similar lab tool and check the liquid condition before measurement.
- Supplied flat lid covers the opening after filling for ordinary handling, but it is a cover rather than a pressure or leak-tight closure.
- One-piece plastic molding gives this option a molded disposable body rather than an assembled quartz construction.
- 12.5 × 12.5 mm base with 45 mm body height helps you review holder fit and insertion depth when replacing another cuvette style.
- Pack of 4 suits blank/sample work, repeats or parallel preparations in the same order unit.
Using this cell
Fill the cell from the open top, then place the flat lid on the opening for covered handling. The semi-micro chamber is intended to reduce the nominal sample volume compared with a larger standard chamber, but the liquid still needs to cover the actual beam region used by your instrument.
Two-Way Light means the measurement is taken across the defined transmission faces, so orient the cell consistently for blank and sample. Before reading, check that the optical path passes through a clear, bubble-free liquid region and that no droplets remain on the outside faces.
First-use check
- Inspect the chamber and optical faces for dust, haze or molding marks.
- Place an empty or blank-filled cell in the holder and confirm stable seating.
- After filling, confirm that the beam passes through a fully covered, bubble-free liquid region.
- Set the lid in place only after the chamber is filled and the outside faces are clean.
Fit and optical alignment
View the English selection reference. Also available in the product gallery.
The stated body size is 12.5 × 12.5 × 45 mm. That helps you check holder width and body insertion depth if you are replacing a taller or differently shaped disposable cell.
Z Height is not established for this option. If your holder or instrument depends on a defined beam-center height, check that point separately before ordering.

Handling and cleaning
This is a plastic disposable cuvette. The specific polymer grade and chemical limits are not established here, so compatibility should be checked for your sample and rinse liquids before use.
Avoid unverified organic solvents, heating, prolonged soaking and abrasive wiping. If the cell becomes scratched, cloudy, swollen or stained, replace it rather than trying to restore the optical faces aggressively.
Included with this option
Pack of 4 MQPCU012 plastic semi-micro cuvettes with accompanying closures and storage box.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Need a different fit?
If you need a quartz alternative, a different path length or a different external fit for your holder, send us your enquiry with SKU MQPCU012, your current cell reference or holder details, sample conditions and required quantity.
Additional information
| Weight | 200 g |
|---|
