(MQQFC002) Quartz Flow Cell, 1 mm path, 1.2 mL nominal capacity, Two-Tube Connection Layout

Weight75 g
SKU: MQQFC002

$369.00

In Stock

This JGS1 quartz flow cell combines a 1 mm optical path with a 1.2 mL nominal capacity and two fixed glass tube connections at opposite ends. The slim 66 × 25 × 5 mm body suits UV/Vis flow setups that need a flat cell body with inline tube access. Supplied as 1 piece.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC002 is a JGS1 quartz flow cell for UV/Vis work with a 1 mm optical path, 1.2 mL nominal capacity and two fixed tube connections. Its flat body and straight end-to-end connection layout make it a practical choice when you want a simple inline flow path and need to plan holder space and tubing route together.

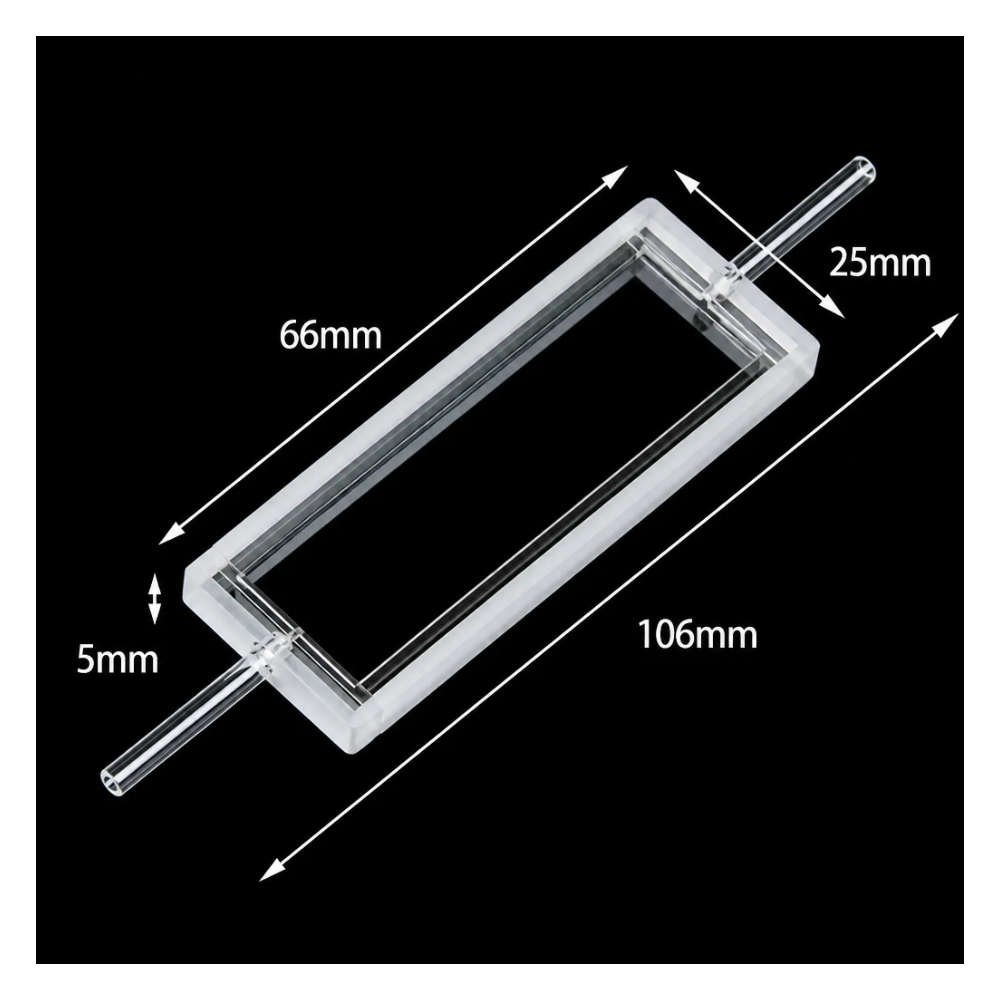

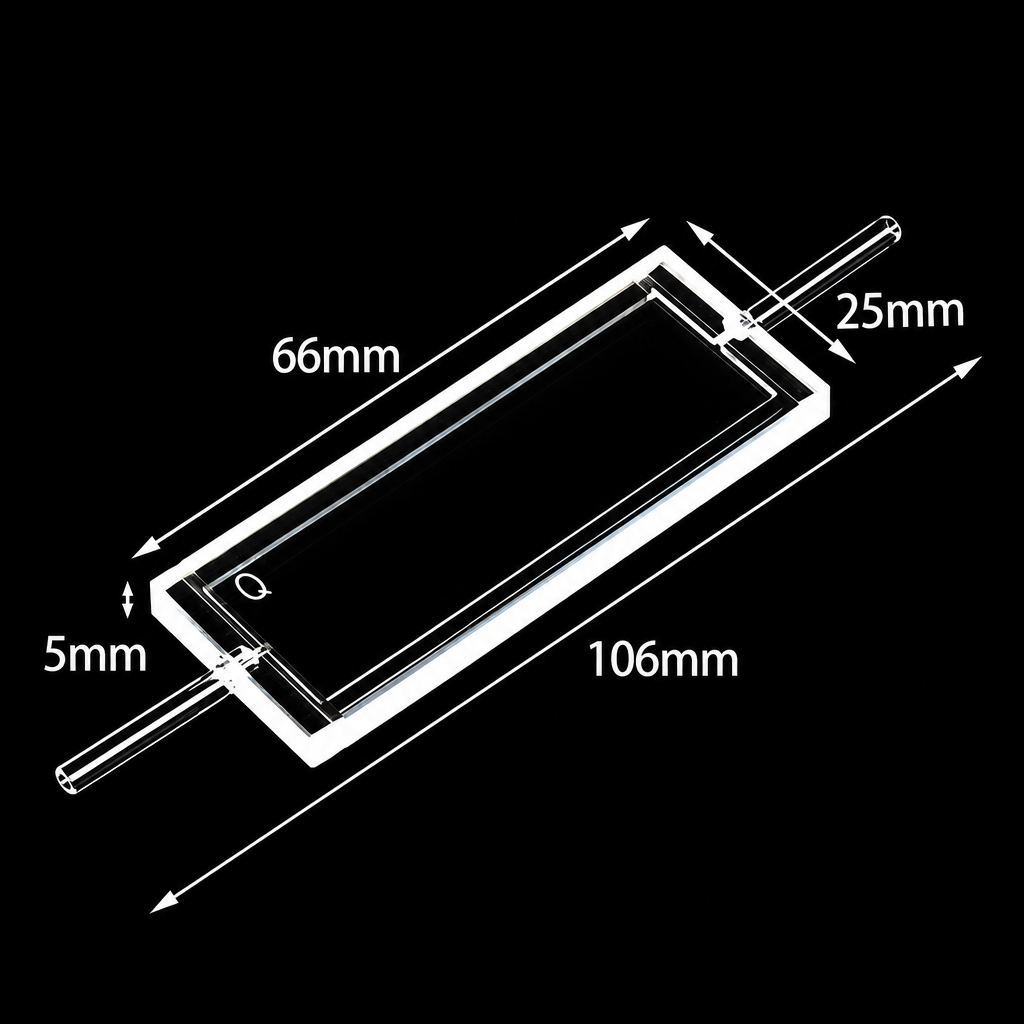

This cell uses Two-Way Light transmission and fixed glass tubes marked 3 mm outer diameter and 1 mm inner diameter. The body is 66 × 25 × 5 mm, while the uncapped assembly shown in the drawing spans 106 mm across the tube-to-tube direction, so the mounted footprint is longer than the body alone.

Path Length
1 mm
Sample Volume (Nominal)
1.2 mL
Opening Configuration
Two Tube Connections

Selection Specifications

Product KindFlow Cell
Cell TypeFlow Cell
Measurement ModeUV/Vis Spectroscopy
Path Length1 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)1.2 mL
External Dimensions106 × 25 × 5 mm
Cell Body Dimensions66 × 25 × 5 mm
External Dimensions ScopeUncapped Cell
MaterialQuartz
Material GradeJGS1
Port Count2
Tube Outer Diameter (OD)3 mm
Tube Inner Diameter (ID)1 mm
Fabrication MethodStandard 80
Opening ConfigurationTwo Tube Connections
Port LayoutEnd/side connection at the left in the referenced original; Opposite end/side connection at the right in the referenced original
Pack Quantity1 Piece
Package Contents1 × Quartz Flow Cell

Choose this option

Choose this option when your method uses a 1 mm flow path and you want a flat quartz cell with one connection at each end. It suits installations where the cell body can sit in a compact holder, but the tubing needs to continue straight through the setup rather than leaving from the top or sides.

What makes this option different

  • 1 mm optical path for UV/Vis flow measurements that use a short path length.
  • Two fixed end connections keep the fluid route simple and inline.
  • 3 mm OD / 1 mm ID glass tubes help you check tubing fit and routing space.
  • Flat 66 × 25 × 5 mm body with a longer 106 mm uncapped span across the full assembly.

Using this cell

Support the cell by the body during installation and do not use the projecting glass tubes as load-bearing handles. Connect the fluid path after you have planned how the body will sit in the holder and how the tubing will approach both ends.

Fill and flush gradually, then inspect the optical region for bubbles before running a blank and sample sequence. The 1.2 mL figure is the nominal cell capacity and should not be treated as a minimum working volume for every setup.

No pressure limit is specified for this SKU, so pressurized use should be reviewed from the complete assembled liquid path, including tubing and any external fittings.

First-use check

  1. Inspect the optical faces and both tube junctions for chips or handling damage.
  2. Seat the body securely in the holder and check beam alignment with a suitable blank.
  3. After filling, confirm that the illuminated region is fully wetted and free of visible bubbles.

Fit and optical alignment

View the English selection reference. View the English dimensional reference.

Check both the body size and the longer tube-to-tube span when reviewing fit. You will also need extra room beyond the drawn 106 mm span for attached tubing and bend radius.

Z Height is not established for this model. Beam-centre fit should therefore be checked from your holder and instrument geometry rather than assumed from the outside dimensions.

English selection reference
Selection reference ↗

Solvents and cleaning

Standard 80 is an adhesive-bonded quartz construction typically chosen for room-temperature water-based samples and buffers. Avoid organic samples and organic cleaning solvents with this cell.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaners, and clean the optical faces with non-abrasive optical tissue. If your process involves organic solvents, aggressive chemicals, heat or long contact time, send the liquid, concentration, temperature and contact time so a more suitable construction can be reviewed.

Included with this option

1 Quartz Flow Cell. The listed price is for one piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz flow cells for changes to path length, body envelope, connection layout, nominal volume, fabrication and tolerances. Send a labelled drawing or holder sketch together with sample conditions and quantity through our contact page, and mention SKU MQQFC002.
