(MQQFC060) Quartz Rectangular Sample Cell, 2 mm Path, 404 µL, Open at Both Ends
Description
MQQFC060 is a JGS1 quartz rectangular sample cell with a 2 mm optical path in a long open-ended body. Its Four-sided optical layout provides optical access from four sides, and the 404 µL nominal capacity sits within a narrow rectangular channel that can be built into a dedicated fixture. This is a useful option when your setup needs side optical access as well as a defined path in a slim quartz body.
- Path Length
- 2 mm
- Sample Volume (Nominal)
- 404 µL
- Opening Configuration
- Open at Both Ends
Selection Specifications
| Product Kind | Specialized Cell |
|---|---|
| Cell Type | Rectangular Sample Cell |
| Measurement Mode | Transmission Spectroscopy |
| Path Length | 2 mm |
| Light Transmission Configuration | Four-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 404 µL |
| External Dimensions | 4.5 × 4.5 × 101 mm |
| Body Height | 101 mm |
| Base Dimensions | 4.5 × 4.5 mm |
| Internal Dimensions | 2 × 2 × 101 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Fabrication Method | Molded 83 |
| Opening Configuration | Open at Both Ends |
| Pack Quantity | 1 Piece |
Choose this option
Choose MQQFC060 when your holder design needs a 2 mm path together with optical access from more than one beam direction. The open-at-both-ends body is suited to assemblies where end support, sealing and liquid handling are provided by your own instrument or fixture rather than by built-in ports or closures.
What makes this option different
- 2 mm optical path: built for methods that call for this stated path length.
- Four-sided optical access: the rectangular body allows optical access from four sides.
- Long sample channel: the listed 2 × 2 × 101 mm internal dimensions define a narrow rectangular sample region over a long body length.
- Open at both ends: intended for integration into a separate mounting, sealing or liquid-handling arrangement.

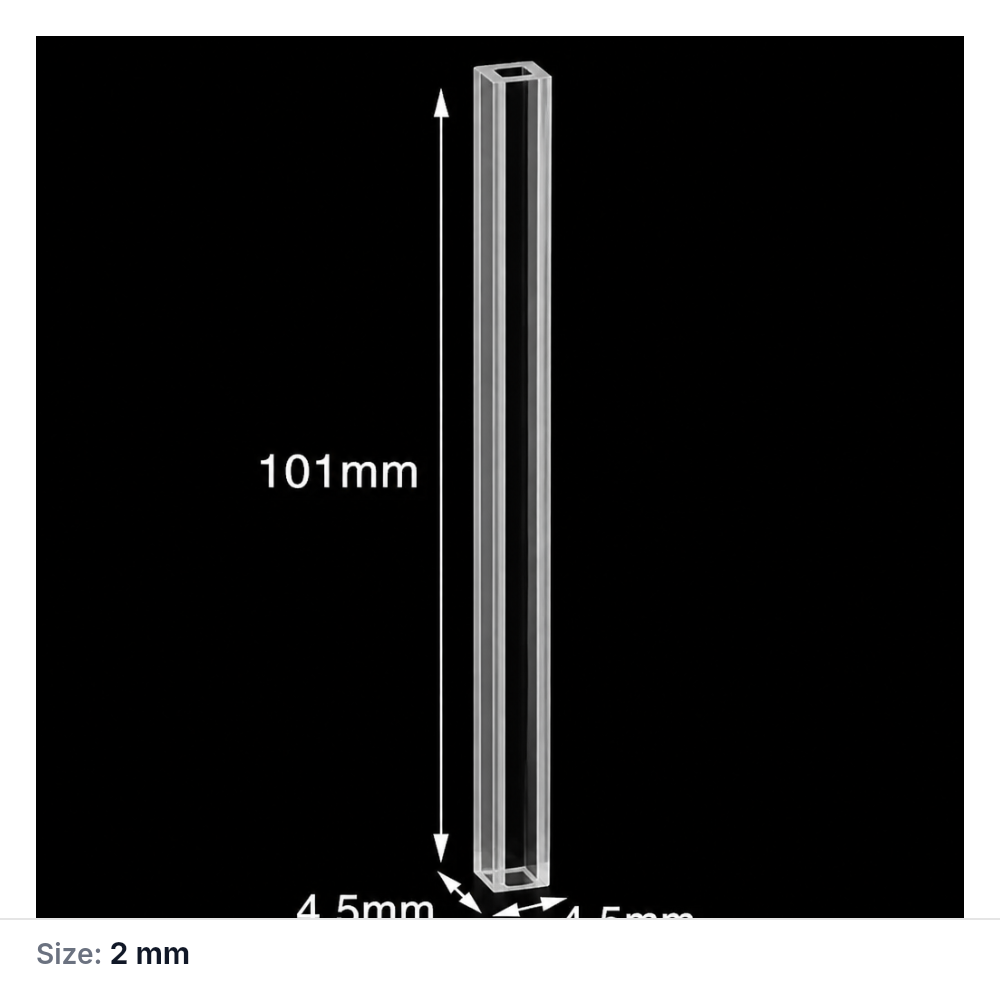

Structure and dimensions

Using this cell
The nominal capacity is not a minimum working-volume specification. Establish the fill in your assembled fixture so the beam crosses a fully filled, bubble-free sample region.
Install the cell so the measurement beam passes through the intended 2 mm path, and keep that orientation consistent between blank and sample readings. If your setup uses side optical access as well, check that the holder does not block the faces needed for your beam layout.
For liquid use, establish the loading, sealing and bubble-removal procedure in the final assembly before routine measurements. The cell body is open at both ends, so sample retention depends on the external arrangement rather than on the quartz part alone.
First-use check
- Inspect all optical faces and the end openings before installation.
- Check that the holder supports the body without twisting or point contact.
- Verify beam position with a blank in the final measurement orientation.
- After filling, remove bubbles and any liquid on the exterior faces.
Fit and optical alignment
Use the 4.5 × 4.5 × 101 mm external dimensions to check fixture clearance and support length. The 2 × 2 × 101 mm internal dimensions describe the sample channel, not the size of the holder slot or clamping feature.
Z Height is not established for this SKU, so beam-height compatibility should not be assumed from the 101 mm body height alone. Support the cell along the body without concentrated pressure on the optical faces or end edges.
Solvents and cleaning
Molded 83 is the MQ option generally selected for organic-solvent methods or work involving temperature. With this open-ended cell, review the liquid, concentration, temperature and contact time together with the end seals and other wetted parts in your fixture.
Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaners. If your method involves aggressive chemicals, elevated temperature or extended contact time, review the suitability of the complete arrangement, including seals and fittings added around the cell.
Included with this option
1 rectangular sample cell, SKU MQQFC060. The listed price is for one piece.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
If you need a different optical path, body envelope or a version tailored to a specific holder or sealing arrangement, send your drawing or labelled sketch for review. Custom enquiries generally use JGS1 quartz, and prototype batches typically involve 2–4 cells, with feasibility, specifications, quantity, price and production time confirmed in quotation.
Send a product-selection enquiry with SKU MQQFC060, your holder details, beam layout, sample conditions and target quantity.
Additional information
| Weight | 150 g |
|---|
