(MQQFC076) JGS1 Quartz Flow Cell, 50 mm Path, 700 µL, Top Quartz Tubes

Weight150 g
SKU: MQQFC076

$419.00

In Stock

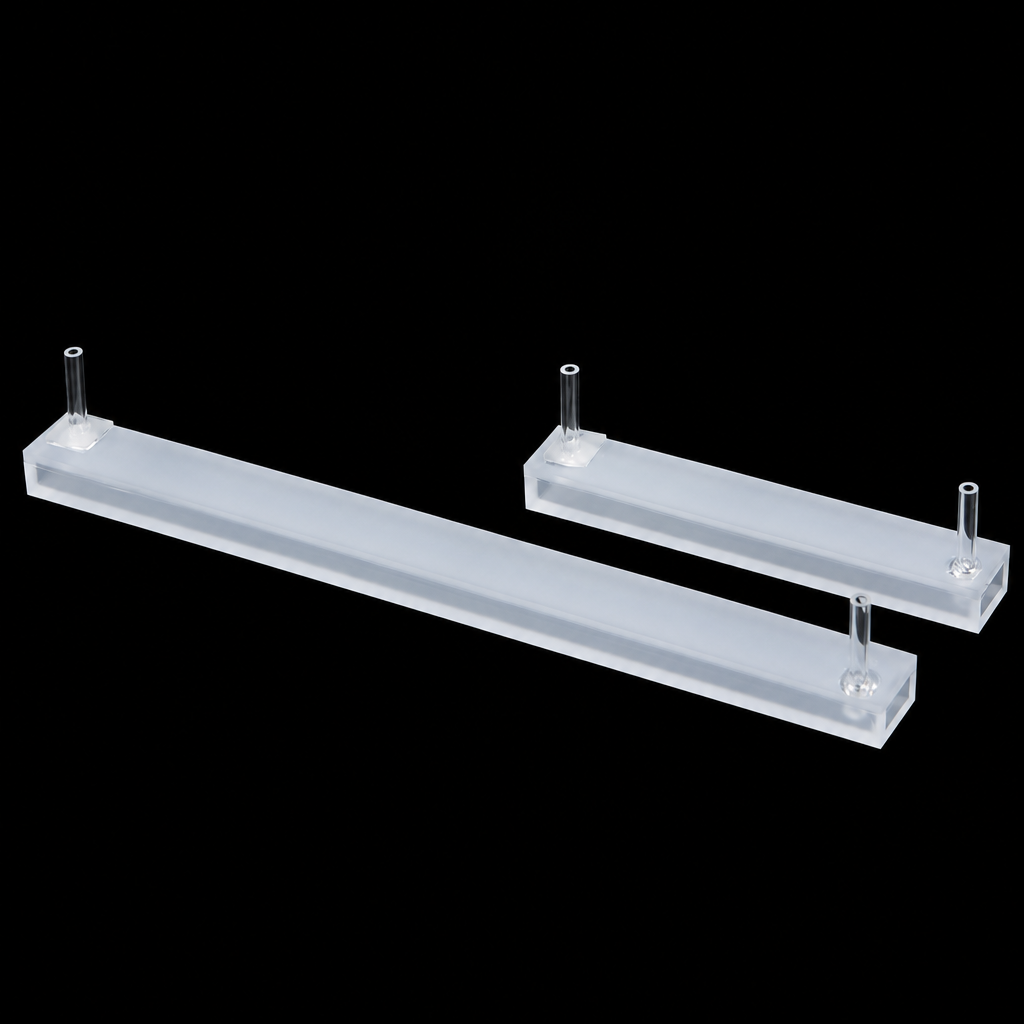

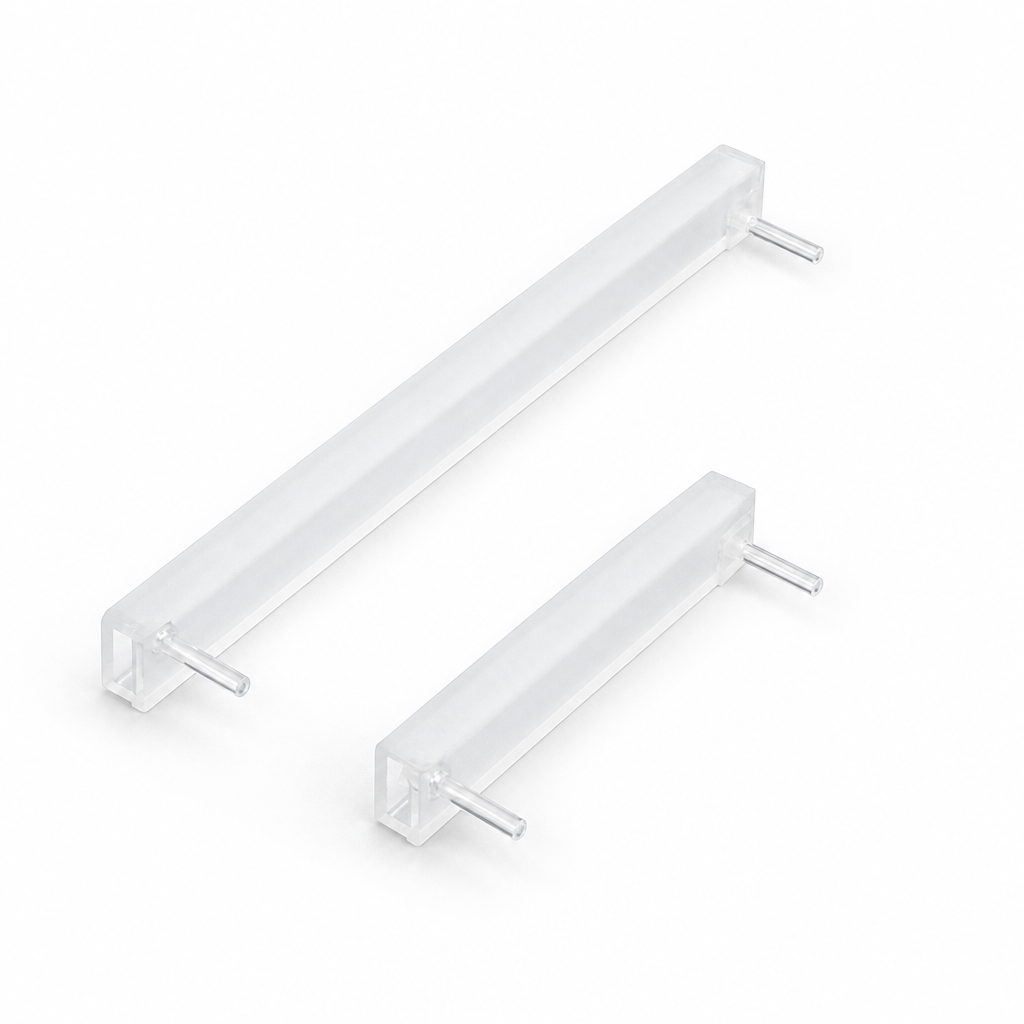

JGS1 quartz flow cell with a 50 mm optical path and 700 µL nominal capacity. Two upright quartz tubes are 2 mm OD / 1 mm ID, with one tube extending 2 mm into the chamber. The low-profile body measures 52.5 × 8.5 × 5.5 mm before the projecting tubes. Standard 80 adhesive-bonded construction; one cell supplied.

In Stock
Add to Wishlist
Add to Wishlist
SKU: MQQFC076 Categories: , , Tags: , ,
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

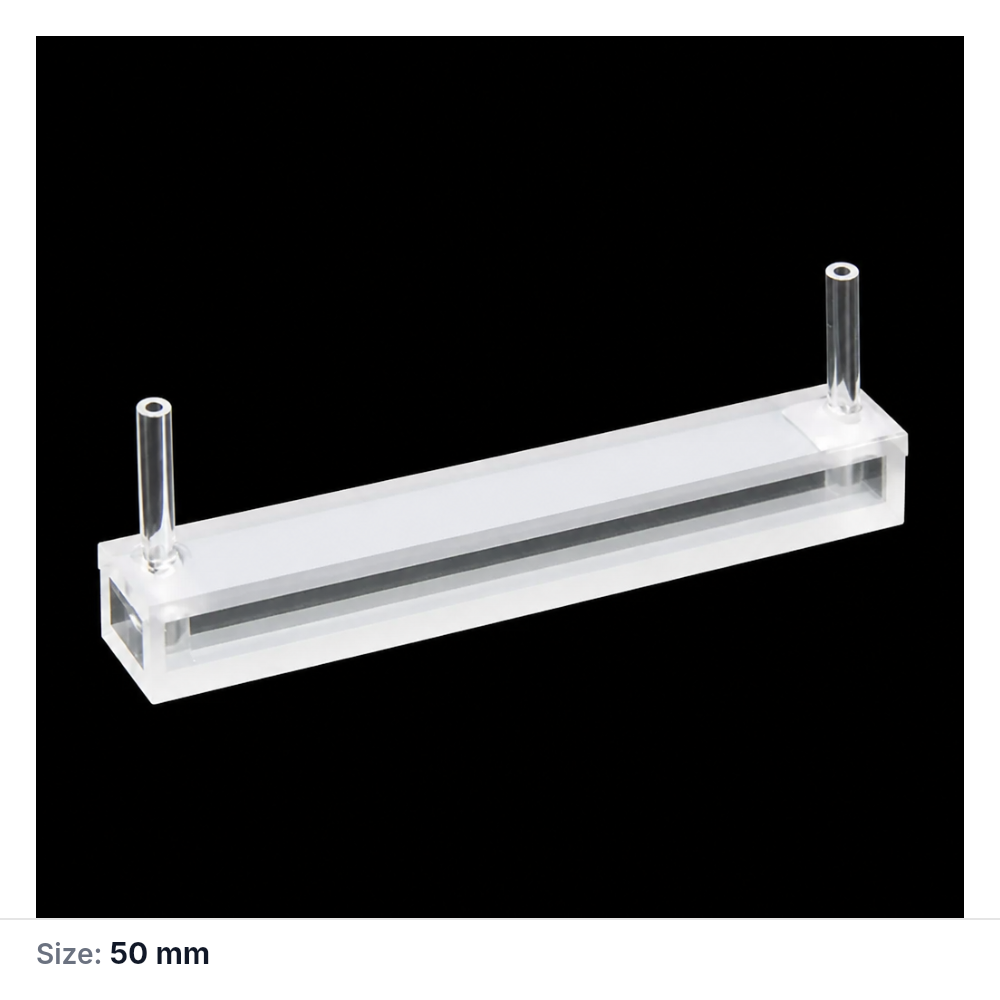

MQQFC076 provides a 50 mm transmission path along an elongated quartz sample region with 700 µL nominal capacity. Its low body profile and two upright quartz connections are the main mechanical differences to check when planning a long-path flow arrangement.

Path Length
50 mm
Sample Volume (Nominal)
700 µL
Light Transmission Configuration
Two-Way Light

Selection Specifications

Product KindFlow Cell
Cell TypeFlow Cell
Measurement ModeUV/Vis Spectroscopy
Path Length50 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)700 µL
External Dimensions52.5 × 8.5 × 5.5 mm
Cell Body Dimensions52.5 × 8.5 × 5.5 mm
External Dimensions ScopeBody Only
Body Height5.5 mm
Base Dimensions52.5 × 8.5 mm
MaterialQuartz
Material GradeJGS1
Port Count2
Tube Outer Diameter (OD)2 mm
Tube Inner Diameter (ID)1 mm
Fabrication MethodStandard 80
Fitting MaterialQuartz
Port LayoutUpright top tube near the left end of the long body as drawn; Upright top tube near the right end of the long body as drawn
Pack Quantity1 Piece
Package Contents1 × Quartz Flow Cell

Choose this option

Choose this version when your method specifies a 50 mm optical path and the stated sample capacity. Check the long body footprint and space above both tubes together; the 5.5 mm body height does not describe the complete installed assembly.

What makes this option different

  • 50 mm optical path: match this measurement distance to the method and beam direction; it is distinct from the 52.5 mm external body length.
  • 700 µL nominal capacity: this identifies the selected option. It is not a minimum working-fill specification or the total volume of the external liquid circuit.
  • Two top quartz tubes, 2 mm OD / 1 mm ID: the fixed connections leave the long sides clear for optical access. Allow space for tubing above the body.
  • One tube reaches 2 mm inside the chamber: account for this internal extension when arranging flushing and observing bubbles. The 2 mm reach is a separate measurement from the 2 mm tube outside diameter.
  • Two opposing optical faces: these provide transmission access through the stated path; the two liquid connections are separate from the optical faces.

Using this cell

Support the cell body while fitting tubing. Route the liquid circuit so the fixed quartz connections are not used as handles or supports. Fill and flush the sample region with a suitable blank, inspect the beam region for bubbles and keep the seating and orientation consistent between blank and sample.

First-use check

  1. Inspect the optical faces, connection edges and body for damage or residue.
  2. Check fixture support, beam direction and connection clearance before completing the liquid circuit.
  3. Flush with a suitable blank, remove bubbles and establish a stable reference before measuring the sample.

Fit and optical alignment

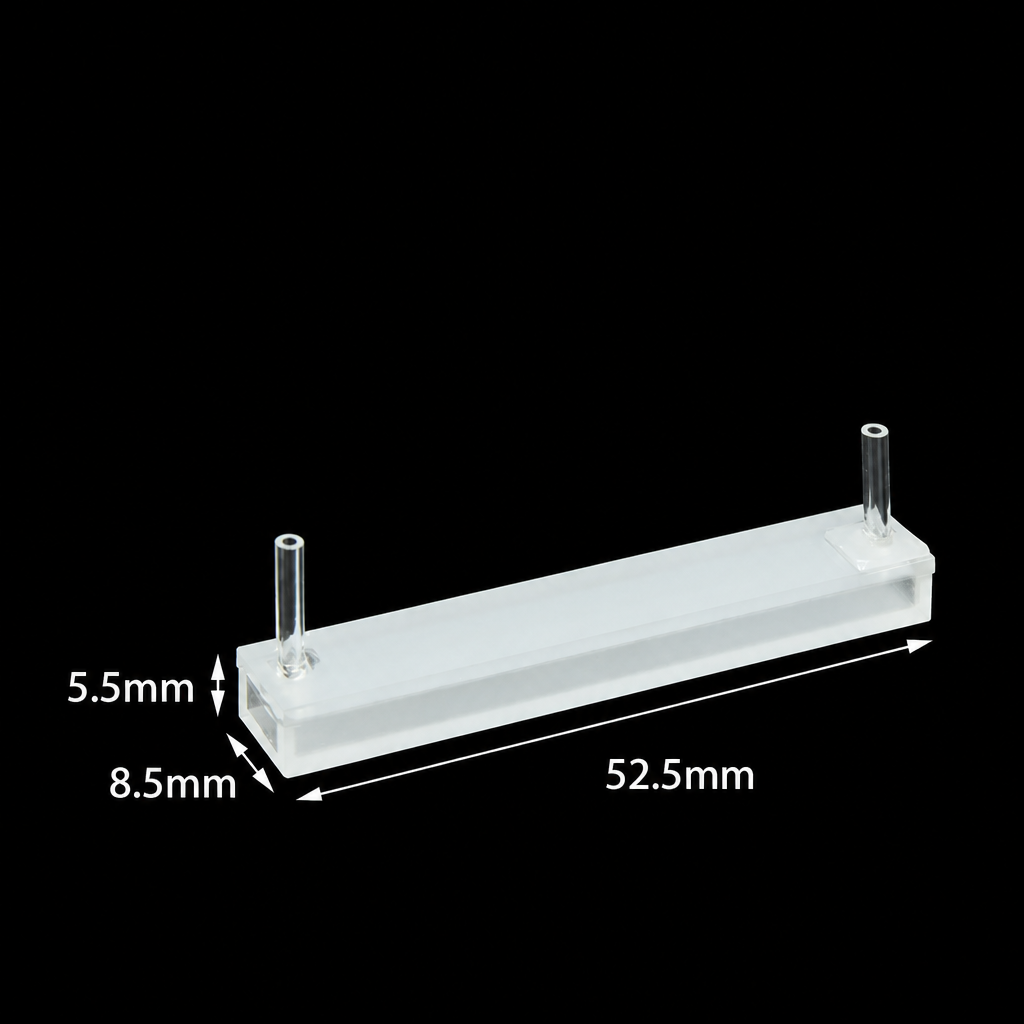

The quartz body is 52.5 × 8.5 × 5.5 mm. The top tubes project beyond that body envelope; their full installed height is not represented by the body dimensions. Check holder support, beam access and clearance for your own tubing without loading the narrow quartz connections.

View the English selection reference.

English selection reference
Selection reference ↗

Solvents and cleaning

Standard 80: Standard 80 is an adhesive-bonded construction for routine room-temperature aqueous samples and buffers. Avoid organic sample solvents and organic cleaning agents on this bonded assembly. Select conditions for every wetted part, including connections and tubing.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe exterior optical faces gently with non-abrasive optical tissue and handle the assembly by its supported body.

Included with this option

One quartz flow cell with the two fixed top quartz tubes shown. External tubing, adapters and a holder are not stated as included. The listed price is per cell.

Availability and ordering

Contact us to confirm current availability and dispatch timing for your quantity. For a required delivery date, check timing before checkout; preparation and production are separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects involving optical paths, sample regions, optical access, connection geometry and mounting dimensions. Modified designs and prototype batches are quoted separately. Send your drawing, holder details, sample conditions and quantity through the contact page, and include MQQFC076.
