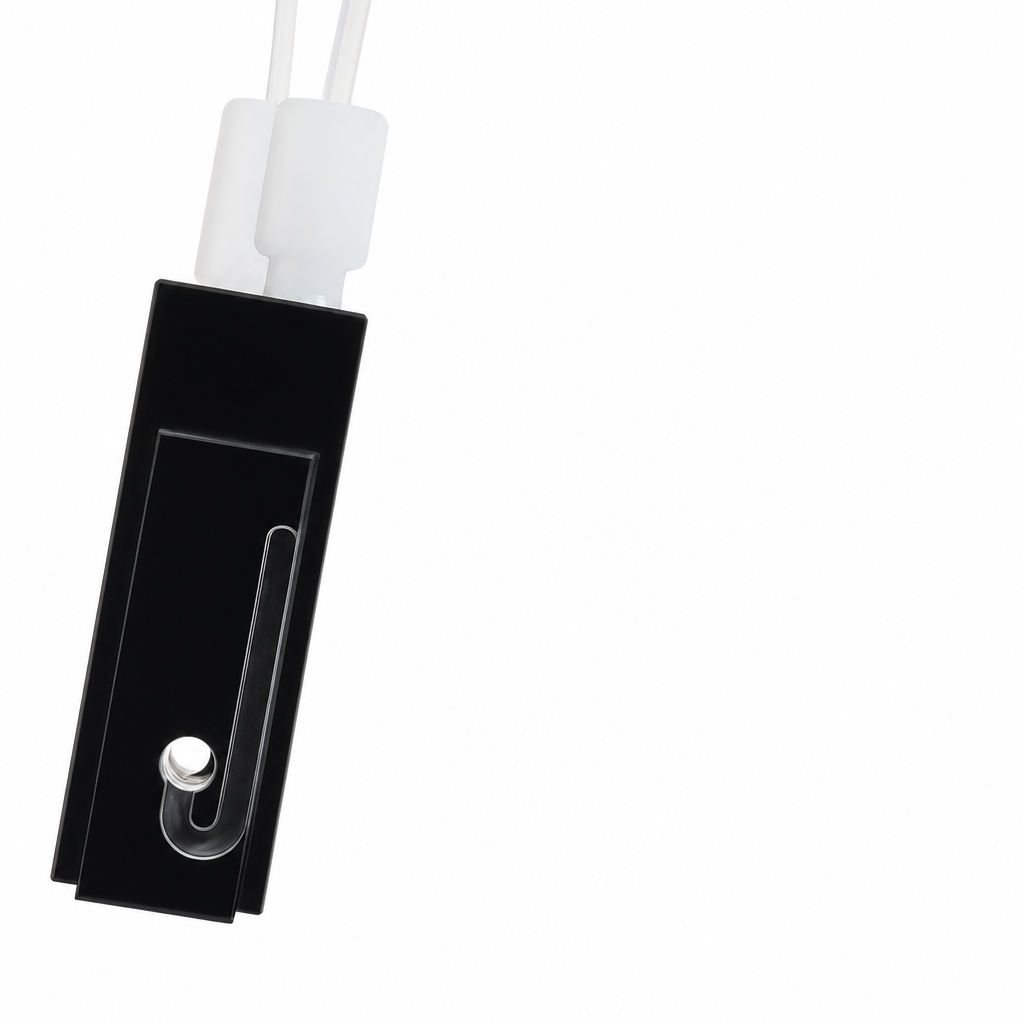

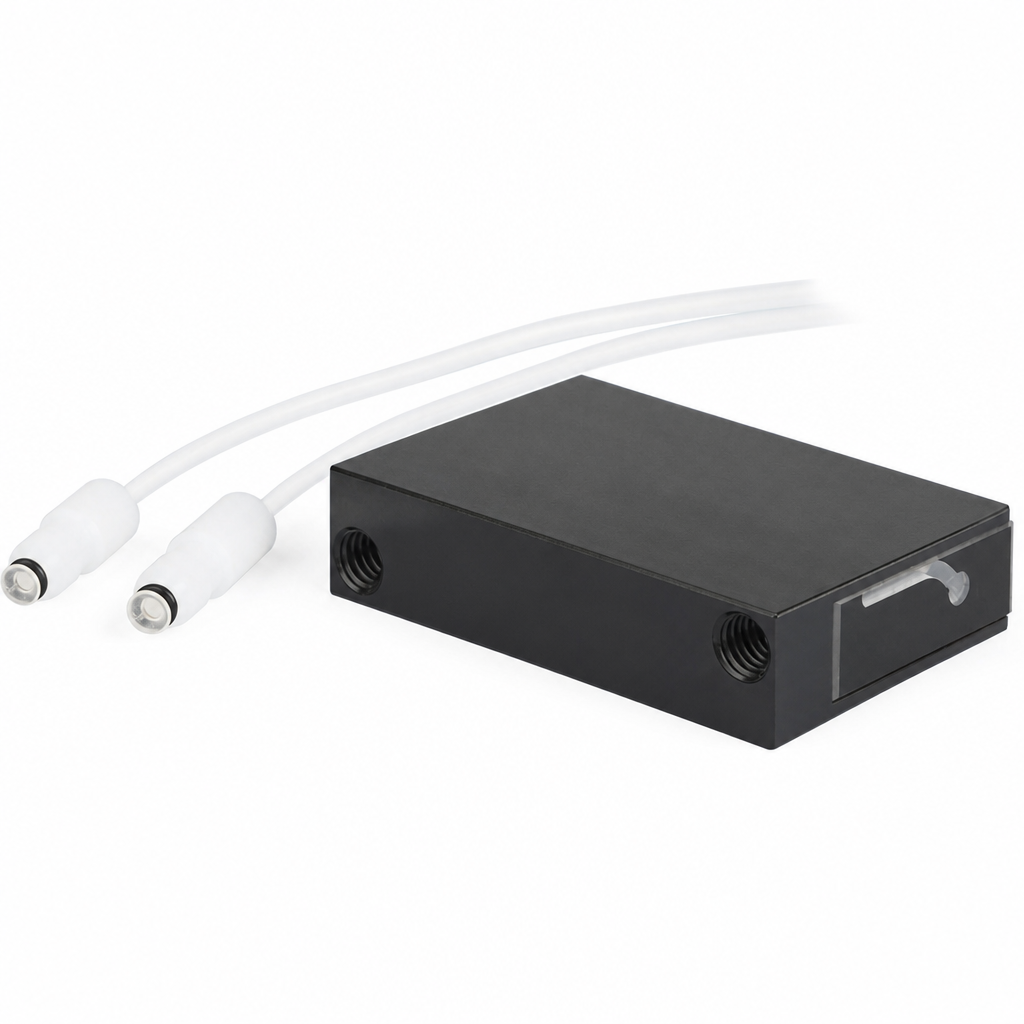

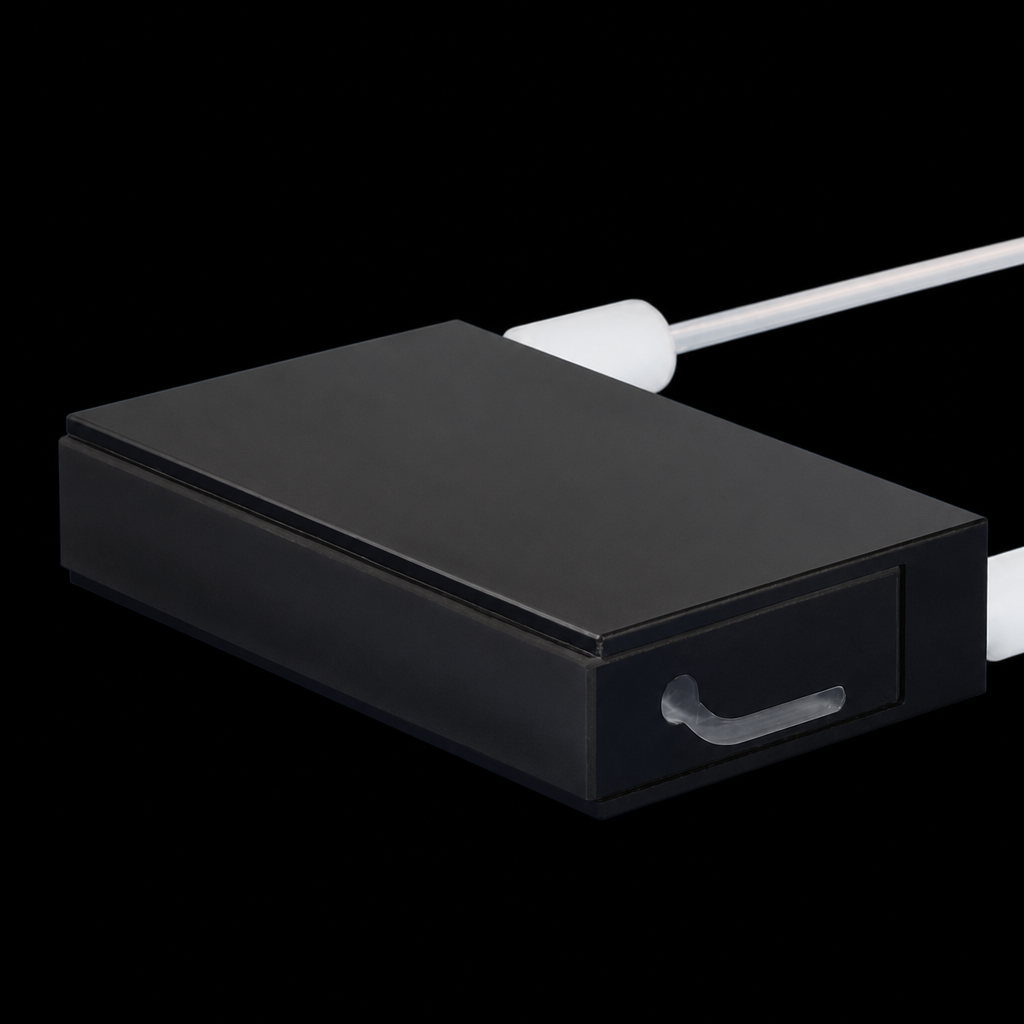

(MQQFC078) Quartz Flow Cell, 50 mm Path, 350 µL, M6 Ports, 8.5 mm Z Height

Weight1750 g
SKU: MQQFC078

$768.00

In Stock

JGS1 quartz flow cell with a 50 mm optical path, 350 µL nominal capacity and an 8.5 mm base-to-beam-centre height. Its 3 mm optical hole is separate from the two M6 threaded fluid connections; the 52.5 × 12.5 × 35 mm dimensions describe the body only. Standard 80 adhesive-bonded construction for room-temperature aqueous methods; one cell supplied.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC078 is a JGS1 quartz flow cell for UV/Vis setups that need a 50 mm optical path in a compact body. Its 350 µL nominal capacity, 8.5 mm Z Height and two top M6 threaded fluid connections give you practical dimensions for planning the holder position, beam height and tubing route as one assembly.

Path Length
50 mm
Sample Volume (Nominal)
350 µL
Opening Configuration
Two Threaded Fluid Connections

Selection Specifications

Product KindFlow Cell
Cell TypeFlow Cell
Measurement ModeUV/Vis Spectroscopy
Path Length50 mm
Light Transmission ConfigurationTwo-Way Light
Z Height8.5 mm
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)350 µL
External Dimensions52.5 × 12.5 × 35 mm
Cell Body Dimensions52.5 × 12.5 × 35 mm
External Dimensions ScopeBody Only
Body Height35 mm
MaterialQuartz
Material GradeJGS1
Port Count2
Port ThreadM6
Fabrication MethodStandard 80
Opening ConfigurationTwo Threaded Fluid Connections
Port LayoutTop connection at the left in the referenced original; Top connection at the right in the referenced original
Pack Quantity1 Piece
Package Contents1 × Quartz Flow Cell

Choose this option

Choose this cell when a long 50 mm path is important, but you also need a defined bottom-to-beam reference and top-side connection access in a small rectangular format. It suits layouts where the optical position cannot be checked from path length alone and where the installed tubing route matters as much as the cell body size.

What makes this option different

The 3 mm hole is the optical opening at the measurement region. It is separate from the M6 thread designation and from the fluid bore. Check beam size and beam-centre height independently from connector selection.

  • 50 mm optical path for longer-path UV/Vis measurements in a flow format.
  • 8.5 mm Z Height gives a stated bottom-to-beam-center reference for holder alignment.
  • Two top M6 threaded fluid connections keep both fluid connections above the optical body.
  • 52.5 × 12.5 × 35 mm body-only dimensions let you check the cell body separately from removable fittings and tubing.

Using this cell

Mount the cell so the beam passes through the 50 mm optical path at the stated 8.5 mm center height. Fill gradually, clear visible bubbles from the optical region and run a blank after the liquid path is fully wetted and stable.

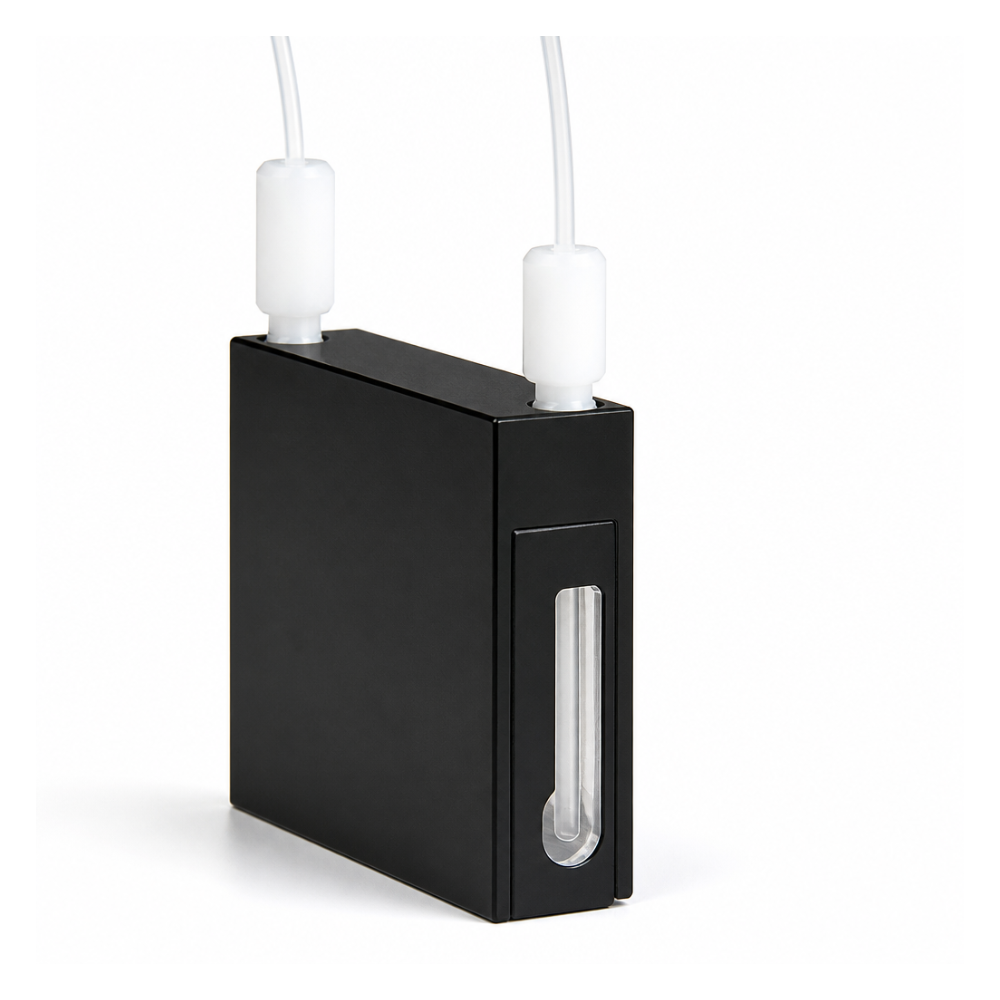

The two fluid connections are both on the top face. Leave enough room above the cell for fittings and tube routing, and support the body during installation so the connection hardware does not load the optical section.

No pressure rating is stated here. If your system is pressurized, check the operating pressure and connection details before use.

First-use check

  1. Inspect the optical faces, threaded ports and body edges before assembly.
  2. Confirm holder seating and beam alignment at the 8.5 mm center height.
  3. After connecting the fluid line, remove visible bubbles and verify a stable blank.

Fit and optical alignment

View the English selection reference.

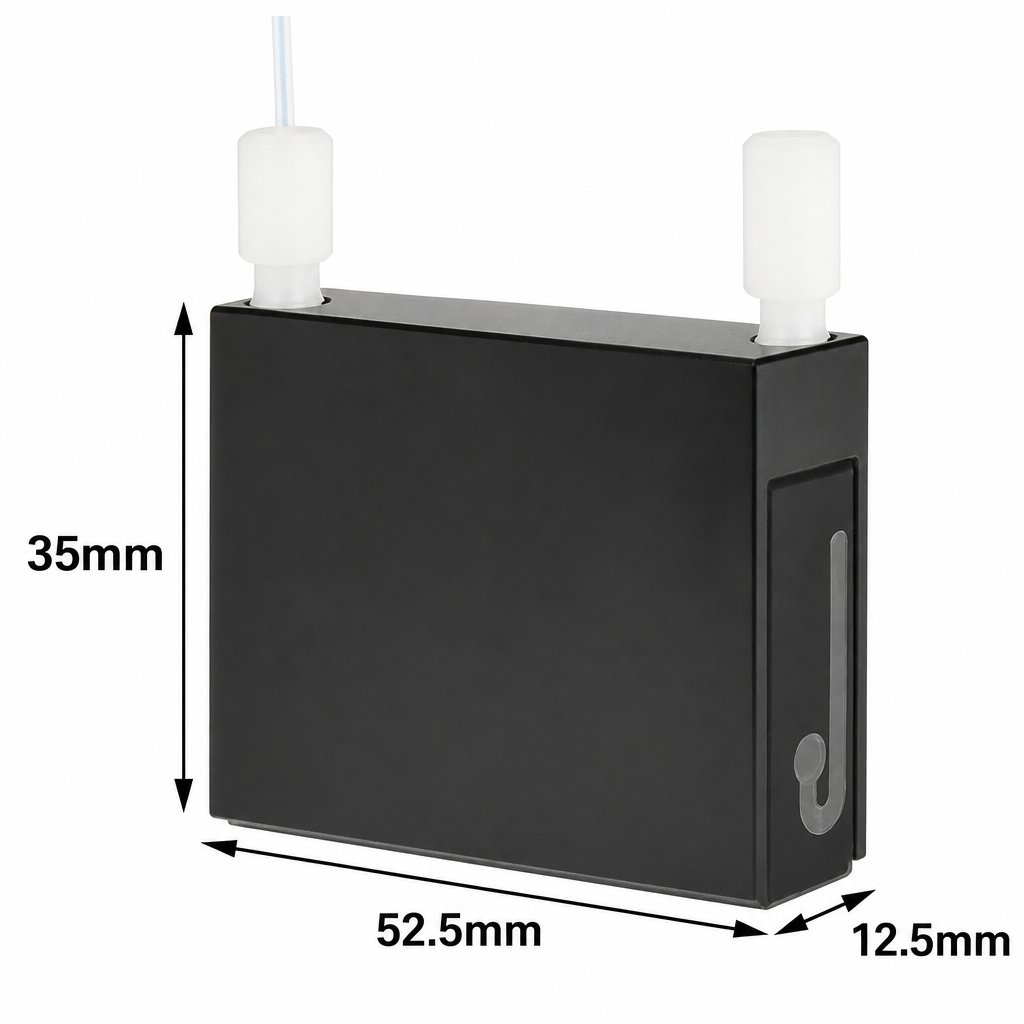

The stated outer dimensions apply to the body only: 52.5 × 12.5 × 35 mm. Removable fittings and hoses are outside that body envelope, so the installed space above the M6 ports should be checked separately.

For many holders, the key fit value is the 8.5 mm Z Height from the cell bottom to the beam center. Use that dimension together with the body size and top clearance when checking compatibility. The 350 µL figure is the nominal volume of the cell body, not the minimum working volume of the complete flow setup.

English selection reference
Selection reference ↗

Solvents and cleaning

This cell uses Standard 80 fabrication, an adhesive-bonded quartz construction that is typically chosen for room-temperature water-based samples and buffer solutions. Avoid organic samples and organic cleaning solvents with this construction.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis, abrasive cleaning and cleaning routines that are not suitable for the full assembled cell. Clean optical faces gently with non-abrasive lab wipes and a compatible aqueous cleaning approach.

Included with this option

1 Quartz Flow Cell.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We also coordinate custom JGS1 quartz projects for changes in path length, body envelope, connections, Z Height or other drawing-based requirements. Modified designs are quoted separately from the listed SKU.

Send a product-selection enquiry with SKU MQQFC078, your holder details, beam height requirement, fitting arrangement, sample conditions and required quantity.

Additional information

Weight1750 g
