(MQQFC088) Quartz Reflectance Sample Plate, 5 × 10 mm Obround Groove, 0.5 mm Deep

Weight50 g
SKU: MQQFC088

$179.00

In Stock

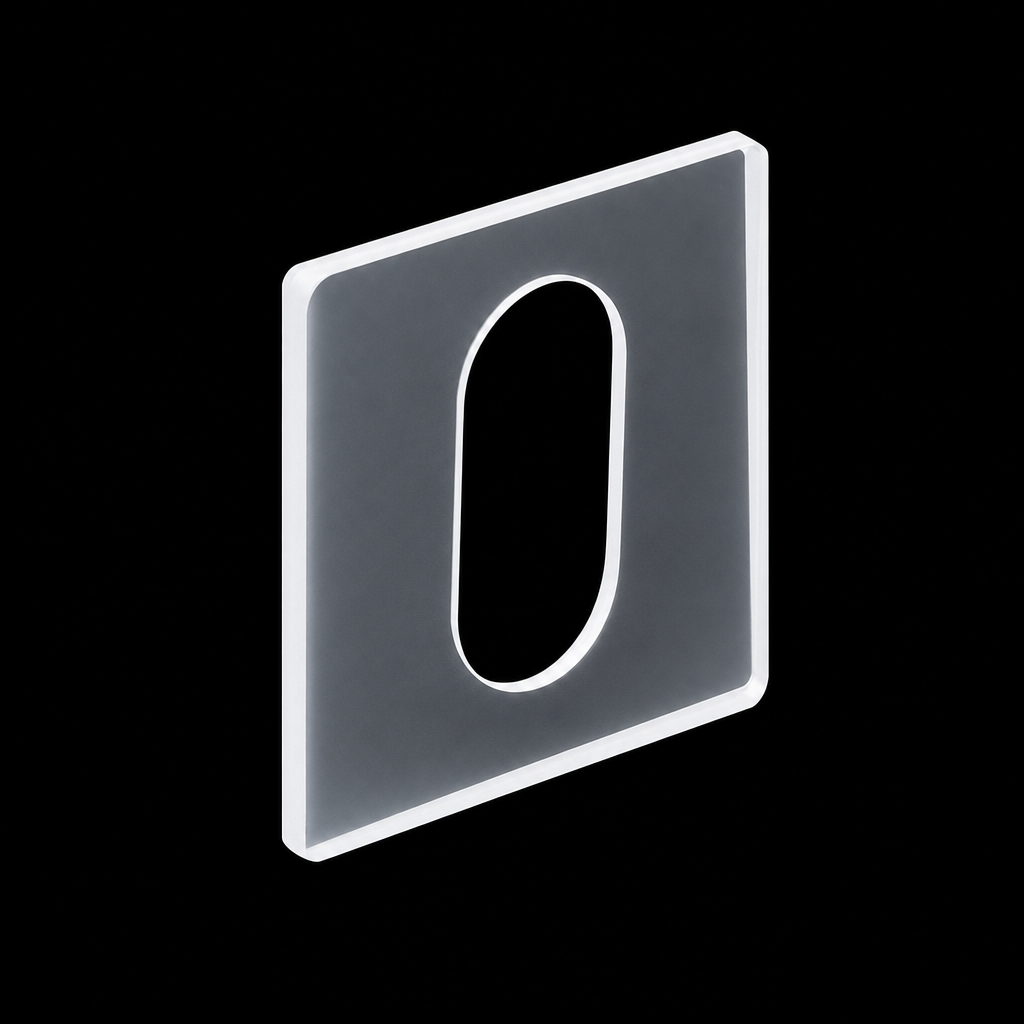

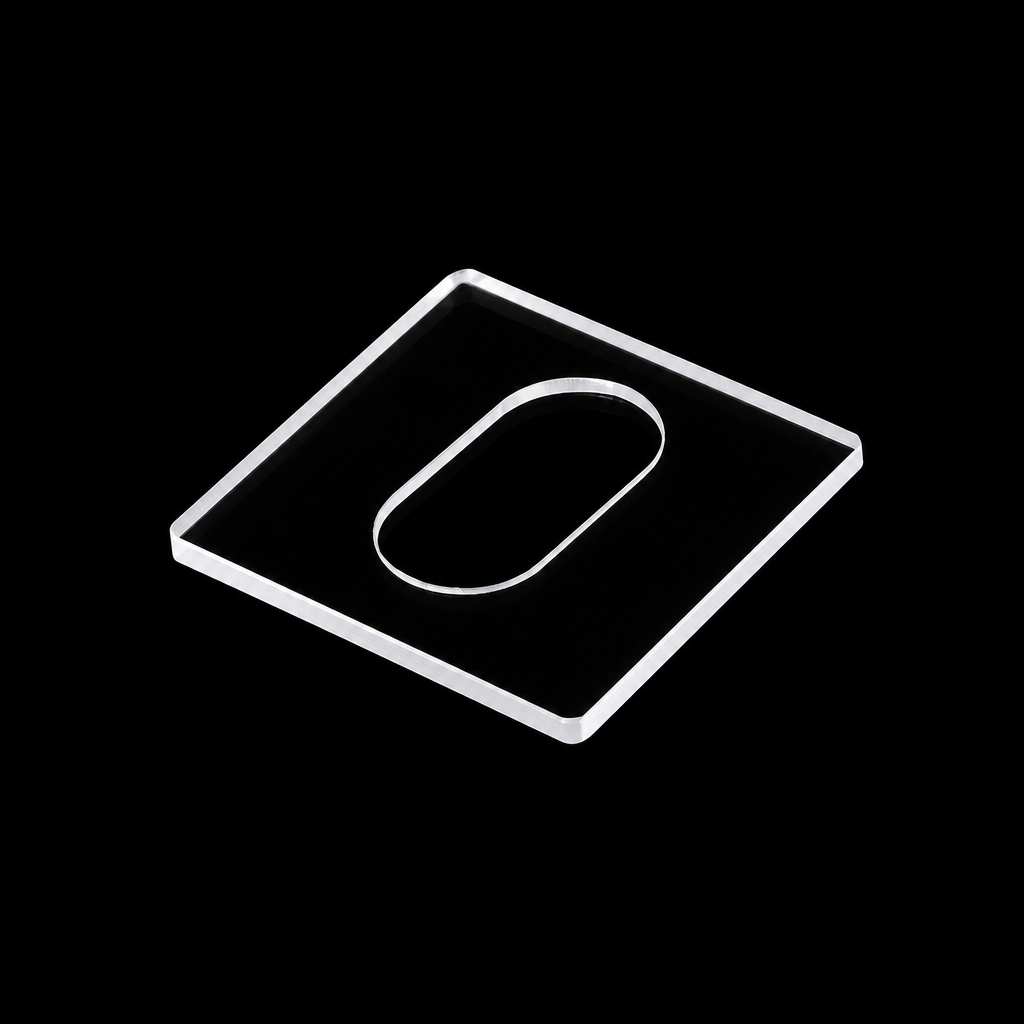

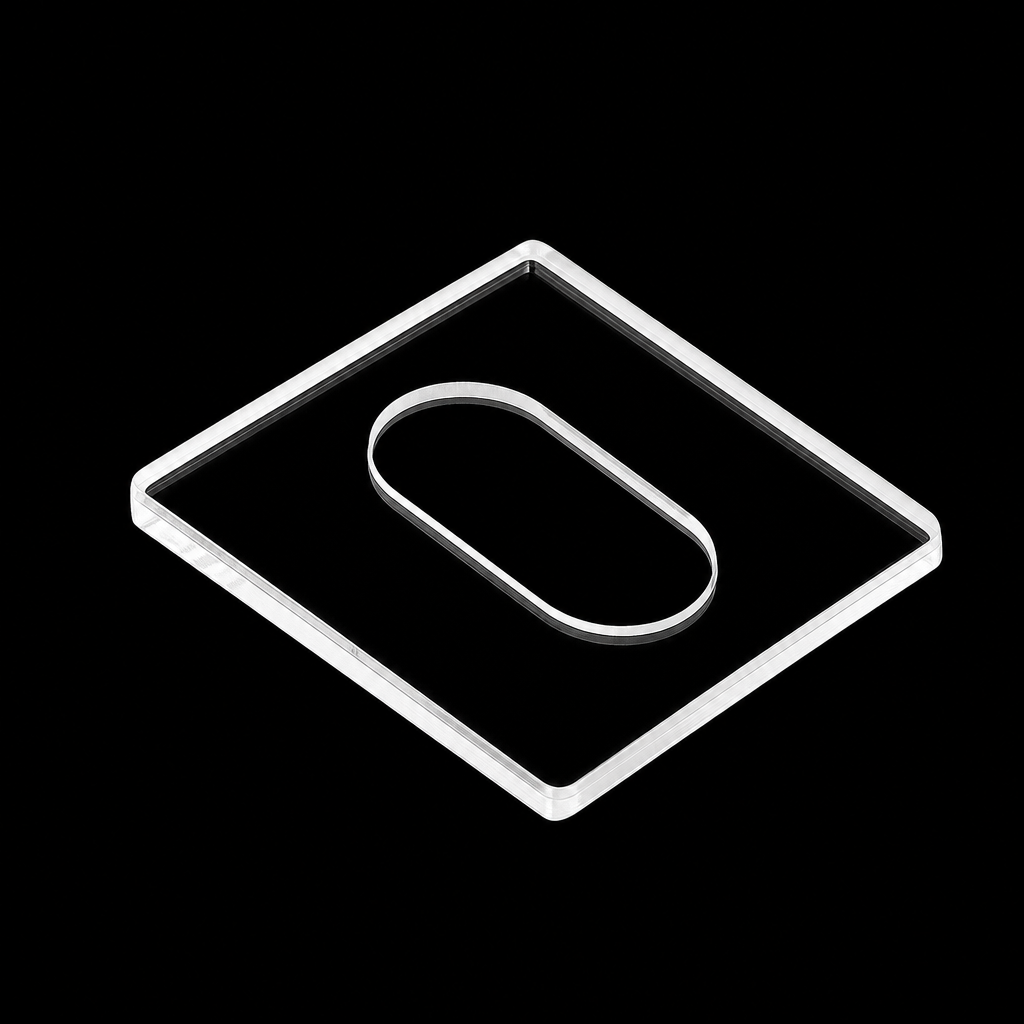

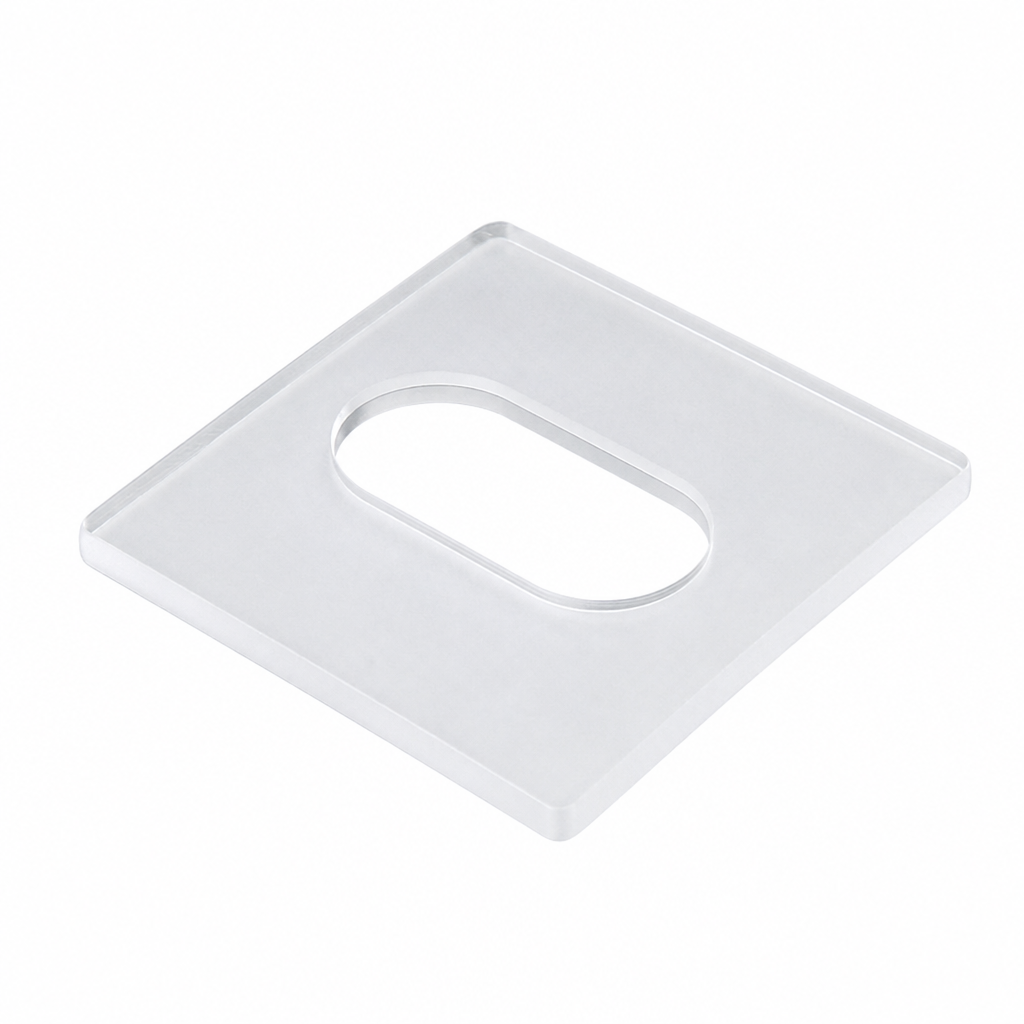

JGS1 quartz reflectance sample plate with a 5 × 10 mm obround groove, 0.5 mm deep, for direct loading of solid or powder samples. The 15 × 15 mm plate is 1 mm thick, giving a compact insert format. Standard 80 adhesive-bonded construction; one plate supplied.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC088 is a JGS1 quartz reflectance sample cell built as a flat 15 × 1 × 15 mm body with an open 5 × 10 mm obround groove, 0.5 mm deep. It is suited to reflectance measurements and solid or powder fluorescence work where the sample sits in a shallow recessed area and remains directly accessible for loading, leveling and visual inspection.

Cell Type
Reflectance Sample Cell
Opening Configuration
Open Sample Groove

Selection Specifications

Product KindSpecialized Cell
Cell TypeReflectance Sample Cell
Measurement ModeReflectance Measurements; Solid/Powder Fluorescence
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
External Dimensions15 × 1 × 15 mm
External Dimensions ScopeBody Only
MaterialQuartz
Material GradeJGS1
Fabrication MethodStandard 80
Opening ConfigurationOpen Sample Groove
Pack Quantity1 Piece
Slot Depth0.5 mm
Slot Width5 mm
Package Contents1 × Quartz Reflectance Sample Cell

Choose this option

Choose MQQFC088 when your method needs a defined recessed sample area rather than a closed liquid chamber. The obround 5 × 10 mm groove gives you an elongated sample region, while the thin plate body is useful when your holder or stage is designed around a compact insert-style reflectance cell.

What makes this option different

  • Obround sample groove: the recess is 5 × 10 mm, giving a defined elongated sample area.
  • Open sample access: the groove stays exposed at the top for direct loading, spreading and inspection.
  • 0.5 mm groove depth: this describes the recess only, not a transmission path or stated liquid volume.
  • Thin plate body: the cell body is 15 × 1 × 15 mm, so holder slot thickness and beam landing area matter.

Structure and dimensions

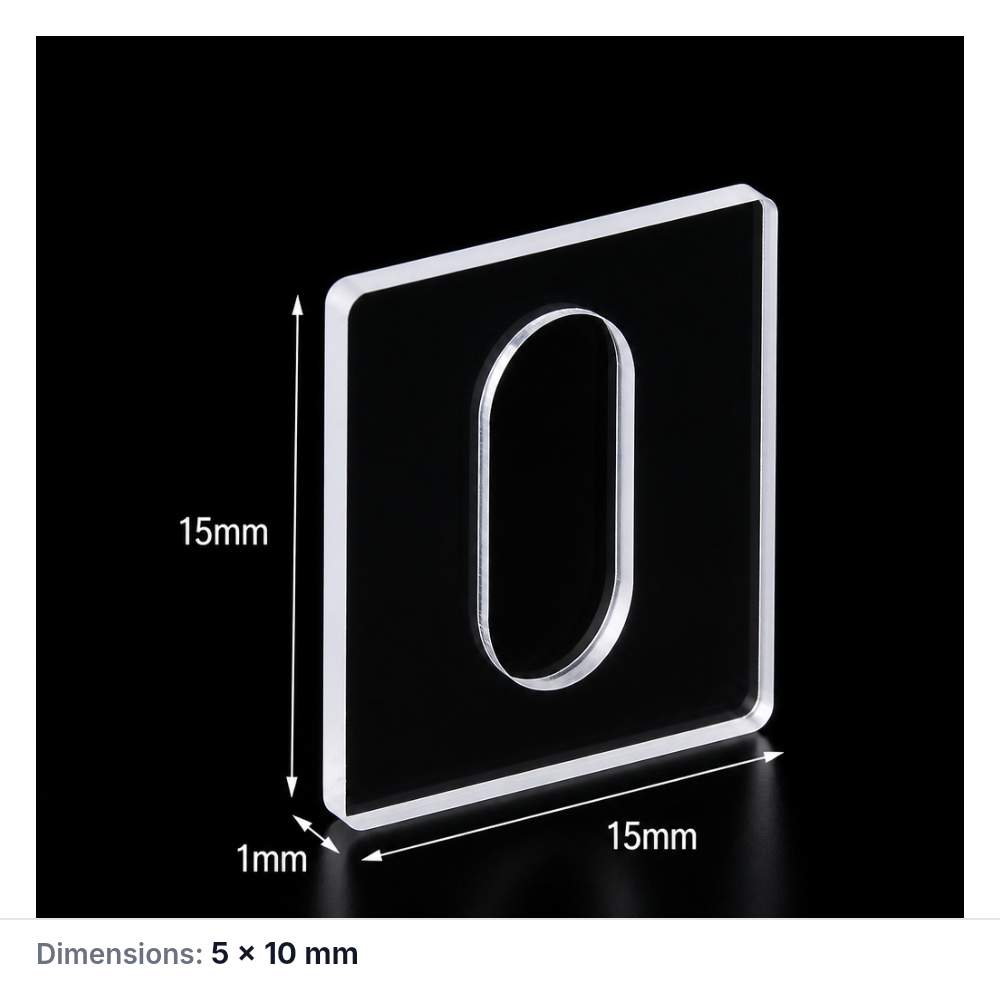

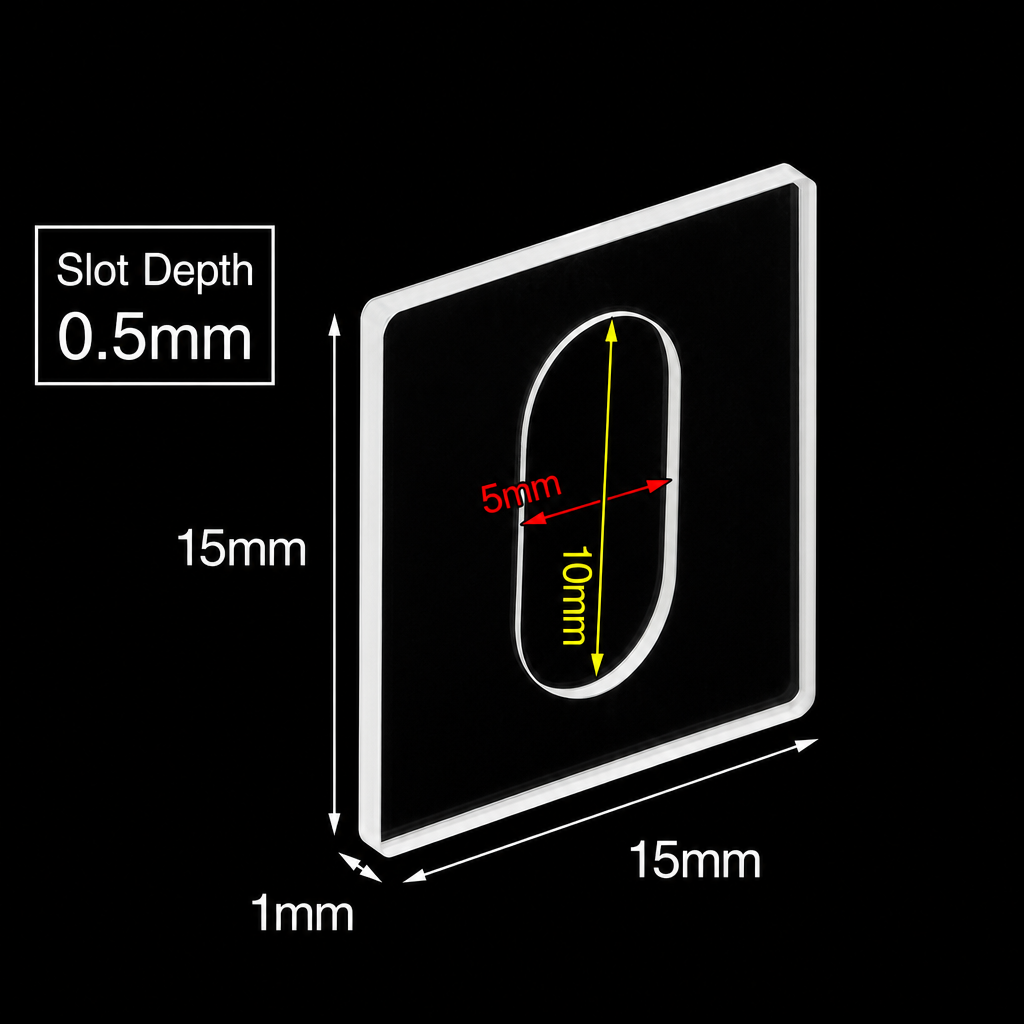

Product dimensions for checking holder clearance and sample access.
Product dimensions for checking holder clearance and sample access.Open image ↗

Using this cell

Place the solid, powder or prepared sample into the groove so the recessed area is filled evenly without leaving residue on the surrounding faces. For repeatable readings, keep the sample presentation and the cell orientation consistent from background measurement through to the final run.

This is an open-groove reflectance format, so the sample surface itself is what you present to the optical arrangement. The 0.5 mm groove depth should not be treated as an optical path or as a stated working volume.

First-use check

  1. Inspect the groove and both exterior faces for chips, residue or handling marks before use.
  2. Place the cell in the holder and confirm that the beam is centered on the sample groove.
  3. Run a background or blank in the same orientation you will use for the sample.

Fit and optical alignment

View the English selection reference.

The body dimensions are 15 × 1 × 15 mm. Check that your holder accepts this plate size and thickness, and confirm that the beam lands on the grooved sample region rather than on the surrounding flat body.

Z Height is not established for this item, so instrument fit should be checked from your holder geometry or current cell reference. If you are replacing an existing reflectance plate, matching the body thickness and sample-position area is usually the first step.

Solvents and cleaning

This item uses Standard 80 adhesive-bonded quartz construction. For this construction type, use routine room-temperature water-based samples and buffers, including compatible preparation and cleaning routines. Avoid organic samples and organic cleaning solvents with this construction.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the exterior optical faces gently with non-abrasive optical tissue, and remove sample residue from the groove without scratching the recessed surface.

Included with this option

1 Quartz Reflectance Sample Cell. The listed price is for one piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to groove geometry, body dimensions, optical layout and related fitting requirements. If you need a different recess shape, plate size or holder fit, send a dimensioned drawing or a marked-up sketch together with your measurement method and sample details.

Send a product-selection enquiry with SKU MQQFC088, your holder or stage details, required dimensions, sample conditions and quantity.
