(MQQCU020) Quartz Annular Reflectance Cell, 35 mL, 100 mm OD, Hollow Centre

Weight120 g
SKU: MQQCU020

$473.00

In Stock

JGS1 quartz reflectance cell with an open annular sample trough, a hollow centre and an optically accessible ring-shaped bottom. Nominal capacity is 35 mL, with a 100 mm outer diameter and 15 mm body height. Standard 80 adhesive-bonded construction; one cell supplied.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQCU020 is a quartz reflectance sample cell built around an open annular sample trough rather than a conventional straight-through chamber. With a 35 mL nominal capacity, 100 mm outer diameter and 15 mm body height, it suits setups that need a broad ring-shaped sample region in a low-profile circular body.

The open top gives direct access to the sample area, and the centre is hollow rather than filled as a full cylindrical cup. This structure is intended for reflectance measurements in the stated 200–2500 nm range.

Sample Volume (Nominal)
35 mL
Opening Configuration
Open Annular Sample Trough

Selection Specifications

Product KindSpecialized Cell
Cell TypeReflectance Sample Cell
Measurement ModeReflectance Measurements
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)35 mL
Body Height15 mm
Outer Diameter (OD)100 mm
MaterialQuartz
Material GradeJGS1
Fabrication MethodStandard 80
Opening ConfigurationOpen Annular Sample Trough
Pack Quantity1 Piece
Wall Thickness2 mm
Package Contents1 × Quartz Reflectance Sample Cell

Choose this option

Choose MQQCU020 when your method uses an annular sample region and your fixture is designed around a wide, low-profile circular body. It is useful when the sample is placed into an open ring-shaped trough and your setup uses access through the annular bottom area rather than a defined absorbance path in a standard rectangular cuvette.

What makes this option different

  • Open annular sample trough: the sample area is ring-shaped, with a hollow centre.
  • Low-profile body: the cell is 15 mm high, which can help in shallow stage or holder layouts.
  • Large circular format: the 100 mm outer diameter is a key dimension for holder clearance and support.
  • Standard 80 JGS1 quartz construction: suited to reflectance work in the stated 200–2500 nm range.

Using this cell

Load the sample directly into the annular trough from above and prepare it so the intended measurement area is covered consistently. Keep material away from the outer optical surfaces and rim seating areas, and use the same placement and orientation between runs if your method depends on repeatable positioning.

This is an open-top sample cell, so it should be treated as an open bench-use sample holder rather than a sealed process cell. Nominal capacity does not define a minimum working volume.

First-use check

  1. Inspect the annular trough, bottom area and outer surfaces for chips, residue or handling marks.
  2. Place the cell in the holder and confirm stable seating and adequate surrounding clearance.
  3. Run a blank or background check with the cell in its intended measurement position before loading the sample.

Fit and optical alignment

View the English selection reference.

The body is 100 mm in outside diameter and 15 mm high, with a 2 mm wall thickness in the stated annular structure. Check that your stage, holder recess and beam footprint suit this circular geometry. Z Height is not established for this SKU, so fit should be based on your actual holder and beam position rather than assumed cuvette standards.

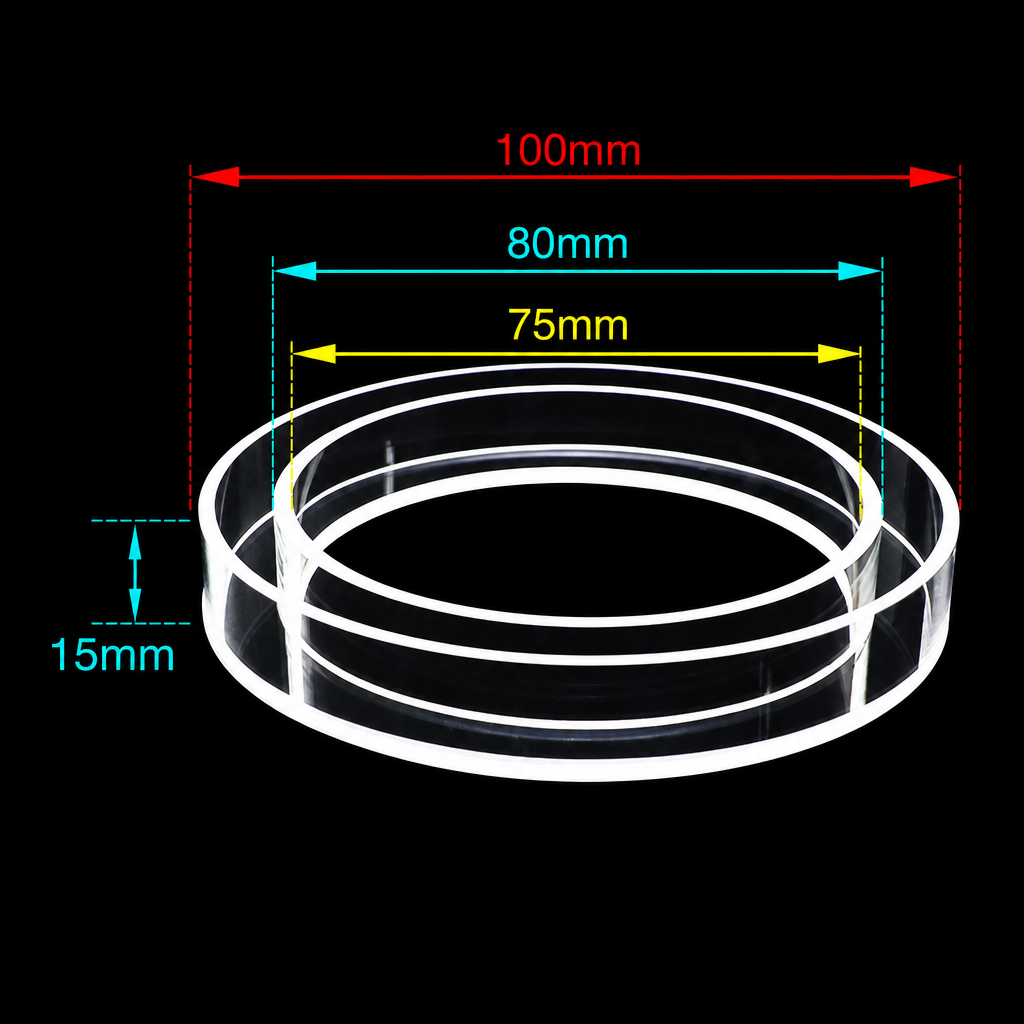

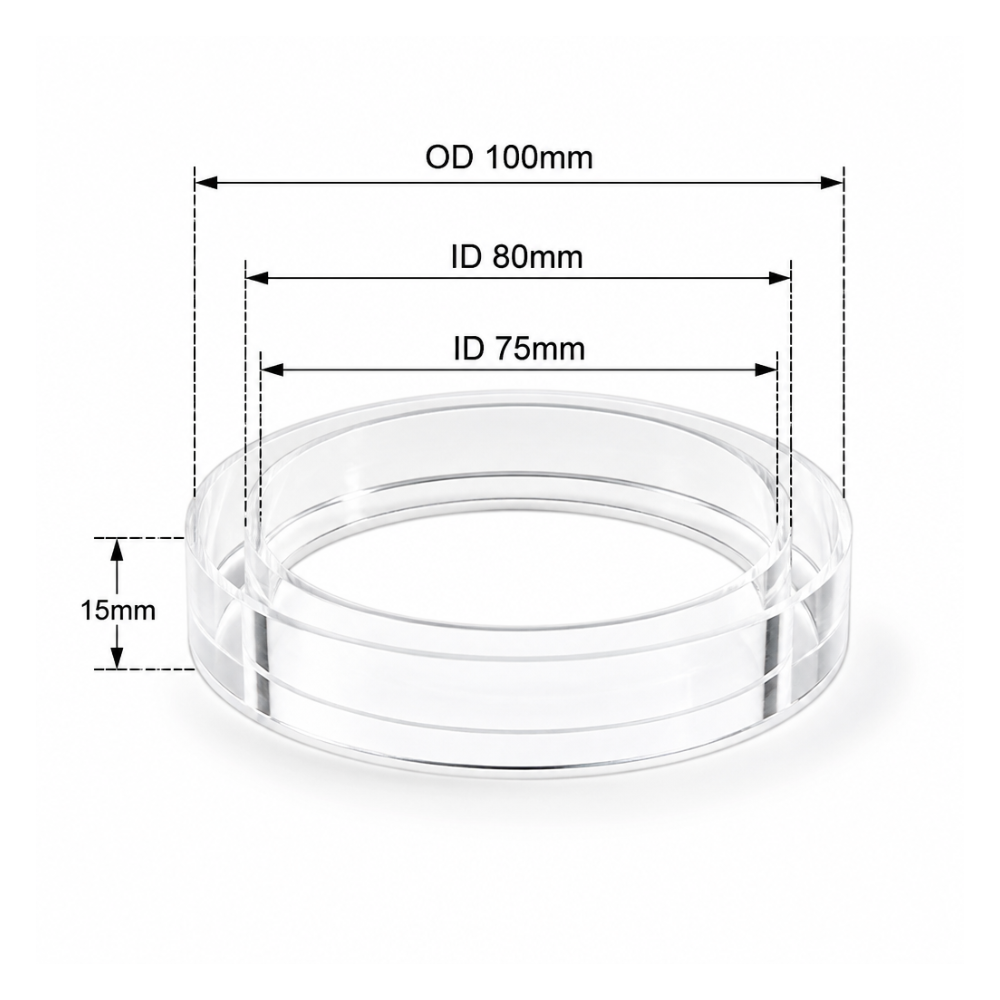

Keep any area used for optical access through the annular bottom clear of supporting fixtures. The original drawing marks two inner-circle dimensions, 80 mm and 75 mm; use their separate arrow positions when designing the fixture, rather than treating either as one universal chamber bore.

English selection reference
Selection reference ↗

Solvents and cleaning

This cell uses Standard 80 adhesive-bonded quartz construction. Use routine room-temperature water-based samples and buffers with this construction. Avoid organic samples and organic cleaning solvents. Review aggressive liquids, elevated temperature or prolonged soaking before use, considering the bonded joints as well as the quartz.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the optical surfaces gently with suitable non-abrasive lab wipes and a compatible mild cleaning routine.

Included with this option

1 Quartz Reflectance Sample Cell. The listed price is for one piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different annular size, body envelope or another quartz configuration for your holder, send your drawing or stage details for review. We can review requirements involving dimensions, optical layout, sample volume, openings and tolerances, with feasibility, quantity, price and production time confirmed case by case.

Send a product-selection enquiry with SKU MQQCU020, your holder or stage drawing, sample details and required quantity.
