(MQQCU011) Quartz Sample Cell for Reflectance and Fluorescence, 3 mm Path, 420 µL
$359.00

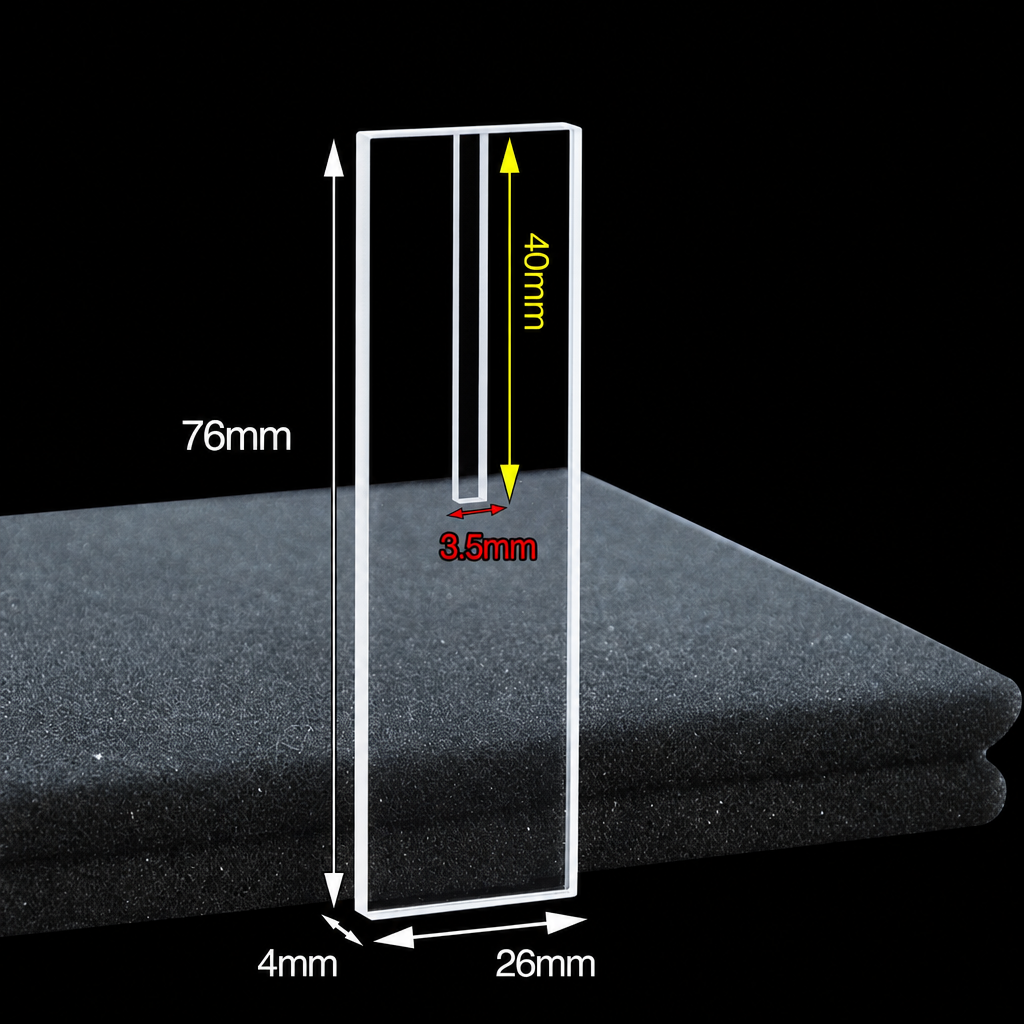

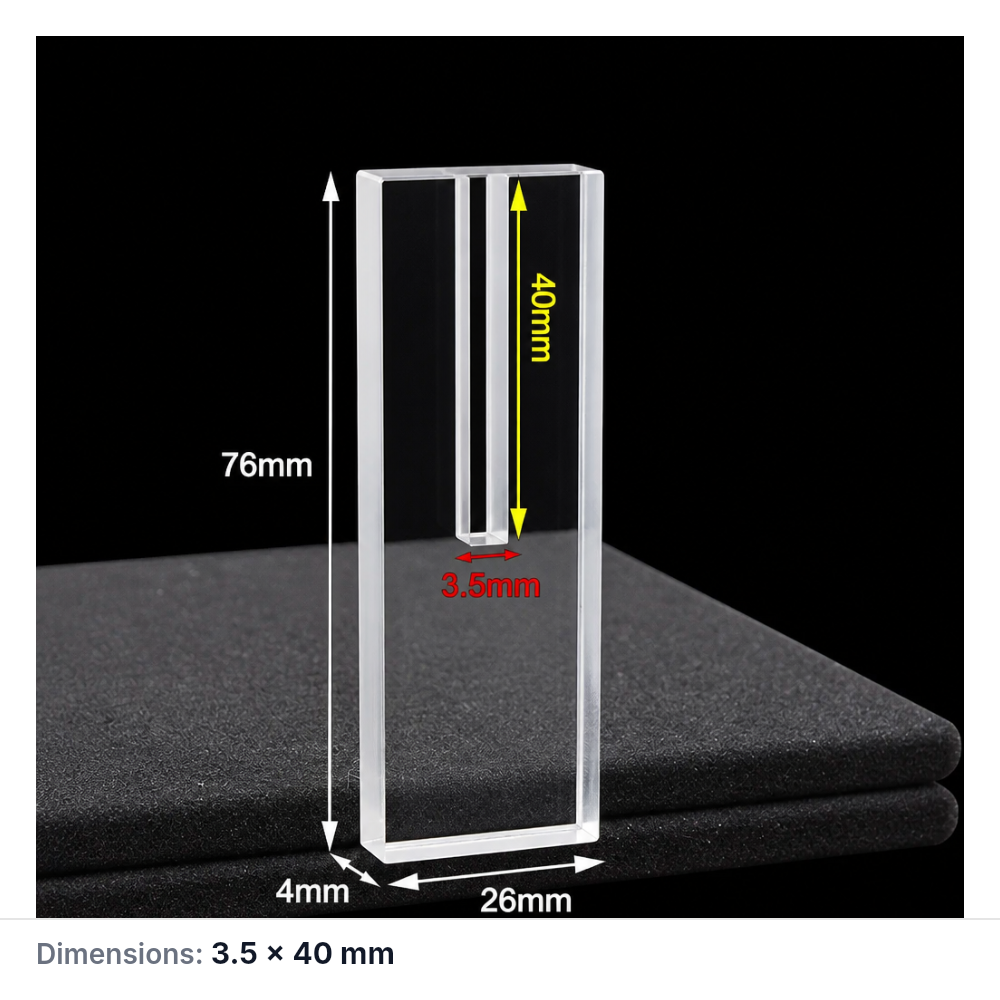

Quartz sample cell for reflectance and fluorescence measurements, with a 3 mm path and 420 µL capacity. The source drawing shows a 3.5 × 40 mm rectangular well, 3 mm depth, and 76 × 26 × 4 mm overall dimensions. Source-listed construction: adhesive-bonded.
In Stock
Description
Product Overview

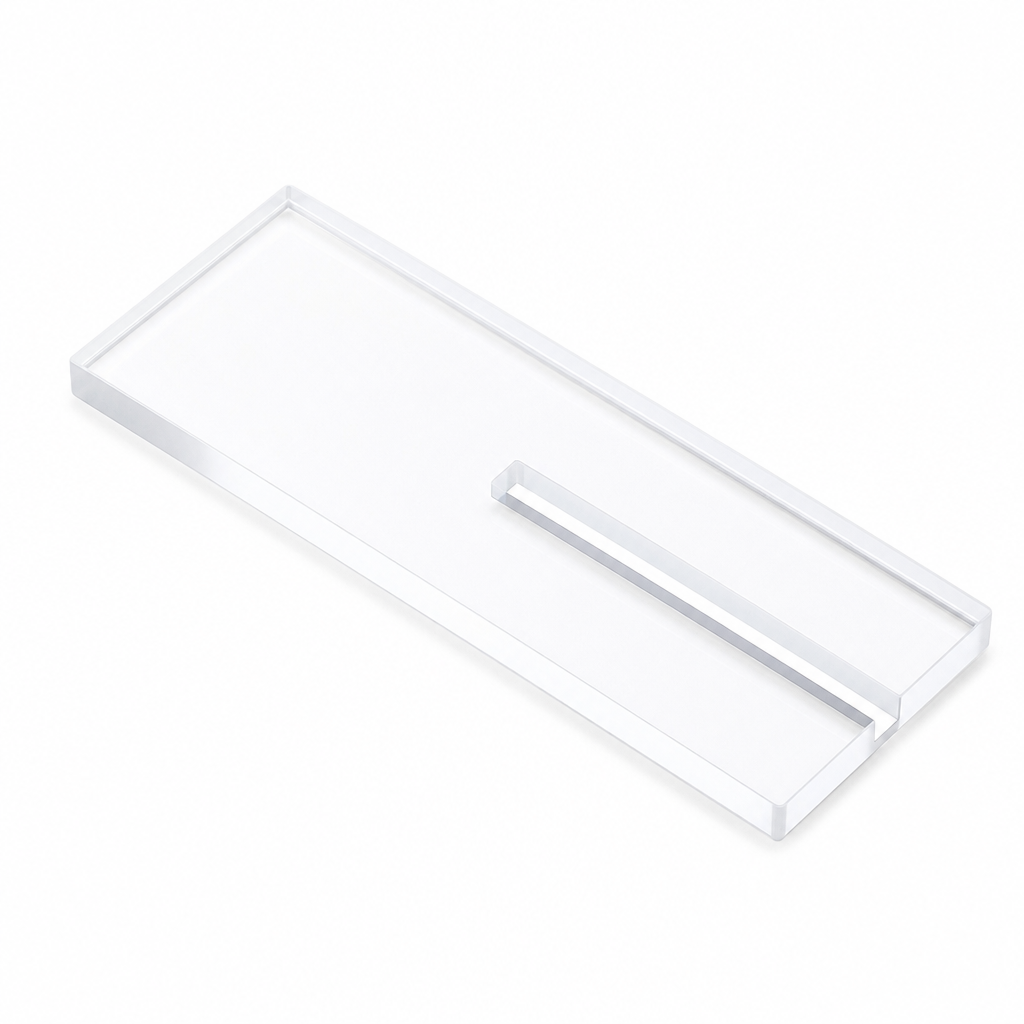

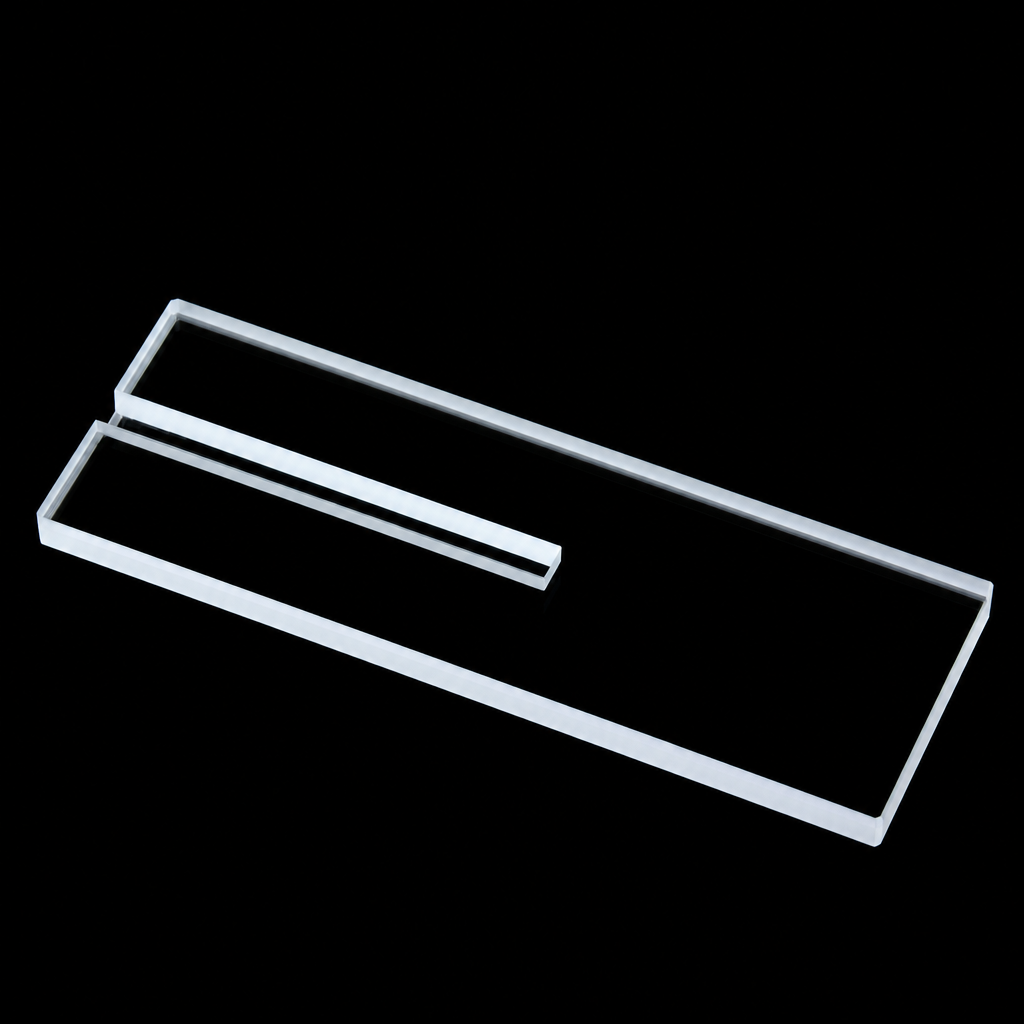

Quartz sample cell with a rectangular well for reflectance or fluorescence sample measurements.
Specifications
- Optical path length: 3 mm
- Capacity: 420 µL
- Well opening: 3.5 × 40 mm
- Well depth: 3 mm
- Overall dimensions: 76 × 26 × 4 mm
- Material grade: JGS-1, as selected in the SKU
- Construction: Adhesive-bonded, as shown in the source
Confirm the well opening and depth suit the sample and fixture.
Additional information
| Weight | 50 g |
|---|
