Grooved Quartz Sample Plate: Positioning Powders and Solid Specimens (MQQCU011)
Custom design guide · MQQCU011

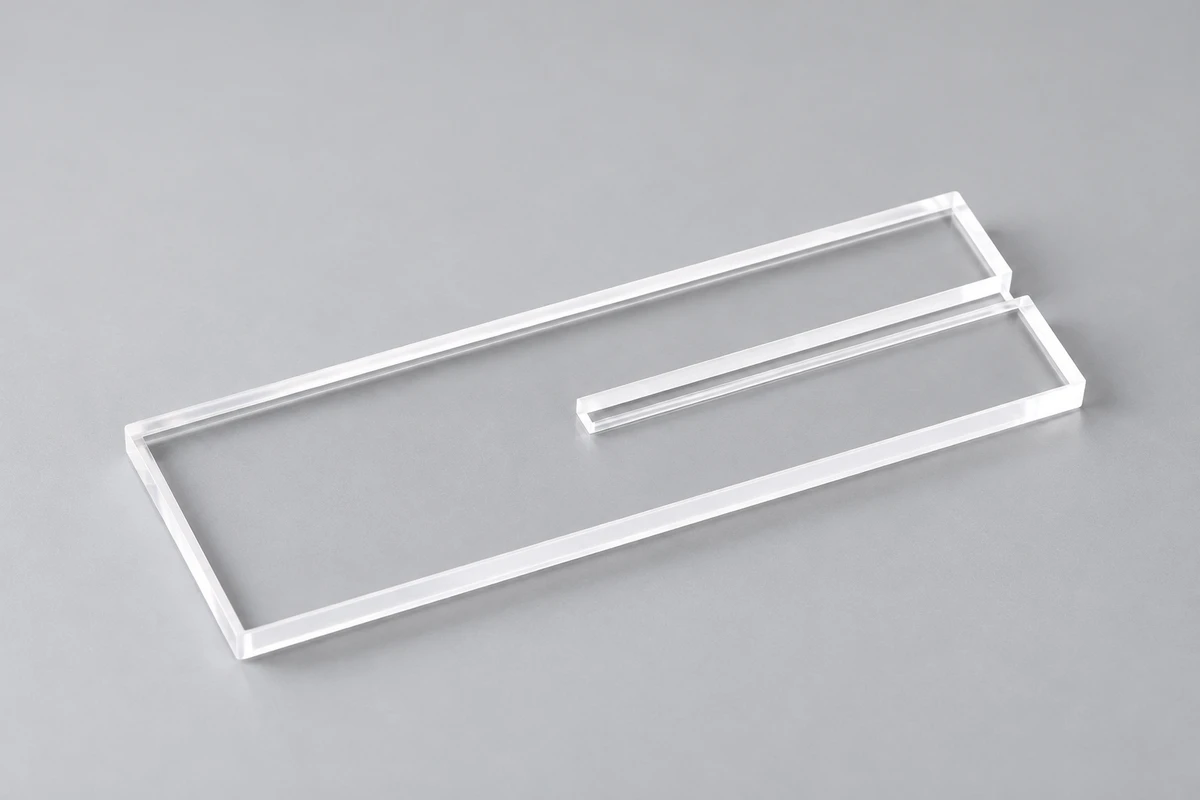

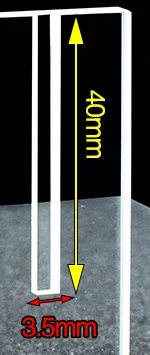

MQQCU011 is an elongated quartz plate with an open groove 3.5 mm wide, 40 mm long and 3 mm deep. It is a reference configuration for solid or powder reflectance and fluorescence arrangements, where access to the specimen and the position of its observed surface matter.
The situations and proposed changes below are planning examples, not completed customer projects.
Structure and use · Current specifications · Selection details · Proposed changes · Before ordering · Buy or enquire

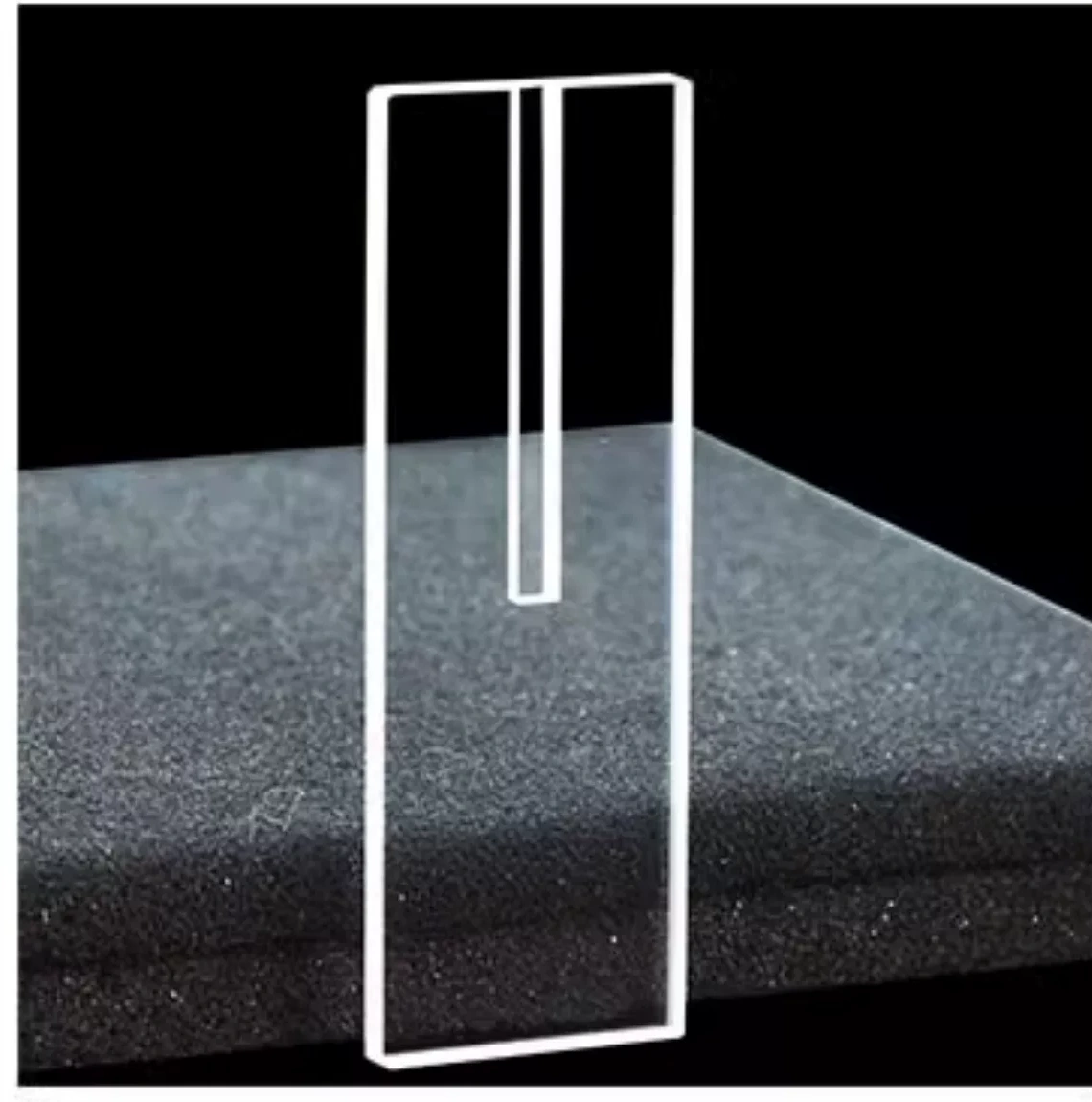

Place the specimen directly in an accessible groove
A solid specimen or a powder preparation may need access from above rather than through a cuvette neck. MQQCU011 provides an open groove along a quartz plate: material can be placed in the groove while the surrounding plate provides surfaces for a proposed support. The loading access is the main reason to consider this form.

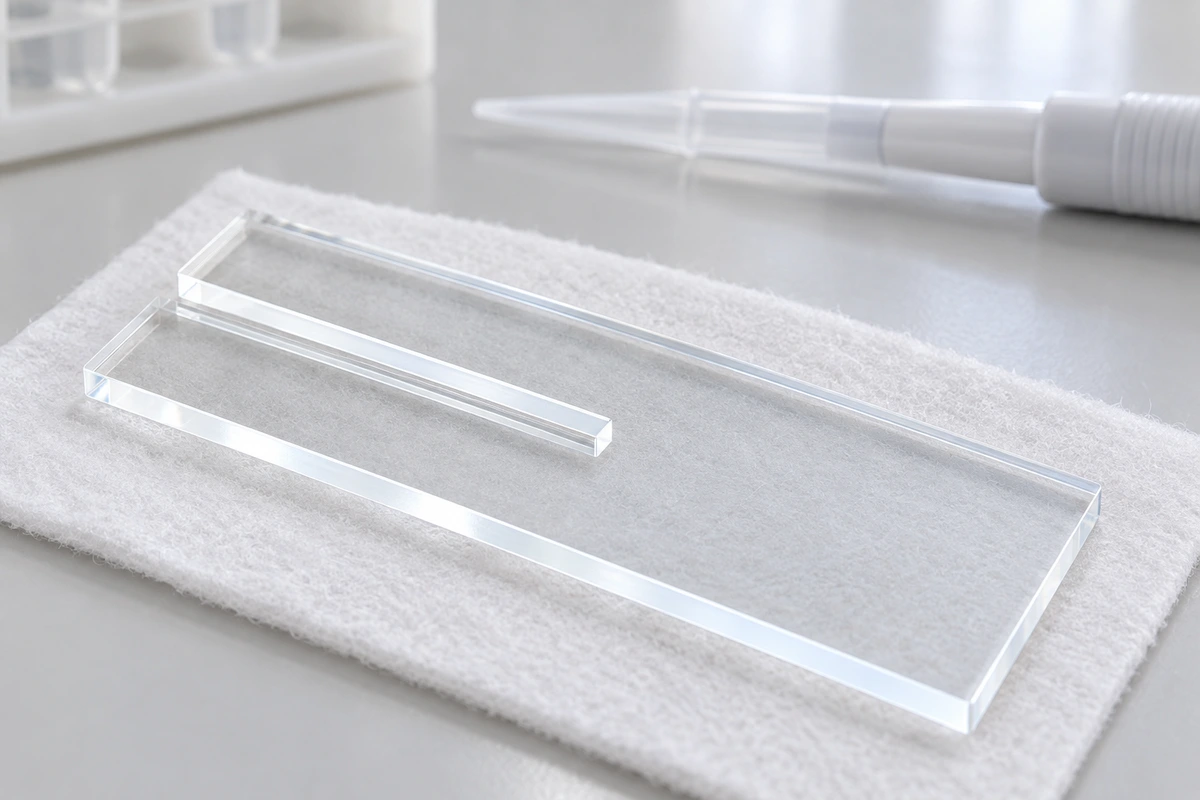

For a small solid specimen, describe where it rests and which surface faces the optics. For a powder, describe the loading and levelling procedure instead. Both enquiries need the observed surface located relative to the plate, but they need different support and removal arrangements.

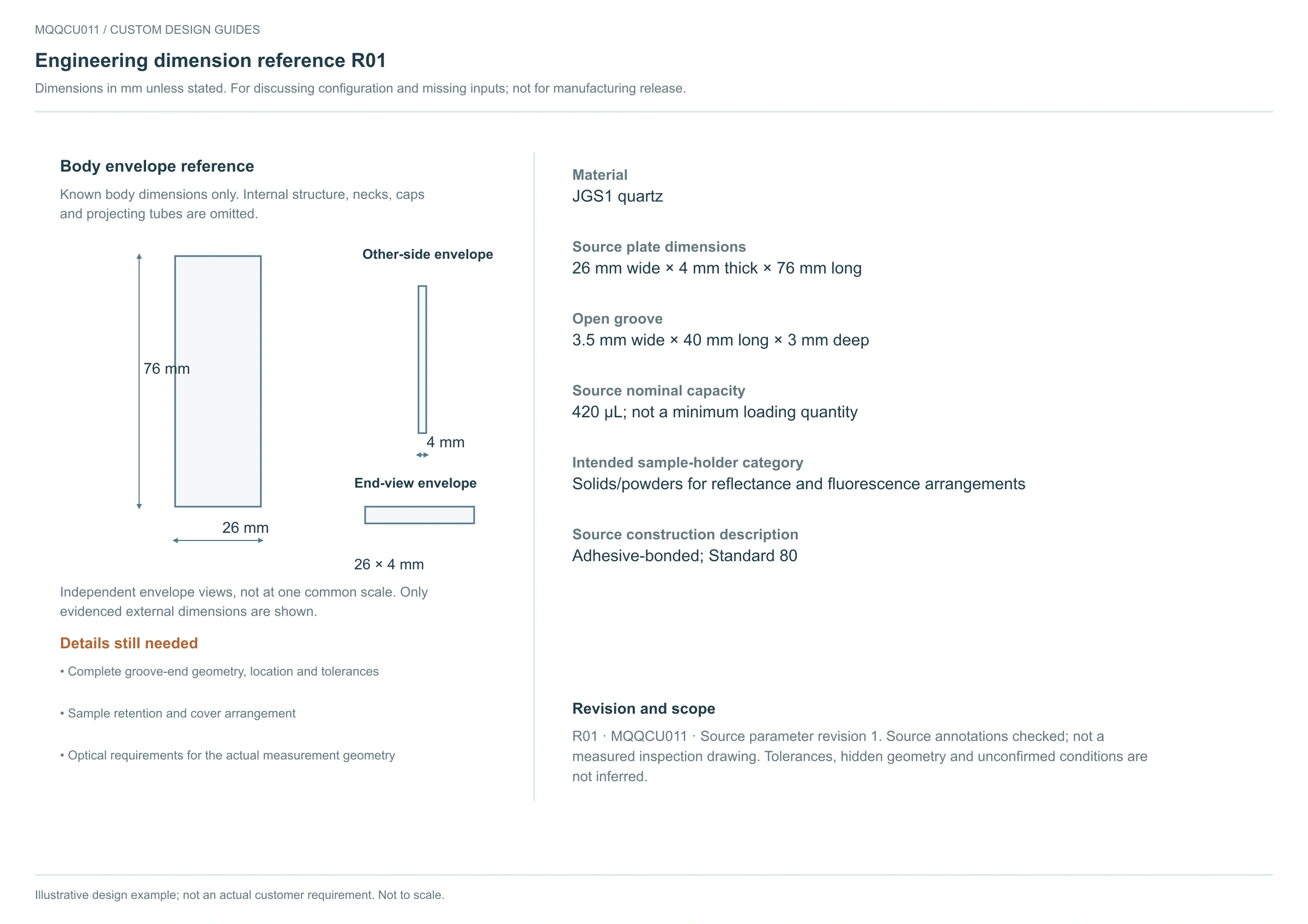

Current MQQCU011 configuration
Open engineering reference R01 and PDF
Source-based dimensions and configuration for discussion. Unconfirmed geometry and tolerances remain to be agreed; this is not a manufacturing-release drawing.
View full-size engineering reference · Download the complete English engineering reference PDF

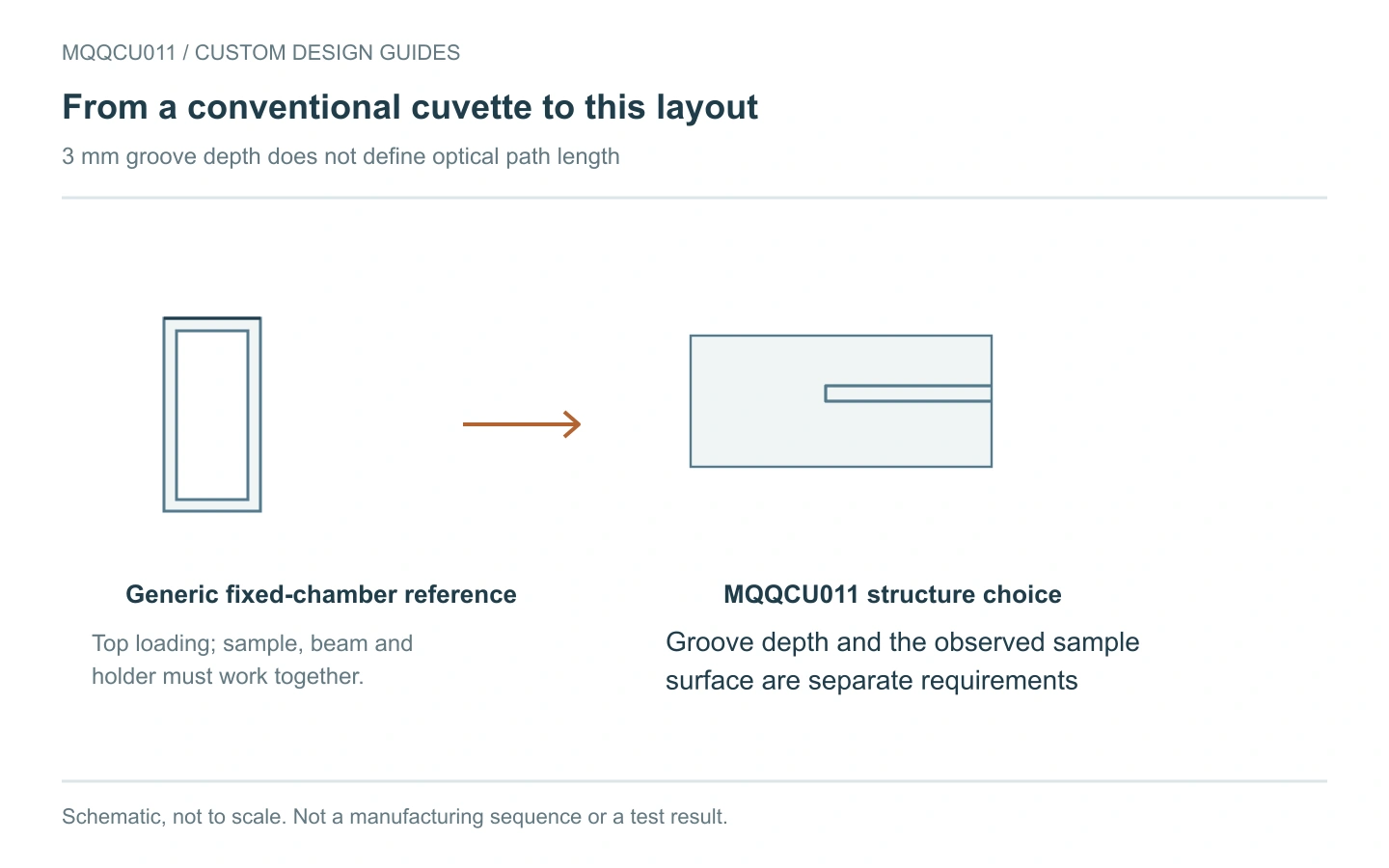

Use the sample surface as an optical reference

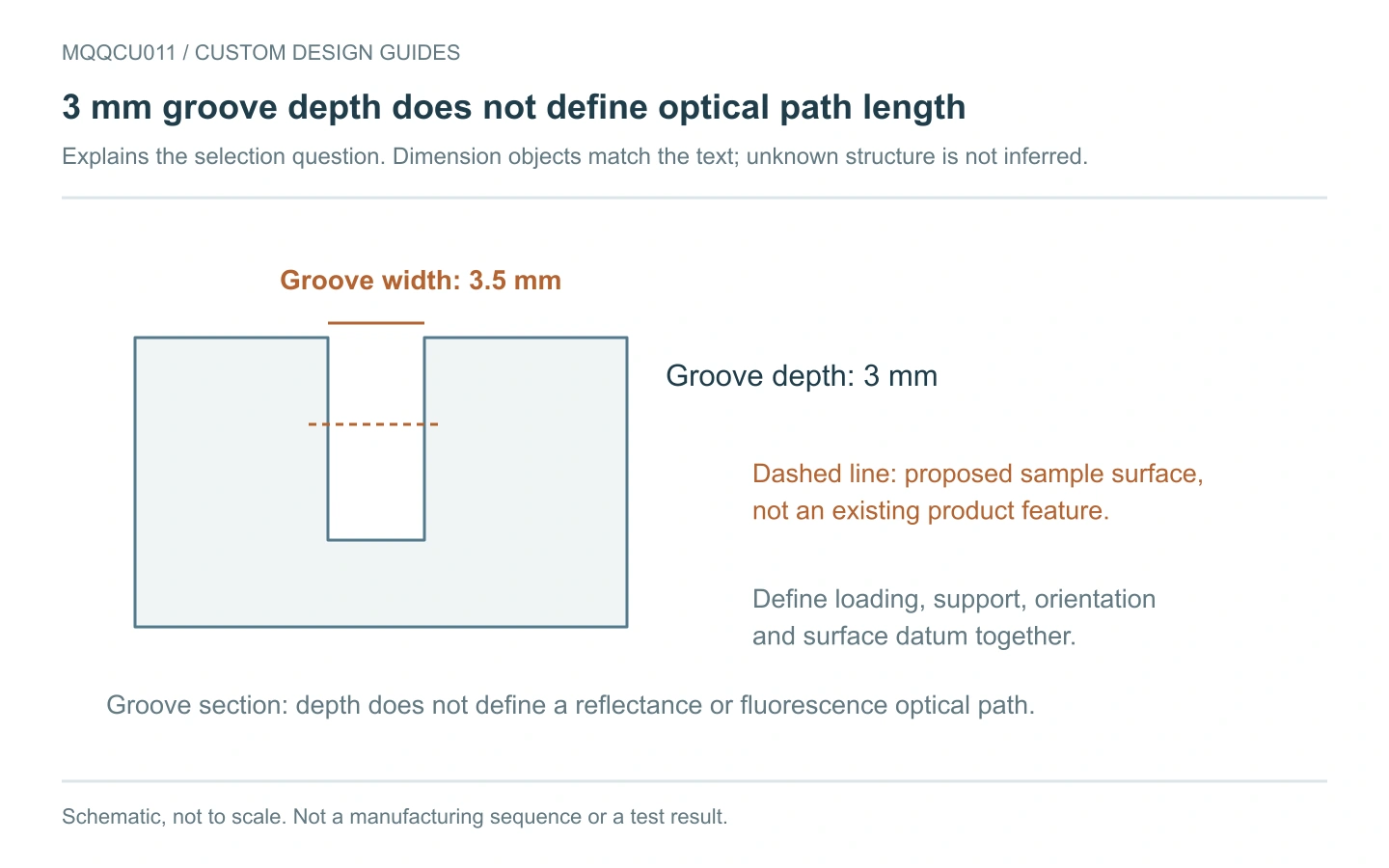

The 3 mm dimension is the groove depth. In reflectance or fluorescence, the relevant illumination and collection paths depend on the actual sample arrangement. Do not enter the groove depth as a liquid absorption path without defining the method.
Similarly, the stated 420 µL is a nominal capacity, not a powder mass. Show the relationship between groove floor, plate top and intended sample surface, especially if different specimens are loaded to different levels.

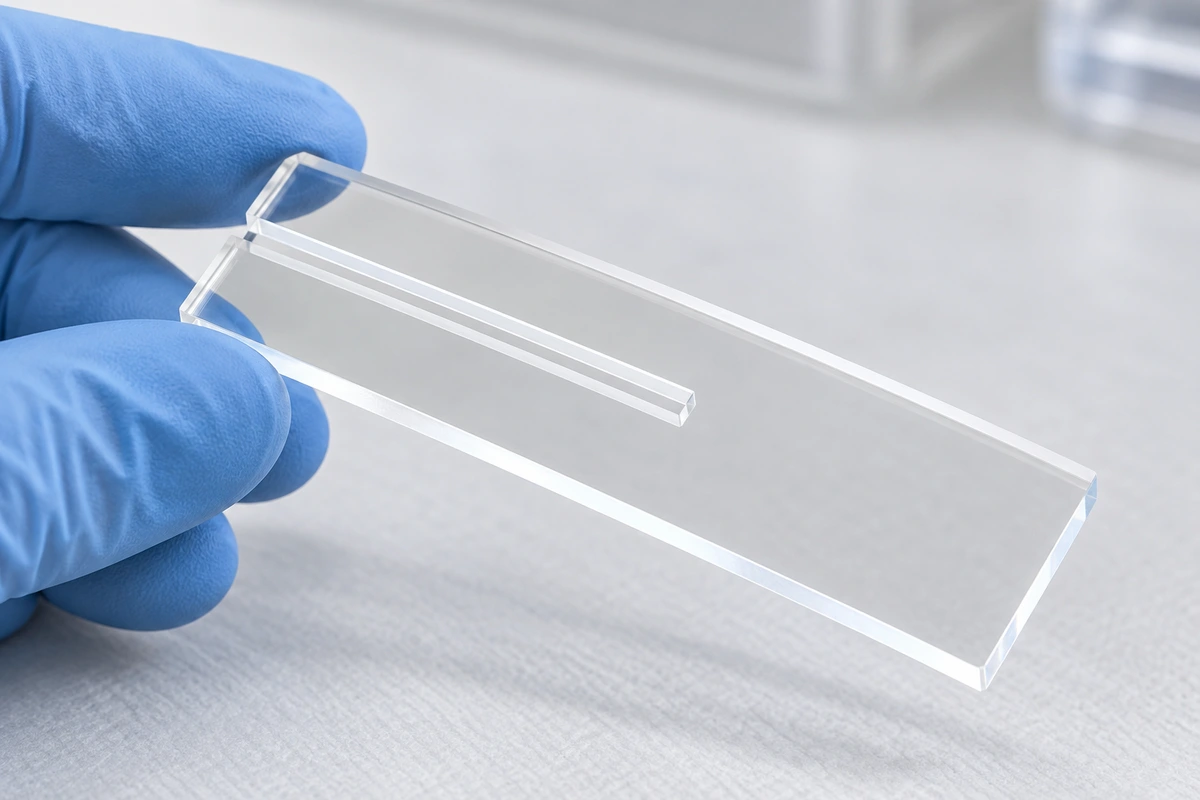

Locate the plate without covering the sample
The source plate is 26 mm wide, 4 mm thick and 76 mm long. Mark the supported and clamped edges, then check that tools can still reach the groove and the holder leaves the optical directions clear. Sample retention depends on the specimen and operating orientation.

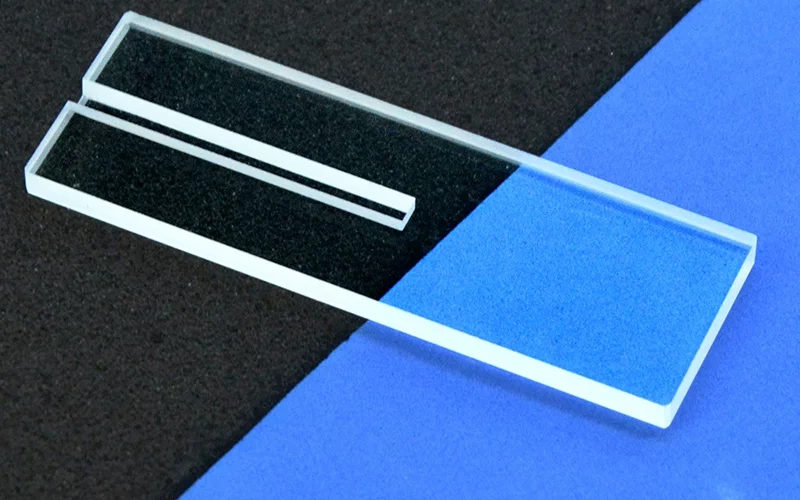

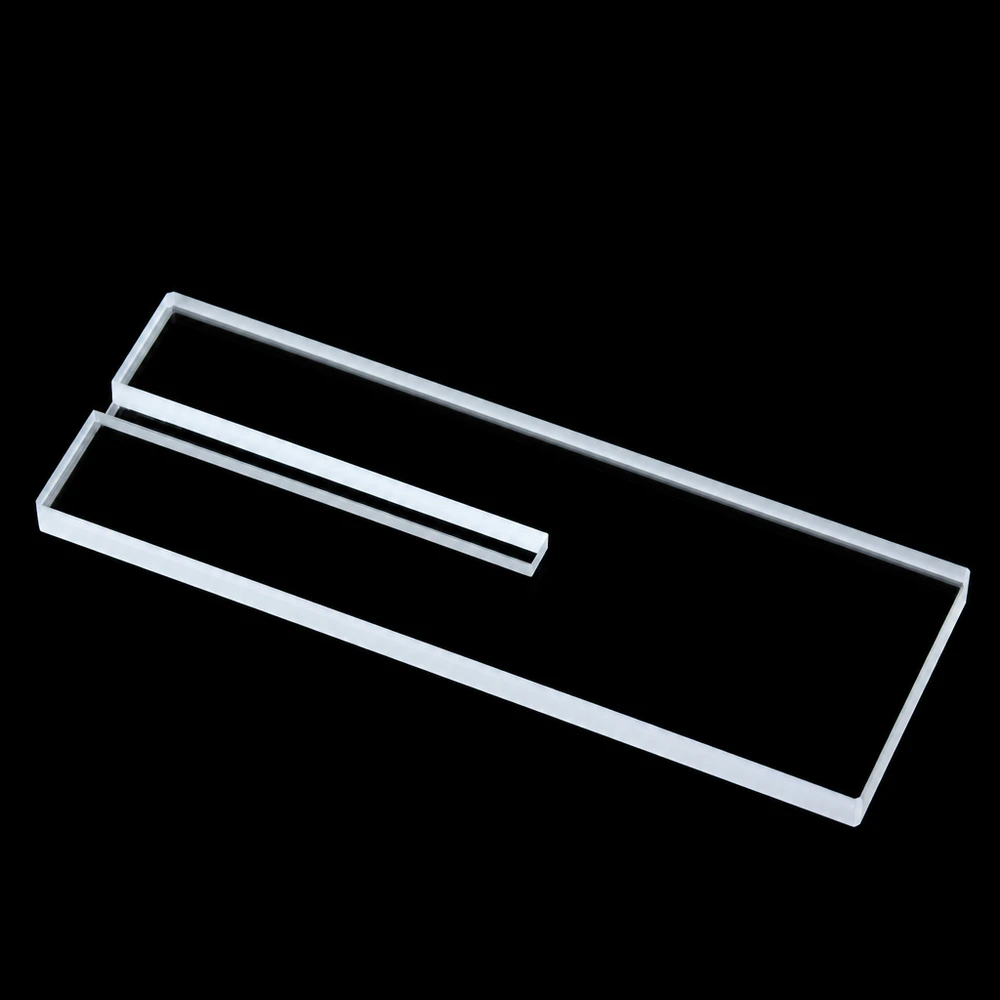

View another product angle

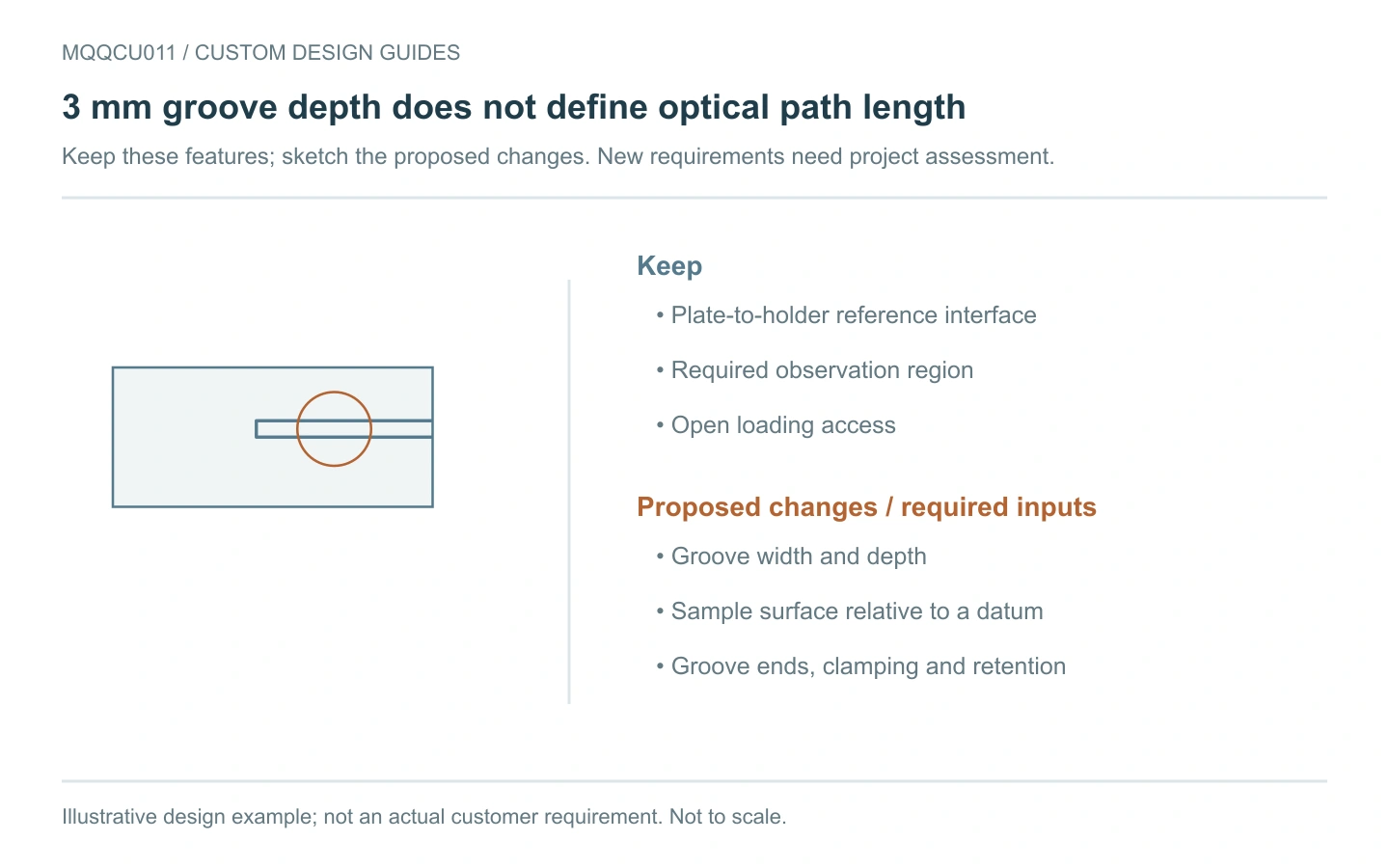

Keep the plate interface and ask for a wider groove
If the outer plate already suits a holder but a specimen needs more width, send its cross-section and proposed placement. Mark the target groove width and any depth or surface position that must stay fixed.
State whether the specimen should rest on the groove floor, be supported at its edges or present a surface level with the plate. We can then review the remaining quartz around a wider groove, its ends and the holder contacts. Include a way to remove the specimen and clean the exposed area.
Checks to agree before ordering
- Specimen: Try loading, retention and removal in the intended orientation.
- Surface: Define the observed surface relative to groove and plate datums.
- Holder: Check optical access, supported edges, location and critical groove dimensions.
Sample and cleaning conditions
Check sample and cleaning liquids against the complete cell, including its bonded seams and any wetted cap or connection. Supply chemical identity, concentration, temperature and contact time. Avoid hydrofluoric acid; strong alkalis, heat and prolonged soaking need specific review. Adhesive-bonded quartz does not provide blanket approval or rejection of organic solvents.
Order this configuration or discuss a change
View MQQCU011 specifications and current pricing. If you need a delivery date, ask about availability and preparation or production time before ordering.
For a modified version, send the brief below with a dimensioned drawing or labelled sketch. We review the proposed configuration and confirm feasibility, quantity, inspection scope, pricing and production time in the quotation.
Copy this custom-enquiry checklist
Reference SKU: MQQCU011
Keep: plate reference interface; requested groove width/depth: ____
Specimen or powder, observed surface and operating orientation: ____
Holder contacts, beam/collection directions and surface datum: ____
Sample and cleaning liquids, concentrations, temperature and contact time: ____
Wavelength, critical tolerances and required inspection/documents: ____
Quantity, required date and destination: ____
Send your sketch and requirements. Mark the features to keep and the changes to assess.
Configuration reference
Configuration reference: MQQCU011 product specifications. Specifications checked 26 October 2026. General principles guide selection; they do not establish measured performance of this cell.
