(MQQFC109) JGS1 Quartz Counting Flow Cell, 0.1 mm Path, 8 µL

Weight50 g
SKU: MQQFC109

$246.00

In Stock

JGS1 quartz counting flow cell with a 0.1 mm optical path and 8 µL nominal capacity in a 30 × 4 × 15 mm optical body. Two opposed tubes, sized at 1.5 mm OD / 1 mm ID, connect the small sample region to your flow circuit. Two opposing optical faces support transmission measurement. One cell supplied.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC109 is a JGS1 quartz counting flow cell for UV/Vis setups that need a 0.1 mm optical path in a compact in-line body. Its 8 µL nominal capacity, Two-Way Light layout and opposed fluid tubes make it a practical choice when the optical path, sample region and tubing connection all need to fit within a small flow assembly.

Path Length
0.1 mm
Sample Volume (Nominal)
8 µL
Opening Configuration
Two Opposed Fluid Tubes

Selection Specifications

Product KindFlow Cell
Cell TypeCounting Flow Cell
Measurement ModeUV/Vis Spectroscopy
Path Length0.1 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)8 µL
Cell Body Dimensions30 × 4 × 15 mm
Body Height15 mm
Base Dimensions30 × 4 mm
MaterialQuartz
Material GradeJGS1
Port Count2
Tube Outer Diameter (OD)1.5 mm
Tube Inner Diameter (ID)1 mm
Fabrication MethodStandard 80
Opening ConfigurationTwo Opposed Fluid Tubes
Port LayoutEnd/side connection at the left in the referenced original; Opposite end/side connection at the right in the referenced original
Pack Quantity1 Piece
Package Contents1 × Quartz Counting Flow Cell

Choose this option

Choose MQQFC109 when your method calls for a fixed 0.1 mm path in a compact counting flow cell rather than an open-top or demountable design. It is especially useful when you need to match a short optical path with small tube dimensions and limited mounting space around the cell body.

What makes this option different

  • 0.1 mm optical path for methods built around a short fixed transmission length.
  • 8 µL nominal capacity for planning the cell portion of a small flow circuit.
  • Two-Way Light layout for straight-through optical measurement across the defined path.
  • Two opposed fluid tubes with 1.5 mm outer diameter and 1 mm inner diameter for connection planning.

Using this cell

Support the quartz body during installation and route the tubing so the two projecting tubes are not forced sideways. Fill gradually, inspect the illuminated region for trapped bubbles and remove exterior droplets before baseline and sample measurements.

The nominal 8 µL value describes the cell volume, not a verified minimum working volume. If your process depends on the smallest usable fill or a defined operating pressure, qualify those conditions on the complete assembled system.

First-use check

  1. Inspect the optical faces and connection ends for residue or handling marks.
  2. Verify holder fit and beam alignment with a suitable blank.
  3. Confirm stable filling without visible bubbles in the optical region before measurement.

Fit and optical alignment

View the English selection reference.

The stated 30 × 4 × 15 mm dimensions apply to the optical body only. They do not include the extra space needed for the projecting tubes, attached tubing or bend radius at either end.

Z Height is not stated for this SKU. If your holder or instrument depends on a defined beam-center position, check that fit separately before ordering rather than relying on body height alone.

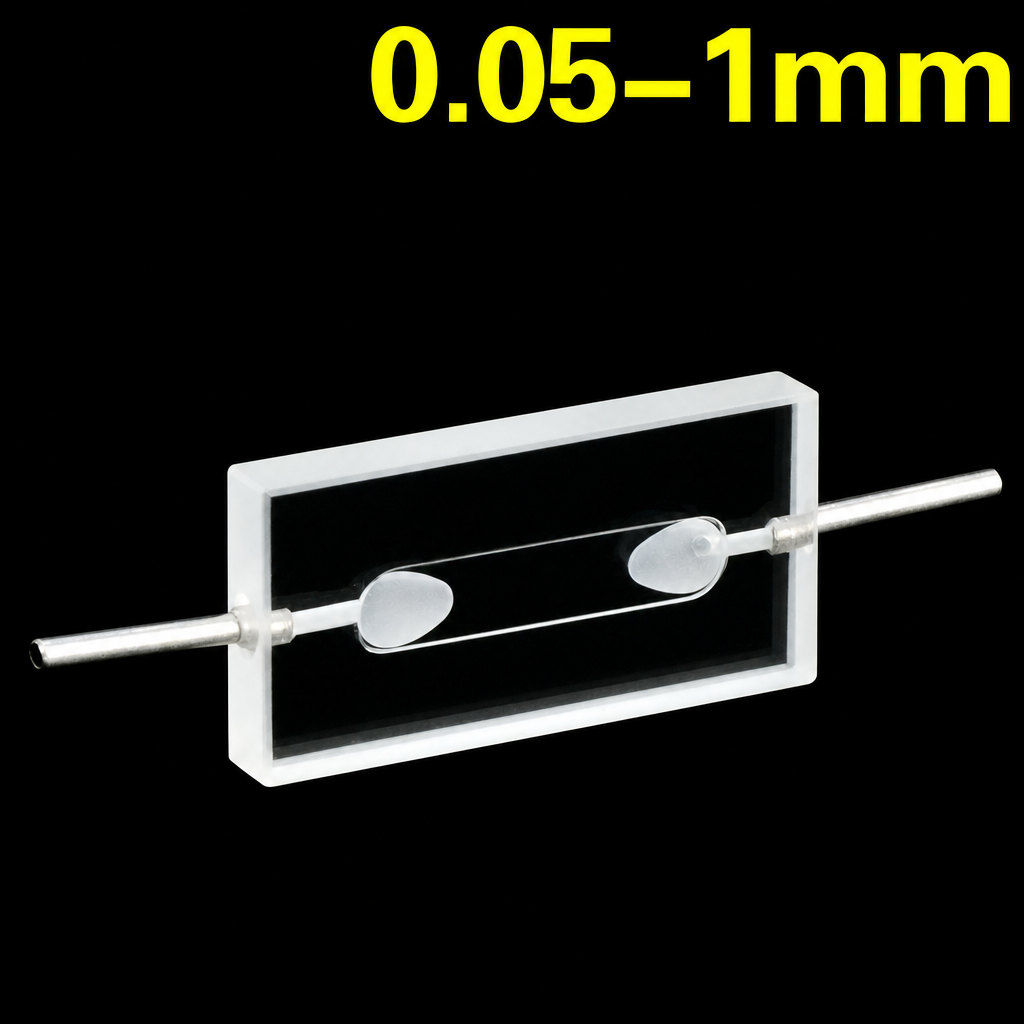

Gallery series photographs illustrate the shared cell format. The ordered path length and nominal capacity are the values stated for MQQFC109.

English selection reference
Selection reference ↗

Solvents and cleaning

Standard 80 is an adhesive-bonded quartz construction suited to routine room-temperature aqueous samples and buffers. Avoid organic sample solvents and organic cleaning agents with this bonded assembly. If your method involves organic solvents or heated cleaning, ask about a more suitable construction before ordering.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean exterior optical faces gently with non-abrasive optical tissue.

Included with this option

1 Quartz Counting Flow Cell. The listed price is for 1 piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to path length, body dimensions, optical layout, tube connections and other installation-related details. Send your drawing or holder information, sample conditions, required quantity and delivery target. Prototype batches typically involve 2–4 cells, with final feasibility, specifications, price and timing confirmed in quotation. Send a product-selection enquiry with SKU MQQFC109.
