(MQQHC004) Quartz Flow Cell, 5 mm path, 16 µL nominal capacity, 2 mm Optical Opening

Weight80 g
SKU: MQQHC004

$260.00

In Stock

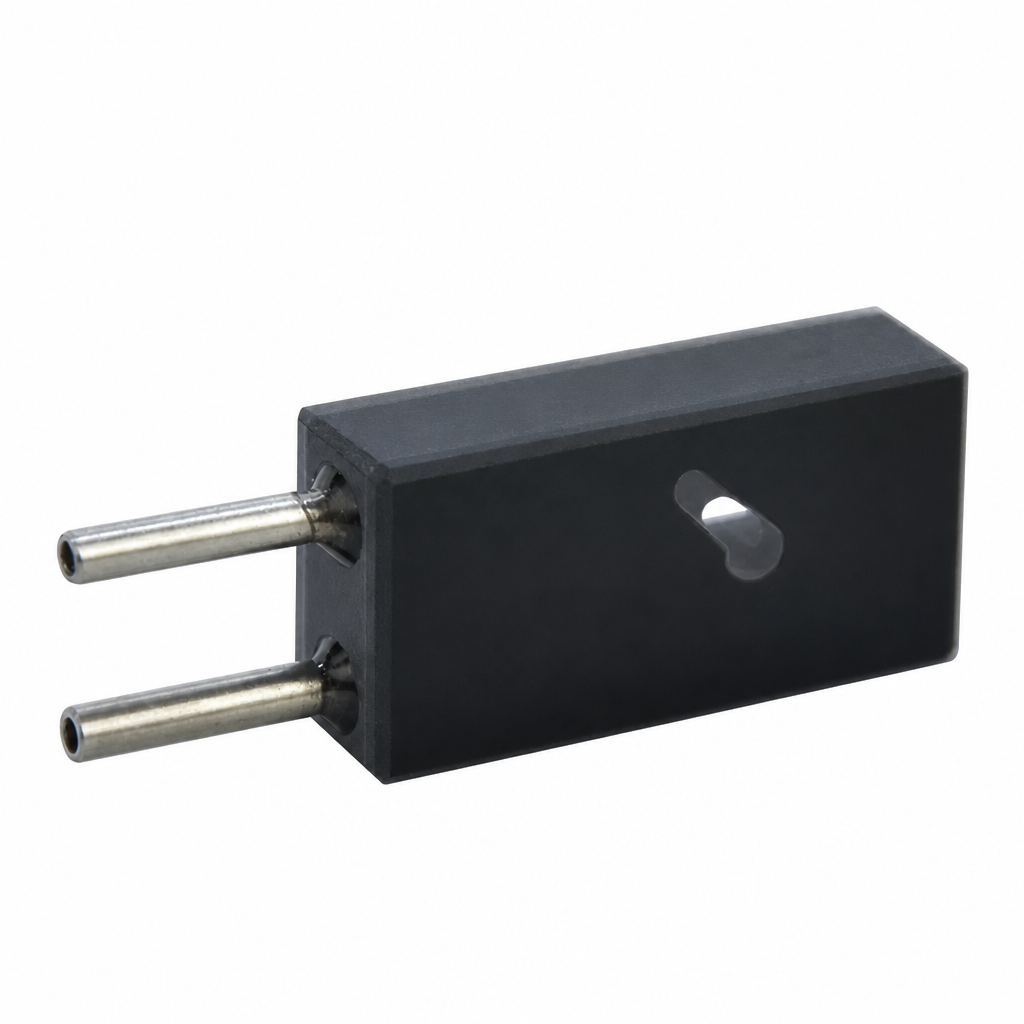

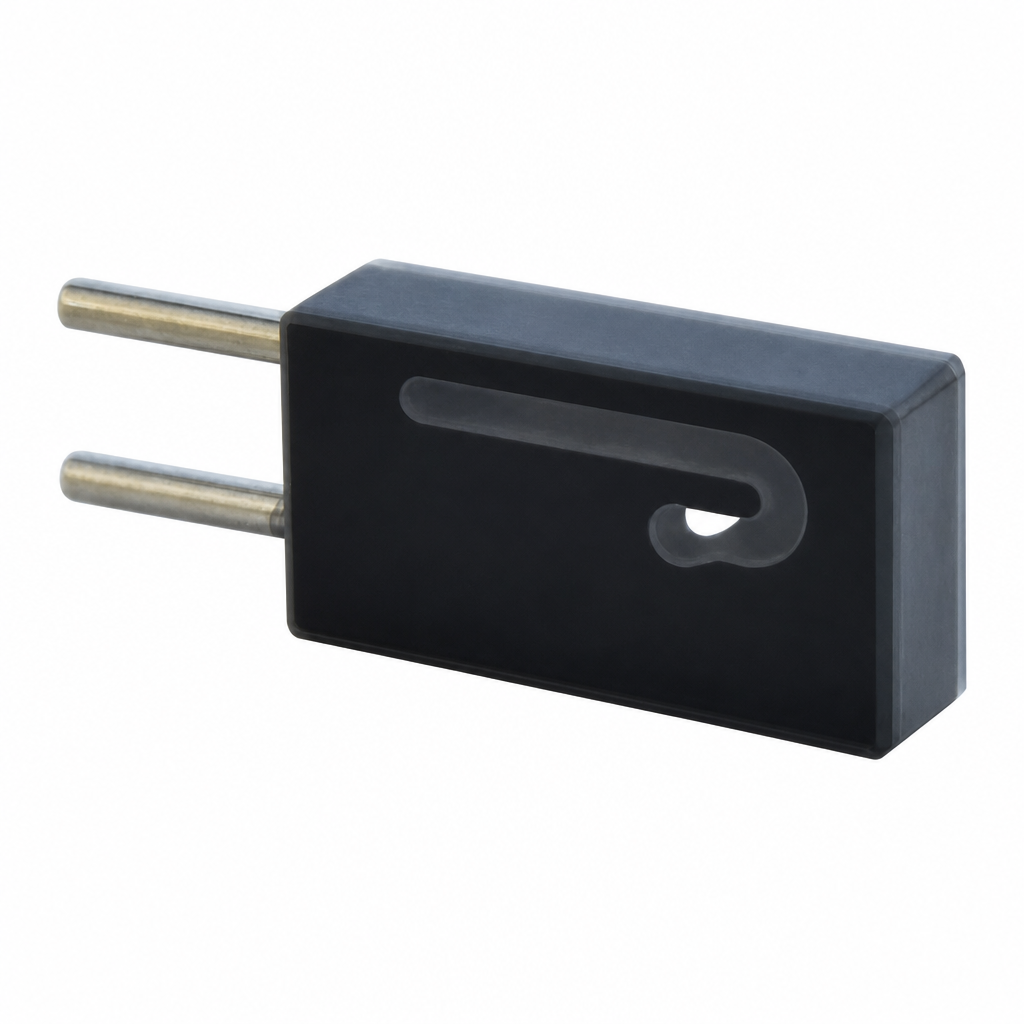

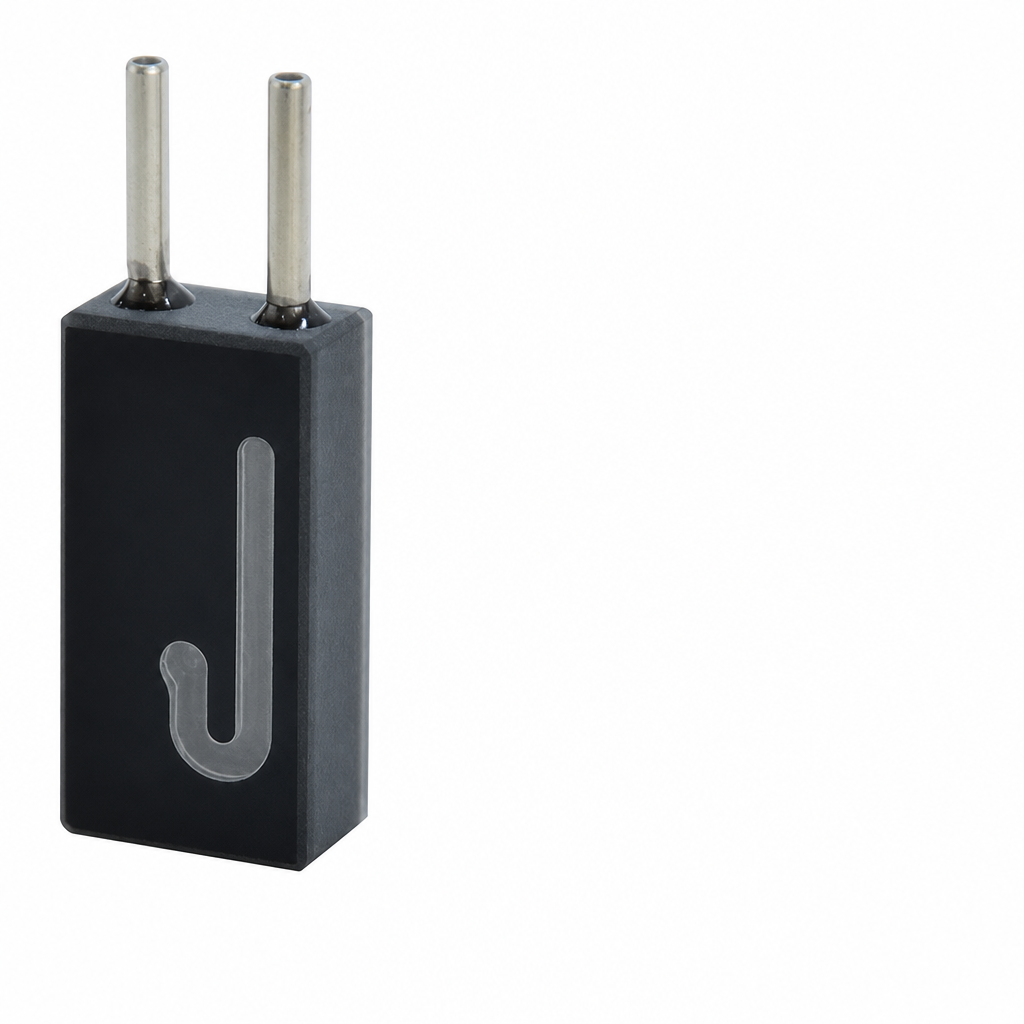

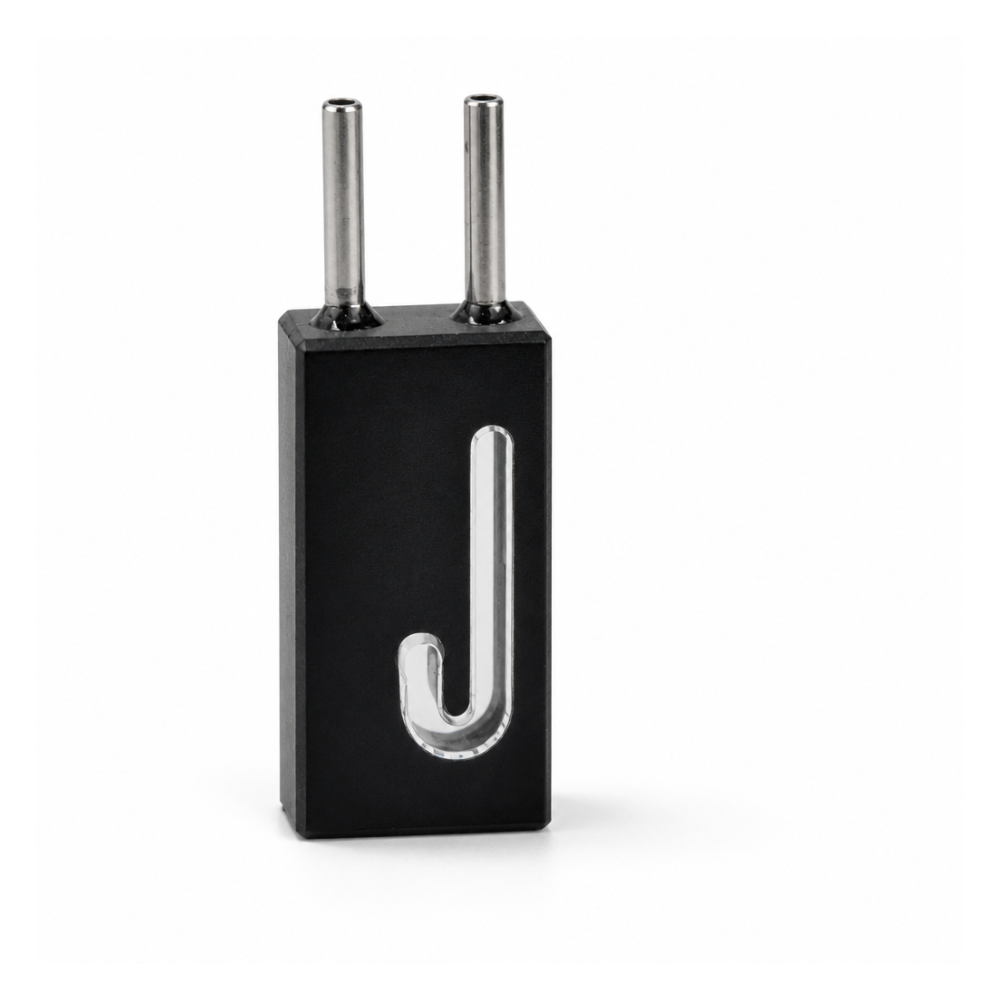

MQQHC004 is a JGS1 quartz flow cell for UV/Vis work with a 5 mm optical path, 16 µL nominal capacity and an 8.5 mm Z Height. Its compact 12.5 × 7.5 mm base, Two-Way Light layout and top connections suit narrow upright installations. Supplied as 1 piece.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQHC004 is a JGS1 quartz flow cell for UV/Vis measurements that need a 5 mm path in a compact flow-through format. Its 16 µL nominal capacity, 8.5 mm Z Height and narrow 12.5 × 7.5 mm base make it useful when you need a shorter path and a slimmer upright body than larger square-base flow cells.

This version uses adhesive-bonded quartz construction and is classified as Standard 80. The cell body is quartz, and this version uses stainless steel fittings at the top connections. It is supplied as 1 piece.

Path Length
5 mm
Sample Volume (Nominal)
16 µL
Opening Configuration
Two Top Fluid Connections

Selection Specifications

Product KindFlow Cell
Cell TypeFlow Cell
Measurement ModeUV/Vis Spectroscopy
Path Length5 mm
Light Transmission ConfigurationTwo-Way Light
Z Height8.5 mm
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)16 µL
External Dimensions12.5 × 7.5 × 35 mm
Body Height25 mm
Base Dimensions12.5 × 7.5 mm
MaterialQuartz
Material GradeJGS1
Port Count2
Fabrication MethodStandard 80
Opening ConfigurationTwo Top Fluid Connections
Fitting MaterialStainless Steel
Port LayoutTop connection at the left in the referenced original; Top connection at the right in the referenced original
Pack Quantity1 Piece
Package Contents1 × Quartz Flow Cell

Choose this option

Choose MQQHC004 when your holder or compartment needs a narrow upright cell with a defined 8.5 mm beam-center height. The 5 mm optical path, compact nominal volume and slim 12.5 × 7.5 mm base are the key reasons to select this version for a space-limited flow setup.

What makes this option different

  • 5 mm optical path for flow methods built around a shorter measurement length.
  • 16 µL nominal capacity in a compact upright cell format.
  • 8.5 mm Z Height provides a stated bottom-to-beam-center reference for alignment.
  • 12.5 × 7.5 mm base with top stainless steel fittings for a narrower installed profile than wider upright bodies.

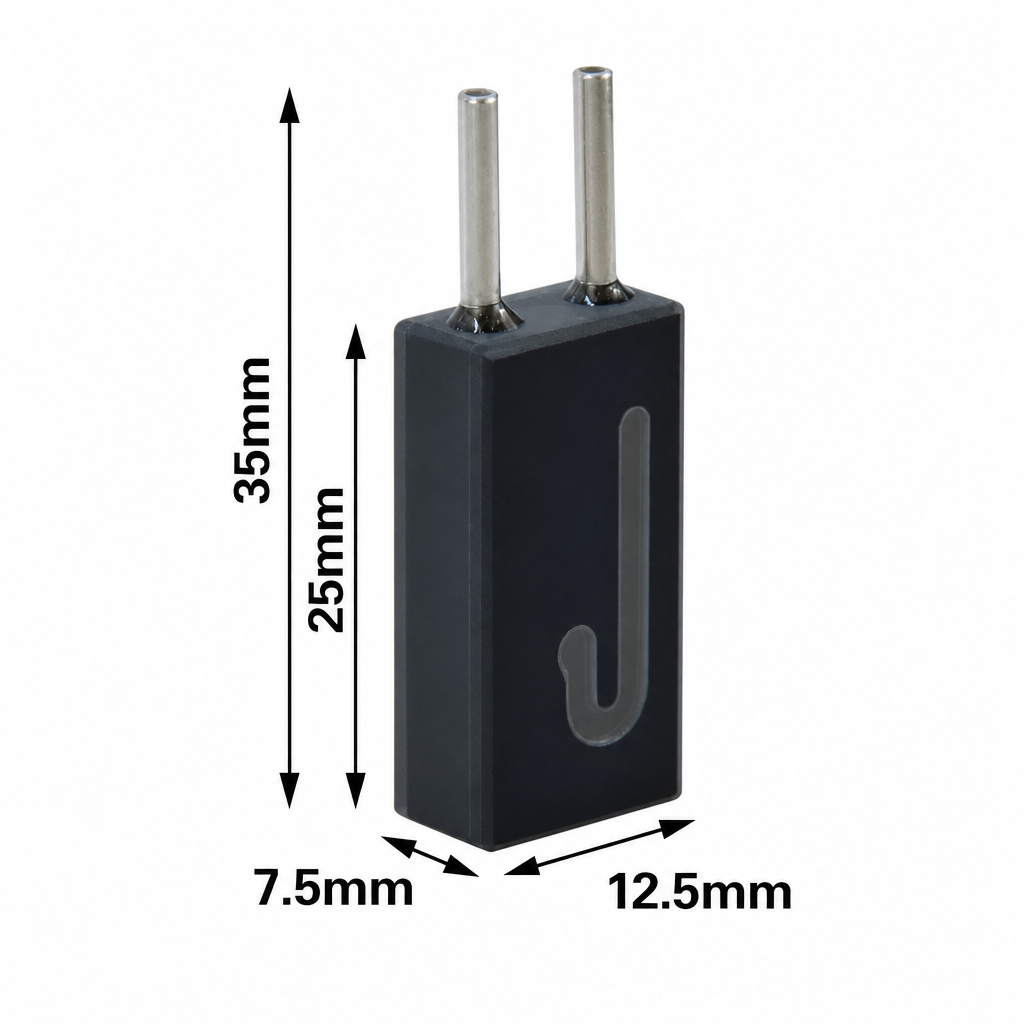

Structure and dimensions

Product structure and the listed configuration.
Product structure and the listed configuration.Open image ↗

Using this cell

Mount the cell so the body is supported securely and the top fittings are not carrying installation stress. Fill gradually, let the sample fully occupy the optical region and remove visible bubbles before recording the blank.

The nominal volume is 16 µL, but that value does not define a minimum working volume. Your complete liquid path will also include the connected tubing and any other inline hardware.

First-use check

  1. Inspect the optical faces and connection points before installation.
  2. Check that the holder seats the body correctly and that the beam aligns to the 8.5 mm Z Height.
  3. After filling, remove bubbles and exterior droplets, then repeat the blank in the installed position.

Fit and optical alignment

View the English selection reference.

The body uses a 12.5 × 7.5 mm base, 25 mm body height and 35 mm overall height in the fixed top-connection format shown. Compare the stated 8.5 mm Z Height with your beam position, and leave room above the cell for fittings, tubing approach and bend clearance.

Two-Way Light describes the optical direction through the measurement faces. It does not on its own confirm fit in a specific instrument, so check holder seating and alignment against your own setup.

English selection reference
Selection reference ↗

Solvents and cleaning

This cell uses adhesive-bonded quartz construction and is classified as Standard 80, which is generally used for room-temperature water-based samples and buffers. Avoid organic sample solvents and organic cleaning agents with this construction.

The cell body is quartz, but the fitted top connections on this version are stainless steel. Check the suitability of the complete wetted assembly for your liquid and cleaning routine. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis or abrasive cleaning.

Included with this option

1 Quartz Flow Cell. The listed price is for one cell.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz flow cells for changes to path length, capacity, body dimensions, windows, Z Height and connection details. Send a product enquiry with SKU MQQHC004 together with your drawing or holder details, sample conditions and target quantity.
