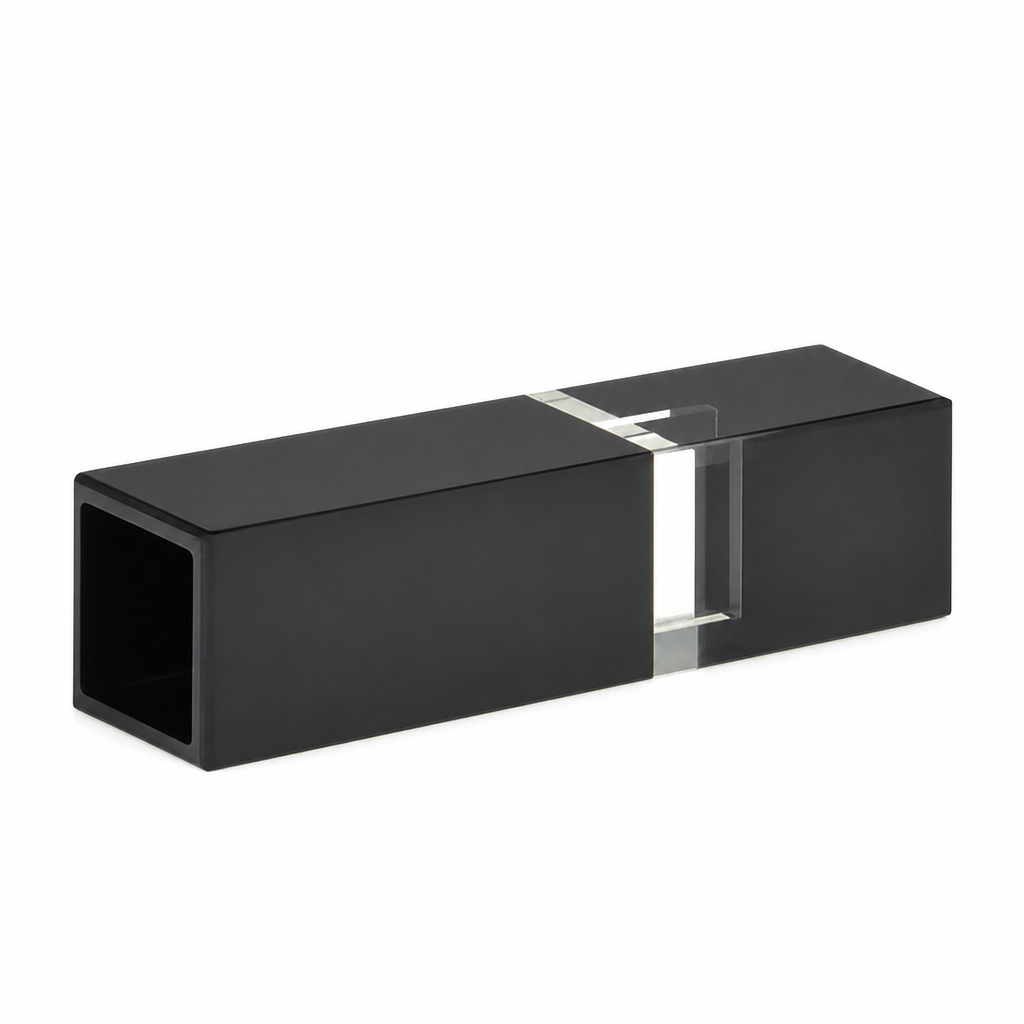

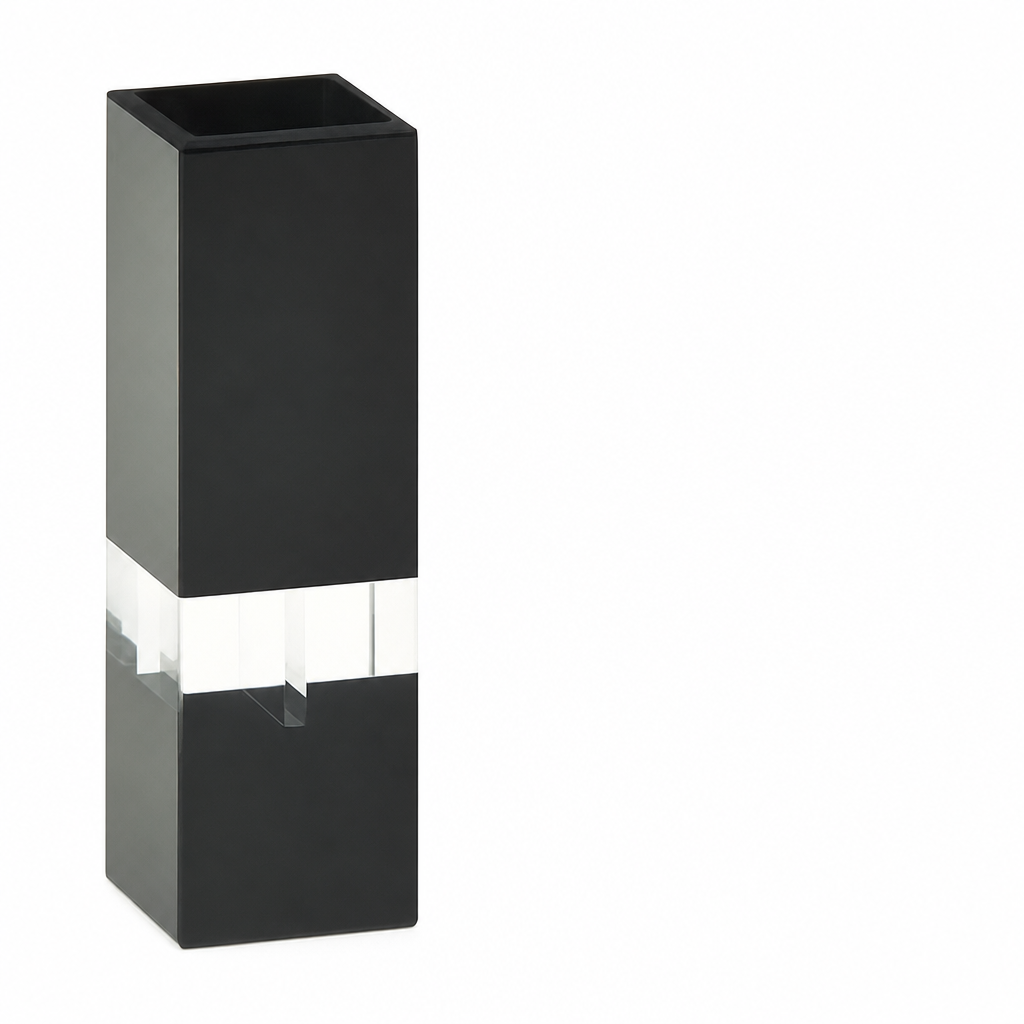

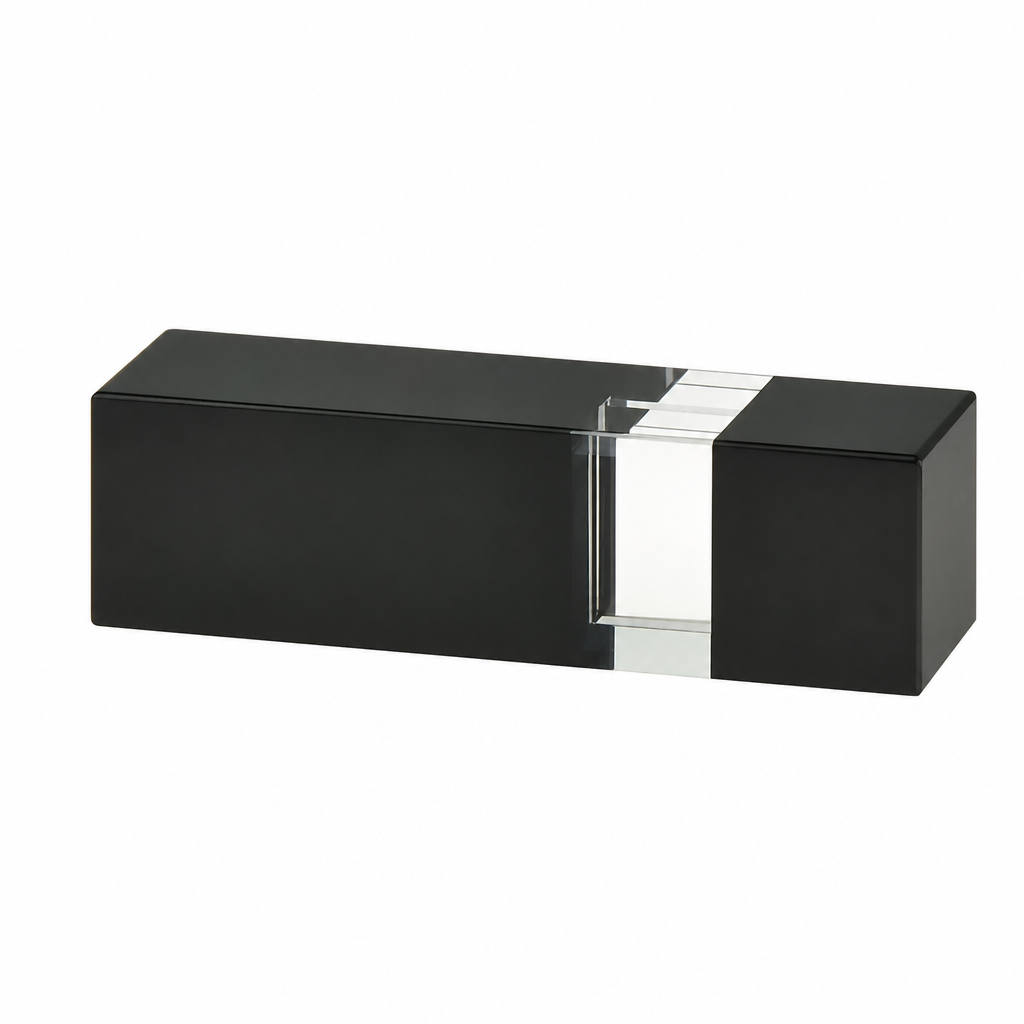

(MQQMC003) Quartz Ultra-Micro Cuvette, 10 mm path, 75 µL nominal capacity, Black Walls and Angled Opening

Weight225 g
SKU: MQQMC003

$239.00

In Stock

MQQMC003 is a JGS1 quartz ultra-micro cuvette for UV/Vis measurements, with a 10 mm optical path, 75 µL nominal capacity and Four-Way Light geometry. Its angled open top, 15 mm Z Height and 1 × 7.5 mm window help you combine direct filling with a narrow defined optical region. Sold as 1 Quartz Ultra-Micro Cuvette.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQMC003 is a JGS1 quartz ultra-micro cuvette for UV/Vis measurements that combines a 10 mm optical path with a 75 µL nominal capacity. Its angled open top gives direct access to the sample area, while the 1 × 7.5 mm window, Four-Way Light layout and 15 mm Z Height help you position the beam through a narrow defined optical region. This is a useful format when filling access and beam placement both matter.

Path Length
10 mm
Sample Volume (Nominal)
75 µL
Opening Configuration
Open Top

Selection Specifications

Product KindCuvette
Cell TypeUltra-Micro Cuvette
Measurement ModeUV/Vis Spectroscopy
Path Length10 mm
Light Transmission ConfigurationFour-Way Light

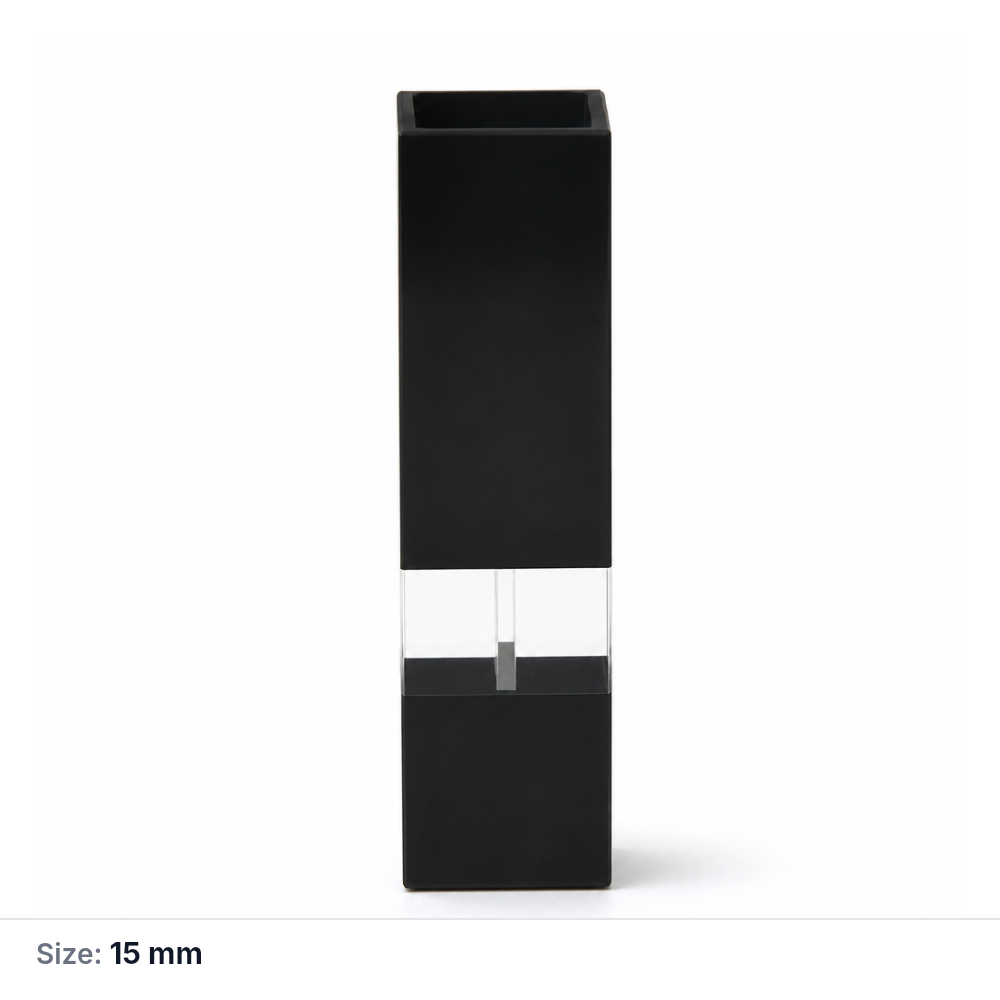

Z Height15 mm
Optical Window Dimensions1 × 7.5 mm
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)75 µL
External Dimensions12.5 × 12.5 × 45 mm
Cell Body Dimensions12.5 × 12.5 × 45 mm
External Dimensions ScopeBody Only
Body Height45 mm
Base Dimensions12.5 × 12.5 mm
MaterialQuartz
Material GradeJGS1
Fabrication MethodStandard 80
Opening ConfigurationOpen Top
Pack Quantity1 Piece
Package Contents1 × Quartz Ultra-Micro Cuvette

Choose this option

Choose this cuvette when your UV/Vis method needs a compact 75 µL cell with a 10 mm path and a 15 mm beam-center height. The angled top opening is the key structural difference here: it helps with direct pipette access while keeping the body in a fixed ultra-micro format.

What makes this option different

  • 75 µL nominal capacity in an ultra-micro quartz body for small-volume UV/Vis work.
  • Angled open top for direct filling and visual access to the sample region from above.
  • 10 mm optical path for methods designed around this path length.
  • Four-Way Light configuration for optical access from four sides.
  • 1 × 7.5 mm window to define a narrow optical region that should be checked against your beam footprint.

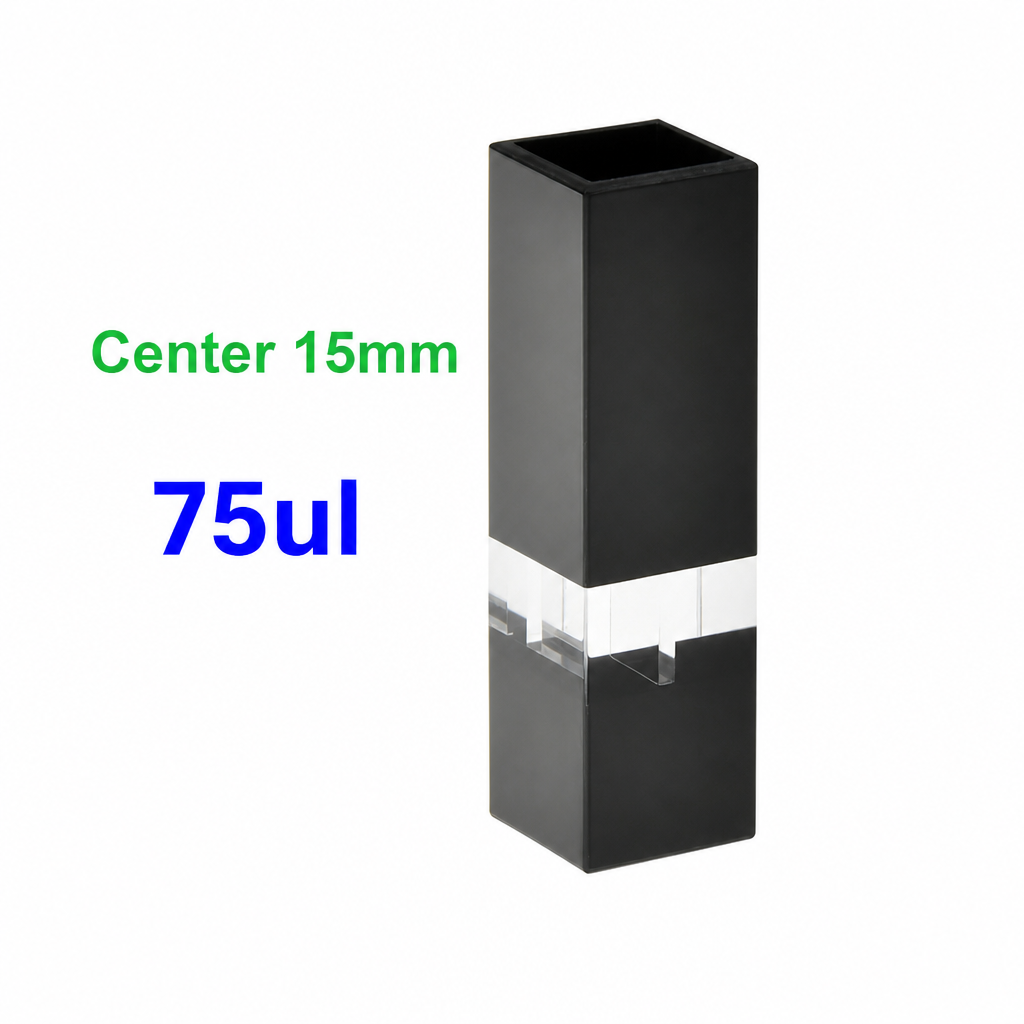

  • 15 mm Z Height from the base to the optical center for holder and beam-position matching.

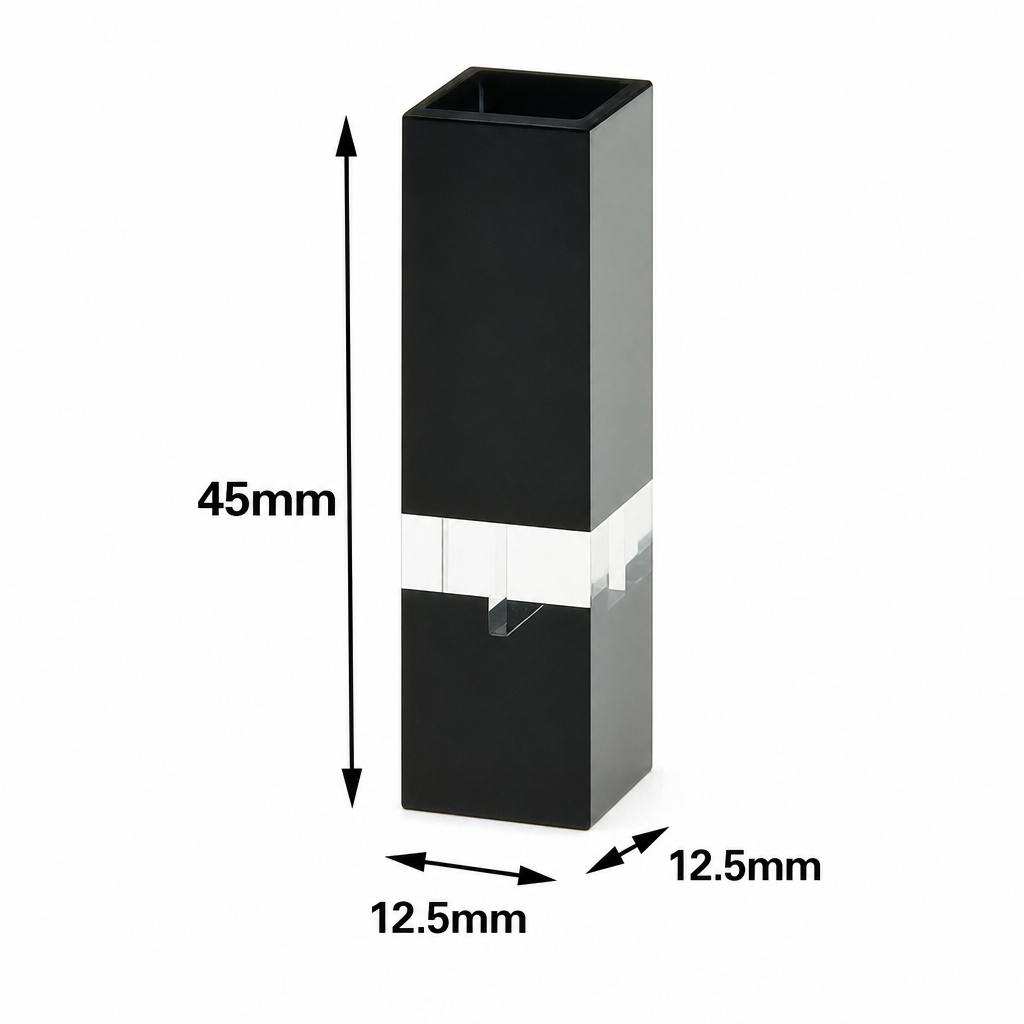

Structure and dimensions

Product structure and the listed configuration.
Product structure and the listed configuration.Open image ↗

Using this cell

Fill from the angled top opening with enough liquid to cover the intended beam position. Because this is an ultra-micro cell, look carefully for bubbles and confirm that the sample covers the optical region before measurement.

Use the same orientation for blank and sample runs. After pipetting, keep the outside optical faces clean and dry, especially around the upper body where handling is closest to the opening.

First-use check

  1. Inspect the body, rim and optical faces before first use.
  2. Place the cell in the holder and verify beam alignment with a suitable blank.
  3. Confirm that the filled sample covers the optical region and that no bubbles remain in the measurement area.

Fit and optical alignment

The body dimensions are 12.5 × 12.5 × 45 mm, measured on the body only. Check these together with the shape of the angled top if your holder, cover or upper clamp leaves limited clearance around the opening.

The beam center is 15 mm above the base, and the window is marked 1 × 7.5 mm. That narrow window makes beam size and beam position important, so review the drawing if your optical setup is tightly defined.

View the English selection reference.

English selection reference
Selection reference ↗

Solvents and cleaning

This cuvette is made from JGS1 quartz with Standard 80 adhesive-bonded construction. It is generally suited to room-temperature aqueous samples and buffers. Avoid organic samples and organic cleaning solvents with this bonded assembly.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the exterior optical faces gently with non-abrasive optical tissue and a mild cleaning routine.

Included with this option

1 Quartz Ultra-Micro Cuvette. The listed price is for one cell.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes involving path length, body dimensions, window layout, Z Height and opening geometry. If you need a different fit for your holder or optical setup, send a labelled sketch or drawing together with the critical dimensions, sample conditions and quantity required.

Send a product-selection enquiry with SKU MQQMC003 and your application details.
