(MQQMC033) JGS1 Quartz Demountable Cuvette, 1 mm Path, 50 µL, Circular Recess
$239.00
MQQMC033 is a JGS1 quartz demountable cuvette with a 1 mm optical path, an 8 mm circular recess and 50 µL nominal capacity. The removable cover plate gives direct access to the sample area for loading, inspection and cleaning in fluorescence, solid-sample or powder work. Supplied as 1 set.
In Stock
Description
MQQMC033 is a slim JGS1 quartz demountable cuvette built around an 8 mm circular sample recess. It combines a 1 mm optical path with 50 µL nominal capacity and a removable cover plate, which is useful when the sample needs to be placed directly into the measurement area for fluorescence work or for solid, powder and small-volume sample presentation.
The body plate is 45 × 12.5 × 2 mm, and the separate cover plate is 45 × 12.5 × 1 mm. This plate-style format is straightforward to load and inspect, but it should be used in a fixture that supports both parts in position during measurement.
- Path Length
- 1 mm
- Sample Volume (Nominal)
- 50 µL
- Closure Type
- Removable Cover Plate
Selection Specifications
| Product Kind | Specialized Cell |
|---|---|
| Cell Type | Demountable Cuvette |
| Measurement Mode | Fluorescence Spectroscopy; Solid/Powder Sample Measurement |
| Path Length | 1 mm |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 50 µL |
| External Dimensions | 12.5 × 2 × 45 mm |
| Cell Body Dimensions | 12.5 × 2 × 45 mm |
| Body Height | 45 mm |
| Base Dimensions | 12.5 × 2 mm |
| Internal Dimensions | 8 × 1 mm |
| Inner Diameter (ID) | 8 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Closure Type | Removable Cover Plate |
| Closure Included | Yes |
| Fabrication Method | Standard 80 |
| Pack Quantity | 1 Piece |
Choose this option
Choose MQQMC033 when your method calls for a small circular sample area that can be accessed directly before closing the cell. The 8 mm recess helps define where the sample sits, while the demountable format makes it easier to place powders, solids or small liquid volumes carefully into the measurement region.
What makes this option different

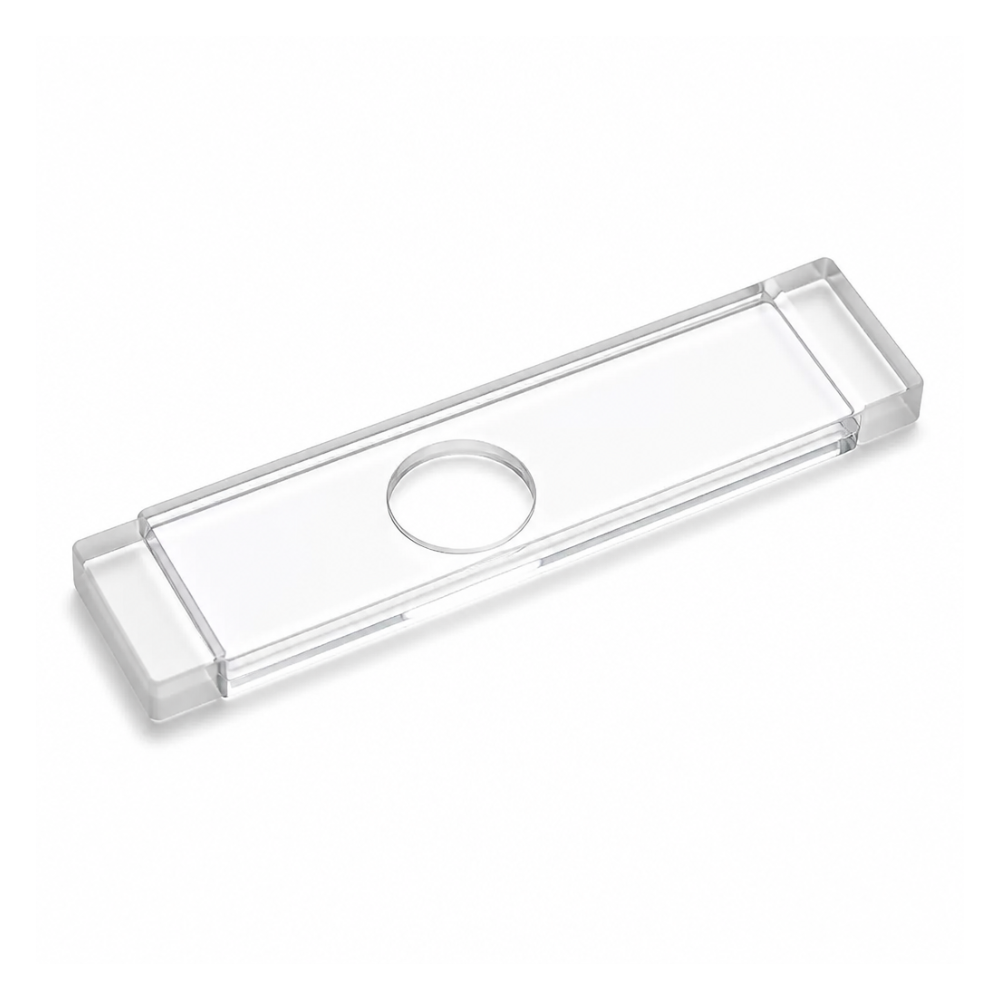

- Circular sample recess with 8 mm diameter and 1 mm depth.
- 50 µL nominal capacity in a compact demountable cavity.

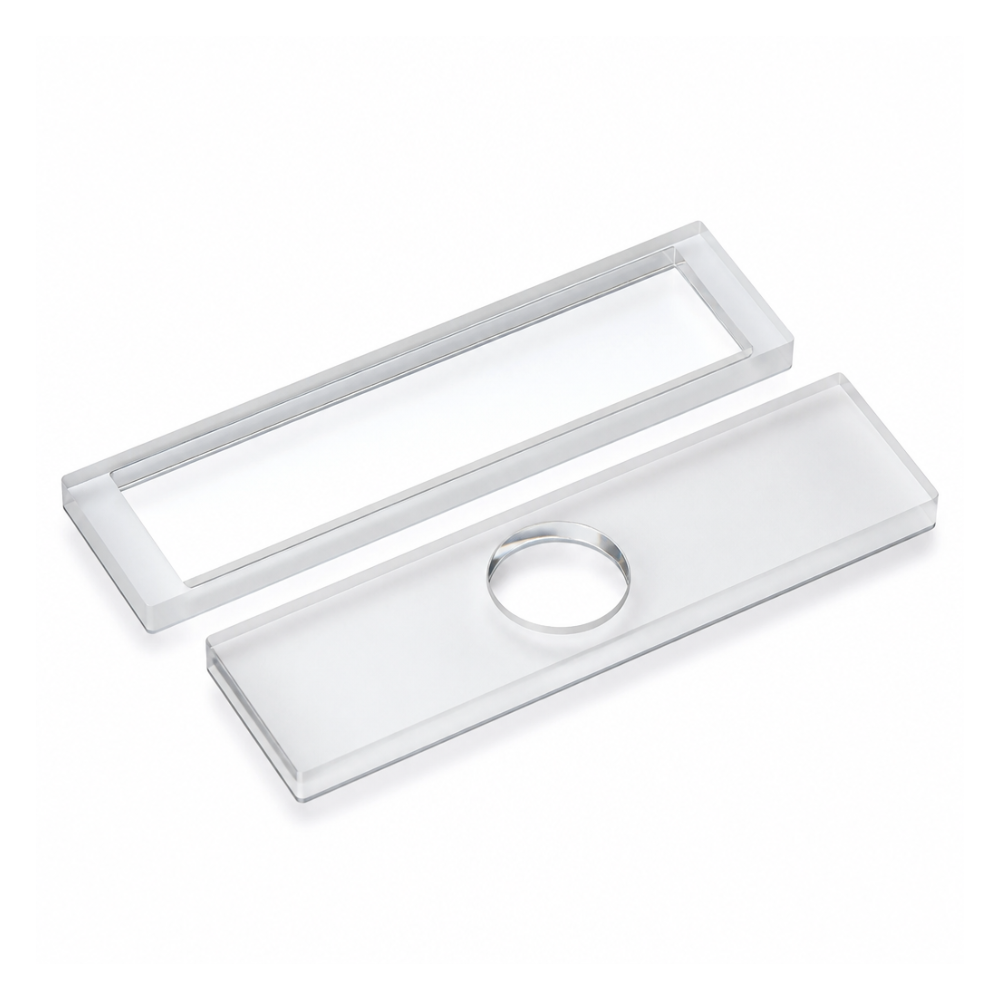

- Separate body and removable cover plate supplied together as one set.
- Slender plate body at 45 × 12.5 × 2 mm for fixtures built around narrow plate geometry.
- Specified uses include fluorescence and solid or powder sample measurement.
Using this cell
Load the sample into the circular recess, then place the cover plate in a consistent way before measurement. For powders and solids, use a repeatable preparation method so that sample presentation stays as consistent as possible from blank to sample and from run to run.
For liquid use, make sure the illuminated region is covered and free of bubbles or particles before measurement. The removable cover plate provides access to the sample area, but it is not a screw closure and does not create a pressure-rated assembly.
First-use check
- Inspect the recess, body faces and cover plate for scratches, chips or residue.
- Test the dry fit in your holder before loading a sample.
- Run a blank with the same orientation and cover placement planned for the measurement.
Fit and optical alignment
View the English selection reference.
Check the body and cover dimensions separately in your holder. The body is 45 × 12.5 × 2 mm and the cover plate is 45 × 12.5 × 1 mm, so both support and clearance matter when the cell is assembled.
Z Height is not stated for this SKU. If your instrument or fixture has a defined beam position, match it against your current cell or holder drawing before ordering.
Solvents and cleaning
This cuvette is listed as Standard 80, an adhesive-bonded quartz construction generally suited to routine room-temperature aqueous samples and buffers. If your method involves organic solvents or heated treatment, ask about a more suitable Sintered or Molded alternative before ordering.
Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis, abrasive cleaners and cleaning routines that are unsuitable for bonded assemblies. Clean the optical faces and mating surfaces gently with non-abrasive optical tissue or wipes.
Included with this option
1 set of MQQMC033. The listed price is for one set.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz production for requirements involving plate dimensions, path length, recess format, sample volume, optical windows or Z Height. If you need a different circular recess size or a different body format for your holder, send a drawing or labelled sketch with your sample type, method and quantity.
Send a product-selection enquiry with SKU MQQMC033 and your holder or application details.
Design notes for this configuration: Round-Recess Quartz Cell: Loading a Small Solid Sample (MQQMC033)
Additional information
| Weight | 50 g |
|---|
