(MQQPA006) Glass Particle Analysis Cell, Rounded Bottom, Pack of 2

Weight50 g
SKU: MQQPA006

$78.00

In Stock

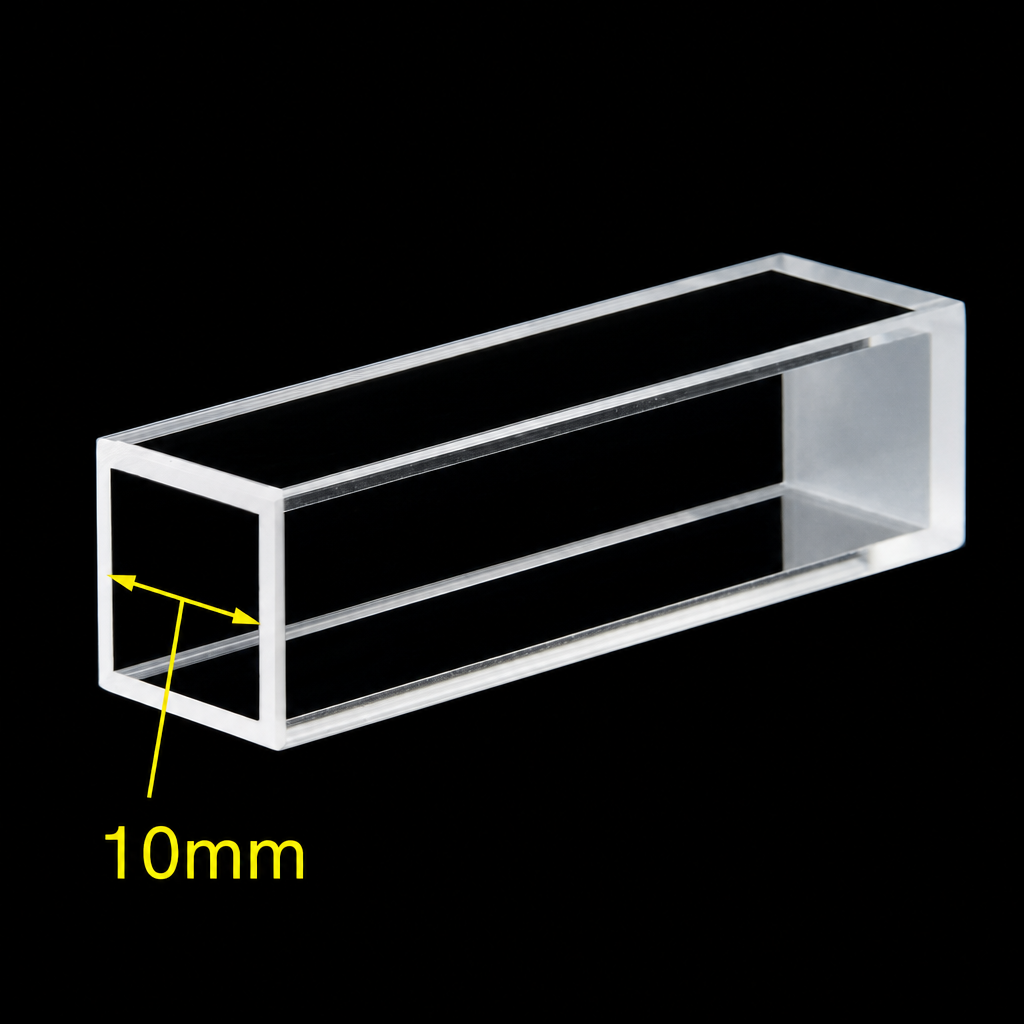

MQQPA006 is a glass particle analysis cell with a 10 mm optical path, Four-Way Light access and a rounded-bottom option that should be matched to the specified profile in your method or holder. Its open top with a flat lid supports direct filling, and this sale option is supplied as a pack of 2 cells with accompanying closures.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQPA006 is a glass particle analysis cell for visible-light work from 350 nm upward. It combines a 10 mm optical path, Four-Way Light access and a 3500 µL nominal capacity in an open-top format with a flat lid, and this option also carries the rounded-bottom specification used for this version. Supplied as a pack of 2, it suits routines that need this optical layout and bottom profile rather than a standard square-body assumption.

Path Length
10 mm
Sample Volume (Nominal)
3.5 mL
Opening Configuration
Open Top

Selection Specifications

Product KindSpecialized Cell
Cell TypeParticle Analysis Cell
Measurement ModeParticle Analysis
Path Length10 mm
Light Transmission ConfigurationFour-Way Light
Wavelength Range — Lower Limit350 nm
Sample Volume (Nominal)3.5 mL
External Dimensions12 × 12 × 45 mm
Body Height45 mm
Base Dimensions12 × 12 mm
MaterialGlass
Closure TypeFlat Lid
Closure IncludedYes
Opening ConfigurationOpen Top
Sales Unitpack of 2
Package Contents2 × Glass Particle Analysis Cell; Accompanying closures

Choose this option

Choose MQQPA006 when your particle analysis method is built around a 10 mm path in a glass cell with side optical access and top loading. The rounded-bottom specification is part of this exact option, so it is worth selecting when your existing method, holder or replacement requirement calls for that stated profile. The open top and flat lid keep sample access straightforward for filling, inspection and routine handling from above.

What makes this option different

  • Rounded-bottom option for setups that need this specified profile rather than a flat-bottom variant.
  • 10 mm optical path for methods built around that path length.
  • Four-Way Light configuration gives optical access on four sides around the sample region.
  • Open top with flat lid supports direct filling and closing from above.
  • 3500 µL nominal capacity provides the stated sample volume for this cell format.
  • 12 × 12 × 45 mm body helps you check holder space for this non-12.5 mm square body.
  • Pack of 2 cells for the listed sale unit.

Using this cell

Fill the cell from the top opening and place the flat lid for your normal measurement routine. Keep the same orientation for blank, background and sample work so the optical direction and sample presentation stay consistent from run to run.

The 3500 µL figure is the nominal capacity, not a stated minimum working volume. If your method depends on a tightly defined fill level or beam coverage, check that in your own setup before routine use.

First-use check

  1. Inspect both cells for clean optical faces, chips or visible residue.
  2. Check how the rounded-bottom option sits in your holder or support arrangement before measurement.
  3. After filling, remove visible bubbles and exterior droplets before placing the cell in the instrument.

Fit and optical alignment

View the English selection reference. Also available in the product gallery.

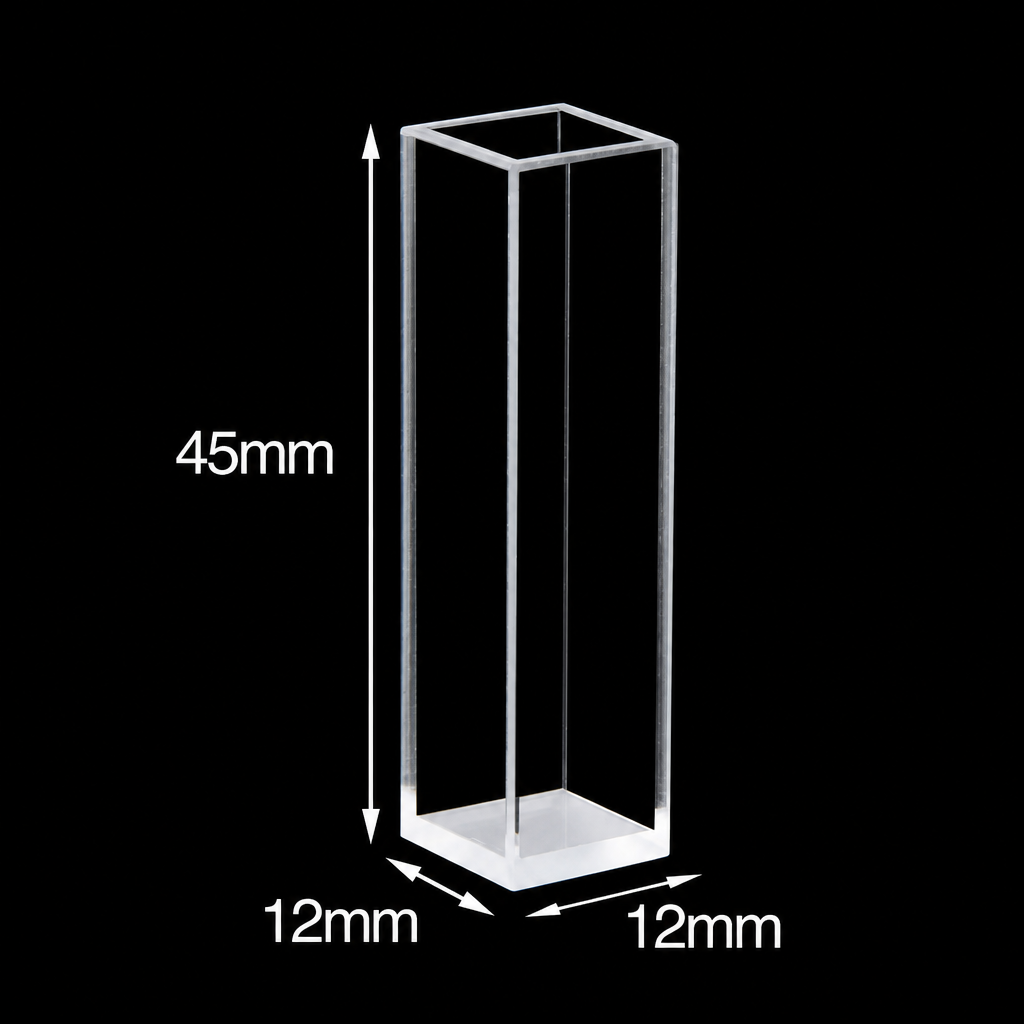

The stated body dimensions are 12 × 12 × 45 mm. That is important because this body is not the usual 12.5 mm square format, so holder seating, side support and top clearance should be checked against the actual body size.

Z Height is not listed for this option. If your instrument or holder depends on a defined beam-center height, confirm that separately instead of inferring it from the overall body height.

English selection reference
Selection reference ↗

Solvents and cleaning

This glass cell uses a glass-powder-sintered construction in supplier wording. That joining style can be useful when you are choosing among different cell constructions, but it does not by itself establish a general chemical-resistance list for this exact item.

Chemical limits for this exact cell and closure assembly are not established here, so review your sample liquid and cleaning routine for the complete wetted set before use, especially with aggressive chemicals, elevated temperature or long contact time. Avoid hydrofluoric acid, hot strong alkalis and abrasive cleaners. For a broader overview of MQ cell constructions, see Compare fabrication options.

Included with this option

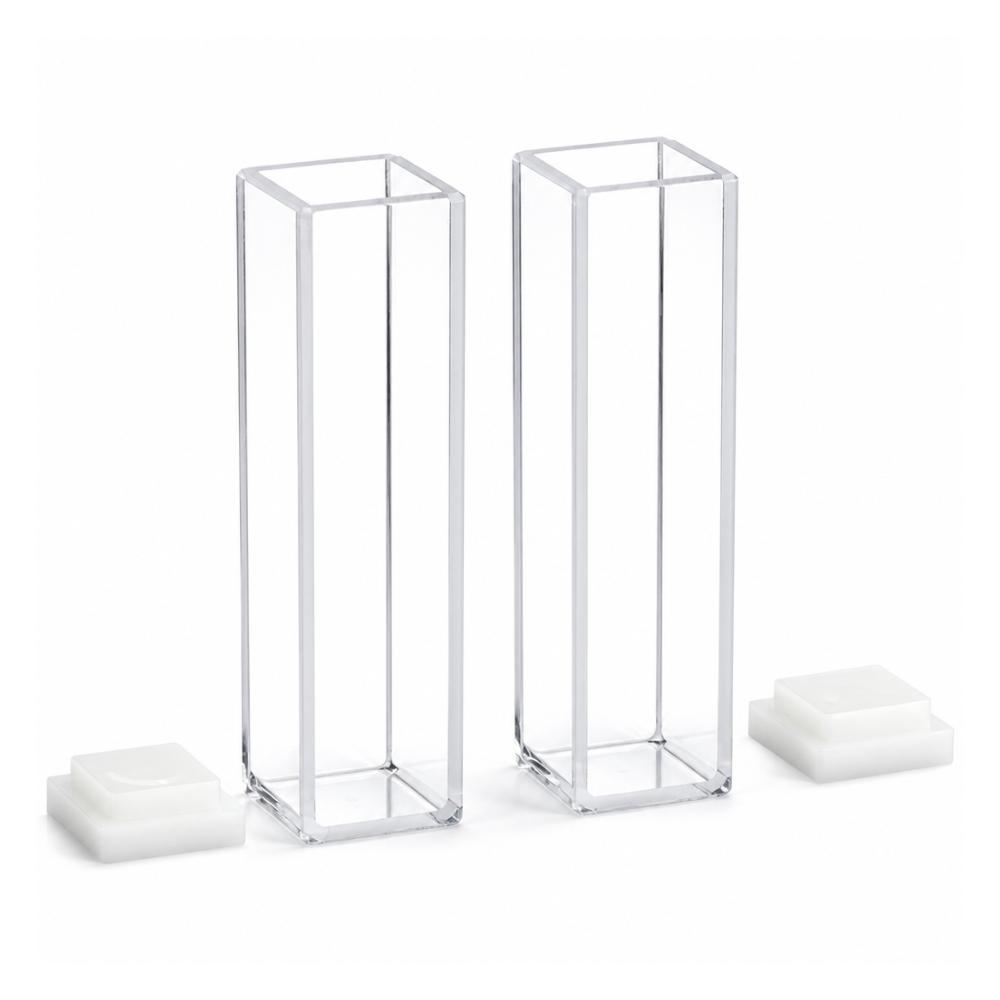

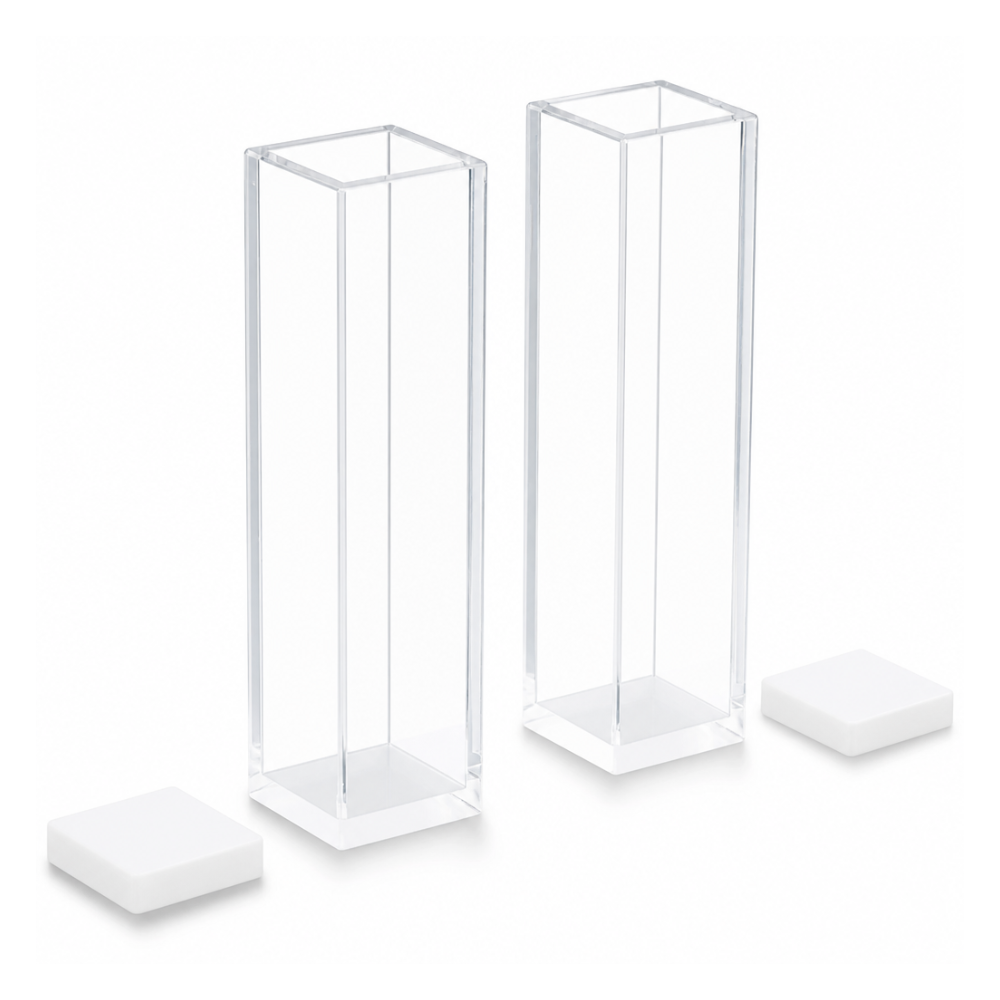

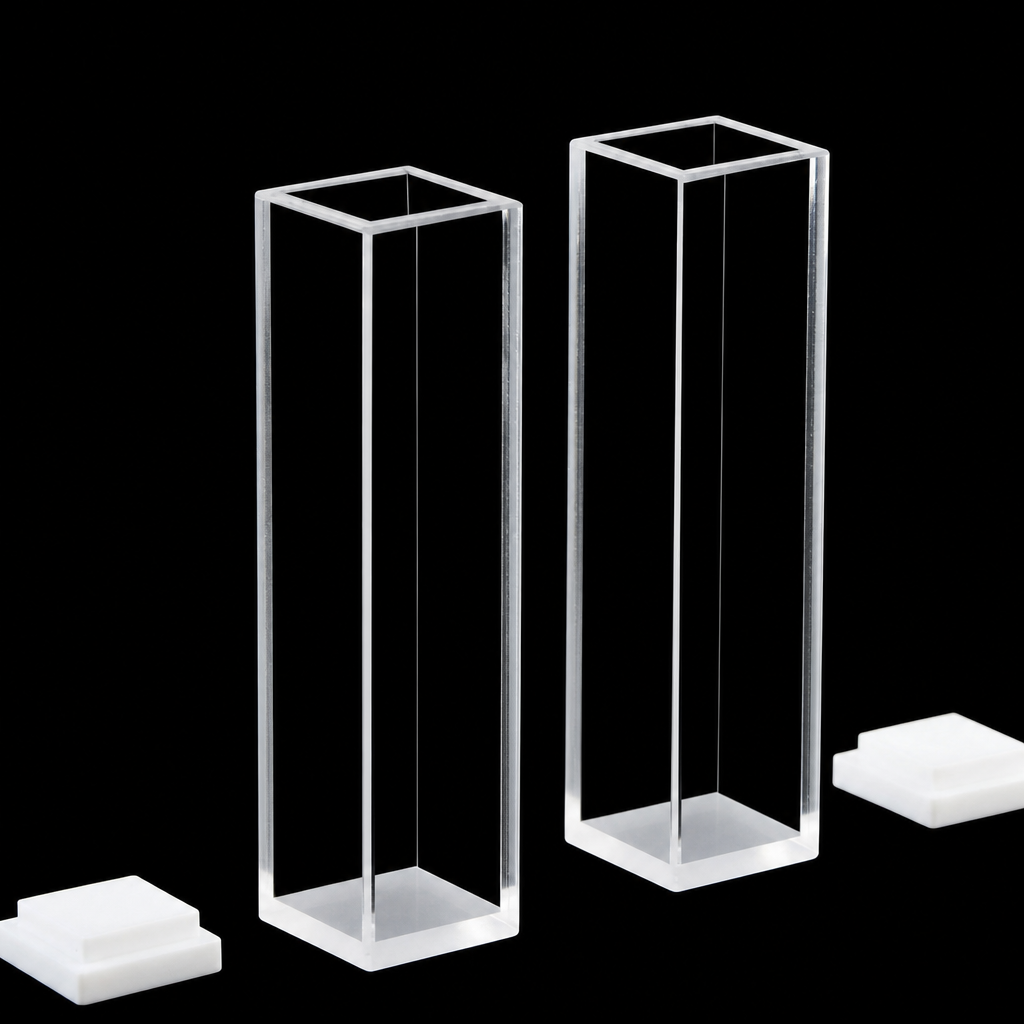

2 Glass Particle Analysis Cells and accompanying closures. The listed price is for this pack of 2.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

For a different body size, path length, volume or opening style, please send your holder details or a labelled sketch for review. You can also send a product-selection enquiry with SKU MQQPA006, your sample conditions and required quantity.
