(MQQPA008) Glass Particle Analysis Cell, Flat Bottom, Pack of 2

Weight50 g
SKU: MQQPA008

$102.00

In Stock

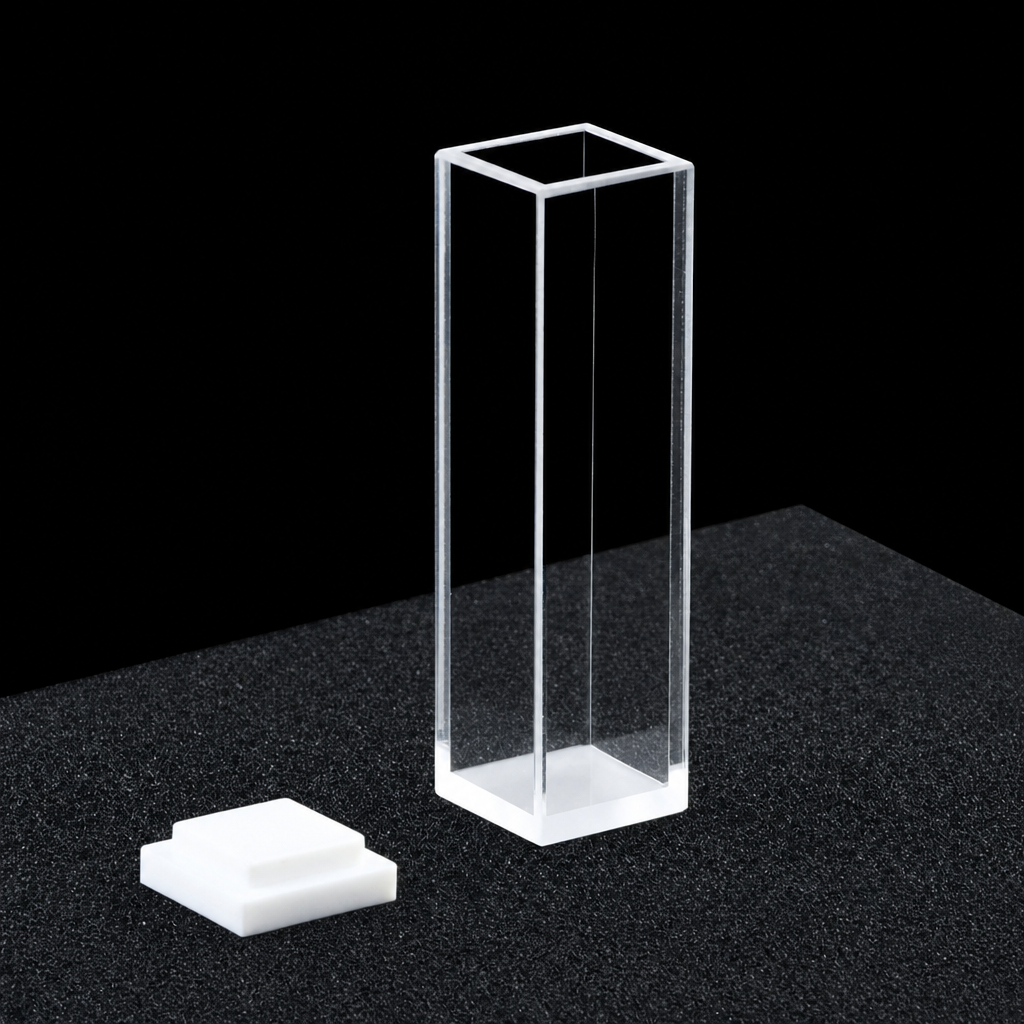

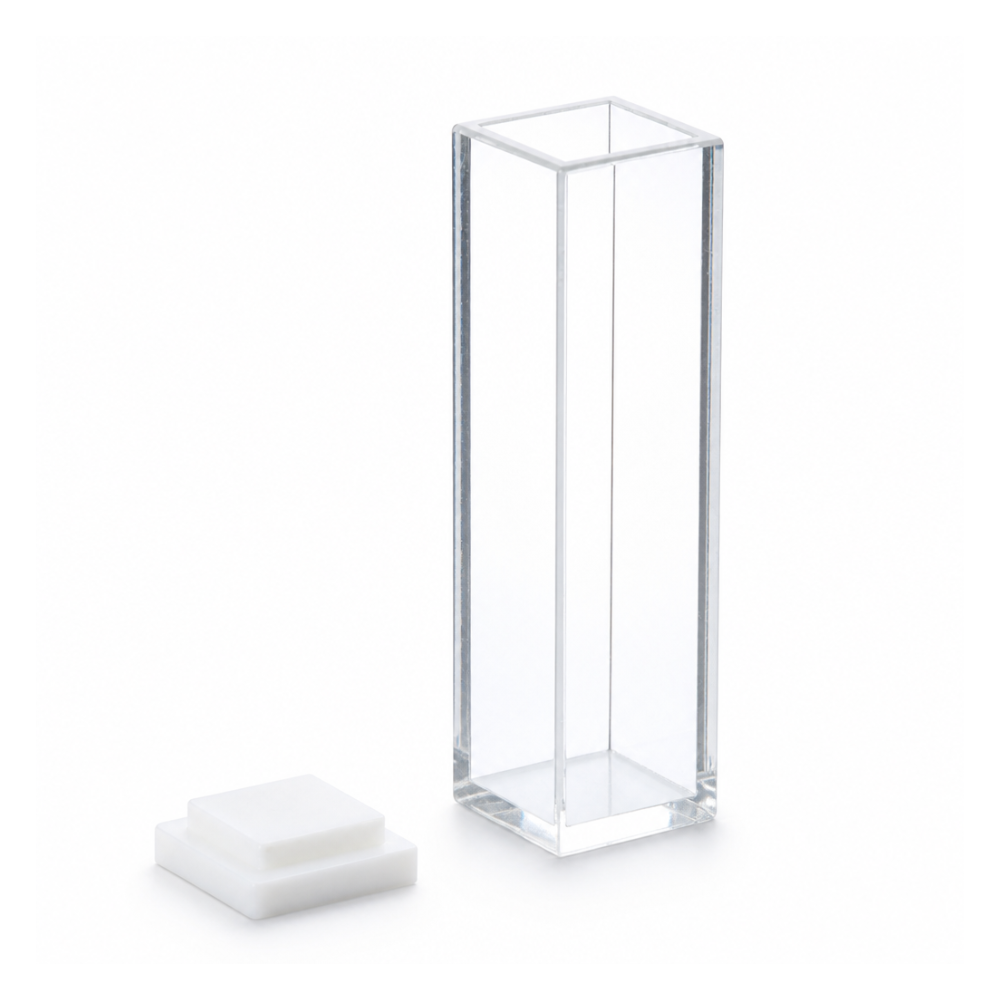

MQQPA008 is a glass particle analysis cell with a 10 mm optical path, Four-Way Light access and 3500 µL nominal capacity. This flat-bottom, open-top version is supplied with a flat lid and suits direct filling where you need the specified 12 × 12 mm body profile. The listed sale unit is a pack of 2 cells.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQPA008 is a glass particle analysis cell for visible-light work from 350 nm upward. It combines a 10 mm optical path, Four-Way Light access and 3500 µL nominal capacity in a flat-bottom, open-top format, so you can fill directly from above and then cover the opening with the supplied flat lid. This sale option is supplied as a pack of 2 cells.

Path Length
10 mm
Sample Volume (Nominal)
3.5 mL
Opening Configuration
Open Top

Selection Specifications

Product KindSpecialized Cell
Cell TypeParticle Analysis Cell
Measurement ModeParticle Analysis
Path Length10 mm
Light Transmission ConfigurationFour-Way Light
Wavelength Range — Lower Limit350 nm
Sample Volume (Nominal)3.5 mL
External Dimensions12 × 12 × 45 mm
Body Height45 mm
Base Dimensions12 × 12 mm
MaterialGlass
Closure TypeFlat Lid
Closure IncludedYes
Opening ConfigurationOpen Top
Sales Unitpack of 2
Package Contents2 × Glass Particle Analysis Cell; Accompanying closures

Choose this option

Choose MQQPA008 when your method uses a 10 mm particle analysis cell and you need the flat-bottom version to match an existing holder or replacement profile. The 12 × 12 mm body and 45 mm height are useful for checking compartment fit and top clearance, while the open top makes routine filling and rinsing straightforward. Four-side optical access also helps when your setup relies on side access around the sample region rather than a single viewing direction.

What makes this option different

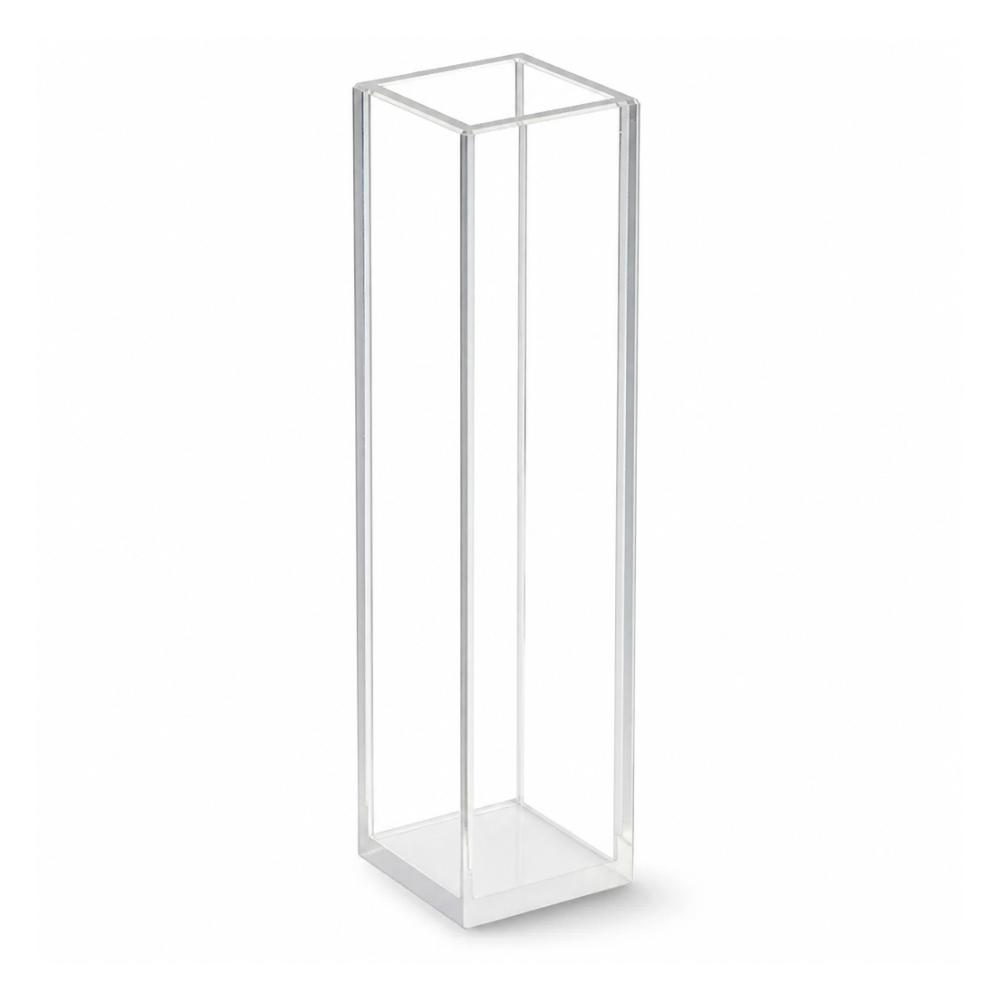

  • Flat-bottom version for installations or replacements that need this specified body profile rather than a rounded-bottom variant.

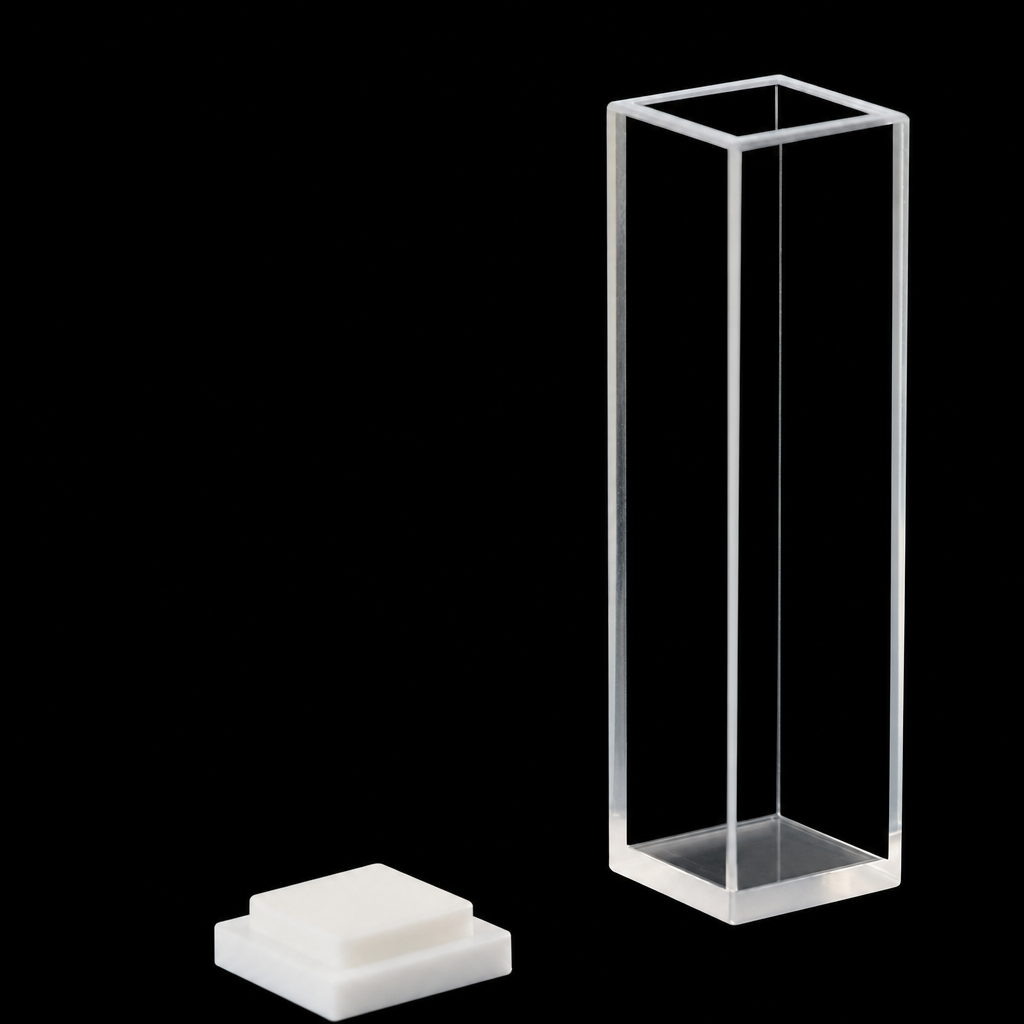

  • Open-top cell with flat lid for direct sample loading from above and simple access during filling and cleaning.

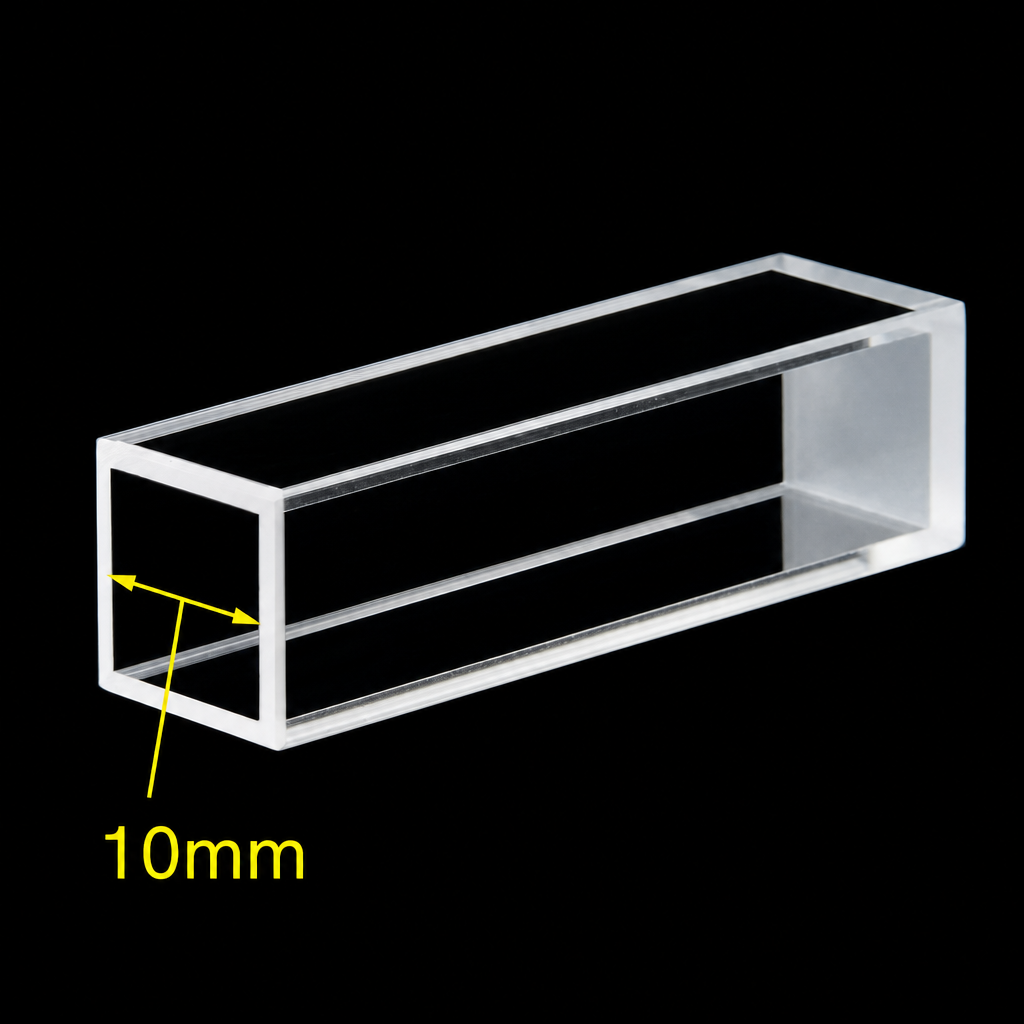

  • 10 mm optical path for methods built around that path length.
  • Four-Way Light configuration for optical access on four sides of the sample region.
  • Glass-powder-sintered construction as the supplier’s stated construction term for this option; this is a construction distinction, not a stated chemical grade or performance rating.
  • Pack of 2 cells as the listed MQ sale unit.

Using this cell

Fill each cell from the open top, then place the flat lid over the opening for your handling routine. The open-top arrangement is useful when you need direct access with a pipette or similar filling method, and it also gives straightforward access for rinsing between samples.

The 3500 µL figure is the nominal capacity of each cell. A minimum working volume is not listed here, so if your method depends on a defined liquid height or beam position, check that requirement in the intended instrument before routine use.

First-use check

  1. Inspect both cells for clean optical faces, chips or visible residue.
  2. Check holder fit with an empty or blank-filled cell before routine use.
  3. After filling, remove exterior droplets and visible bubbles and keep the measurement orientation consistent.

Fit and optical alignment

View the English selection reference. Also available in the product gallery.

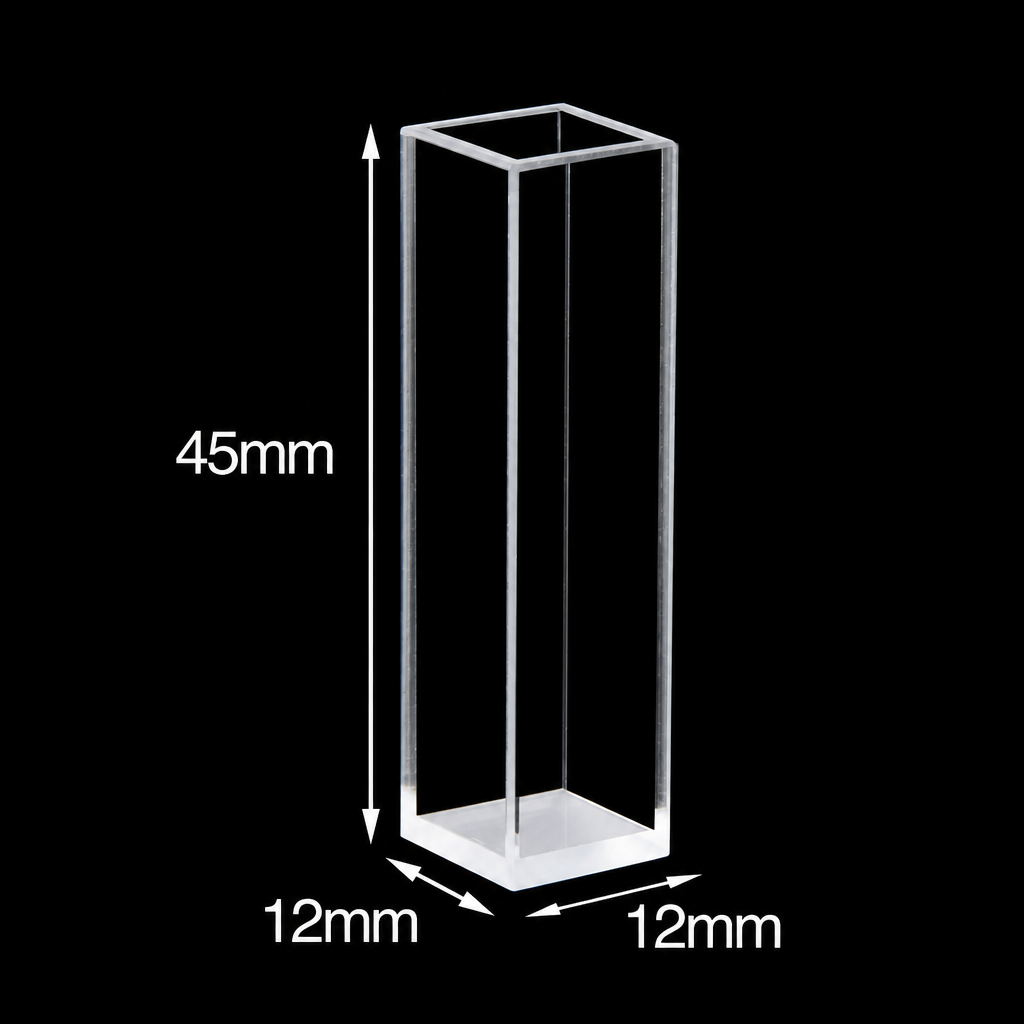

The cell body measures 12 × 12 × 45 mm. Check holder seating, side support and compartment clearance against those dimensions rather than assuming a standard 12.5 mm square body. The flat-bottom version should also be matched to the holder profile you use for this cell style.

Z Height is not listed for this option. If your instrument uses a fixed beam-center height, confirm that requirement separately instead of relying on outer body height alone.

English selection reference
Selection reference ↗

Solvents and cleaning

This exact SKU is described by the supplier as a glass-powder-sintered construction, but that construction term does not establish a general chemical rating for the completed cell and lid set. Chemical limits for this exact assembly are not established here, so review your sample liquid and cleaning routine for the full wetted set before use, especially for aggressive chemicals, elevated temperature or long contact time.

Avoid hydrofluoric acid, hot strong alkalis and abrasive cleaners.

For background on cuvette fabrication terms, see Fabrication Method of Cuvettes.

Included with this option

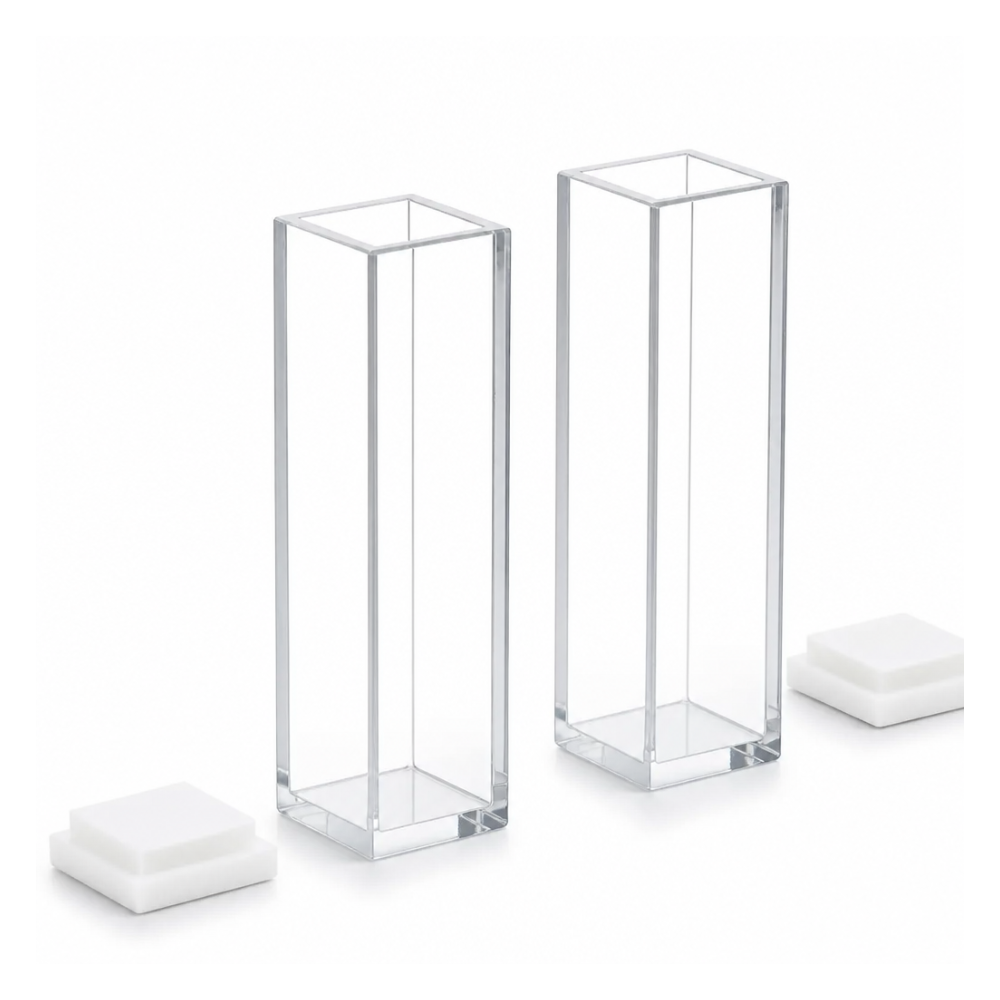

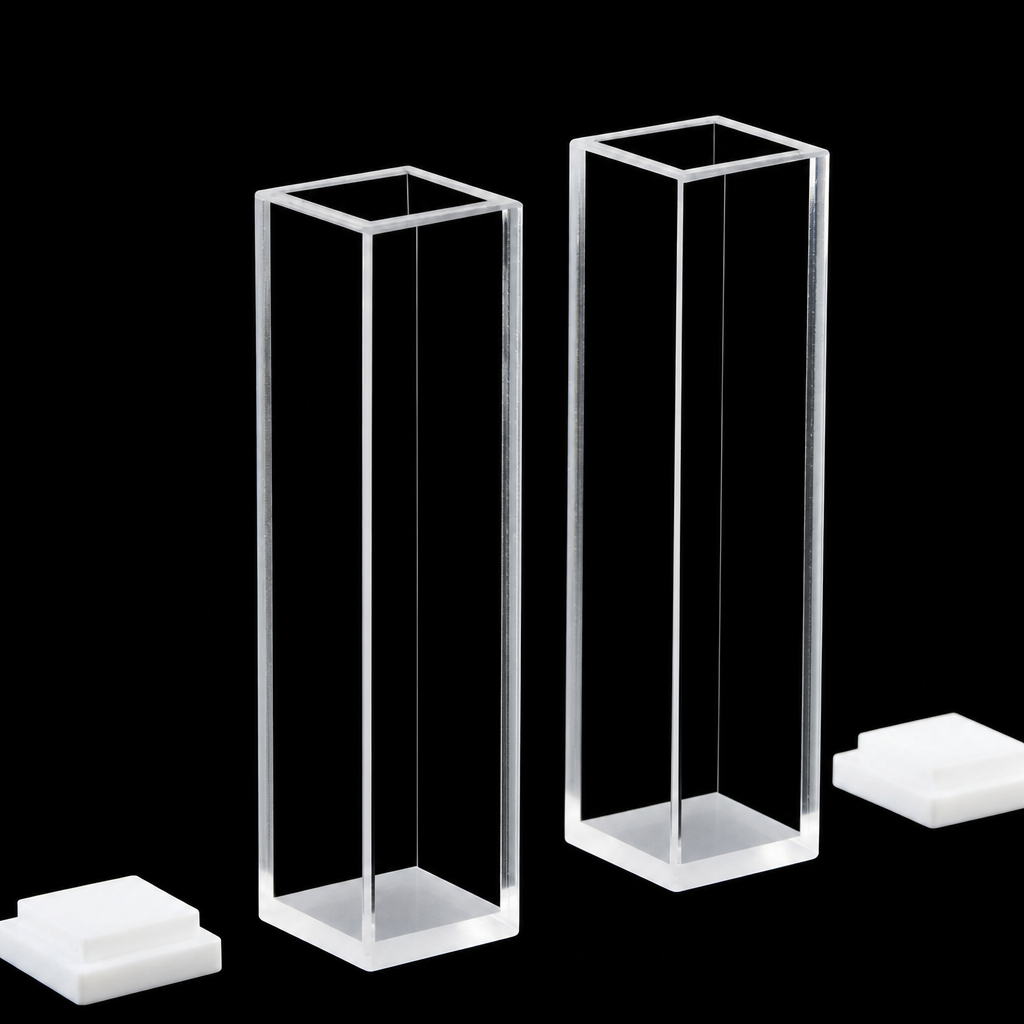

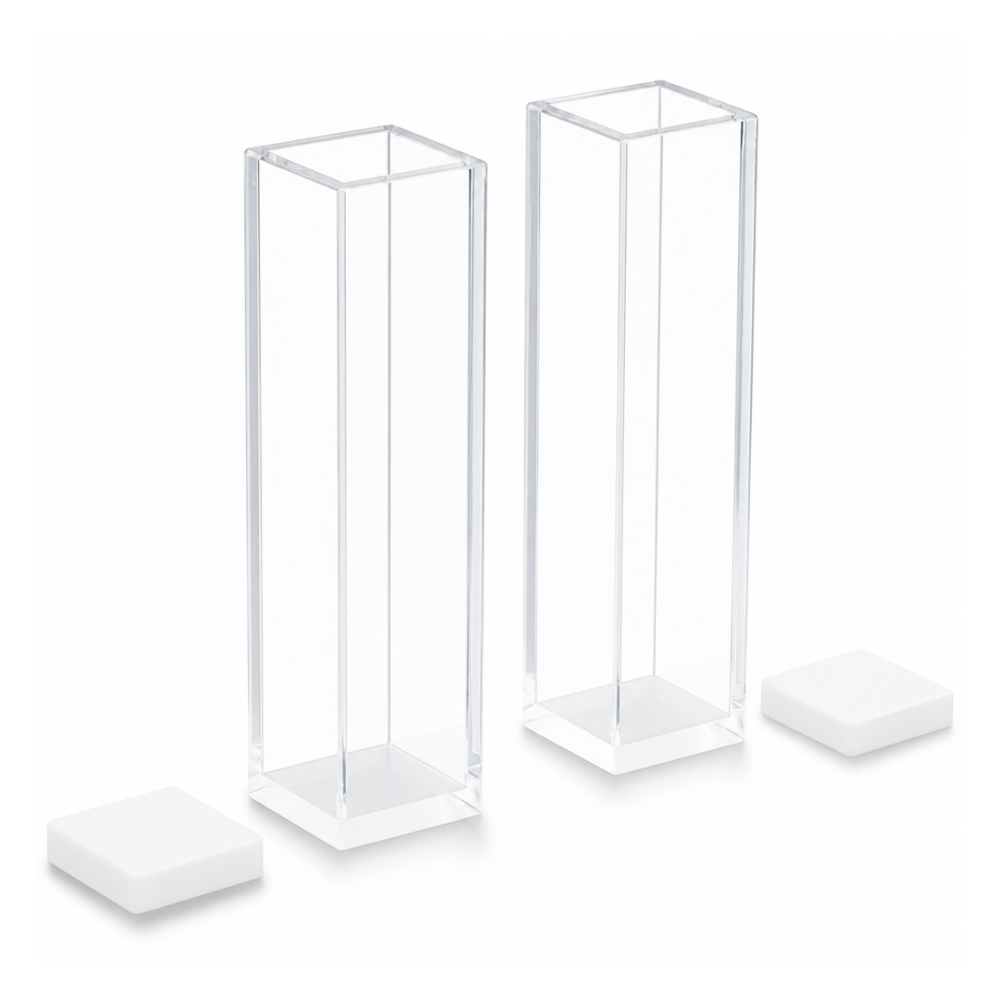

2 Glass Particle Analysis Cells and accompanying closures. The listed price is for a pack of 2.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different body size, path length, volume or opening style, please send your holder details or a labelled drawing for review. Send a product-selection enquiry with SKU MQQPA008, your sample conditions, quantity and delivery destination.
