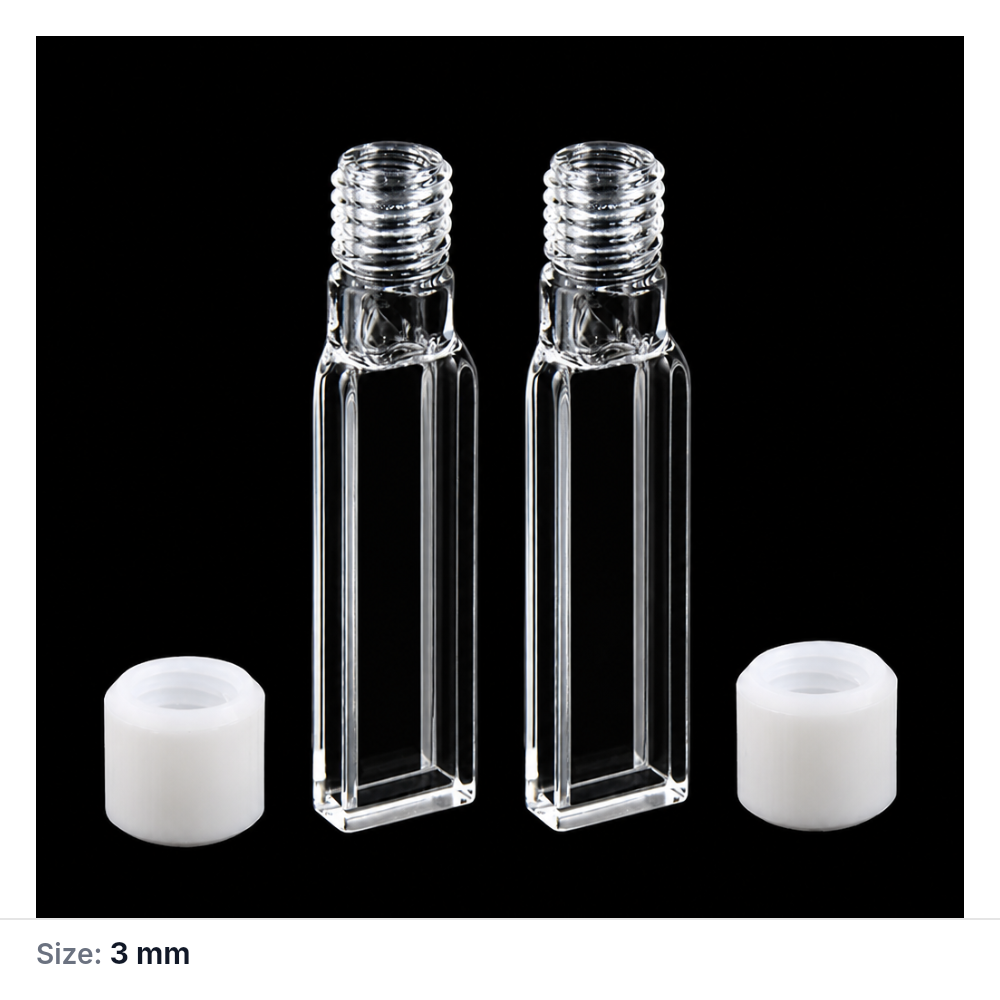

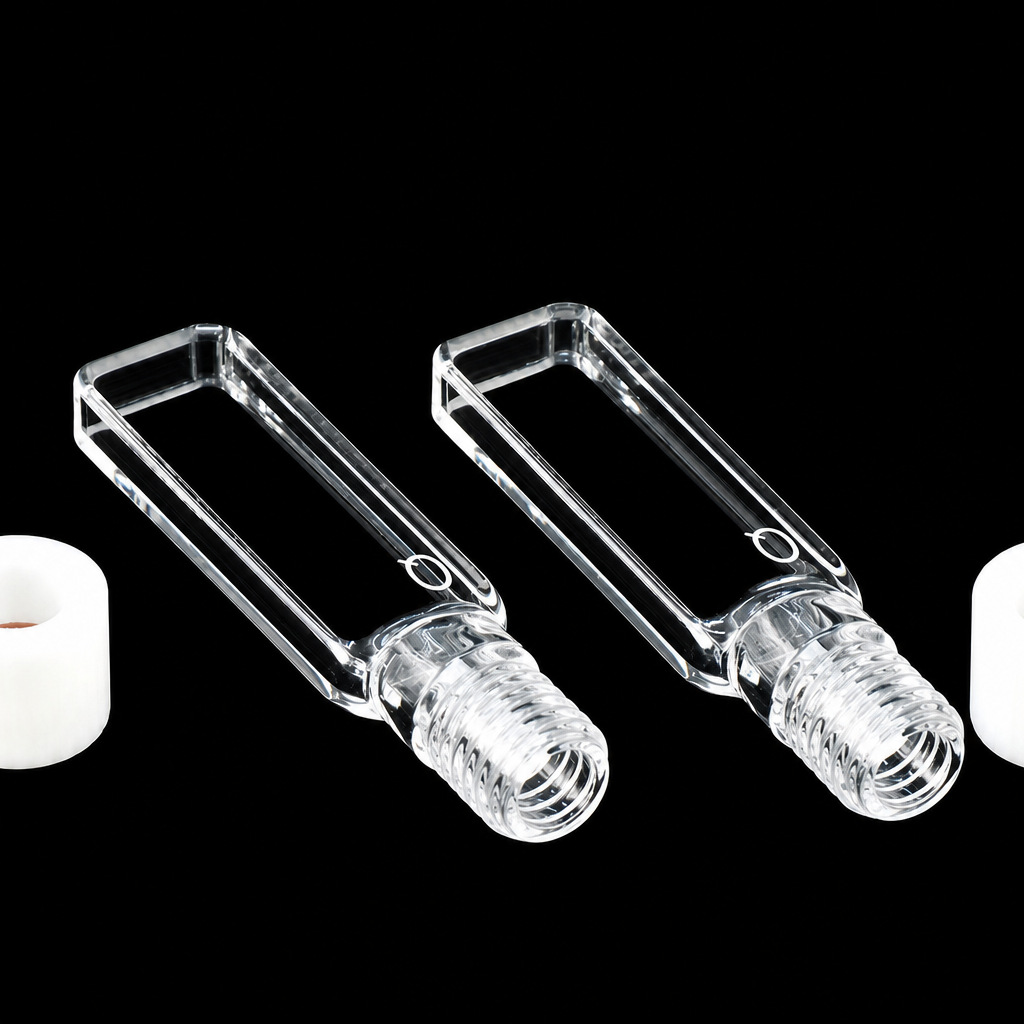

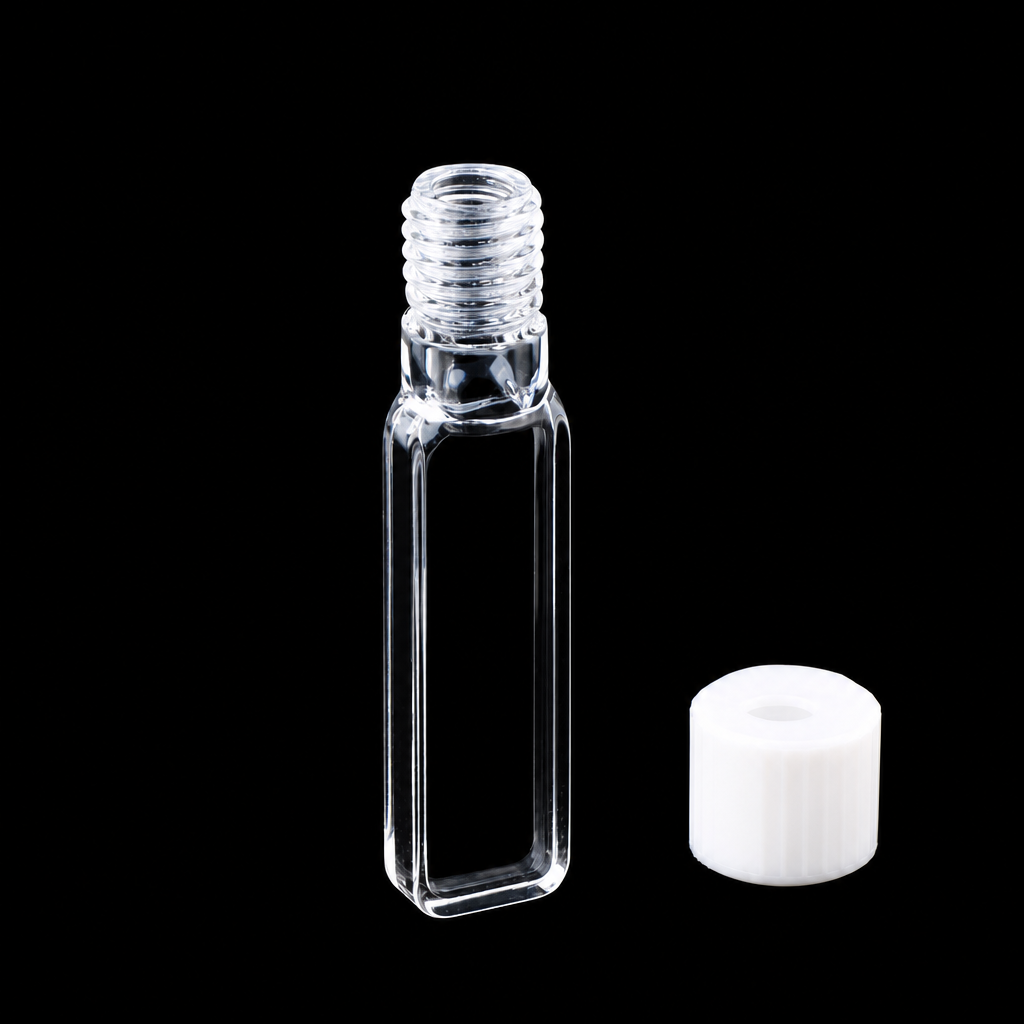

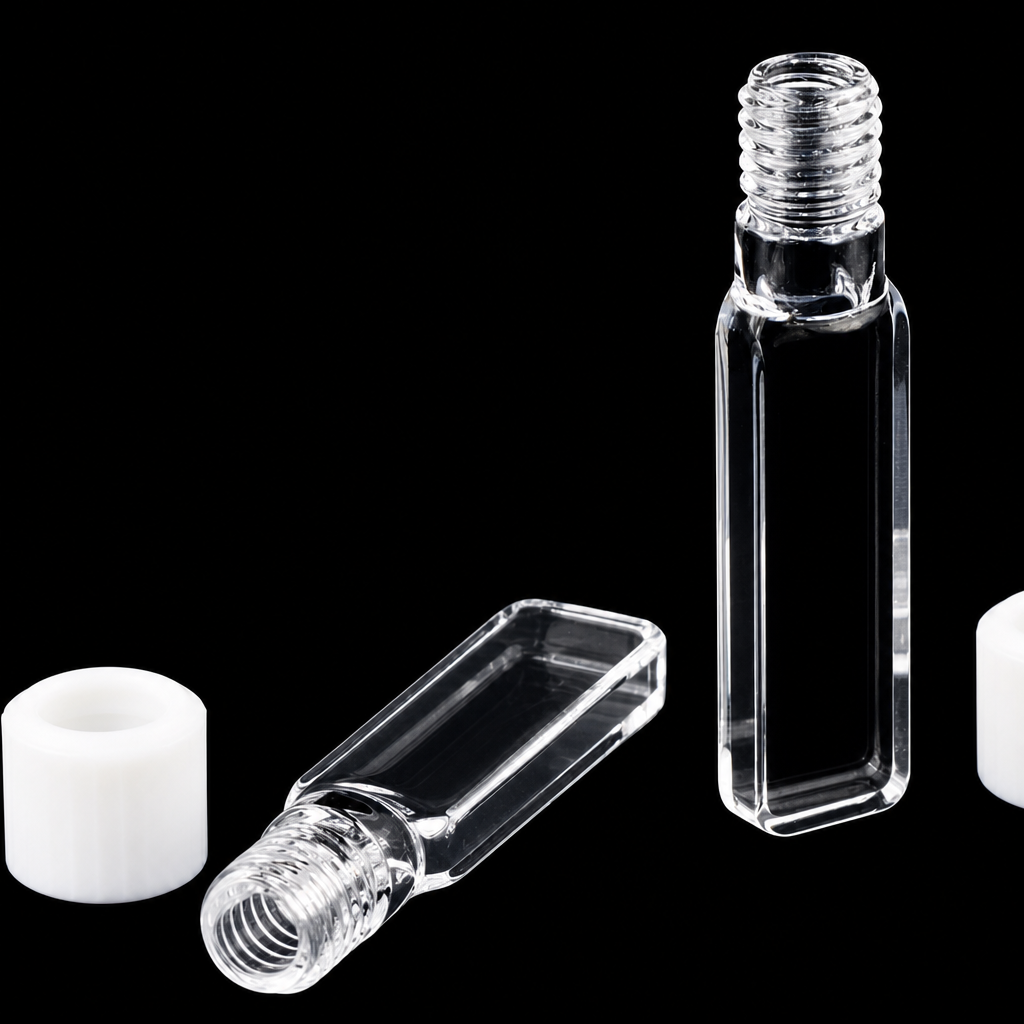

(MQQSC012) Quartz Screw-Top Cuvette, 3 mm path, Large Screw Opening, Pack of 2
$718.00

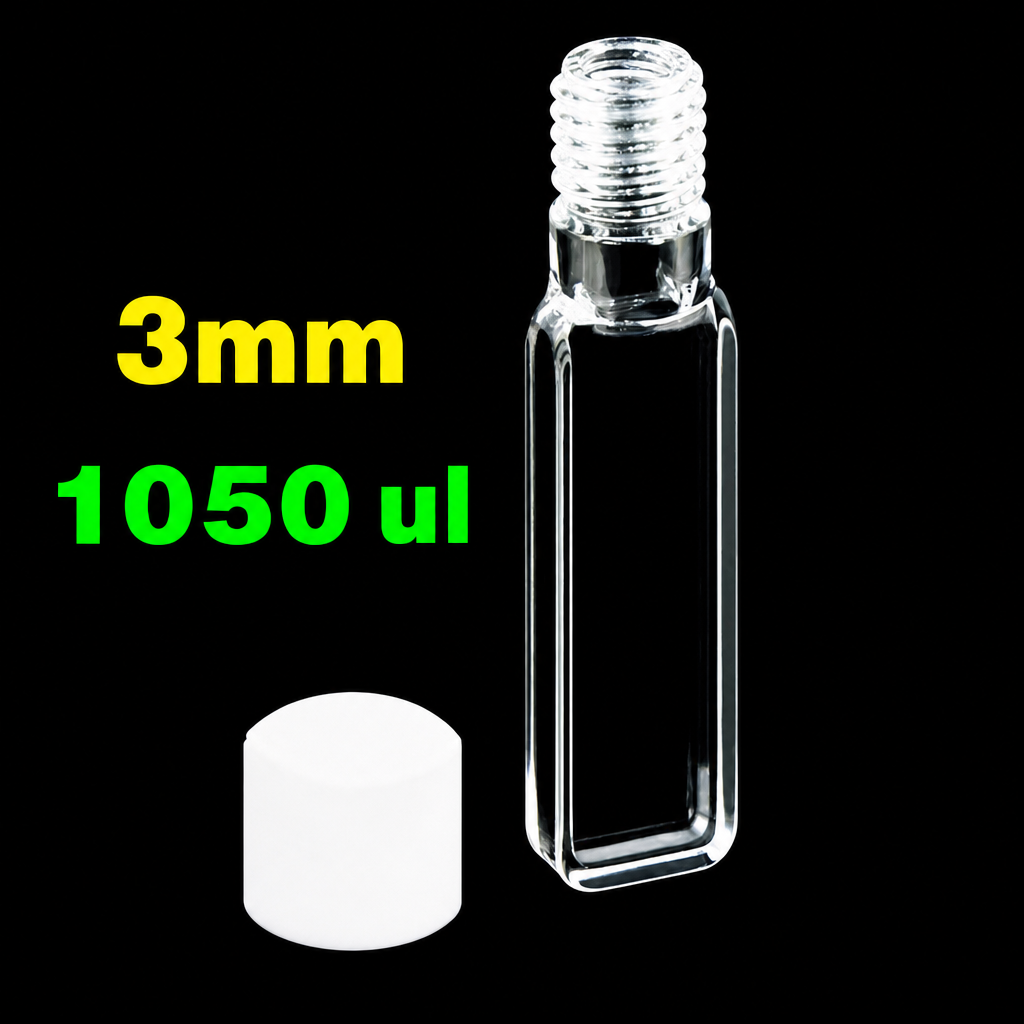

MQQSC012 is a JGS1 quartz Screw-Top Cuvette with a 3 mm optical path, Four-Way Light access and an M10 screw opening for covered UV/Vis measurements from 200 to 2500 nm. Its 1050 µL nominal capacity helps you plan sample handling, while the four optical faces support setups that need side access from more than one direction. Sold as a pack of 2 with accompanying closures.
Description
MQQSC012 is a quartz screw-top cuvette for UV/Vis work that combines a 3 mm optical path with Four-Way Light access and a large M10 screw opening. This layout suits methods that need a short path length, top filling and optical access from more than one direction. Its nominal capacity is 1050 µL, and the listed sale unit is a pack of 2 with accompanying closures.
- Path Length
- 3 mm
- Sample Volume (Nominal)
- 1.05 mL
- Closure Type
- Screw Cap
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Screw-Top Cuvette |
| Measurement Mode | UV/Vis Spectroscopy |
| Path Length | 3 mm |
| Light Transmission Configuration | Four-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 1.05 mL |
| Cell Body Dimensions | 12.5 × 5.5 × 38 mm |
| Overall Height without Closure | 54 mm |
| Body Height | 38 mm |
| Overall Height with Closure | 58 mm |
| Base Dimensions | 12.5 × 5.5 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Closure Type | Screw Cap |
| Closure Included | Yes |
| Fabrication Method | Molded 0.01 |
| Closure Thread | M10 |
| Sales Unit | pack of 2 |
| Package Contents | 2 × Quartz Screw-Top Cuvette; Accompanying closures |
Choose this option
Choose MQQSC012 when you need a covered cell with direct top access and a four-side optical layout rather than a basic two-window format. The 3 mm path is useful for methods written around a short light path, while the screw-cap opening gives a straightforward filling and emptying route during routine lab handling. Four-Way Light access also helps when your holder or optical arrangement needs side access beyond one fixed left-right measurement direction.
What makes this option different
- 3 mm optical path for methods set up around a short transmission path.
- Four-Way Light configuration for optical access on four sides of the cell body.
- M10 screw opening with included closure for direct filling through the top of the cell.
- Pack of 2 for buyers who need a confirmed two-cell sale unit.
Using this cell
Fill the cell through the screw opening, then fit the closure before measurement as required by your method. Keep the same orientation for blank and sample runs so the beam passes through the intended 3 mm path each time.
The 1050 µL figure is a nominal capacity, not a minimum working volume. If your method uses a low fill, check that the illuminated region stays fully covered in your own holder and beam position.
First-use check
- Inspect the optical faces, opening and chamber for chips, dust or residue.
- Place the cell in the holder and verify that the beam passes through the intended optical faces.
- Run a blank in the same orientation you will use for the sample.
- After filling, remove bubbles and wipe exterior droplets from the optical faces.
Fit and optical alignment
View the English selection reference. Also available in the product gallery.

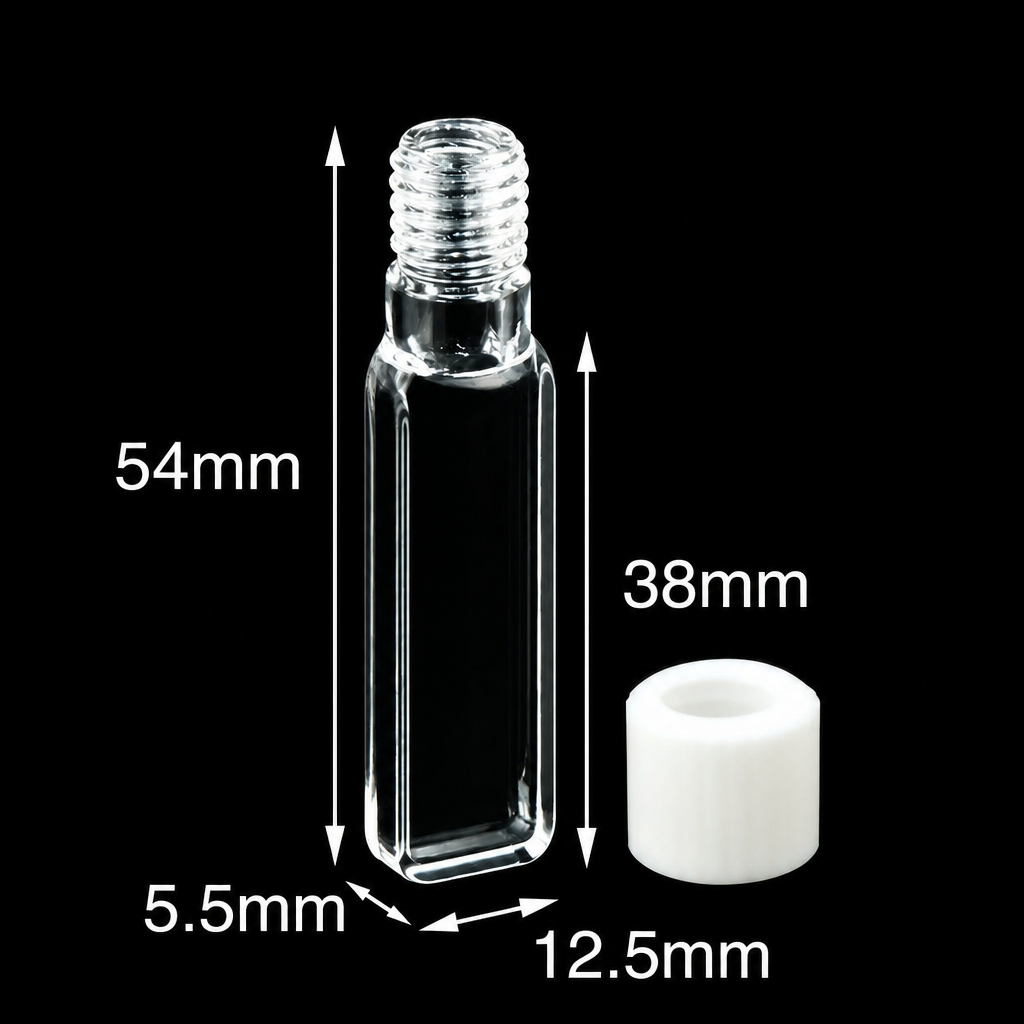

The optical body height is 38 mm, the overall height with the cap fitted is 58 mm, and the base section is 12.5 × 5.5 mm. Check holder fit, compartment clearance and cap-removal space before ordering, especially if your instrument has limited height above the cell position.
Z Height is not established for this SKU. If your instrument has a fixed beam center or a holder designed around a defined beam-height position, that point should be checked before purchase. The M10 thread identifies the closure connection size only and should not be treated as a pressure-rated port specification.

Solvents and cleaning
For a method with a defined optical path tolerance, specify that tolerance and its measurement conditions when selecting the Molded 0.01 option. The final requirement is agreed for the order.
This cuvette is listed as Molded 0.01. This fabrication type is typically chosen where tighter path-length control is important, but solvent suitability still depends on the complete assembled cell, including the closure. For methods involving specific solvents, elevated temperature or prolonged contact with the closure assembly, check the exact wetted arrangement before use.
Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the optical faces gently with a suitable non-abrasive laboratory wipe or other non-scratching method appropriate to quartz cells.
Included with this option
Pack of 2 Quartz Screw-Top Cuvettes with accompanying closures. The listed price is for this pack of 2.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
If you need a different path length, opening style, external envelope or holder-specific fit, we can review a custom JGS1 quartz enquiry. Please send the critical dimensions, beam position, closure requirements and application details through this contact page.
Additional information
| Weight | 200 g |
|---|
