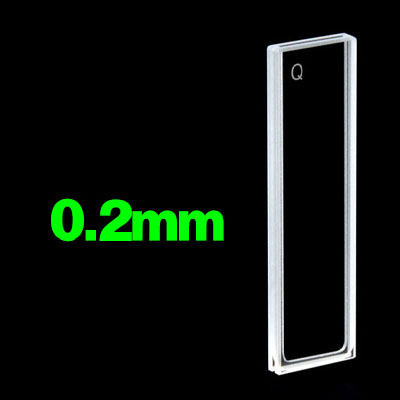

(C0.22CS) Quartz Standard Cuvette, 0.2 mm Path, 70 µL

Weight	30 g

SKU: C0.22CS

Original price was: $186.00.Current price is: $168.00.

In Stock

C0.22CS is a JGS1 quartz standard cuvette with a 0.2 mm optical path, Two-Way Light layout and 70 µL nominal capacity. Its open-top body is supplied without a closure for direct sample access, and this selected option is specified for neutral solutions.

In Stock

SKU: C0.22CS Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C0.22CS is a JGS1 quartz standard cuvette for short-path transmission work. This option combines a 0.2 mm optical path, Two-Way Light layout and 70 µL nominal capacity in an open-top body supplied without a closure. It is intended for neutral solutions, so it suits methods that need this short path in a simple open-body format.

Path Length: 0.2 mm
Sample Volume (Nominal): 70 µL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	0.2 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	70 µL
External Dimensions	2.7 × 12.5 × 45 mm
Cell Body Dimensions	2.7 × 12.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS1
Closure Type	No Closure
Closure Included	No
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C0.22CS when you need a short 0.2 mm path in a quartz standard cuvette and your workflow is compatible with an open sample chamber. The 70 µL nominal capacity helps you plan sample loading for this exact cell, while the no-closure format keeps access straightforward for top filling, inspection and cleaning between runs.

What makes this option different

0.2 mm optical path: match the measurement method to this transmission distance and align the beam through the sample region.
Two-Way Light: align the opposing optical faces with the transmission beam and use the same orientation for blank and sample readings.
70 µL nominal capacity: plan the working fill and beam footprint together so liquid covers the illuminated region; nominal capacity is not a minimum working fill.
Closure not included: plan the sample-loading procedure around the supplied cell configuration and specify any required cover separately.

Using this cell

Fill the sample chamber from the open top and make sure the liquid covers the beam region used by your method. Check for bubbles before measurement, especially with this short path, and keep the cell orientation consistent if your procedure depends on repeatable positioning.

Because this version is supplied without a closure, use it where an open sample chamber is acceptable during filling and reading. Handle the cuvette by the non-optical surfaces and keep the outside optical faces clean and dry.

First-use check

Confirm that the open-top, no-closure configuration matches your intended setup.
Test-fit the empty cuvette in your holder and check that it seats securely.
Rinse with a suitable neutral liquid for your method and inspect for bubbles before the first measurement.

Fit and optical alignment

The listed dimensions are 2.7 × 12.5 × 45 mm for the body only. These dimensions do not include any separate cover because this selected configuration has no closure.

Z Height is not established for this SKU. If your instrument uses a fixed beam height or has strict alignment requirements for short-path cells, verify that beam position separately rather than relying on the outer dimensions alone.

Solvents and cleaning

This option is specified for neutral solutions. If your sample or cleaning routine falls outside that range, check the exact liquid, concentration, temperature and contact time before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the exterior optical faces gently with non-abrasive optical tissue. For general fabrication background, see this guide.

Included with this option

No closure is included with this configuration. Confirm the cell quantity and any separately specified accessories covered by your order.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Discuss your requirements and quote part number C0.22CS.
