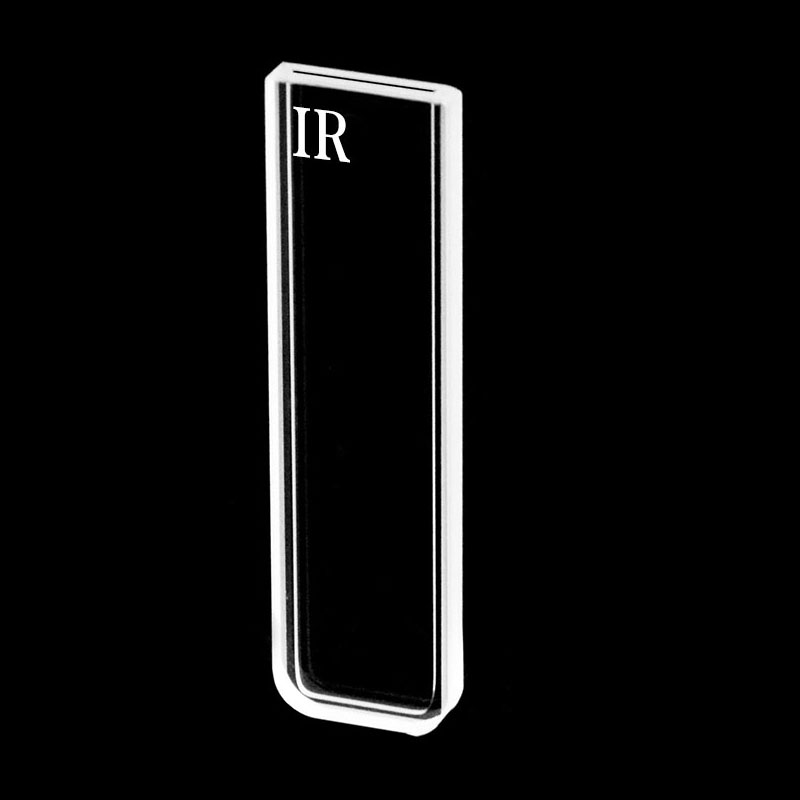

(C0.52CR1) Quartz Standard Cuvette, 0.5 mm Path, 170 µL

Weight	30 g

SKU: C0.52CR1

Original price was: $190.00.Current price is: $171.00.

In Stock

C0.52CR1 is a JGS3 quartz standard cuvette for infrared work, combining a 0.5 mm optical path with a 170 µL nominal capacity in a slim open-top body. Its Two-Way Light layout supports a defined transmission path across opposite optical faces, while the 12.5 × 3 × 45 mm uncapped format helps when you need a narrow cell body for fixture planning.

In Stock

SKU: C0.52CR1 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C0.52CR1 is a JGS3 quartz standard cuvette for infrared measurements in a narrow open-top format. It combines a 0.5 mm optical path with 170 µL nominal capacity, making it a practical choice when your liquid sample needs a short transmission path rather than a deeper one. The uncapped body measures 12.5 × 3 × 45 mm, which is useful when you need to check holder width and vertical clearance around the bare cell.

Path Length: 0.5 mm
Sample Volume (Nominal): 170 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Infrared Spectroscopy
Path Length	0.5 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	170 µL
External Dimensions	12.5 × 3 × 45 mm
Uncapped Cell Dimensions	12.5 × 3 × 45 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Base Dimensions	12.5 × 3 mm
Material	Quartz
Material Grade	JGS3
Opening Configuration	Open Top

Choose this option

Choose C0.52CR1 when your method needs a short-path infrared cuvette with direct access from above. The open top makes filling and visual checking straightforward, while the slim rectangular body suits setups where the cell footprint matters as much as the optical path. Its JGS3 quartz construction and stated 260–3500 nm range place it in IR-focused laboratory use.

What makes this option different

0.5 mm optical path for methods that need a shorter transmission length through the sample.
170 µL nominal capacity in a compact cell body, useful when planning small-volume liquid handling without moving to a larger format.
Open-top access for direct filling, inspection from above and straightforward rinsing after use.
Two-Way Light configuration for one defined beam path across two opposite optical faces.
JGS3 quartz with a stated 260–3500 nm range for IR-oriented measurement work.
12.5 × 3 × 45 mm uncapped dimensions for checking holder clearance around the bare cell body.

Using this cell

Fill the sample directly from the top and make sure the liquid covers the beam region used by your instrument. The 170 µL figure is the nominal capacity of the cell, so use it for sample planning rather than as a minimum working fill value.

For routine use, keep the same cell orientation for blank and sample when your method depends on consistent positioning. Remove visible bubbles before measurement, and handle the cuvette by the non-optical surfaces to reduce fingerprints on the light path.

First-use check

Inspect the optical faces for dust, smears or handling marks.
Rinse with a cleaning liquid suitable for your method and sample.
Place the empty cell in the holder and confirm that it seats as intended.
Run a blank and check that the filled sample covers the measurement region without trapped bubbles.

Fit and optical alignment

The published 12.5 × 3 × 45 mm dimensions apply to the uncapped cell body. Use those dimensions to check seating width, body depth and surrounding clearance in your holder or fixture.

Z Height is not established for this SKU. If your instrument depends on a defined beam-center height, check that requirement before ordering rather than relying on the external body dimensions alone.

Solvents and cleaning

This is a quartz cell for laboratory infrared use. For general fabrication background, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Chemical limits for this exact assembly are not established here, so if your sample or cleaning routine involves aggressive chemicals, check compatibility for the complete cell before use.

Included with this option

This listing is for the cuvette in the stated specification. The supplied package quantity and any included closure or accessories are not established here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and fabrication or tolerance requirements. Send a dimensioned drawing or labelled sketch together with your holder details, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements.
