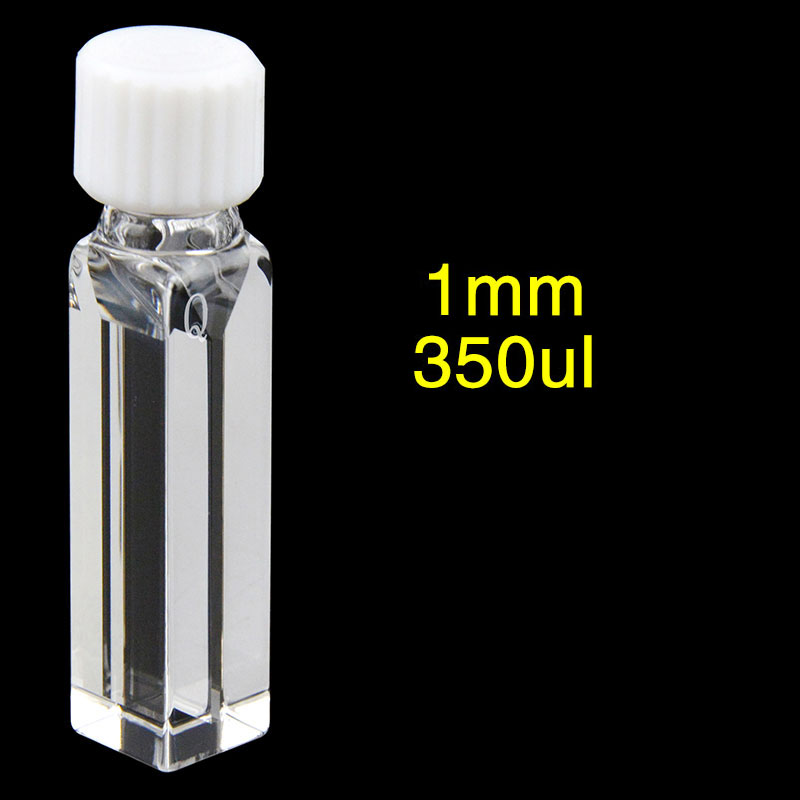

(C014TE) Quartz Micro Cuvette, 10 mm / 1 mm (dual path) Path, 350 µL

Weight	30 g

SKU: C014TE

Original price was: $475.00.Current price is: $428.00.

In Stock

C014TE is a JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm main path, a 1 mm secondary path and a Four-Way Light layout. Its 350 µL nominal capacity suits small-volume handling, and a cap is included. Supplied as 1 cuvette.

In Stock

SKU: C014TE Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C014TE is a JGS1 quartz micro cuvette for fluorescence spectroscopy, combining a 10 mm main path with a 1 mm secondary path in a Four-Way Light format. The 350 µL nominal capacity keeps the sample volume modest, while the square body remains familiar for holder seating. A cap is included, and this listing is supplied as 1 cuvette.

This model is also useful when top clearance matters as much as footprint. The rectangular body is 12.5 × 12.5 × 45 mm, the full uncapped height is 56 mm, and the overall height with cap is 60 mm, so you can check holder seating and upper clearance separately.

Path Length: 10 mm / 1 mm (dual path)
Sample Volume (Nominal): 350 µL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm / 1 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 56 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 56 mm
Overall Height without Closure	56 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Overall Height with Closure	60 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	1 mm

Choose this option

Choose C014TE when your fluorescence method uses a standard 10 mm path but also needs a narrower 1 mm optical direction in the same cell. The Four-Way Light layout keeps side optical access around the sample region, and the defined body, uncapped and capped heights are helpful when your holder has limited space above the seating point.

What makes this option different

10 mm / 1 mm dual-path geometry for methods that rely on a narrow secondary optical direction.
Four-Way Light configuration for optical access from four sides around the sample region.
350 µL nominal capacity in a compact quartz micro-cuvette format.
Separate body and clearance dimensions: 45 mm body height, 56 mm uncapped overall height and 60 mm with cap.

Using this cell

Fill the cell so the illuminated region stays fully covered during measurement, and keep bubbles away from the optical faces. Use the same orientation for blank and sample runs, especially when the 1 mm optical direction matters to the method.

The included cap can be fitted after filling, but this listing does not establish pressure capability or a closed-circuit use rating. The 350 µL value is the nominal capacity, not a minimum working volume.

First-use check

Inspect the optical faces, neck area and cap seating area for chips, residue or transport marks before use. Rinse with a suitable liquid for your method, seat the cell in the holder, and run a blank to confirm that the intended filled region is correctly illuminated.

Fit and optical alignment

The base is 12.5 × 12.5 mm for holder seating. For vertical space, distinguish between the 45 mm rectangular body, the 56 mm uncapped overall height and the 60 mm overall height with the cap in place.

Z Height is not established for this SKU. If your instrument has a fixed beam position, check the beam height against your own holder instead of assuming alignment from the external shape alone.

Solvents and cleaning

This cuvette uses Molded 83 quartz construction. Molded 83 is commonly chosen when organic-solvent methods or temperature-controlled work are part of the selection, but your actual sample and cleaning liquids still need to suit the complete assembly.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning. If your process involves aggressive chemicals or long exposure times, check suitability before use rather than relying on the quartz body alone.

Included with this option

Supplied as 1 quartz micro cuvette with cap.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication. Send a dimensioned drawing or labelled sketch together with your holder or instrument details, critical dimensions and sample chemistry. Discuss your requirements and quote part number C014TE.
