(C1004CR) Quartz Fluorescence Cuvette, 100 mm / 10 mm (dual path) Path, 35 mL

Weight	100 g

SKU: C1004CR

Original price was: $751.00.Current price is: $676.00.

In Stock

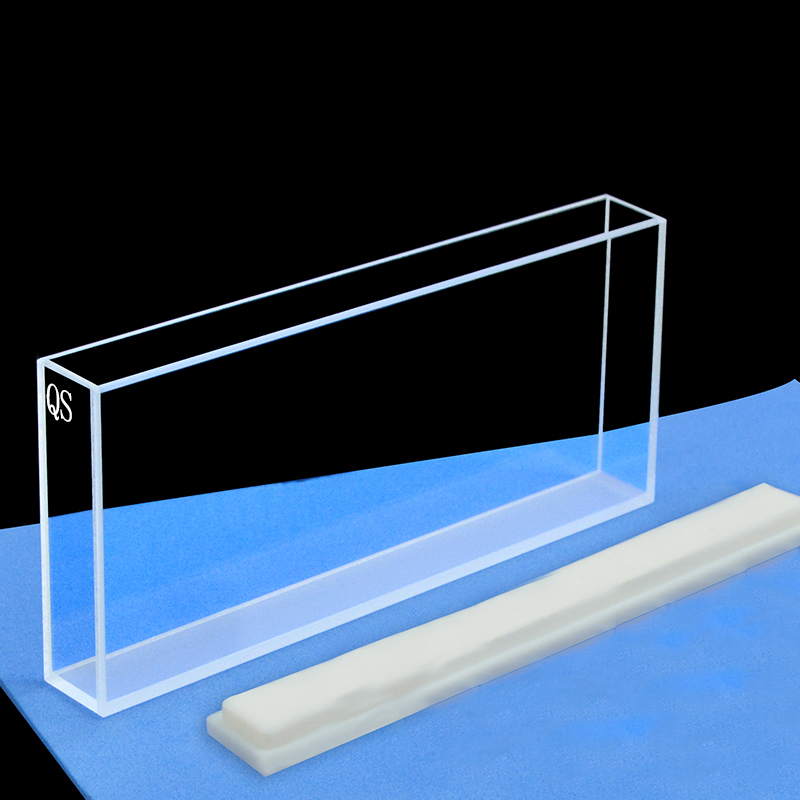

C1004CR is a JGS1 quartz fluorescence cuvette with dual optical paths of 100 mm and 10 mm, plus a 35 mL nominal capacity. Its long rectangular body provides extended path length while retaining cross-axis optical use in the same cell. Sold as 1 cuvette, with a lid included.

In Stock

SKU: C1004CR Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C1004CR is a JGS1 quartz fluorescence cuvette built around a long 100 mm primary path with a 10 mm secondary path across the other axis. This extended rectangular format gives you a 35 mL nominal capacity in one cell body, with covered handling provided by an included lid. The price is for 1 cuvette.

Path Length: 100 mm / 10 mm (dual path)
Sample Volume (Nominal): 35 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	100 mm / 10 mm (dual path)
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	35 mL
External Dimensions	12.5 × 102.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 102.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C1004CR when your method needs a much longer optical path than a standard square cuvette can provide, but you still want a rigid cuvette body rather than a flow assembly. The long-path geometry is the key reason to select this item, and the secondary 10 mm path gives additional measurement orientation within the same cell body.

What makes this option different

100 mm primary optical path for long-path measurements in a cuvette format.
10 mm secondary path across the shorter axis within the same body.
35 mL nominal capacity matched to the extended rectangular chamber.
Long 12.5 × 102.5 × 45 mm uncapped body with included lid for applications that need more path length and more physical clearance than a compact cell.

Using this cell

Fill the cell carefully so the sample spans the intended optical region along the path you plan to use, then check for bubbles or residue before measurement. In fluorescence work, keep the orientation fixed between blank and sample runs so excitation and observation use the same faces each time.

A lid is included for covered handling after filling. Seat it gently and inspect the contact area before use. This should not be treated as a pressure-rated or closed-circuit cell, because sealing and pressure limits are not established here.

First-use check

Inspect the optical faces and edges under good light.
Rinse before first use with a cleaning liquid suitable for your method.
Run a blank in the same orientation you will use for samples.
Confirm that the beam passes through the intended path direction once the cell is seated.

Fit and optical alignment

The uncapped body measures 12.5 × 102.5 × 45 mm. The long 102.5 mm body dimension is the first fit point to check, because it affects holder clearance, compartment width and the free space available around the cell more than a standard square cuvette does.

Z Height is not specified for this SKU, so instrument fit should not be assumed from the external size alone. If your fluorimeter or accessory has a defined beam-center height or a restricted sample compartment, check those dimensions before ordering.

Solvents and cleaning

This quartz cuvette is specified for 200–2500 nm use. Chemical limits for this exact SKU are not established here, so base your solvent choice and cleaning routine on the actual sample, rinse solvent and contact conditions used in your procedure.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. For general quartz cuvette construction guidance, see Fabrication Method of Cuvettes.

Included with this option

Price is for 1 cuvette. A lid and box are supplied with this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and tolerances. Send a dimensioned drawing or labelled sketch with the dimensions that are critical to your setup. Discuss your requirements and quote part number C1004CR.
