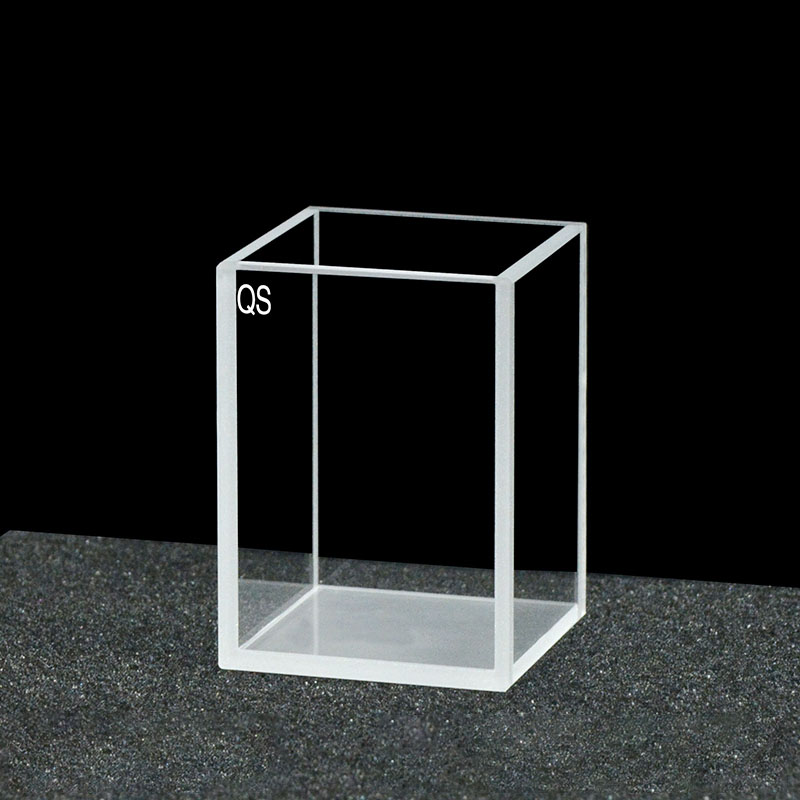

(C304CR1) Quartz High-Capacity Cuvette, 30 mm Path, 40.5 mL

Weight	100 g

SKU: C304CR1

Original price was: $213.00.Current price is: $192.00.

In Stock

C304CR1 is a JGS1 quartz High-Capacity Cuvette for fluorescence spectroscopy with a 30 mm optical path, Four-Way Light configuration and 40.5 mL nominal capacity. Its open-top 30 × 30 × 45 mm internal chamber gives direct access for filling and sample handling. Priced per 1 piece.

In Stock

SKU: C304CR1 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C304CR1 is a JGS1 quartz high-capacity cuvette for fluorescence spectroscopy with a 30 mm optical path and a 40.5 mL nominal capacity. Its 30 × 30 × 45 mm internal chamber and Four-Way Light layout make it a practical choice when you need a larger square sample region with direct top access rather than a narrow micro-volume format.

This listing is the open-top body without a lid. That makes loading, pipetting and cleaning straightforward, while leaving the top arrangement under your control if your setup needs open access or a separate cover approach.

Path Length: 30 mm
Sample Volume (Nominal): 40.5 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	High-Capacity Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	30 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	40.5 mL
External Dimensions	34 × 34 × 47 mm
Cell Body Dimensions	34 × 34 × 47 mm
External Dimensions Scope	Body Only
Internal Dimensions	30 × 30 × 45 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	No
Opening Configuration	Open Top

Choose this option

Choose C304CR1 when your fluorescence method uses a 30 mm path and also benefits from a larger chamber volume and a broad 30 × 30 mm internal cross-section. It suits applications where sample handling from above is part of the workflow and where the body-only, no-lid format fits your holder or procedure.

What makes this option different

30 mm optical path: suited to methods built around this path length in a larger square body.
40.5 mL nominal capacity: useful when the sample volume itself is part of the setup, not only the optical path.
Four-Way Light configuration: provides optical access on all four sides of the cuvette body.
Open-top, no-lid format: keeps the chamber directly accessible for filling, pipetting and rinsing.

Using this cell

Fill the cuvette from the top and make sure the liquid level covers the beam region used in your instrument. Keep the same orientation for blank and sample runs if your method uses specific faces, and remove bubbles from the optical path before measurement.

Handle the cell by non-optical surfaces where possible. After filling, keep the optical faces free of droplets, fingerprints and dried residue so the light path stays clear during fluorescence work.

First-use check

Inspect the optical faces, rim and chamber walls under good light.
Place the empty cuvette in your holder and confirm that it seats squarely.
Run a blank and check that the filled sample covers the beam region without trapped bubbles.

Fit and optical alignment

The body dimensions are 34 × 34 × 47 mm, and these dimensions apply to the body only. Use them to check holder seating, side clearance and access around the cuvette in your instrument or fixture.

Z Height is not established for this SKU. If your setup depends on a defined beam-center position, please check that against your holder or instrument before ordering rather than assuming it from the overall body size. Because this version is supplied without a lid, allow top clearance for filling and handling.

Solvents and cleaning

This is a quartz cuvette with a supplier-described fused integrated construction. You can review general construction approaches here: MQ Cuvette Fabrication Glossary. A detailed chemical compatibility list is not established for this exact item, so aggressive liquids, elevated temperature and extended contact should be reviewed for the actual method.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

One open-top quartz cuvette body in the listed specification. A lid is not included with this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and specific tolerances. Send a dimensioned drawing or labelled sketch together with your holder details, wavelength range, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C304CR1.
