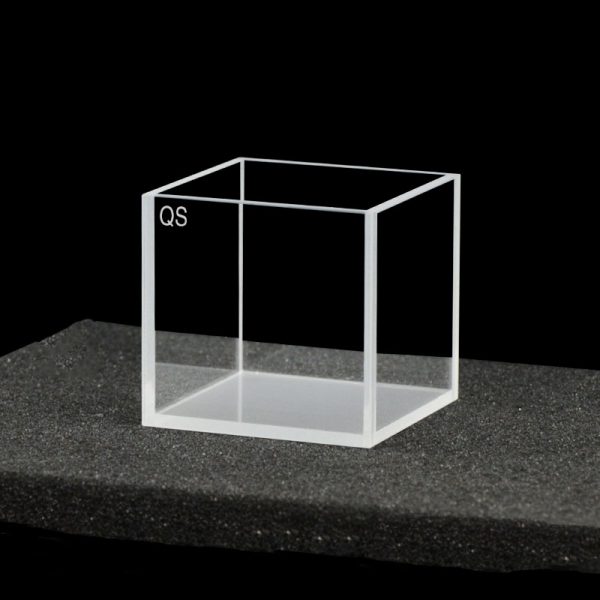

(C404CR1) Quartz High-Capacity Cuvette, 40 mm Path, 64 mL

Weight100 g
SKU: C404CR1

Original price was: $213.00.Current price is: $192.00.

In Stock

C404CR1 is a JGS1 quartz high-capacity cuvette with a 40 mm optical path, Four-Way Light access and a 64 mL nominal capacity for fluorescence spectroscopy. Its 40 × 40 × 40 mm open-top chamber gives direct top loading for larger samples. Sold per 1 cuvette body without a lid.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C404CR1 is a JGS1 quartz high-capacity cuvette for fluorescence spectroscopy with a 40 mm optical path and 64 mL nominal capacity. It combines a large square open-top chamber with Four-Way Light optical access, making it suitable when both sample volume and side access around the sample region matter. This option is supplied as the cuvette body only, without a lid.

Path Length
40 mm
Sample Volume (Nominal)
64 mL
Opening Configuration
Open Top

Selection Specifications

Product KindCuvette
Cell TypeHigh-Capacity Cuvette
Measurement ModeFluorescence Spectroscopy
Path Length40 mm
Light Transmission ConfigurationFour-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)64 mL
External Dimensions44 × 44 × 42 mm
Cell Body Dimensions44 × 44 × 42 mm
External Dimensions ScopeBody Only
Internal Dimensions40 × 40 × 40 mm
MaterialQuartz
Material GradeJGS1
Closure TypeLid
Closure IncludedNo
Opening ConfigurationOpen Top

Choose this option

Choose C404CR1 when you need a 40 mm path in a larger square cell and want fully open top access for direct filling, rinsing or sample exchange. The 40 × 40 × 40 mm internal chamber suits larger liquid volumes, and the lid-free format leaves the top unobstructed for your own handling routine.

What makes this option different

  • 40 mm optical path in a high-capacity square quartz cuvette.
  • 64 mL nominal capacity with a 40 × 40 × 40 mm internal chamber.
  • Four-Way Light configuration for optical access on four sides.
  • Open-top body supplied without a lid.

Using this cell

Load the sample directly from the top and fill above the beam region used in your method. Before measurement, remove visible bubbles and keep the same cell orientation for blank and sample if your procedure depends on directional consistency.

Because this is a larger open cell, handle it by non-optical surfaces and keep the window areas clean during filling and draining. Prompt rinsing after use helps prevent residue from drying on the optical faces.

First-use check

Inspect the optical faces under good light before first use and confirm that the cuvette seats squarely in your holder. Then run a blank with the liquid level above the beam region and check that no bubbles remain in the optical path.

Fit and optical alignment

The body dimensions are 44 × 44 × 42 mm, measured on the body only. Check whether your holder or fixture accepts this wider square format and whether there is enough top clearance for direct filling in place.

Z Height is not stated for this SKU. If your instrument depends on a defined beam-center height, check holder and beam alignment before ordering, especially if your setup is designed around narrower or more standard cuvette formats.

Solvents and cleaning

This cuvette is made from JGS1 quartz. General quartz-cell construction guidance is available here: MQ Cuvette Fabrication Glossary.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. A detailed chemical compatibility list is not established for this exact item, so please check suitability first if your sample or cleaning process involves more demanding chemicals.

Included with this option

One open-top quartz cuvette body in the listed specification. A lid is not included with this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and specific tolerances. Send a dimensioned drawing or labelled sketch together with your holder details, wavelength range, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C404CR1.
