(C505CR3) Quartz High-Capacity Cuvette, 50 mm Path, 125 mL

Weight	100 g

SKU: C505CR3

Original price was: $331.00.Current price is: $298.00.

In Stock

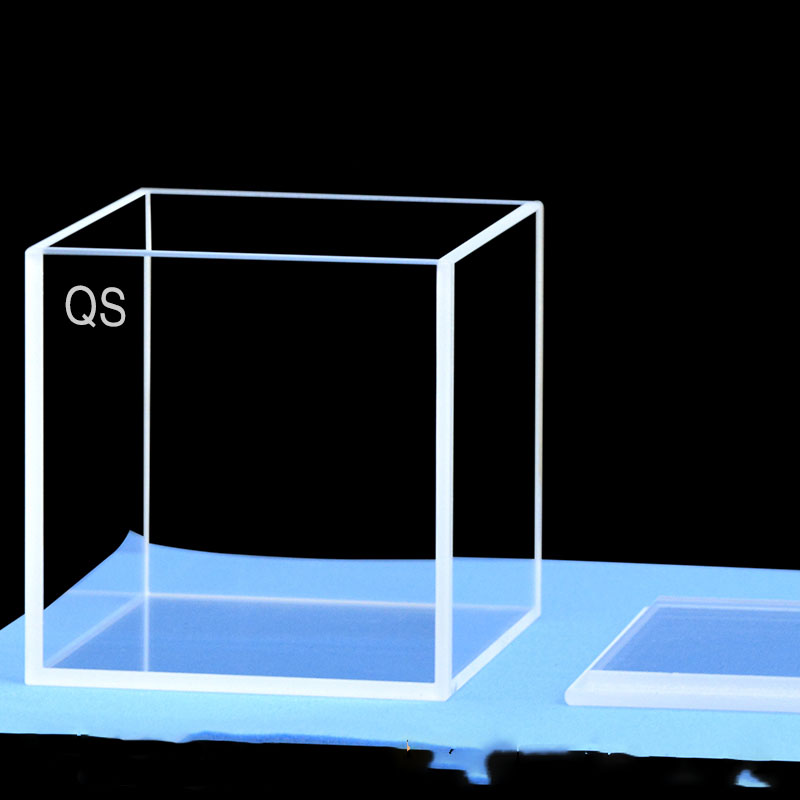

C505CR3 is a JGS1 quartz high-capacity cuvette for fluorescence spectroscopy, combining a 50 mm optical path with a 125 mL nominal volume in a large square chamber. Its open-top body is supplied with a lid, and the Five-Way Light layout gives broader optical access than a side-window-only format. Sold as 1 cuvette per price unit.

In Stock

SKU: C505CR3 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C505CR3 is a JGS1 quartz high-capacity cuvette for fluorescence spectroscopy when you need a long 50 mm optical path and a large square sample chamber. This version combines a 125 mL nominal capacity, an open top with an included lid, and Five-Way Light geometry, making it suitable for methods that need both generous sample volume and broader optical access around the cell.

Path Length: 50 mm
Sample Volume (Nominal): 125 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	High-Capacity Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	50 mm
Light Transmission Configuration	Five-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	125 mL
External Dimensions	54 × 54 × 55 mm
Cell Body Dimensions	54 × 54 × 55 mm
External Dimensions Scope	Body Only
Internal Dimensions	50 × 50 × 53 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose C505CR3 when your setup uses a 50 mm path length and a large-volume square chamber rather than a compact cuvette body. The 50 × 50 × 53 mm internal space gives direct top access for filling and inspection, while the supplied lid lets you cover the opening during routine handling or measurement where an open top is still acceptable.

What makes this option different

50 mm optical path for methods built around a longer path through the sample.
125 mL nominal capacity in a large square chamber for higher-volume measurements.
Five-Way Light configuration for fluorescence layouts that need more than the usual side optical access.
Open top with lid included for direct filling with a covered option during use.

Using this cell

Fill the cell from the top opening and keep the sample level high enough to cover the beam path used by your instrument. Before measurement, remove bubbles from the optical region and keep the same cell orientation for blank and sample if your method depends on a fixed viewing geometry.

The lid covers the opening during routine handling, but this remains an open-top cuvette format rather than a sealed or pressure-rated assembly. Handle the cell by the non-optical outer surfaces where possible to reduce fingerprints on the light path faces.

First-use check

Inspect the optical faces and the supplied lid after unpacking. Rinse the cell with a cleaning liquid suitable for your method, place it in the holder to confirm stable seating, and run a blank to verify that the filled sample covers the optical path your setup uses.

Fit and optical alignment

The body dimensions are 54 × 54 × 55 mm, measured on the body only. Use those dimensions to check holder opening, compartment space and top clearance, especially if the cuvette is used with the lid in place.

Five-Way Light supports broader optical access, but the exact beam-center height for this model is not listed. If your instrument uses a fixed beam position or a tight holder geometry, check fit against your holder rather than assuming compatibility from outside dimensions alone.

Solvents and cleaning

This quartz cell is specified for fluorescence spectroscopy over 200–2500 nm. For general fabrication background, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue or another suitable laboratory wipe. A detailed chemical compatibility list is not established for this exact option, so check solvent, concentration, temperature and contact time for critical applications.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch together with your holder or instrument information, sample conditions and target quantity through Discuss your requirements, and quote part number C505CR3.
