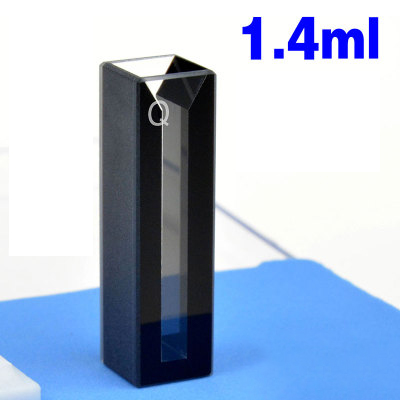

(C102CS86) Quartz Micro Cuvette, 10 mm Path, 1.4 mL
7%
Original price was: $29.00.$27.00Current price is: $27.00.
JGS1 quartz micro cuvette for UV/Vis work with a 10 mm optical path, black walls and a 1.4 mL nominal capacity. The two-way light layout and 4 mm sample-region width suit front-to-back transmission through a compact micro-cuvette body. Supplied as 1 cuvette per price unit, with closure included.
In Stock
Description
C102CS86 is a black-wall JGS1 quartz micro cuvette for UV/Vis measurements that use a 10 mm optical path. Its 1.4 mL nominal capacity and 4 mm sample region make it a practical choice when you want a compact cell body without changing to a shorter path length. This option is sold as 1 cuvette per price unit, with closure included.
- Path Length
- 10 mm
- Sample Volume (Nominal)
- 1.4 mL
- Closure Type
- Lid
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Micro Cuvette |
| Measurement Mode | UV/Vis Spectroscopy |
| Pack Quantity | 1 Piece |
| Path Length | 10 mm |
| Light Transmission Configuration | Two-Way Light |
| Optical Window Dimensions | 4 mm |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 1.4 mL |
| External Dimensions | 12.5 × 12.5 × 45 mm |
| Uncapped Cell Dimensions | 12.5 × 12.5 × 45 mm |
| External Dimensions Scope | Uncapped Cell |
| Material | Quartz |
| Material Grade | JGS1 |
| Closure Type | Lid |
| Closure Included | Yes |
| Fabrication Method | Standard 80 |
| Detection Channel Width | 4 mm |
Choose this option
Choose C102CS86 when your method is built around a 10 mm transmission path but your sample handling suits a micro cuvette format. The black-wall body keeps the optical route limited to the front and back faces, and the stated 1.4 mL nominal capacity gives you a clear basis for planning fills and sample preparation. This is especially useful when you want a defined transmission measurement in a smaller cell body rather than a larger general-purpose cuvette.
What makes this option different
- 10 mm path length supports methods set up for that standard transmission distance.
- Two-Way Light layout is for front-to-back transmission only, not side optical access.
- Black-wall micro cuvette body keeps the side walls non-transparent while leaving the measurement faces clear.
- 4 mm sample-region width helps you judge how the illuminated region sits within the sample area.
- 1.4 mL nominal capacity gives a smaller-capacity micro format while retaining the 10 mm path.
- Single-cuvette sale unit keeps this listing aligned with one physical cuvette per listed price.
Using this cell
Fill the cell so the beam passes through a fully covered liquid region, and keep the clear optical faces free from droplets, bubbles and dried residue. For routine UV/Vis work, use the same orientation for blank and sample so the light passes through the same two faces each time.
The 1.4 mL figure is a nominal capacity for the cell as specified, not a minimum working volume. Actual fill level depends on your beam height, sample behavior and how you load the cuvette.
First-use check
- Inspect the two optical faces for chips, scratches, residue or handling marks.
- Place the uncapped cell in your holder and confirm stable seating before loading samples.
- Run a blank at your working wavelength and confirm that the beam passes cleanly through the intended transmission faces.
Fit and optical alignment
The body size for the uncapped cell is 12.5 × 12.5 × 45 mm. Use that uncapped size to check holder clearance, seating depth and nearby hardware around the cell body.
Z Height is not established for this item, so beam-center alignment should be checked in any holder or instrument where beam height is critical. The listed dimensions do not include installed closure clearance.
Solvents and cleaning
This cell uses adhesive-bonded construction and maps to Standard 80 fabrication. In practical use, that makes it better suited to room-temperature water-based samples and buffer-type routines than to organic samples or organic cleaning solvents.
Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Because the chemical limits for this exact assembly are not established here, check your sample and cleaning routine against the full wetted path, including the closure, before use.
Included with this option
1 cuvette per listed price unit. Closure included.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch, along with your instrument or holder information, sample conditions and target quantity. Discuss your requirements and quote part number C102CS86.
Additional information
| Weight | 30 g |
|---|
