(C102CS53) Quartz Micro Cuvette, 10 mm Path, 150 µL

Weight	30 g

SKU: C102CS53

Original price was: $114.00.Current price is: $103.00.

In Stock

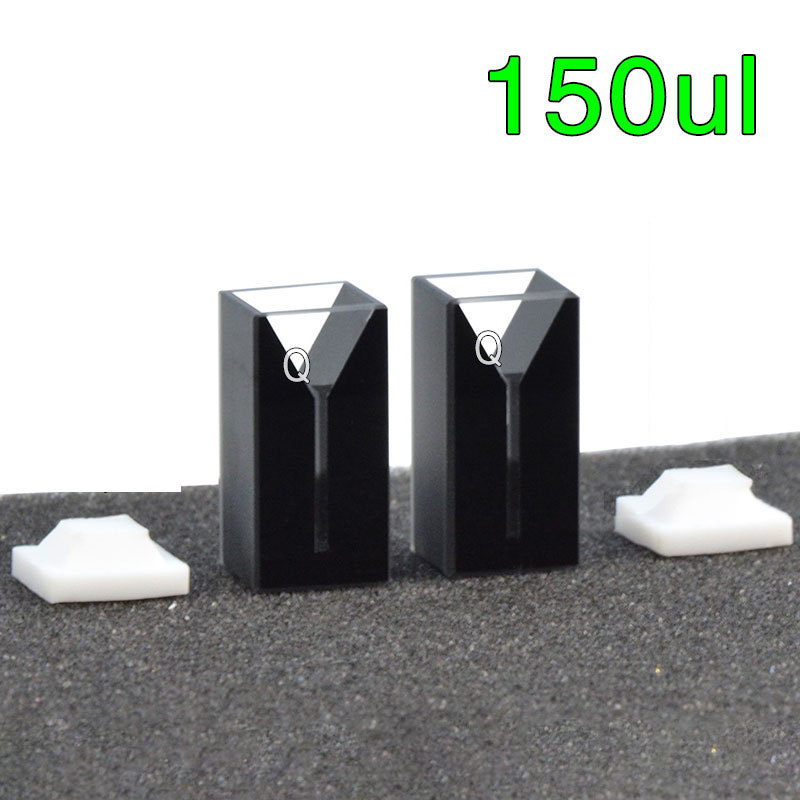

JGS1 quartz micro cuvette for UV/Vis spectroscopy with a 10 mm path length, 150 µL nominal capacity and open-top filling. The black-walled body and 1 mm sample channel suit compact transmission measurements where the sample region needs to stay narrowly defined. This listing is sold as 1 cuvette per listed price unit, with a closure included.

In Stock

SKU: C102CS53 Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CS53 is a JGS1 quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path in a compact 150 µL format. Its black-walled body, open-top access and 1 mm sample channel make it useful when you want a small-volume transmission cell with a clearly defined sample region and direct pipette access from above.

The cell uses a Two-Way Light layout and an uncapped 12.5 × 12.5 × 25 mm body. This listing is sold as 1 cuvette per listed price unit, with a closure included.

Path Length: 10 mm
Sample Volume (Nominal): 150 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	150 µL
External Dimensions	12.5 × 12.5 × 25 mm
Cell Body Dimensions	12.5 × 12.5 × 25 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 25 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Opening Configuration	Open Top
Detection Channel Width	1 mm

Choose this option

Choose C102CS53 when your method needs a 10 mm path length but your holder and sample volume suit a compact micro cuvette rather than a taller general-purpose cell. The black-walled format helps keep attention on the measurement region, and the open top is convenient for direct filling, rinsing and sample changes during routine UV/Vis work.

What makes this option different

10 mm optical path in a compact micro cuvette body.
150 µL nominal capacity for small-volume transmission measurements.
Black-walled, Two-Way Light design with a 1 mm sample channel.
Open-top format with a closure included; sold as 1 cuvette per listed price unit.

Using this cell

Fill the cell from the top and ensure the sample covers the beam path used by your method. Keep bubbles, droplets and dried residue away from the optical faces, and use the same orientation for blank and sample runs so the beam passes through the same region each time.

The stated 150 µL figure is a nominal capacity, not a minimum working volume. If your method depends on a particular fill height or beam position, check that condition in your own holder before routine use.

First-use check

Inspect the optical faces for dust, chips, scratches or residue before first use. Test fit the empty cell in your holder, then run a blank at your working wavelength and confirm that your intended fill condition covers the measurement region consistently.

Fit and optical alignment

The uncapped body measures 12.5 × 12.5 × 25 mm. Use that size for holder clearance around the bare cell, but do not treat it as the full installed envelope with the closure in place.

Z Height is not established for this SKU. If your spectrometer or holder uses a fixed beam-center height, confirm the actual seated beam position instead of relying on outer body height alone.

Solvents and cleaning

This adhesive-bonded construction corresponds to Standard 80. It is generally suited to routine room-temperature water-based work rather than organic-solvent methods.

A complete solvent compatibility list is not established for this exact listing. Avoid organic samples and organic cleaning agents with this adhesive-bonded cell. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis and abrasive cleaning methods.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, optical access, Z Height, closures and fabrication. To discuss a modified version, use our contact page and quote C102CS53 with your drawing or holder details.
