(C102SS28) Quartz Micro Cuvette, 10 mm Path, 1.75 mL

Weight	30 g

SKU: C102SS28

Original price was: $72.00.Current price is: $65.00.

In Stock

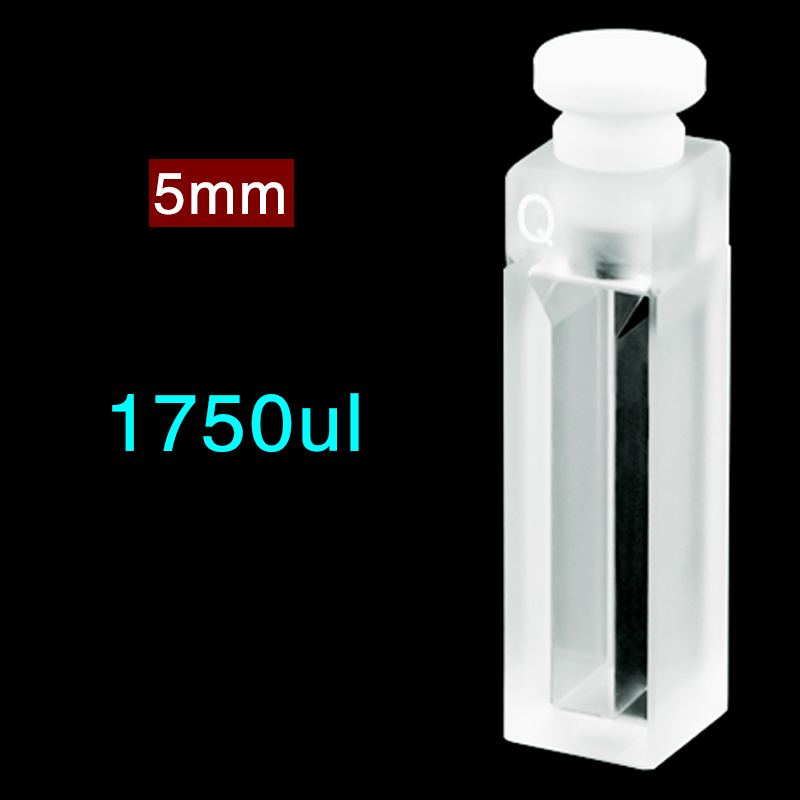

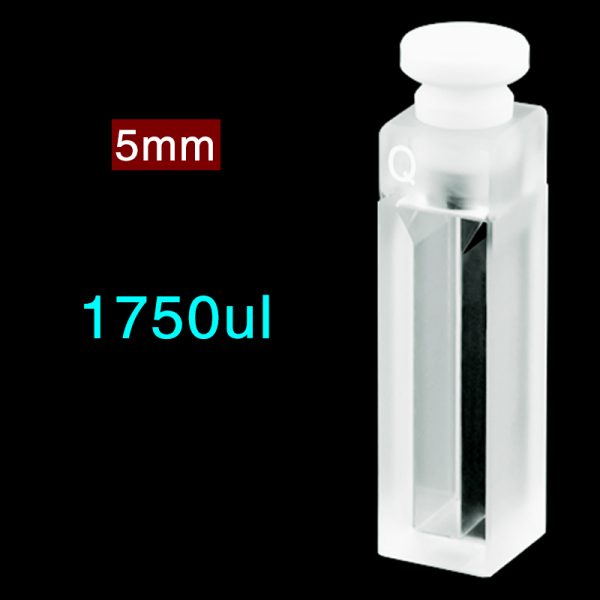

C102SS28 is a JGS1 quartz micro cuvette for UV/Vis work with a 10 mm optical path, 1.75 mL nominal capacity and a covered top opening. Its 5 mm sample-region width gives more illuminated width than the narrower variants in this series while keeping the same compact 12.5 × 12.5 mm base format. Sold as 1 cuvette per price unit, with closure included.

In Stock

SKU: C102SS28 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SS28 is a JGS1 quartz micro cuvette for UV/Vis spectroscopy, combining a 10 mm optical path with a 1.75 mL nominal capacity in a compact square body. This version also uses a 5 mm sample-region width and a supplied closure, which makes it a good fit when you want a covered micro cuvette and more illuminated width than the smaller-window options in the same family.

The combination of compact outer size and wider sample region is the main selection point here. You keep the familiar 12.5 × 12.5 mm holder footprint, but with a broader illuminated region for beam-footprint planning.

Path Length: 10 mm
Sample Volume (Nominal): 1.75 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	5 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.75 mL
External Dimensions	12.5 × 12.5 × 45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	5 mm

Choose this option

Choose C102SS28 when you need a 10 mm path length in a micro cuvette body and want the widest sample-region width among these related stopper-equipped variants. The 1.75 mL nominal capacity suits routine small-volume UV/Vis work, and the covered opening is useful when you want to keep the sample chamber closed during normal handling.

What makes this option different

10 mm optical path for standard straight-through UV/Vis measurements.
1.75 mL nominal capacity in a compact micro cuvette format.
5 mm sample-region width for a broader illuminated area than the narrower versions in this series.
Closure included for covered sample handling after top filling.
JGS1 quartz body with Standard 80 adhesive-bonded construction.

Using this cell

Fill the cell from the top so the beam passes through a fully covered liquid region, and remove bubbles or droplets from the optical path before measurement. Use the same seating and orientation for blank and sample runs to keep the optical path consistent.

The nominal 1.75 mL figure describes the cell capacity, not a minimum working volume. If your method uses low fill levels or a fixed beam position, check that the liquid height fully covers the beam in your actual instrument.

First-use check

Inspect the optical faces and opening for dust, chips or residue.
Test the cell in your holder and confirm square seating.
Run a blank first and check that the beam passes through a filled, bubble-free region.
Make sure there is enough clearance above the cuvette if the holder area is tight around the closure.

Fit and optical alignment

The listed outer dimensions are 12.5 × 12.5 × 45 mm, with a 12.5 × 12.5 mm base. This makes holder seating straightforward to review in the common square format, but the stated height is not defined here as body-only or closure-included, so check top clearance where space is limited.

The 5 mm sample-region width is helpful for beam-footprint planning, but Z Height is not specified for this item. If your instrument requires a defined beam-center height, confirm that separately before purchase.

Solvents and cleaning

This cuvette uses Standard 80 adhesive-bonded quartz construction. It is commonly chosen for routine room-temperature work with water-based samples and buffers.

Avoid organic sample solvents and organic cleaning agents with this construction. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with suitable non-abrasive laboratory or optical tissue.

Included with this option

Supplied as 1 micro cuvette with a stopper included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, capacity, body size, window arrangement or beam-height fit, we can review a custom JGS1 quartz version. Send your drawing or labelled sketch, holder details, critical dimensions and application conditions through our contact page, and include part number C102SS28 for reference.
