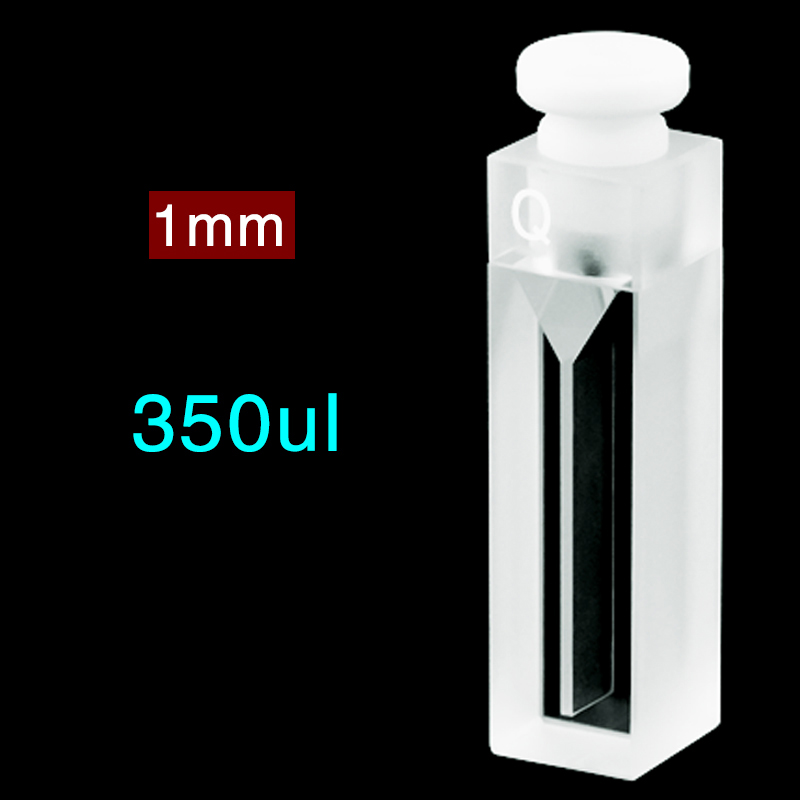

(C102SS24) Quartz Micro Cuvette, 10 mm Path, 350 µL
10%
Original price was: $72.00.$65.00Current price is: $65.00.
C102SS24 is a JGS1 quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, 350 µL nominal capacity and a stopper closure. This Two-Way Light version uses a 1 mm sample-region width and Standard 80 adhesive-bonded construction, making it a compact choice for routine water-based methods in a familiar 12.5 × 12.5 mm format. Sold as 1 cuvette.
In Stock
Description
C102SS24 is a JGS1 quartz micro cuvette for UV/Vis work when you need a standard 10 mm optical path in a compact 350 µL nominal-volume format. This version combines a 1 mm sample-region width, a stopper closure and Standard 80 adhesive-bonded construction, so it is best suited to routine water-based samples and buffers at room temperature.
The Two-Way Light layout supports transmission measurements through the main opposing optical faces. Its square 12.5 × 12.5 mm base keeps the familiar cuvette footprint for holder planning, while the narrow sample region makes this option relevant when your method is built around careful fill control in a micro-format cell.
- Path Length
- 10 mm
- Sample Volume (Nominal)
- 350 µL
- Closure Type
- Stopper
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Micro Cuvette |
| Measurement Mode | UV/Vis Spectroscopy |
| Pack Quantity | 1 Piece |
| Path Length | 10 mm |
| Light Transmission Configuration | Two-Way Light |
| Optical Window Dimensions | 1 mm |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 350 µL |
| External Dimensions | 12.5 × 12.5 × 45 mm |
| Base Dimensions | 12.5 × 12.5 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Closure Type | Stopper |
| Closure Included | Yes |
| Fabrication Method | Standard 80 |
| Detection Channel Width | 1 mm |
Choose this option
Choose C102SS24 when you want the lowest nominal capacity in this group together with a narrow 1 mm sample region. It is a practical option for routine UV/Vis methods that use water-based samples or buffers and need a compact covered micro cuvette rather than an open-top format. The stopper helps cover the sample after filling, and the outside size remains easy to check against standard square holders.
What makes this option different
- 350 µL nominal capacity for lower-volume filling in a 10 mm path cell.
- 1 mm sample-region width for a narrow filled measurement region.
- Standard 80 adhesive-bonded construction suited to routine water-based samples and buffers at room temperature.
- Stopper included for covered handling after filling.
Using this cell
Fill carefully so the sample fully covers the illuminated region and no bubbles remain in the optical path, then seat the stopper gently. Keep the same orientation for blank and sample measurements so the same faces and fill pattern are used each time.
The 350 µL value is the nominal capacity of the cell, not a minimum working volume. In practice, the required fill level depends on your beam position and method setup, so confirm that the filled sample actually covers the measurement region in your instrument.
First-use check
- Inspect the optical faces and stopper area for dust or residue.
- Test the fit in your holder and make sure the top clears surrounding hardware.
- Run a blank at your intended fill level and confirm that the beam passes through a fully filled region without bubbles.
Fit and optical alignment
The stated outer dimensions are 12.5 × 12.5 × 45 mm, with a 12.5 × 12.5 mm base. This helps you check holder fit in standard square cuvette positions, and you should also allow vertical space above the top for filling and stopper handling.
Z Height is not specified for this SKU. If your instrument or accessory depends on a defined beam-center height, verify the beam position against the actual sample region before ordering.
Solvents and cleaning
Standard 80 adhesive-bonded construction is the MQ option for routine water-based samples and buffers at room temperature. Avoid organic sample solvents and organic cleaning agents with this construction. If your method depends on organic-solvent use, ask about a more suitable construction.
Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Rinse promptly after use and clean the optical faces gently.
Included with this option
1 cuvette per listed price unit. Closure included.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows, closures and fabrication choices. Send a dimensioned drawing or labelled sketch, together with holder details and sample conditions, through Discuss your requirements and quote part number C102SS24.
Additional information
| Weight | 30 g |
|---|
