(C102SS43) Quartz Micro Cuvette, 10 mm Path, 1.4 mL
10%
Original price was: $86.00.$78.00Current price is: $78.00.

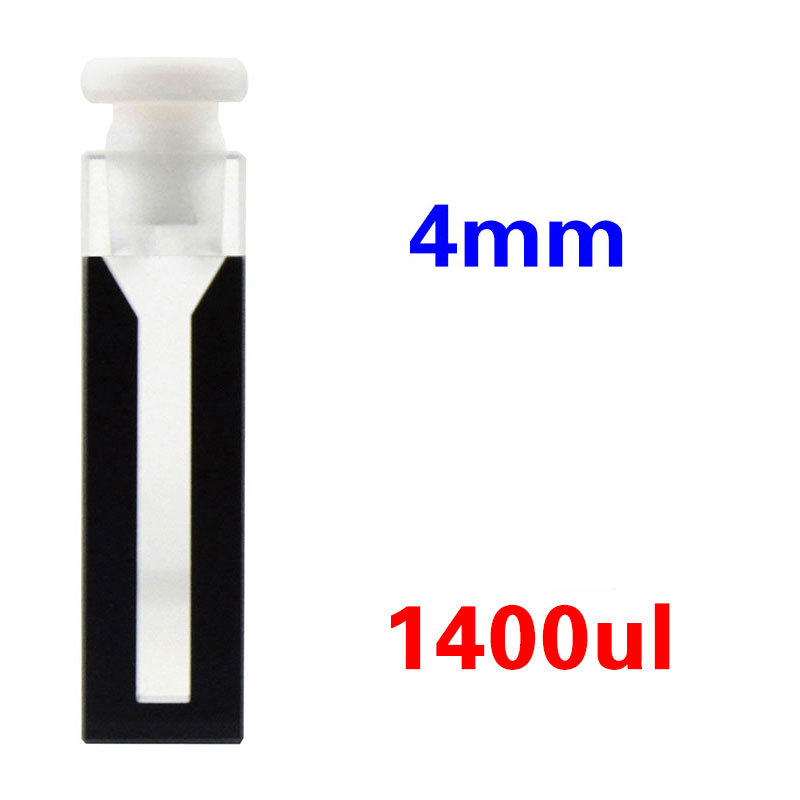

C102SS43 is a quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, a 1.4 mL nominal capacity and a 4 mm sample slit in a Two-Way Light layout. The included closure gives you a covered micro-volume format with a wider defined sample region than the narrower slit versions. Sold as 1 cuvette per listed price unit.
In Stock
Description
C102SS43 is a quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, a 4 mm sample slit and a stoppered body. Its 1.4 mL nominal capacity gives you the largest chamber volume of these listed slit-width variants while keeping the same basic Two-Way Light measurement layout.
- Path Length
- 10 mm
- Sample Volume (Nominal)
- 1.4 mL
- Closure Type
- Stopper
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Micro Cuvette |
| Measurement Mode | UV/Vis Spectroscopy |
| Path Length | 10 mm |
| Light Transmission Configuration | Two-Way Light |
| Optical Window Dimensions | 4 mm |
| Sample Volume (Nominal) | 1.4 mL |
| Material | Quartz |
| Material Grade | JGS1 |
| Closure Type | Stopper |
| Closure Included | Yes |
| Detection Channel Width | 4 mm |
Choose this option
Choose C102SS43 when your method uses a 10 mm path length and you want a micro cuvette with a wider defined sample region and covered handling. The 4 mm slit and 1.4 mL nominal capacity make this version useful when you want more chamber volume and a less narrow illuminated region than the smaller slit options, without changing to a different optical path.
What makes this option different
- 10 mm optical path for UV/Vis methods built around this standard path length.
- 4 mm sample slit defining a wider sample region than the narrower slit variants in this family.
- 1.4 mL nominal capacity for a larger micro-cuvette chamber volume.
- Two-Way Light, stoppered format with the closure included for covered handling.
Using this cell
Fill the cuvette so the illuminated region is fully covered during measurement. Use the same orientation for blank and sample, and check that no bubbles, droplets or settled residue remain in the optical path before placing the cell in the holder.
Seat the closure gently after filling. It is intended for ordinary covered handling during preparation and measurement, but it should not be treated as a pressure-rated or leak-tested seal for inversion, transport or closed-circuit use.
First-use check
- Inspect the optical faces for chips, residue or handling marks.
- Rinse with a suitable liquid for your method and dry the outer optical faces carefully.
- Run a blank in the same orientation you will use for samples.
- Confirm that the filled sample fully covers the beam path without bubbles.
Fit and optical alignment
Before ordering, check not only holder entry size but also beam position and footprint in your instrument. The 4 mm slit is a sample-region dimension, so a compatible result depends on how your beam crosses that region in the actual holder.
Z Height is not established here, so instrument matching should not be assumed from the 10 mm path alone. If your setup requires a specific beam-center height or limited holder clearance, please send your holder model or drawing before ordering.
Solvents and cleaning
Choose sample and cleaning liquids with the complete assembled cuvette in mind. The chemical limits of this exact cell and closure combination are not fully established here, so aggressive solvents, unusual cleaning liquids, elevated temperature and long contact times should be reviewed before routine use.
Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the outside optical faces gently with non-abrasive optical tissue. For general fabrication background, see Compare fabrication options.
Included with this option
1 cuvette per listed price unit. Closure included.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We can review custom JGS1 quartz versions for changes involving dimensions, optical path length, sample volume, optical windows, Z Height, closures or tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that matter to your method. Discuss your requirements and quote part number C102SS43.
Additional information
| Weight | 30 g |
|---|
