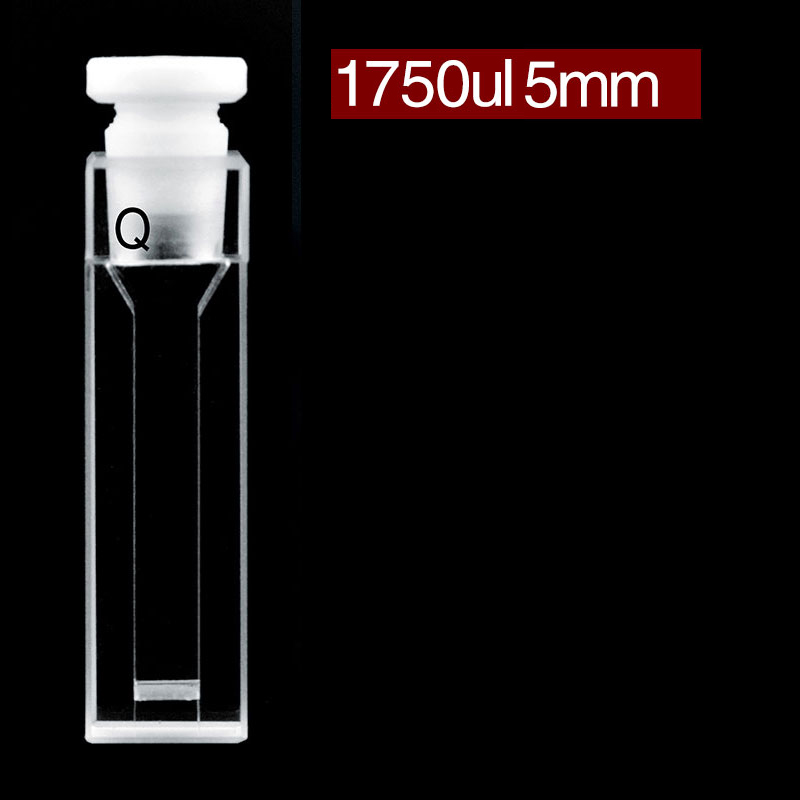

(C102SS39) Quartz Micro Cuvette, 10 mm Path, 1.75 mL

Weight	30 g

SKU: C102SS39

Original price was: $76.00.Current price is: $69.00.

In Stock

C102SS39 is a JGS1 quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, a 5 mm sample-region slit and 1.75 mL nominal capacity. This Two-Way Light stoppered version is sold as 1 cuvette per price unit.

In Stock

SKU: C102SS39 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SS39 is a JGS1 quartz micro cuvette for UV/Vis work that combines a 10 mm optical path with a 5 mm sample-region slit. Its 1.75 mL nominal capacity gives you a larger listed fill volume than the narrower slit variants in this series, while the included closure supports routine stoppered handling. This version is intended for neutral solutions only.

Path Length: 10 mm
Sample Volume (Nominal): 1.75 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	5 mm
Sample Volume (Nominal)	1.75 mL
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Detection Channel Width	5 mm

Choose this option

Choose C102SS39 when your method needs a 10 mm path in a micro cuvette, but with a 5 mm sample-region slit rather than a narrower channel. That geometry gives you a specific illuminated region to match against your beam footprint, and the stoppered top suits direct filling and covered handling in UV/Vis work.

What makes this option different

10 mm optical path for standard through-beam UV/Vis methods.
5 mm sample-region slit, separate from the path-length specification.
1.75 mL nominal capacity in a stoppered micro cuvette format.
Two-Way Light configuration for straight-through measurement.
Restricted to neutral solutions.

Using this cell

Fill the cuvette so the illuminated region is fully covered, and inspect the sample region for bubbles before measurement. Use the same orientation for blank and sample runs to keep the optical path and beam position consistent.

The listed 1.75 mL value is the nominal capacity, not a minimum working volume. If your method uses reduced fill levels, check in your own setup that the beam still passes completely through the filled region.

First-use check

Inspect the optical faces and rim for chips, dust or residue.
Seat the closure gently and confirm stable placement in the holder.
Run a blank in your intended orientation and confirm that the beam passes through a fully covered sample region.

Fit and optical alignment

The 5 mm slit width is useful when you are checking beam coverage in a microcell holder. It does not replace a full external dimension drawing or a certified aperture specification.

Z Height and full outer dimensions are not established for this SKU. If your instrument uses a fixed beam-center height or limited holder clearance, confirm that fit before ordering rather than assuming a standard microcell geometry.

Solvents and cleaning

This option is restricted to neutral solutions. Keep hydrofluoric acid away from quartz, avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces with a non-abrasive optical tissue or other suitable soft lab wipe.

For general construction background, see cuvette fabrication methods.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
