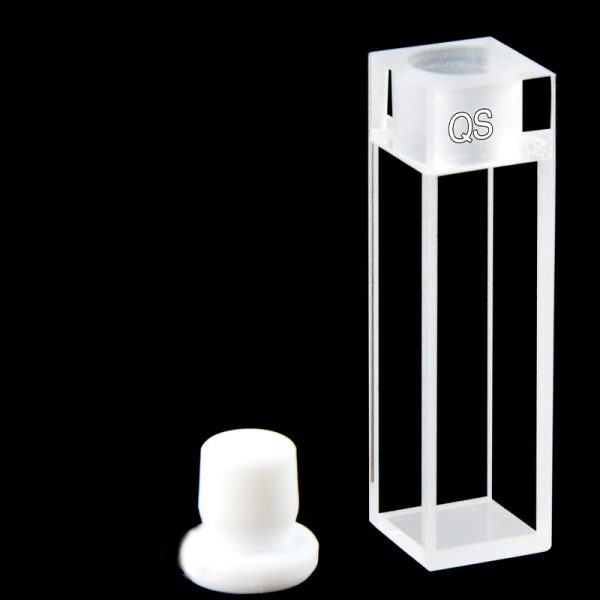

(C104SR24) Quartz Stoppered Cuvette, 10 mm Path

Weight	30 g
Dimensions	1.25 × 1.25 × 4.5 mm

SKU: C104SR24

Original price was: $109.00.Current price is: $99.00.

In Stock

C104SR24 is a JGS1 quartz stoppered cuvette for UV/Vis spectroscopy with a 10 mm optical path and Four-Way Light configuration. The PTFE stopper is included, and this listing is sold as 1 cuvette per priced unit.

In Stock

SKU: C104SR24 Categories: Cuvettes, Products, Quartz Stoppered Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104SR24 is a 10 mm path JGS1 quartz stoppered cuvette for UV/Vis work. It combines a covered sample opening with Four-Way Light access, so you can use a stoppered cell format while keeping optical access from all four sides of the cuvette body. This MQ listing is sold as 1 cuvette per priced unit.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C104SR24 when you need a single complete quartz cuvette with a 10 mm path length and a supplied PTFE stopper. This format is useful when your method calls for a covered sample chamber during routine handling and your optical setup benefits from side access on more than one face of the cell body.

What makes this option different

10 mm optical path: suitable for methods based on a 1 cm transmission path.
Four-Way Light body: gives optical access through all four sides of the cuvette body.
PTFE stopper included: provides a covered opening for normal sample filling and handling.
JGS1 quartz construction: intended for UV/Vis spectroscopy use.
Single-cuvette sale unit: this listing is priced as 1 physical cuvette.

Using this cell

Fill the cell so the liquid covers the beam path, then remove visible bubbles from the optical region before measurement. Keep the same orientation for blank and sample if your method depends on consistent placement.

Handle the cuvette by the non-optical surfaces and seat the PTFE stopper gently after filling. The stopper covers the opening during normal use, but this page does not define pressure-rated, leak-tight or transport-sealed performance.

First-use check

Before the first run, inspect the optical faces and stopper contact area for dust, fingerprints or residue. Rinse with a suitable liquid for your method, then run a blank and confirm that the beam passes cleanly through the filled sample region.

Fit and optical alignment

The 10 mm path length is established, and the Four-Way Light layout means the body offers optical access from four sides rather than only one opposing pair. That can matter when your holder or measurement geometry uses side optical access, but it should not be treated as automatic compatibility with a specific instrument.

Z Height and external dimensions are not listed here. If your holder has limited clearance or a fixed beam-center position, check those points before ordering.

Solvents and cleaning

For fabrication background, see Compare fabrication options. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods.

Chemical limits for this exact assembled option are not listed here, so if your work involves aggressive chemicals, unusual rinse liquids or extended contact time, check compatibility for the full assembly before use. Wipe exterior optical faces gently with non-abrasive optical tissue.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We also coordinate custom JGS1 quartz cuvette enquiries for changes such as dimensions, optical path length, windows, closures or other fit-related details. If you need a modified version, please send your drawing or holder information and discuss it with us at Discuss your requirements.
