(C104SR25) Quartz Stoppered Cuvette, 10 mm Path, Pack of 2

Weight	30 g
Dimensions	1.25 × 1.25 × 4.5 mm

SKU: C104SR25

Original price was: $217.00.Current price is: $196.00.

In Stock

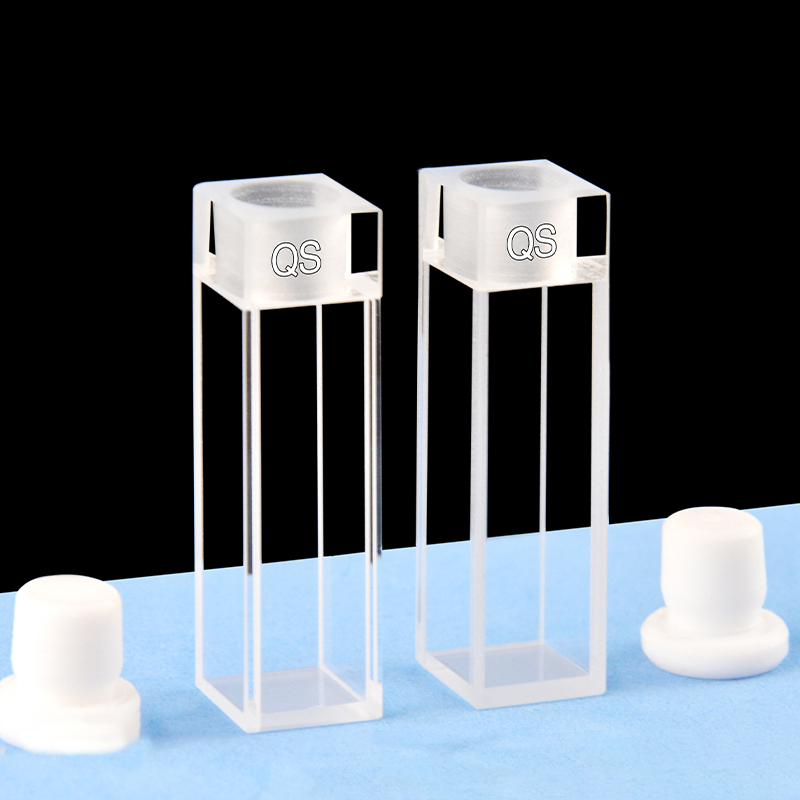

C104SR25 is a JGS1 quartz stoppered cuvette for UV/Vis spectroscopy with a 10 mm optical path and Four-Way Light configuration. The PTFE stopper is included, and this listing is sold as 2 cuvettes per priced unit.

In Stock

SKU: C104SR25 Categories: Cuvettes, Products, Quartz Stoppered Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104SR25 is a 10 mm path JGS1 quartz stoppered cuvette for UV/Vis work. It combines Four-Way Light access with a covered sample opening, giving you optical access from all four sides of the cell body in a stoppered format for routine handling. This MQ listing is sold as 2 cuvettes per priced unit.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C104SR25 when you need a 10 mm quartz cuvette with four-side optical access and a supplied PTFE stopper. It suits setups where the path length is fixed by the method and where a covered sample chamber is preferred over an open-top cell during normal filling and measurement.

What makes this option different

10 mm optical path: fits methods built around the standard 1 cm path length.
Four-Way Light geometry: optical access is available on all four sides of the cuvette body.
PTFE stopper included: the sample chamber is supplied with a stopper-style closure.
JGS1 quartz material: intended for UV/Vis spectroscopy use.
Pack of 2: this listing is priced as two physical cuvettes per sale unit.

Using this cell

Fill the cell so the beam passes through liquid rather than an unfilled section, then remove visible bubbles from the optical region before measurement. For consistent results, keep the same orientation for blank and sample runs when your procedure depends on positioning.

Handle the cuvette by non-optical surfaces and seat the PTFE stopper gently after filling. The stopper covers the opening for normal use, but this page does not define pressure, leak-tight transport or closed-loop service.

First-use check

Before first use, inspect the optical faces and stopper contact area for dust, chips, fingerprints or storage residue. Rinse with a suitable liquid for your method, fill with a blank, and confirm a clean beam path through the intended sample region.

Fit and optical alignment

The established selection points here are the 10 mm path length and Four-Way Light arrangement. Four-Way Light can help when your setup needs optical access from more than one side of the body, but it does not by itself establish a particular beam height or holder fit.

External dimensions and Z Height are not listed here. If your instrument has tight compartment space or a fixed beam-center height, check those details before ordering rather than relying on family appearance alone.

Solvents and cleaning

Quartz is widely used for UV/Vis cells, but the chemical limits for this exact assembled SKU are not listed here. If your sample, rinse solvent or cleaning routine is chemically demanding, check compatibility for the full assembly before use, including the quartz body and PTFE stopper.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods. Wipe the optical faces gently with non-abrasive optical tissue. For background on MQ fabrication categories, see the fabrication guide.

Included with this option

2 cuvettes per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We also review custom JGS1 quartz cuvette enquiries for changes to dimensions, optical path length, windows, closures and related fit requirements. If you need a modified version, send your drawing or sketch together with holder or instrument details and the key dimensions for your setup. You can contact us at Discuss your requirements and reference C104SR25.
